Power Cords

Power cords

moxa-power-cords-image-(1).jpg | Moxa
moxa-power-cords-image-1-(1).jpg | Moxa

Features and Benefits

  • Provides different plug types for desktop type power adapters

Contact Sales

Introduction

The power cords described in this datasheet provide the different plug types used in different regions or countries for desktop type power adapters or Moxa products with AC power inputs.

Appearance

CBL-PJ21NOPEN-BK-30

CBL-PJTB-10

  • Voltage Range

    100 to 240 VAC (50 to 60 Hz)

  • Input Plug Type

    PWR-AU Series: Australia plug type
    PWR-CN Series: China plug type
    PWR-EU Series: Europe plug type
    PWR-UK Series: United Kingdom plug type
    PWR-USJP Series: United States/Japan plug type

  • Output Power Rating

    PWR-12050 Series: 0.5 A @ 12 VDC
    PWR-12125-USJP-S1: 1.25 A @ 12 VDC
    PWR-12150 Series: 1.5 A @ 12 VDC
    PWR-12125-DT-S2: 1.25 A @ 12 VDC
    PWR-12200-DT-S1: 2 A @ 12 VDC
    PWR-12300 Series: 3 A @ 12 VDC

  • Output Plug Type

    PWR-12050-S1 Series: S-Type 5.5/2.1/7.5
    PWR-12300 Series: S-Type 5.5/2.1/7.5
    PWR-12050-S2 Series: L-Type 5.5/2.1/9.0
    PWR-12125-USJP-S1: L-Type 5.5/2.1/9.5
    PWR-12150 Series: L-Type 5.5/2.1/9.0
    PWR-12125-DT-S2: S-Type 5.5/2.1/7.5
    PWR-12200-DT-S1: S-Type 5.5/2.1/7.5
    PWR-12150-SA-T Series: L-Type 5.5/2.1/7.5
    Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in)
    Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)

  • Dimensions

    PWR-12050-WPAU-S1: 64 x 40.5 x 58.5 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPAU-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPCN-S1: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPCN-S2: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPEU-S1: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)
    PWR-12050-WPEU-S2: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)
    PWR-12050-WPUK-S1: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUK-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUSJP-S1: 64 x 40.5 x 47.5 mm (2.52 x 1.59 x 1.87 in)
    PWR-12050-WPUSJP-S2: 64 x 40.5 x 30 mm (2.52 x 1.59 x 1.18 in)
    PWR-12125-USJP-S1: 74 x 43.5 x 52.5 mm (2.91 x 1.71 x 2.07 in)
    PWR-12150-AU-S2: 70 x 55 x 56 mm (2.76 x 2.17 x 2.21 in)
    PWR-12150-CN-S1: 70 x 45 x 54 mm (2.76 x 1.77 x 2.13 in)
    PWR-12150-EU-S2: 70 x 45 x 66.5 mm (2.76 x 1.77 x 2.62 in)
    PWR-12150-UK-S2: 70 x 48 x 60 mm (2.76 x 1.89 x 2.36 in)
    PWR-12300-WPAU-S1: 74 x 43.5 x 63.3 mm (2.91 x 1.71 x 2.49 in)
    PWR-12300-WPCN-S1: 74 x 43.5 x 51.3 mm (2.91 x 1.71 x 2.02 in)
    PWR-12300-WPEU-S1: 74 x 43.5 x 73.5 mm (2.91 x 1.71 x 2.89 in)
    PWR-12300-WPUK-S1: 74 x 43.5 x 61 mm (2.91 x 1.71 x 2.40 in)
    PWR-12300-WPUSJP-S1: 74 x 43.5 x 52.3 mm (2.91 x 1.71 x 2.06 in)
    PWR-12125-DT-S2: 75 x 47.5 x 27.3 mm (2.95 x 1.87 x 1.07 in)
    PWR-12200-DT-S1: 110.8 x 51.8 x 32 mm (4.36 x 2.04 x 1.26 in)
    PWR-12150-AU-SA-T: 41 x 73.9 x 89.5 mm (1.61 x 2.91 x 3.52 in)
    PWR-12150-CN-SA-T: 32 x 60 x 88 mm (1.26 x 2.36 x 3.46 in)
    PWR-12150-EU-SA-T: 32 x 85.3 x 88 mm (1.26 x 3.36 x 3.46 in)
    PWR-12150-UK-SA-T: 50 x 91 x 82.5 mm (1.97 x 3.58 x 3.25 in)
    PWR-12150-USJP-SA-T: 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in)

  • Weight

    PWR-12050 Series: 70 g ( 0.15 lb )
    PWR-12125-US-JP-S1: 108 g (0.24 lb )
    PWR-12150 Series: 200 g ( 0.44 lb )
    PWR-12300-S1 Series: 163 g ( 0.36 lb )
    PWR-DT Series: 200 g ( 0.44 lb )

  • Cord Length

    PWR-12050-S1 Series: 1530±100 mm (60.24±3.94 in)
    PWR-12050-S2 Series: 1830±100 mm (72.05±3.94 in)
    PWR-12125-USJP-S1: 1530±100 mm (60.24±3.84 in)
    PWR-12150 Series: 1800±200 mm (70.87±7.87 in)
    PWR-12300 Series: 1530±200 mm (60.24±7.87 in)
    PWR-12200-DT-S1: 1800±200 mm (70.87±7.87 in)
    PWR-12125-DT-S2: 1530±100 mm (60.24±3.94 in)

  • Operating Temperature

    Standard models: 0 to 40°C (32 to 104°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    Standard models: -20 to 70°C (-4 to 158°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Safety

    PWR-12050-S1 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12300 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12050-S2 Series: CE/FCC/UL/RCM/PSE/CCC
    PWR-12125-USJP-S1: CE/FCC/UL/RCM/PSE/GS
    PWR-12150-AU-S2: RCM
    PWR-12150-CN-S1: CCC
    PWR-12150-EU-S2: CE/GS
    PWR-12150-UK-S2: CE
    PWR-12200-DT-S1: Efficiency Level 5: CE/FCC/UL/RCM/PSE/CCC; Efficiency Level 6: CE/FCC/UL/PSE
    PWR-12125-DT-S2: CE/FCC/UL/PSE/GS
    PWR-12150-AU-SA-T: RCM
    PWR-12150-CN-SA-T: CCC
    PWR-12150-EU-SA-T: TUV/CE/GS
    PWR-12150-UK-SA-T: CE
    PWR-12150-USJP-SA-T: FCC/UL/PSE

Support Documents

Name Type Version Release Date
Datasheet for Power Cords
1.0 MB
Datasheet v1.0 2020-01-21 Jan 21, 2020

Available Models (14)

Show Images
moxa-pwc-c13au-3b-183-image.jpg | MoxaPWC-C13AU-3B-183moxa-pwc-c13cn-3b-183-image.jpg | MoxaPWC-C13CN-3B-183moxa-pwc-c13eu-3b-183-image.jpg | MoxaPWC-C13EU-3B-183moxa-pwc-c13jp-3b-183-image.jpg | MoxaPWC-C13JP-3B-183
Barrel-plug Type
Input-plug TypeAUCNEUJP
Input Voltage250 VAC250 VAC250 VAC125 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

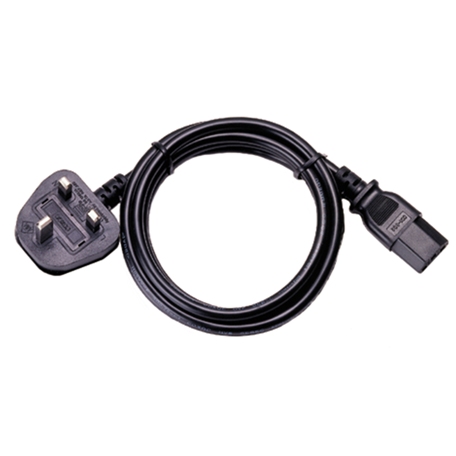

moxa-pwc-c13uk-3b-183-image.jpg | MoxaPWC-C13UK-3B-183moxa-pwc-c13us-3b-183-image.jpg | MoxaPWC-C13US-3B-183moxa-pwc-c7au-2b-183-image.jpg | MoxaPWC-C7AU-2B-183moxa-cbl-pj21nopen-bk-30-image.jpg | MoxaCBL-PJ21NOPEN-BK-30
Barrel-plug TypeLocking
Input-plug TypeUKUSAU
Input Voltage250 VAC125 VAC250 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

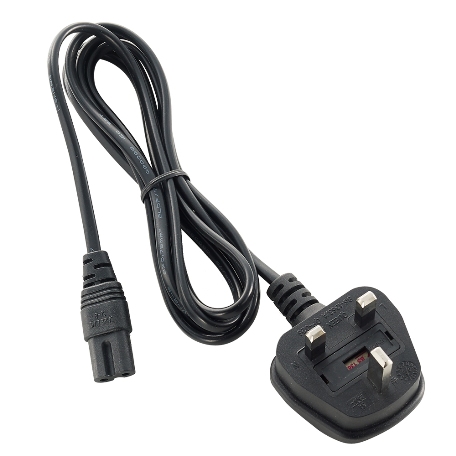

moxa-pwc-c7eu-2b-183-image.jpg | MoxaPWC-C7EU-2B-183moxa-pwc-c7jp-2b-183-image.jpg | MoxaPWC-C7JP-2B-183moxa-pwc-c7uk-2b-183-image.jpg | MoxaPWC-C7UK-2B-183moxa-pwc-c7us-2b-183-image.jpg | MoxaPWC-C7US-2B-183
Barrel-plug Type
Input-plug TypeEUJPUKUS
Input Voltage250 VAC125 VAC250 VAC125 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

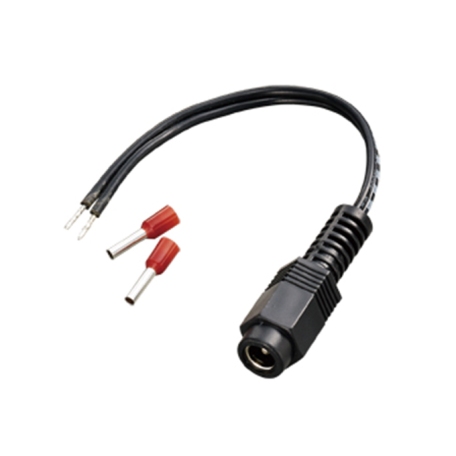

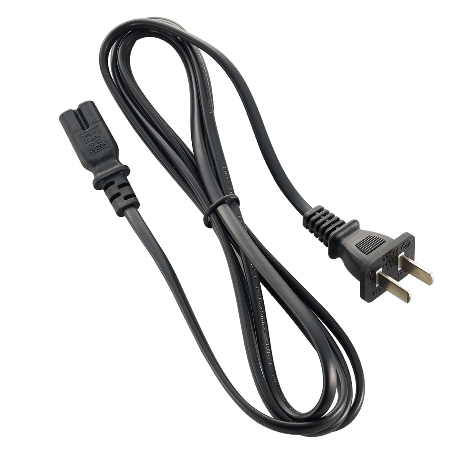

moxa-cbl-pjtb-10-image.jpg | MoxaCBL-PJTB-10moxa-pwc-c7cn-2b-183-image.jpg | MoxaPWC-C7CN-2B-183
Barrel-plug TypeNon-locking
Input-plug TypeCN
Input Voltage250 VAC
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

Power Cords

PWC-C13AU-3B-183

moxa-pwc-c13au-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

PWC-C13CN-3B-183

moxa-pwc-c13cn-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

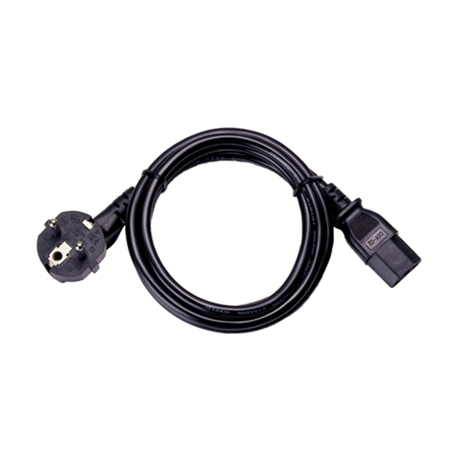

PWC-C13EU-3B-183

moxa-pwc-c13eu-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

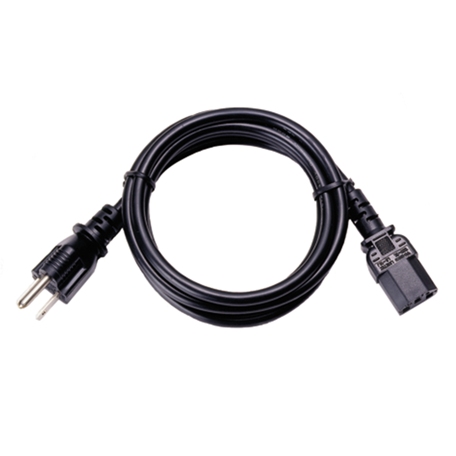

PWC-C13JP-3B-183

moxa-pwc-c13jp-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

PWC-C13UK-3B-183

moxa-pwc-c13uk-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

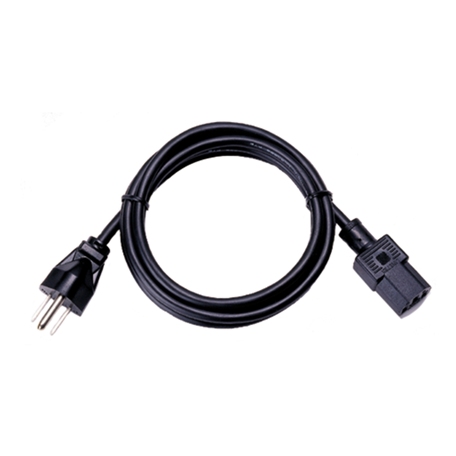

PWC-C13US-3B-183

moxa-pwc-c13us-3b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

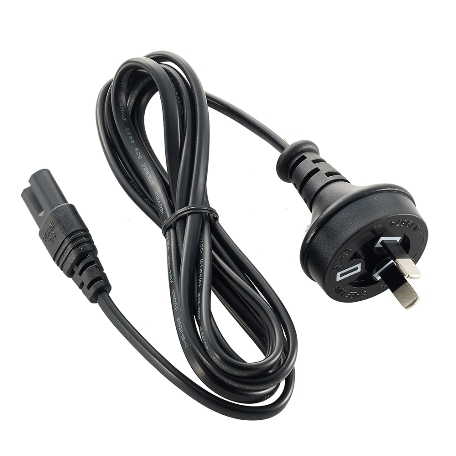

PWC-C7AU-2B-183

moxa-pwc-c7au-2b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

CBL-PJ21NOPEN-BK-30

moxa-cbl-pj21nopen-bk-30-image.jpg | Moxa

Buy online from our distributors

Power Cords

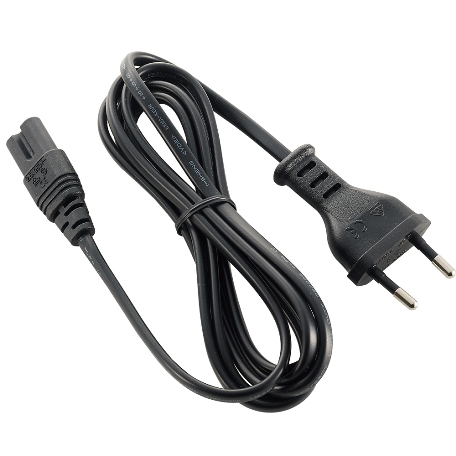

PWC-C7EU-2B-183

moxa-pwc-c7eu-2b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

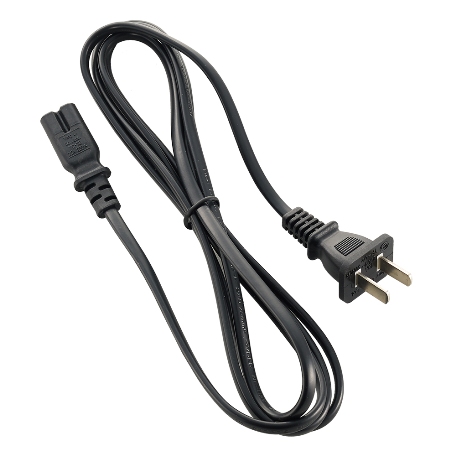

PWC-C7JP-2B-183

moxa-pwc-c7jp-2b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

PWC-C7UK-2B-183

moxa-pwc-c7uk-2b-183-image.jpg | Moxa

Buy online from our distributors

Power Cords

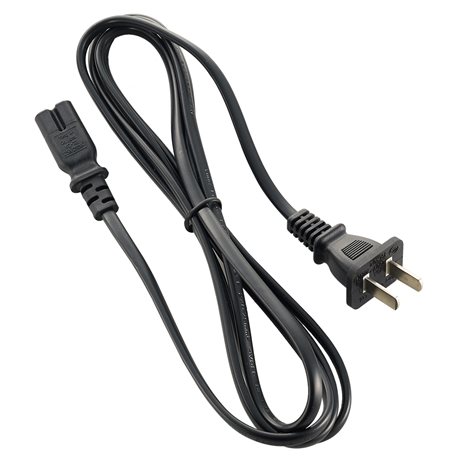

PWC-C7US-2B-183
