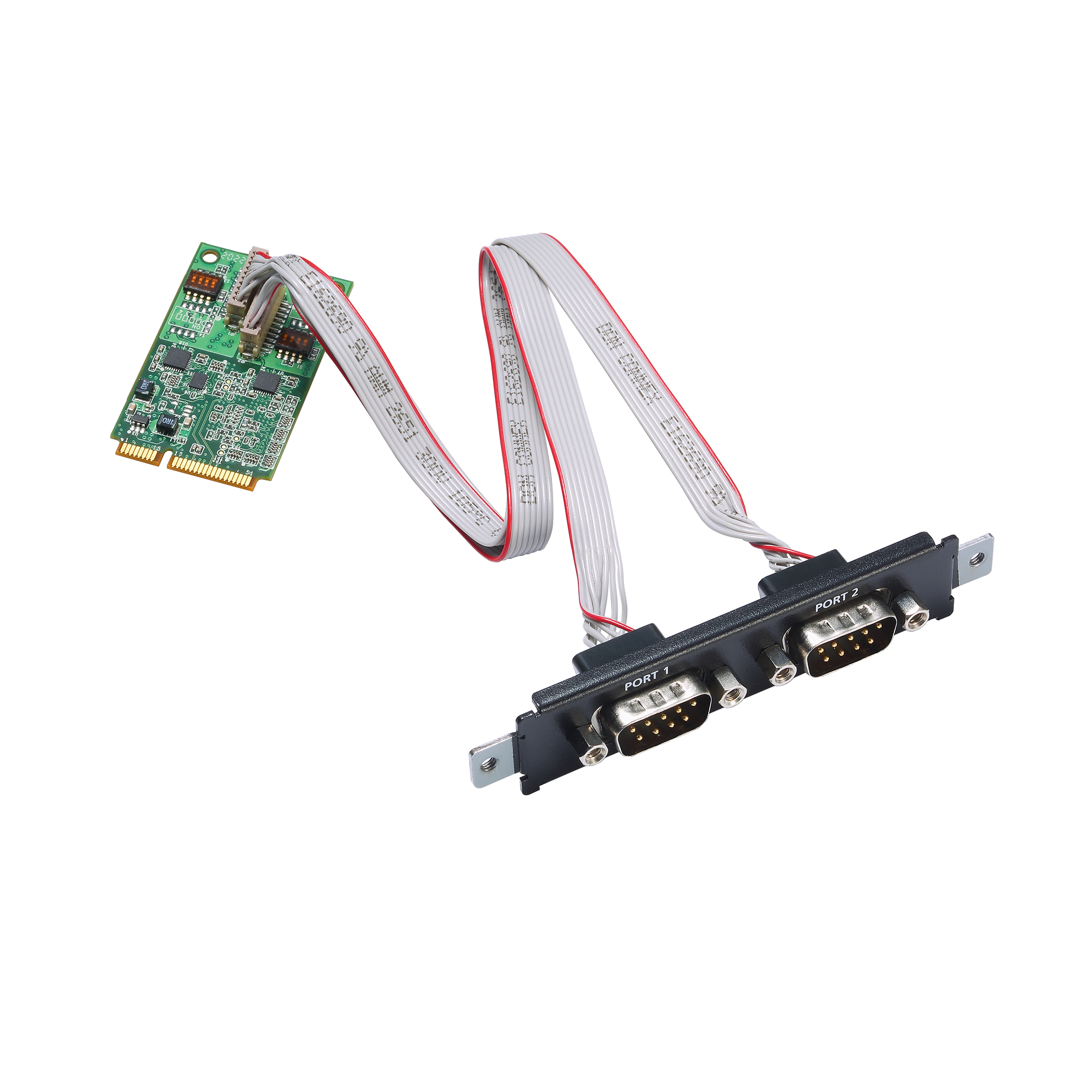

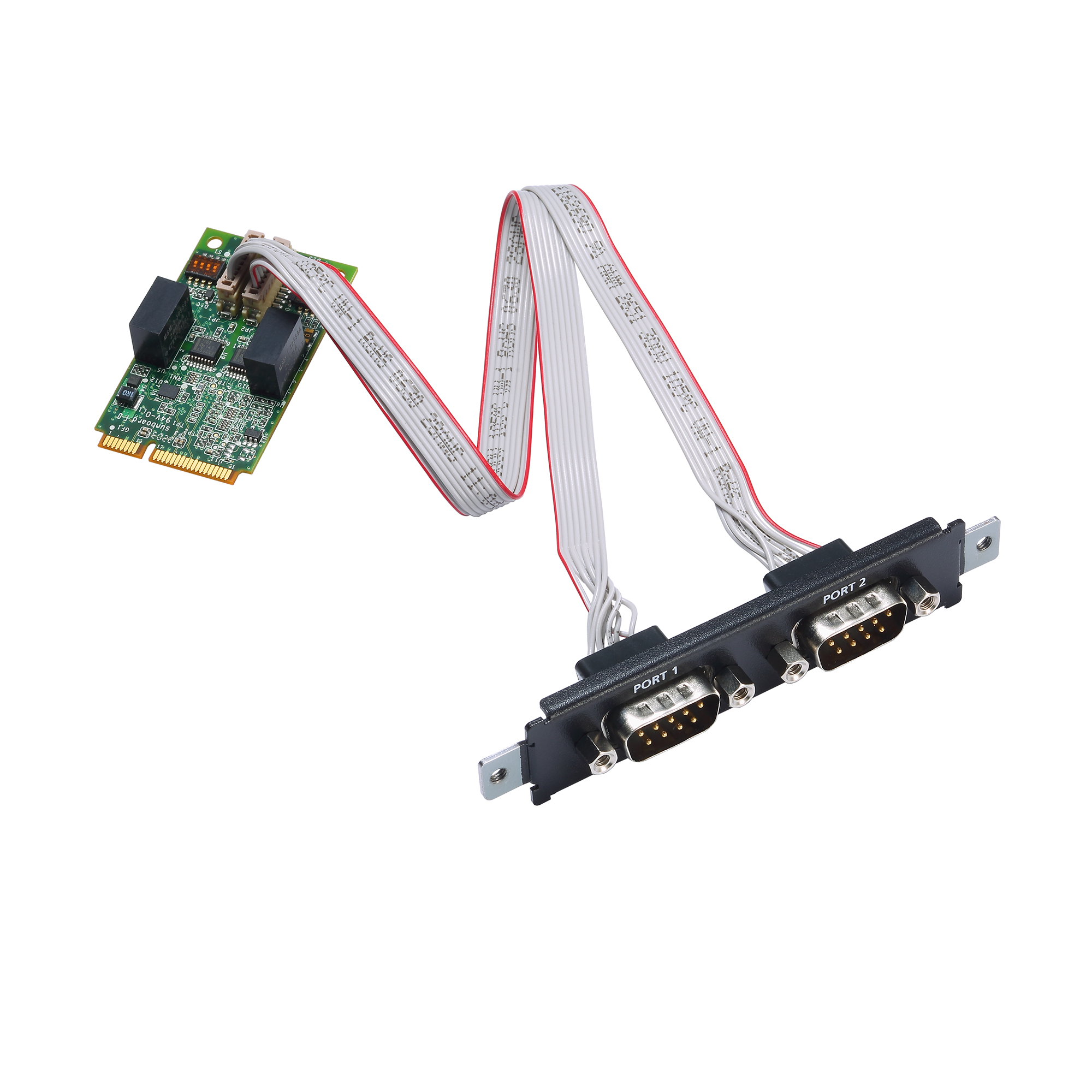

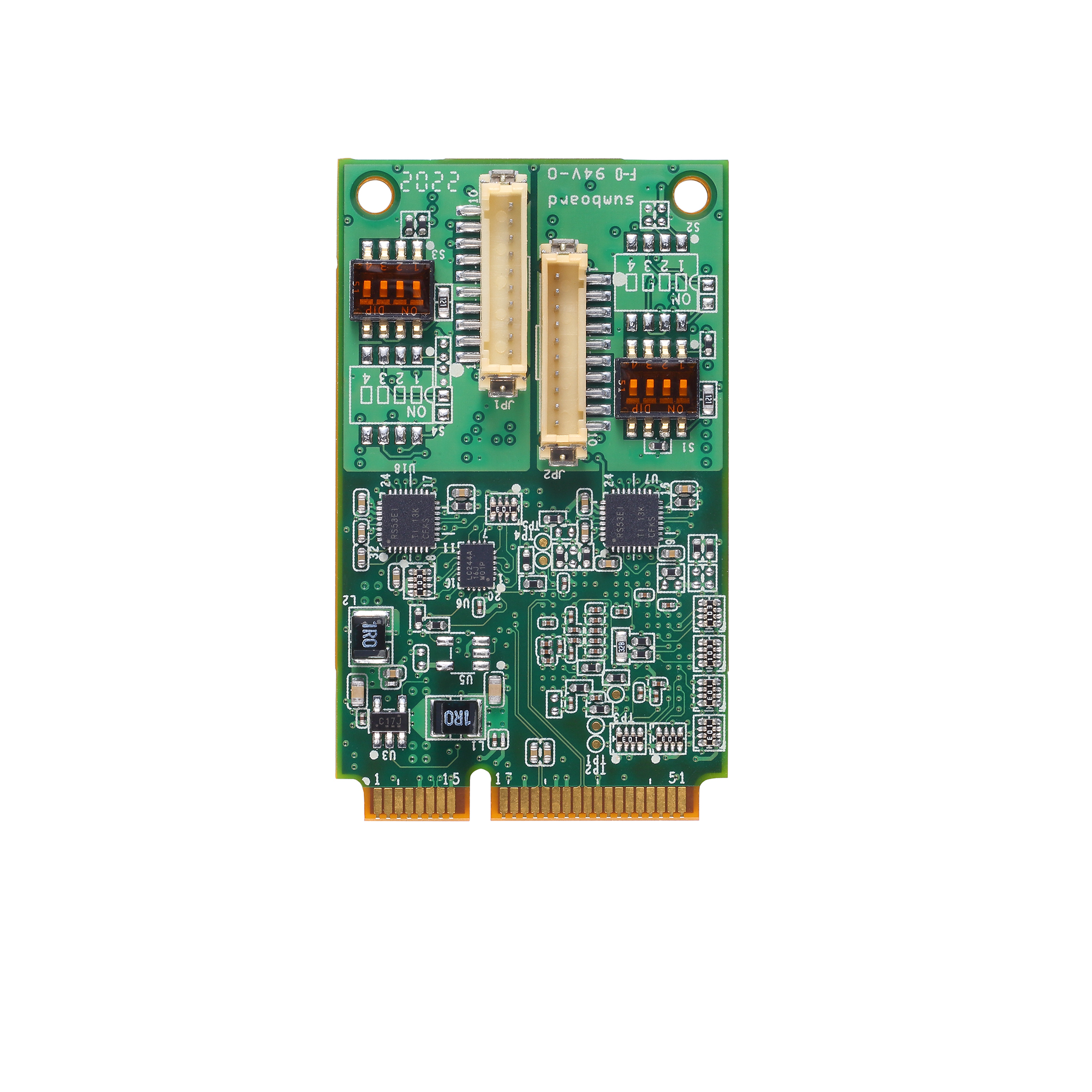

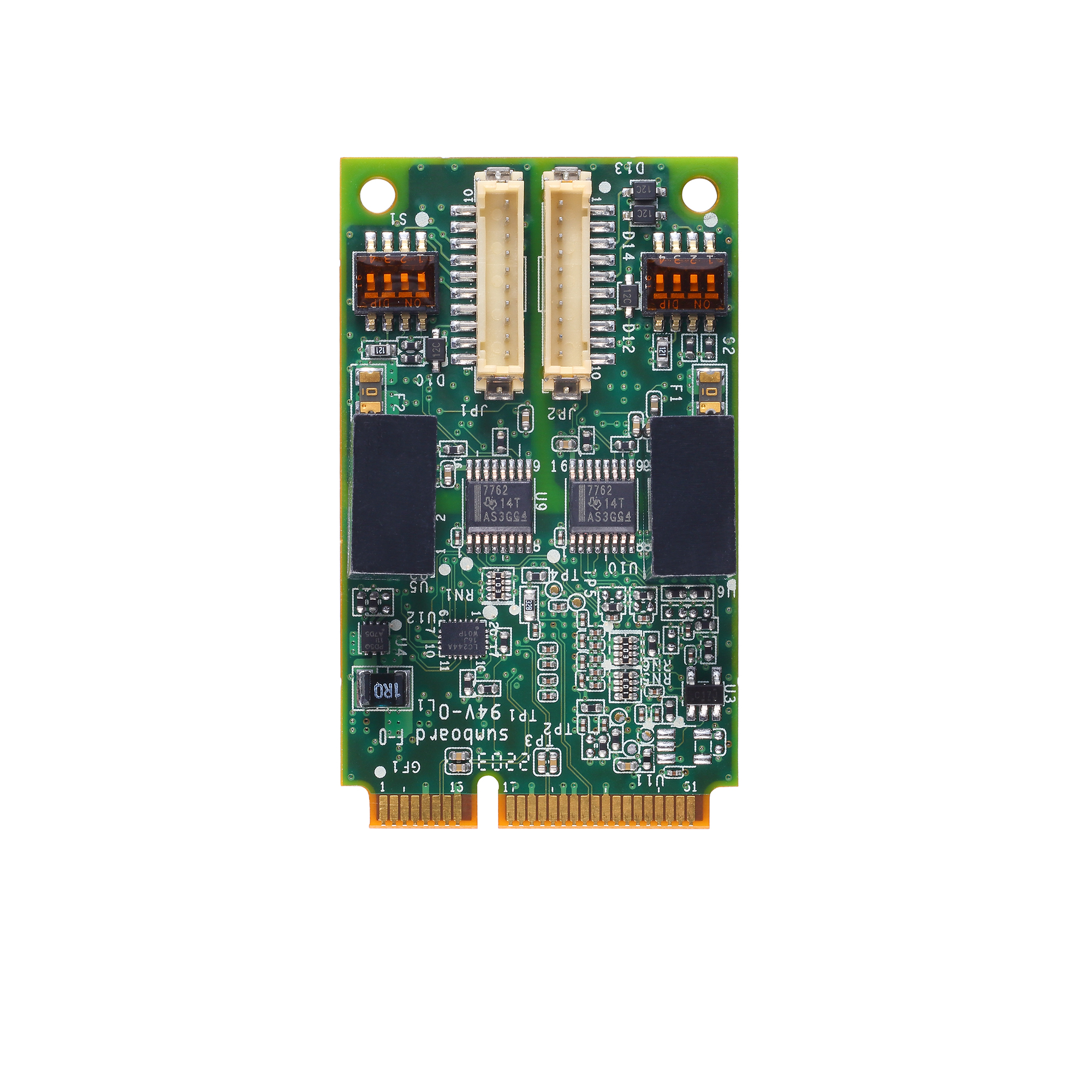

CP-102N Series

2-port RS-232 Mini PCI Express boards

moxa-cp-102n-series-image-(1).jpg | Moxa
moxa-cp-102n-series-image-1-(1).jpg | Moxa
moxa-cp-102n-series-image-2-(1).jpg | Moxa
moxa-cp-102n-series-image-3-(1).jpg | Moxa

Features and Benefits

  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-102N is a multiport serial board designed for industrial automation system and industrial PC manufacturers. It is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.

The CP-102N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232 serial ports support a fast 921.6 kbps baudrate. The CP-102N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. It also provides 1 kV line-to-line surge protection and 2.5 kV isolation (for the I model), ensuring compatibility in a wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market

Moxa’s new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes Isolated and non-Isolated RS-232/422/485 communication cards for various applications.

The serial boards feature high performance 16C950 compatible UARTs and are available in 4-port and 2-port versions compatible with all popular operating systems. They support data rates of up to 921.6 kbps and have 128-byte transmit and receive FIFOs. The serial boards can operate in the -40 to 85˚C temperature range. Door backets are included in the package for all models, enabling the installation of the serial boards in a Moxa IPC expansion slot.

  • Comm. Controller

    16C550C compatible

  • Bus

    Mini PCI Express

  • Connector

    2 x DB9 male
    DB9 male

  • FIFO

    128 bytes

  • No. of Ports

    2

  • Serial Standards

    RS-232

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    2.5 kV
    (I models)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Windows Drivers

    Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022

  • Linux Drivers

    Linux kernel 4.x, Linux kernel 5.x

  • Input Current

    CP-102N-T: 377 mA @ 3.3 VDC
    CP-102N-I-T: 458 mA @ 3.3 VDC

  • Dimensions

    30 x 50.95 mm (1.18 x 2 in)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    CP-102N-I-T: 3,512,504 hrs
    CP-102N-T: 4,715,178 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
Driver
SHA-512
v6.0
  • Linux Kernel 6.x
Jul 31, 2023 Jul 31, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Jan 17, 2023 Jan 17, 2023 Release notes
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
Sep 06, 2022 Sep 06, 2022 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 11 and Windows Server 2022)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
Driver for Linux kernel 5.x.x
152.9 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Linux kernel 4.x.x
154.1 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes

Support Documents

Name Type Version Release Date
Mini PCI Express Multiport Serial Board Series Quick Installation Guide
4.3 MB
QIG v1.1 Jan 30, 2023 Jan 30, 2023
Mini PCI Express Multiport Serial Board Series User Manual
10.9 MB
Manual v1.0 Jan 17, 2023 Jan 17, 2023
Datasheet for CP-102N Series
1.0 MB
Datasheet v1.0 Jan 16, 2023 Jan 16, 2023

Available Models (2)

Show Images

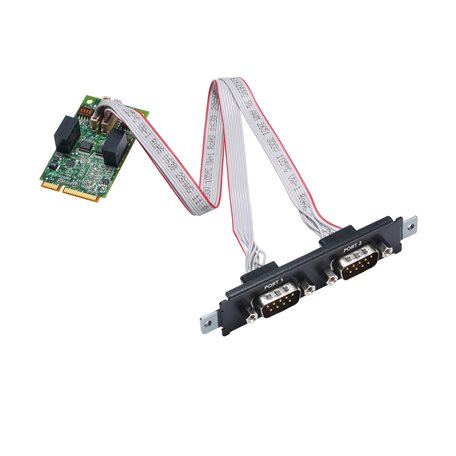

moxa-cp-102n-i-t-image.jpg | MoxaCP-102N-I-Tmoxa-cp-102n-t-image.jpg | MoxaCP-102N-T
Serial StandardsRS-232RS-232
No. of Serial Ports22
Serial Isolation Protection2.5 kV
