CP-114EL Series

4-port RS-232/422/485 PCI Express boards with optional 2 kV isolation

moxa-cp-114el-series-image-1-(1).jpg | Moxa

Features and Benefits

  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and UNIX. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a fast 921.6 kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express x1 classification allows the boards to be installed in any PCI Express slot.

Smaller Form Factor

The CP-114EL and CP-114EL-I are low-profile boards that are compatible with any PCI Express slot. The boards require only a 3.3 VDC power supply, which means that the boards fit any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-114EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

  • Comm. Controller

    16C550C compatible

  • Bus

    PCI Express 1.0

  • Connector

    DB44 female

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    4

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    CP-114EL-I Series: 2 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

  • Input Current

    CP-114EL Series: 835 mA @ 3.3 VDC
    CP-114EL-I Series: 1,170 mA @ 3.3 VDC

  • Dimensions

    CP-114EL Series: 67.21 x 103 mm (2.65 x 4.06 in)
    CP-114EL-I Series: 67.21 x 135 mm (2.65 x 5.31 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    CP-114EL Series: 2,347,197 hrs
    CP-114EL-I Series: 603,671 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for Windows (Windows 7 2008 R2 or later)
1.9 MB
Driver v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
May 18, 2020 May 18, 2020 Release notes
Driver for Linux kernel 2.x.x
161.3 KB
Driver v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 3.x.x
161.1 KB
Driver v3.0
  • Linux Kernel 3.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 4.x.x
166.5 KB
Driver v4.0
  • Linux Kernel 4.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 5.x.x
166.1 KB
Driver v5.0
  • Linux Kernel 5.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for CP-114EL Series (WinCE 6)
282.1 KB
Driver v1.0
  • Windows CE 6.0
Jan 29, 2019 Jan 29, 2019 Release notes
Driver for CP-114EL Series (Windows XP, 2008 or earlier)
759.9 KB
Driver v1.24
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Oct 17, 2017 Oct 17, 2017 Release notes
Driver for CP-114EL Series (DOS)
634.2 KB
Driver v1.12
  • DOS
Mar 31, 2014 Mar 31, 2014 Release notes
Driver for CP-114EL Series (SCO 5)
649.5 KB
Driver v1.13
  • SCO OpenServer 5
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-114EL Series (SCO 6)
322.0 KB
Driver v1.13
  • SCO OpenServer 6
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-114EL Series (Sun Solaris)
118.0 KB
Driver v1.1
  • Solaris 10
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-114EL Series (UnixWare)
330.0 KB
Driver v1.13
  • SCO UnixWare 7
Mar 30, 2014 Mar 30, 2014 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for CP-114EL Series (Windows ME or prior)
341.1 KB
Driver v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
Jul 12, 2010 Jul 12, 2010 Release notes
Driver for CP-114EL Series (UnixWare 2.1)
270.0 KB
Driver v1.7
  • SCO UnixWare 2.x
Jul 12, 2010 Jul 12, 2010 Release notes
Viewcom
434.6 KB
Utility v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-114EL Series (WinCE 5)
372.0 KB
Driver v1.1
  • Windows CE 5.0
Jul 01, 2010 Jul 01, 2010 Release notes
Driver for CP-114EL Series (QNX6)
120.8 KB
Driver v1.1
  • QNX 6.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for CP-114EL Series (WinXP Embedded)
289.1 KB
Driver v1.16
  • Windows XP Embedded
Feb 08, 2010 Feb 08, 2010 Release notes

Support Documents

Name Type Version Release Date
QIG for PCI Express Multiport Serial Board Series
193.0 KB
QIG v2.2 May 19, 2021 May 19, 2021
Datasheet for CP-114EL Series
811.1 KB
Datasheet v1.1 Mar 09, 2020 Mar 09, 2020
Manual for CP-114EL Series
12.1 MB
Manual v11.3 Dec 31, 2019 Dec 31, 2019
2D CAD for CP-114EL TOP
306.0 KB
2D CAD May 14, 2012 May 14, 2012
Tech Note: The Secrets of Flow Control in Serial Communication
35.0 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of RS-485 Half-duplex Communication
41.1 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of UART FIFO
42.8 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010

Available Models (6)

Show Images
moxa-cp-114el-image.jpg | MoxaCP-114ELmoxa-cp-114el-i-image.jpg | MoxaCP-114EL-Imoxa-cp-114el-db9m-image.jpg | MoxaCP-114EL-DB9Mmoxa-cp-114el-db25m-image.jpg | MoxaCP-114EL-DB25M
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports4444
Isolation2 kV
Included CableCBL-M44M9x4-50CBL-M44M25x4-50
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-cp-114el-i-db9m-image.jpg | MoxaCP-114EL-I-DB9Mmoxa-cp-114el-i-db25m-image.jpg | MoxaCP-114EL-I-DB25M
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports44
Isolation2 kV2 kV
Included CableCBL-M44M9x4-50CBL-M44M25x4-50
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

CP-114EL Series

CP-114EL

moxa-cp-114el-image.jpg | Moxa

Buy online from our distributors

CP-114EL Series

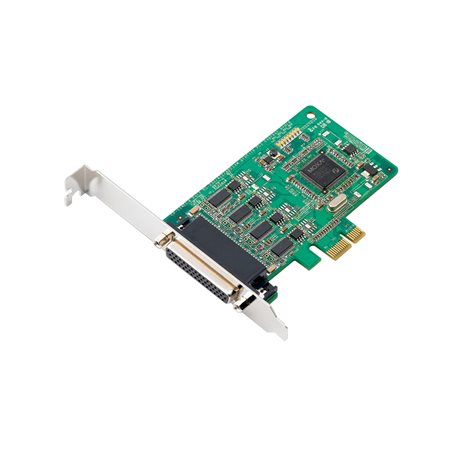

CP-114EL-I
