EDS-P510 Series

7+3G-port Gigabit PoE managed Ethernet switches with 4 IEEE 802.3af PoE ports

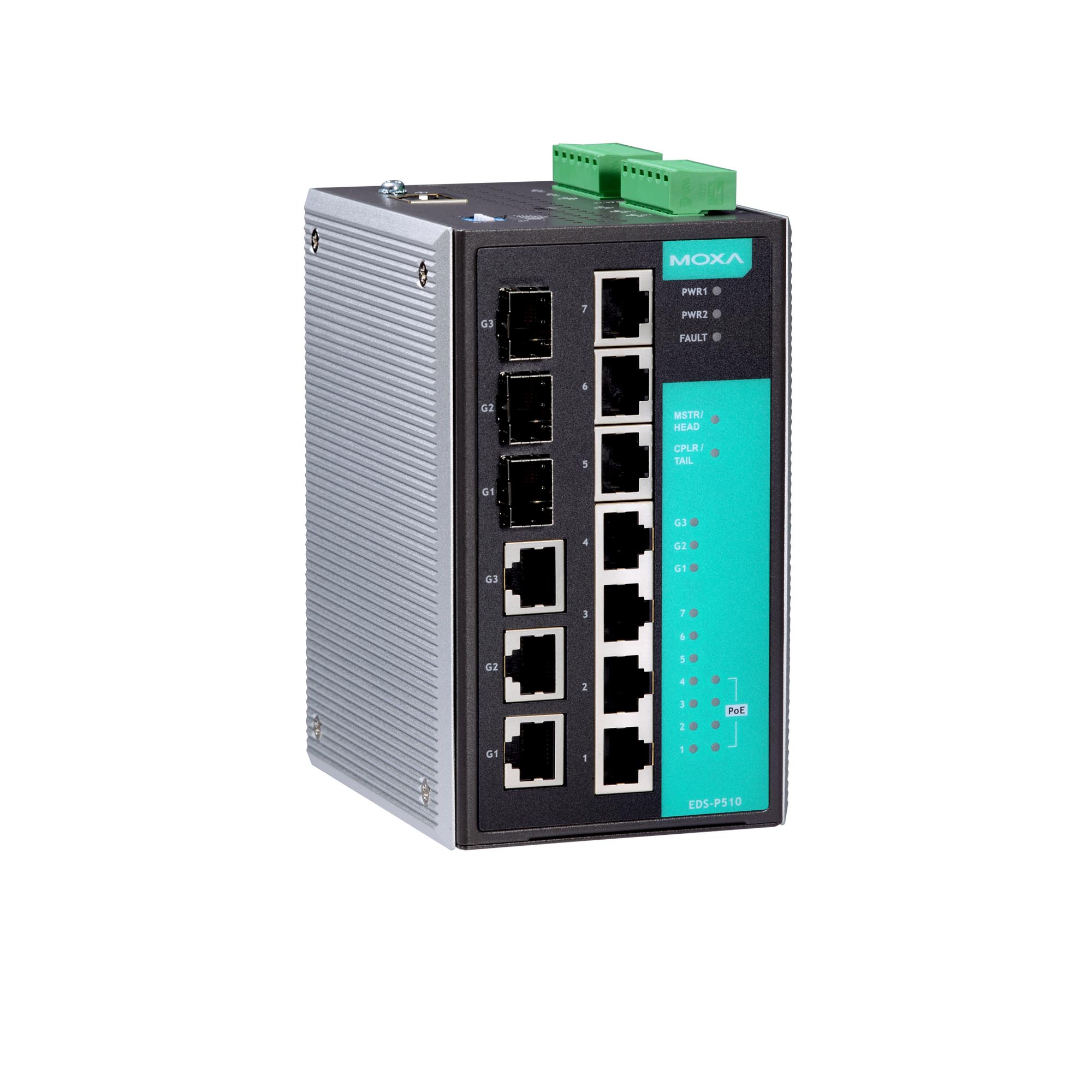

moxa-eds-p510-series-image-(1).jpg | Moxa

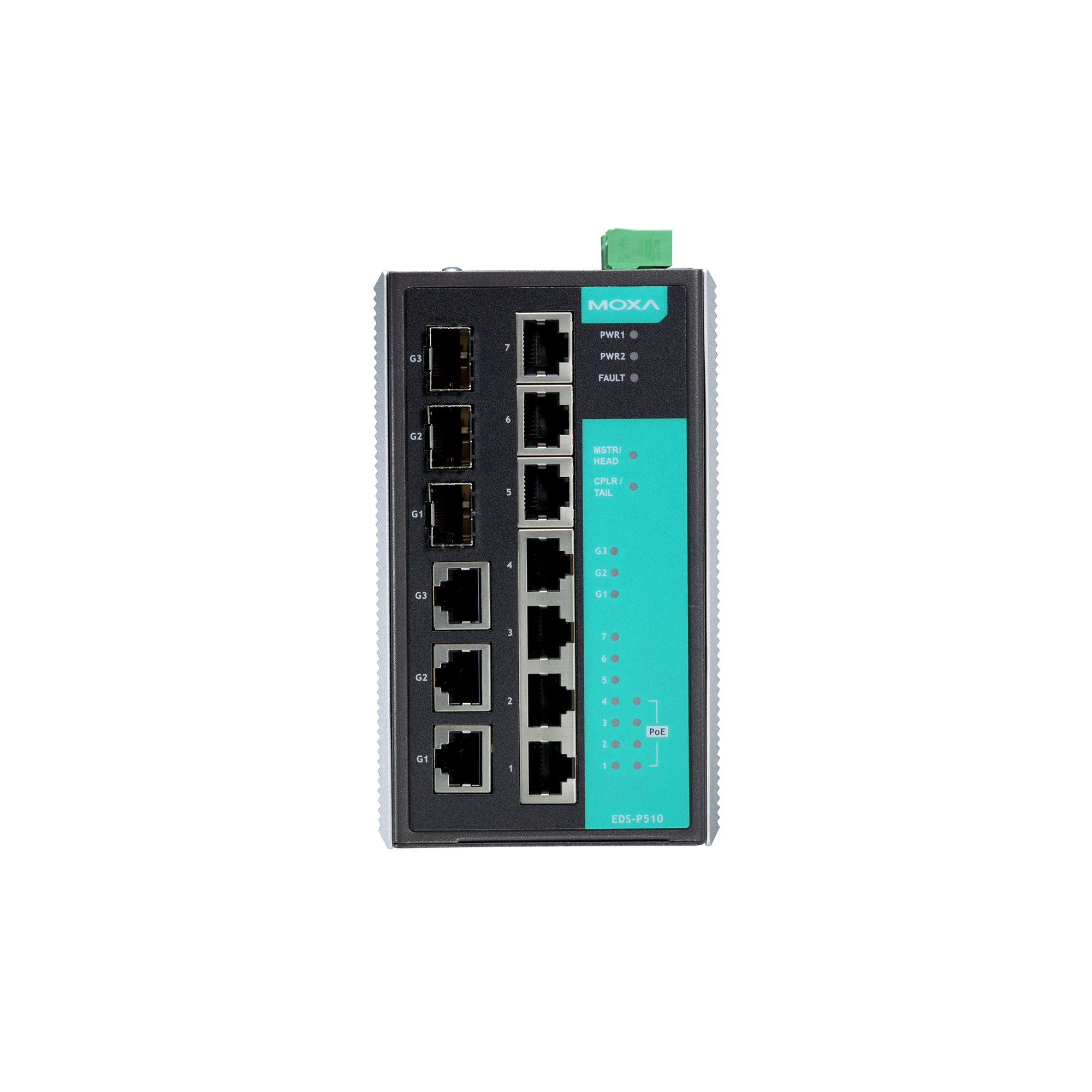

moxa-eds-p510-series-image-1-(1).jpg | Moxa

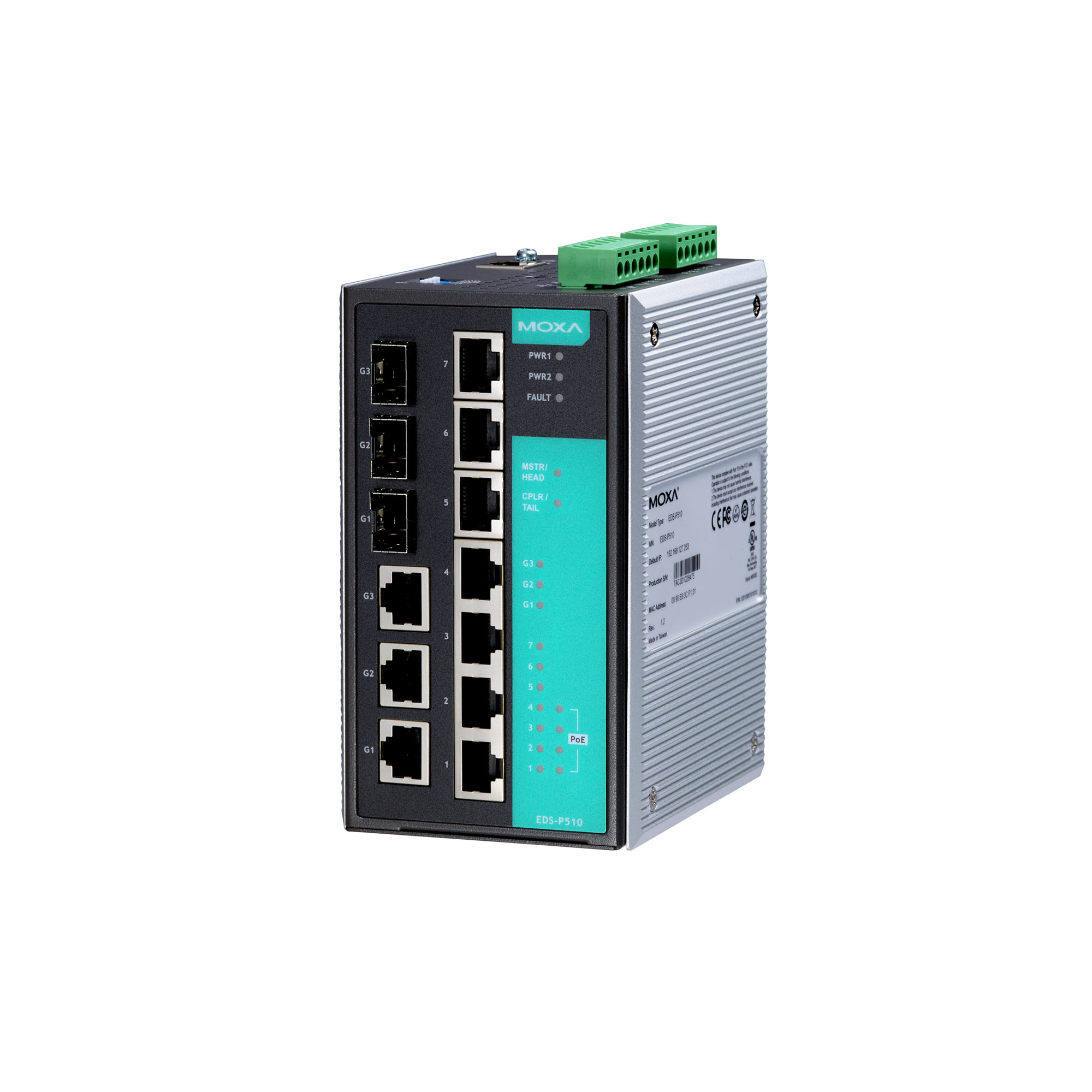

moxa-eds-p510-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 4 IEEE 802.3af-compliant PoE and Ethernet combo ports
  • Provides up to 15.4 watts at 48 VDC per PoE port
  • Intelligent power consumption detection, PD failure check, and PoE scheduling function
  • 3 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports; 2 ports for redundant ring and 1 port for uplink
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-P510 Series Gigabit managed redundant Ethernet switches have 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P510 Series is designed especially for security automation applications such as IP surveillance and entry system gates, which can benefit from a scalable backbone construction and PoE.

Additional Features and Benefits

  • Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)

  • Command Line Interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security

  • Lock port function for blocking unauthorized access based on MAC address

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for efficient network monitoring and proactive capability

  • Bandwidth management to prevent unpredictable network status

  • Port mirroring for online debugging

  • Automatic warning by exception through e-mail, relay output

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    3
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 10/100BaseT(X) Ports (RJ45 connector)

    3
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • PoE Ports (10/100BaseT(X), RJ45 connector)

    4
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3af for PoE

  • Filter

    GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    EtherNet/IP, Modbus TCP

  • Management

    Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    TACACS+, HTTPS/SSL, Port Lock, RADIUS, SSH

  • Time Management

    NTP Server/Client, SNTP

  • Alarm Contact Channels

    2, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    2

  • Digital Inputs

    -30 to +3 V for state 0
    +13 to +30 V for state 1
    Max. input current: 8 mA

  • IGMP Groups

    1024

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    1 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

  • Connection

    2 removable 6-contact terminal block(s)

  • Input Current

    1.5 A @ 48 VDC

  • Input Voltage

    48 VDC, Redundant dual inputs

  • Operating Voltage

    44 to 57 VDC

  • Overload Current Protection

    Supported

  • Power Budget

    Max. 15.4 W for each PoE port
    Max. 61.6 W for total PD consumption

  • Power Consumption (Max.)

    Max. 14.24 W full loading without PDs’ consumption

  • Reverse Polarity Protection

    Supported

  • Dimensions

    80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

  • Housing

    Metal

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • IP Rating

    IP30

  • Weight

    1,170 g (2.58 lb)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Operating Temperature

    EDS-P510: 0 to 60°C (32 to 140°F)
    EDS-P510-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Safety

    UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Maritime

    ABS, DNV-GL, LR, NK

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    205,384 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Firmware for EDS-P510 Series
2.2 MB
Firmware
SHA-512
v3.11
Feb 07, 2024 Feb 07, 2024 Release notes
Software Package for MXview One Series (Windows version)
374.0 MB
Software Package
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Jan 31, 2024 Jan 31, 2024 Release notes
Software Package for MXview One Series (Linux version)
333.4 MB
Software Package
SHA-512
v1.3.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Jan 31, 2024 Jan 31, 2024 Release notes
Firmware for EDS-P510 Series
2.2 MB
Firmware
SHA-512
v3.10
Aug 31, 2023 Aug 31, 2023 Release notes
SNMP MIB file for EDS-P510 Series
159.7 KB
Software Package
SHA-512
v3.8
Aug 31, 2023 Aug 31, 2023 Release notes
Modbus File for Moxa Managed Ethernet Switches
2.3 KB
Software Package
SHA-512
v1.0
Aug 31, 2023 Aug 31, 2023 Release notes
EDS file for EDS-P510 Series
29.3 KB
Software Package
SHA-512
v1.3
Aug 31, 2023 Aug 31, 2023 Release notes
MXview v3.2.6 Software
417.7 MB
Software Package
SHA-512
v3.2.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Jan 07, 2022 Jan 07, 2022 Release notes
MXview v3.2.4 Software
389.2 MB
Software Package
SHA-512
v3.2.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Jul 16, 2021 Jul 16, 2021 Release notes
Firmware for EDS-P510 Series
1.9 MB
Firmware
SHA-512
v3.8
May 04, 2017 May 04, 2017 Release notes
Software Package for EDS-P510 Series
28.5 KB
Software Package
SHA-512
na
Nov 30, 2012 Nov 30, 2012 Release notes
Software Package for EDS-P510 Series (EtherNet/IP FactoryTalk View for EDS Series)
14.4 MB
Software Package
SHA-512
1.0
Nov 30, 2012 Nov 30, 2012 Release notes
EtherNet/IP AOI for EDS-P510 Series
297.4 KB
Software Package
SHA-512
v1.0
Nov 29, 2012 Nov 29, 2012 Release notes
Moxa Ethernet Switch and Video Server Configurator
1.6 MB
Software Package
SHA-512
v5.3
  • Windows
  • Windows XP
Apr 10, 2012 Apr 10, 2012 Release notes

Support Documents

Name Type Version Release Date
Declaration of Conformity for EDS-P510 Series
298.6 KB
Declaration v1.0 Feb 05, 2024 Feb 05, 2024
Moxa Managed Ethernet Switch User Manual
7.8 MB
Manual v9.9 Aug 31, 2023 Aug 31, 2023
Industrial Protocol Users Guide
13.1 MB
Manual v6.5 Aug 31, 2023 Aug 31, 2023
Managed Ethernet Switch User Manual
6.4 MB
Manual v9.8 Nov 25, 2022 Nov 25, 2022
Industrial Protocol Users Guide
11.9 MB
Manual v6.3 Sep 12, 2022 Sep 12, 2022
Moxa Managed Ethernet Switch User's Manual
6.4 MB
Manual v9.7 Jun 29, 2022 Jun 29, 2022
QIG for EDS-P510 Series
1.7 MB
QIG v4.3 Jun 28, 2022 Jun 28, 2022
Datasheet for EDS-P510 Series
669.0 KB
Datasheet v1.6 Apr 29, 2022 Apr 29, 2022
2D CAD for EDS-P510 Series (V2.0)
635.9 KB
2D CAD May 07, 2019 May 07, 2019
Tech Note: Turbo Ring
59.2 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Ring for Turbo Ring V2
59.6 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Ring Coupling for a Turbo Ring
60.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Homing for Turbo Ring V2
70.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Ring V2
54.9 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Chain
59.1 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Ring Coupling for Turbo Ring V2
64.3 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
Communication Redundancy User's Manual
1.2 MB
Manual v5.0 Dec 07, 2018 Dec 07, 2018
2D CAD for EDS-P510 Series
207.9 KB
2D CAD Nov 28, 2018 Nov 28, 2018
