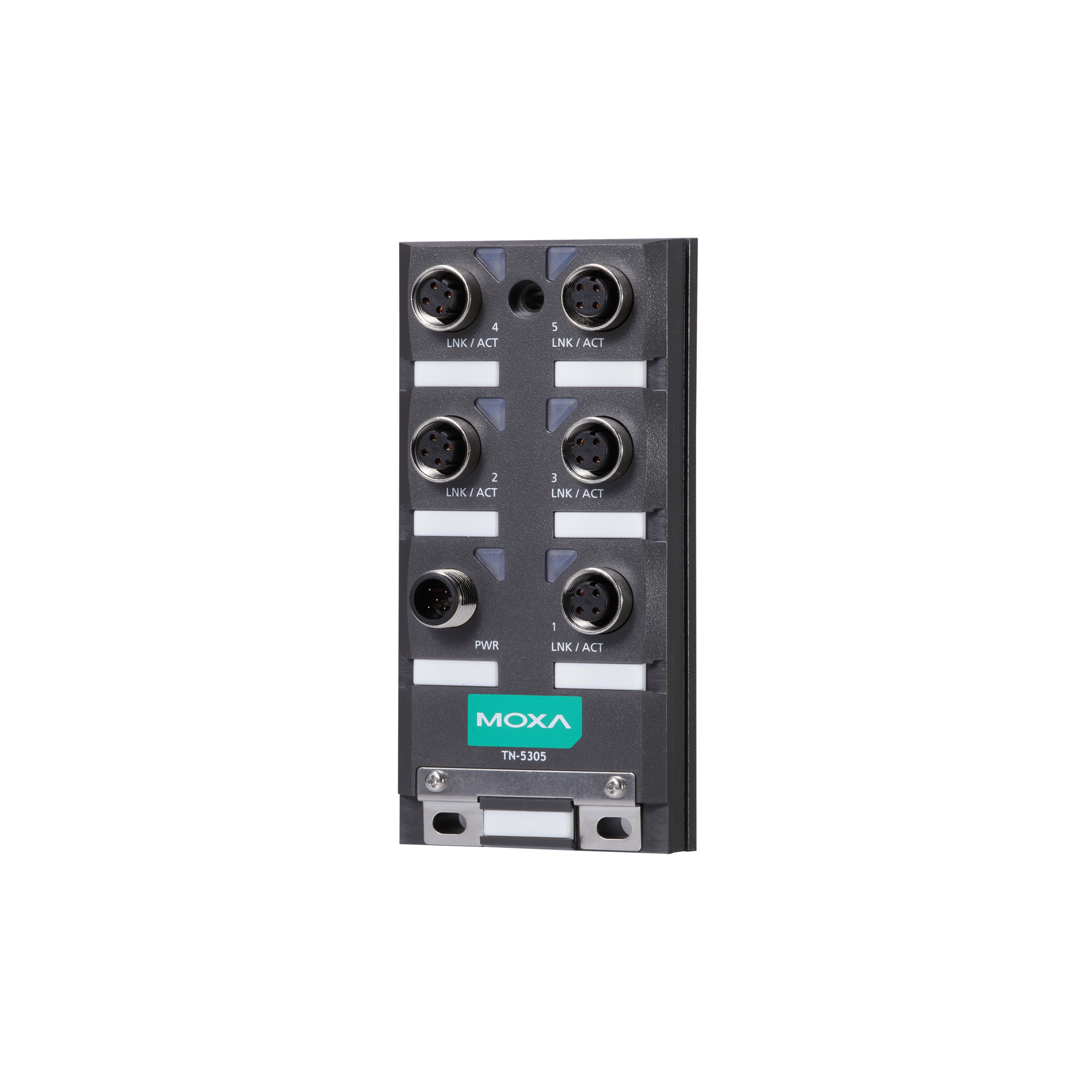

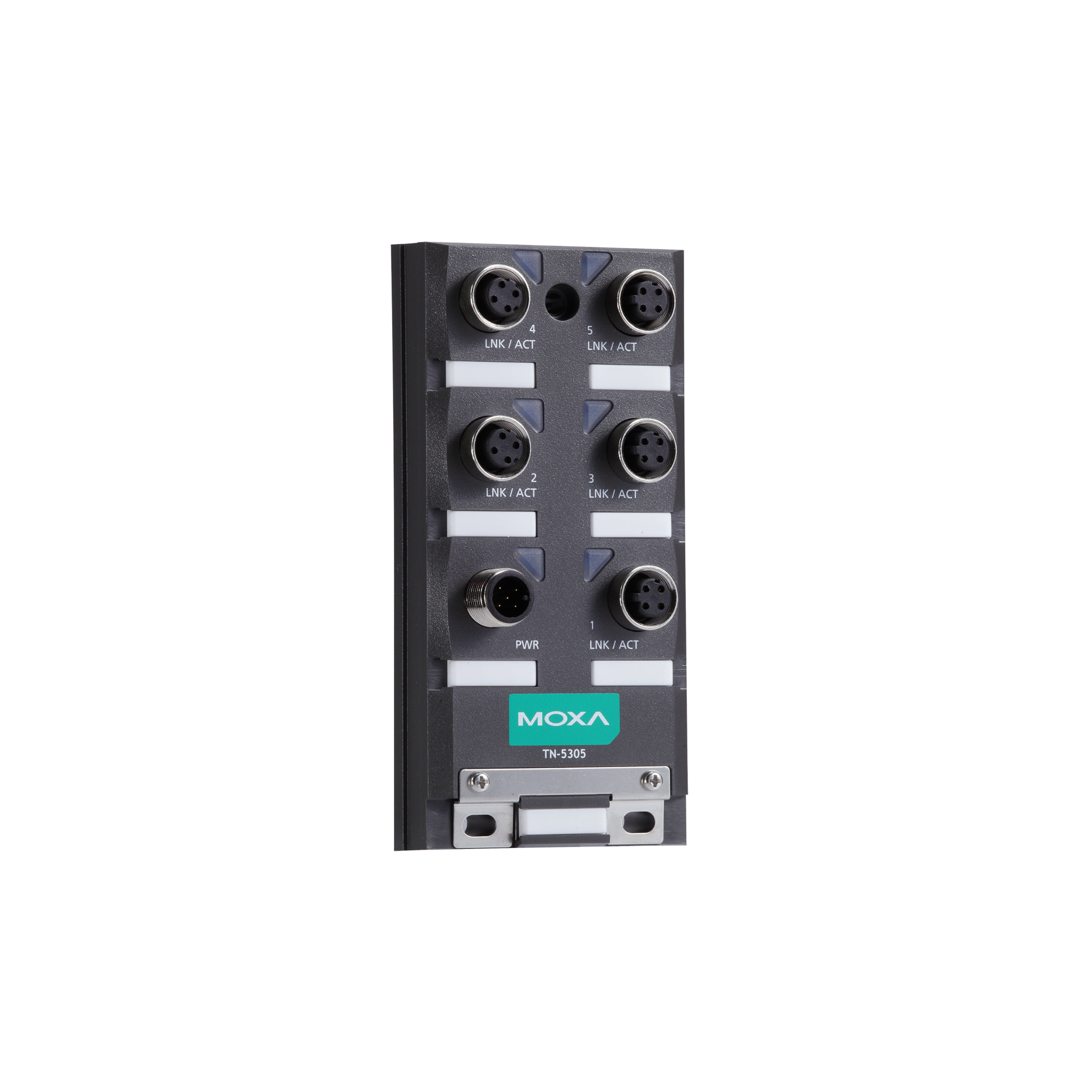

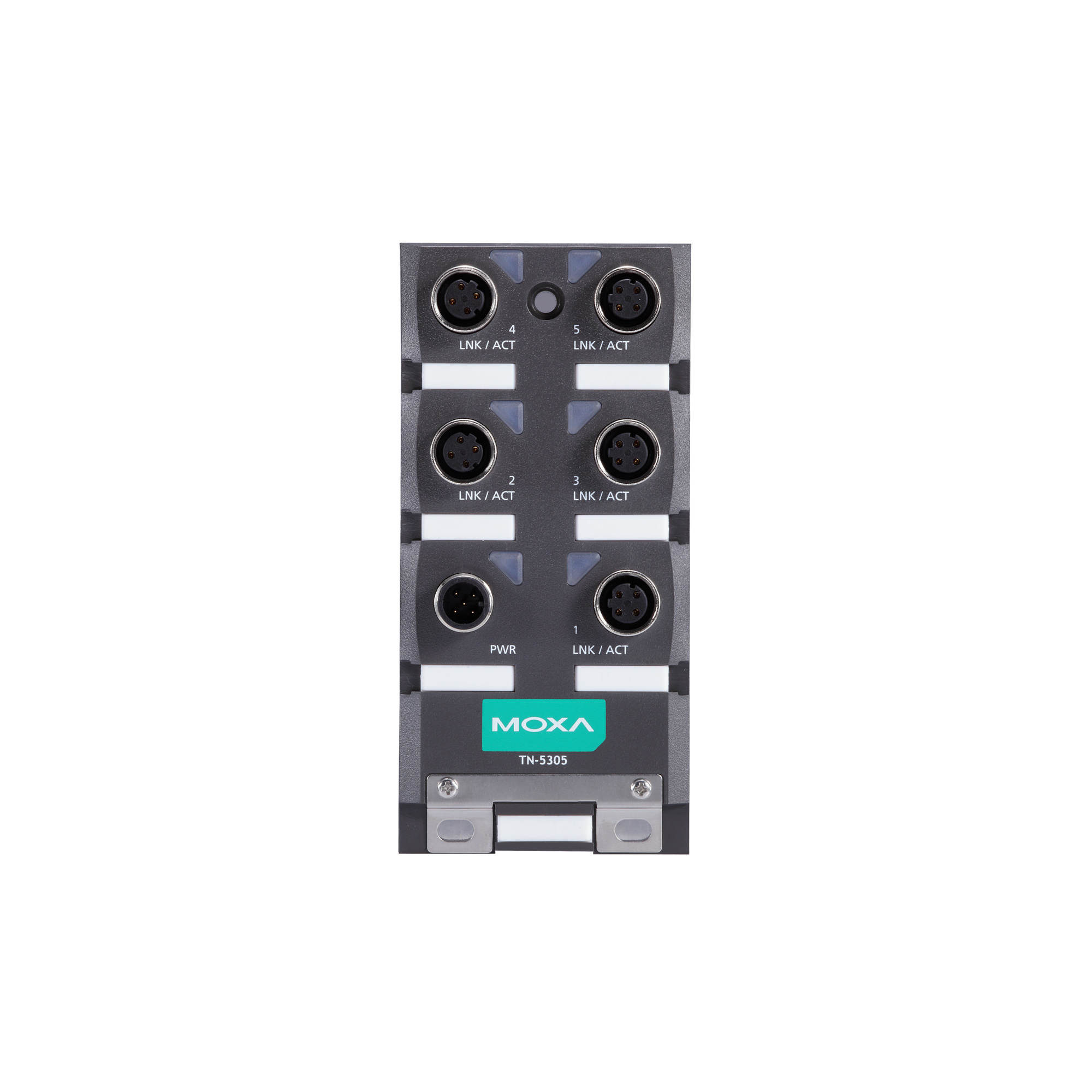

The TN-5305 Series Ethernet switches are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry.
The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Save
5
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
0.1 A @ 24 VDC, 0.08 A @ 36 VDC
18 to 30 VAC (47 to 63 Hz) 24 to 36 VDC
1
18 to 30 VAC 12 to 45 VDC
M12 A-coded male connector
Plastic top cover, metal bottom plate
IP67
60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Packaged: 270 g (0.56 lb)
DIN-rail mounting (with optional kit) Wall mounting
TN-5305: -25 to 60°C (-13 to 140°F)TN-5305-T: -40 to 75°C (-40 to 167°F)
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
2000 m
IEC 60068-2-32
EN 55032/35
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155
RCM
EN 50121-4 EN 50155
EN 45545-2
EN 60950-1 UL 508
IEC 60068-2-11, EN 50155
IEC 60068-2-27, IEC 61373, EN 50155
IEC 60068-2-64, IEC 61373, EN 50155
RoHS, CRoHS, WEEE
3,451,678 hrs
Telcordia SR332
5 years
See www.moxa.com/warranty
