Trustworthy CAN-to-fiber Converters for
Your Long-distance Communication
Flexible Deployment
Our new converters easily connect your field devices with CAN or CAN FD interfaces and quickly complete baudrate settings with a rotary switch or an auto baudrate function for CAN interfaces, making installation simple for engineers.
Reliable Operations
Our new converters transmit your data over optical fiber, reducing interference and extending communication distances up to 40 km. In addition, the CAN port supports 2 kV isolation and 2 kV surge protection to enhance device reliability.
Easy Troubleshooting
When a communication error occurs, our new converters provide LED indicators that identify communication status on the CAN and fiber sides so that you can eliminate errors timely.

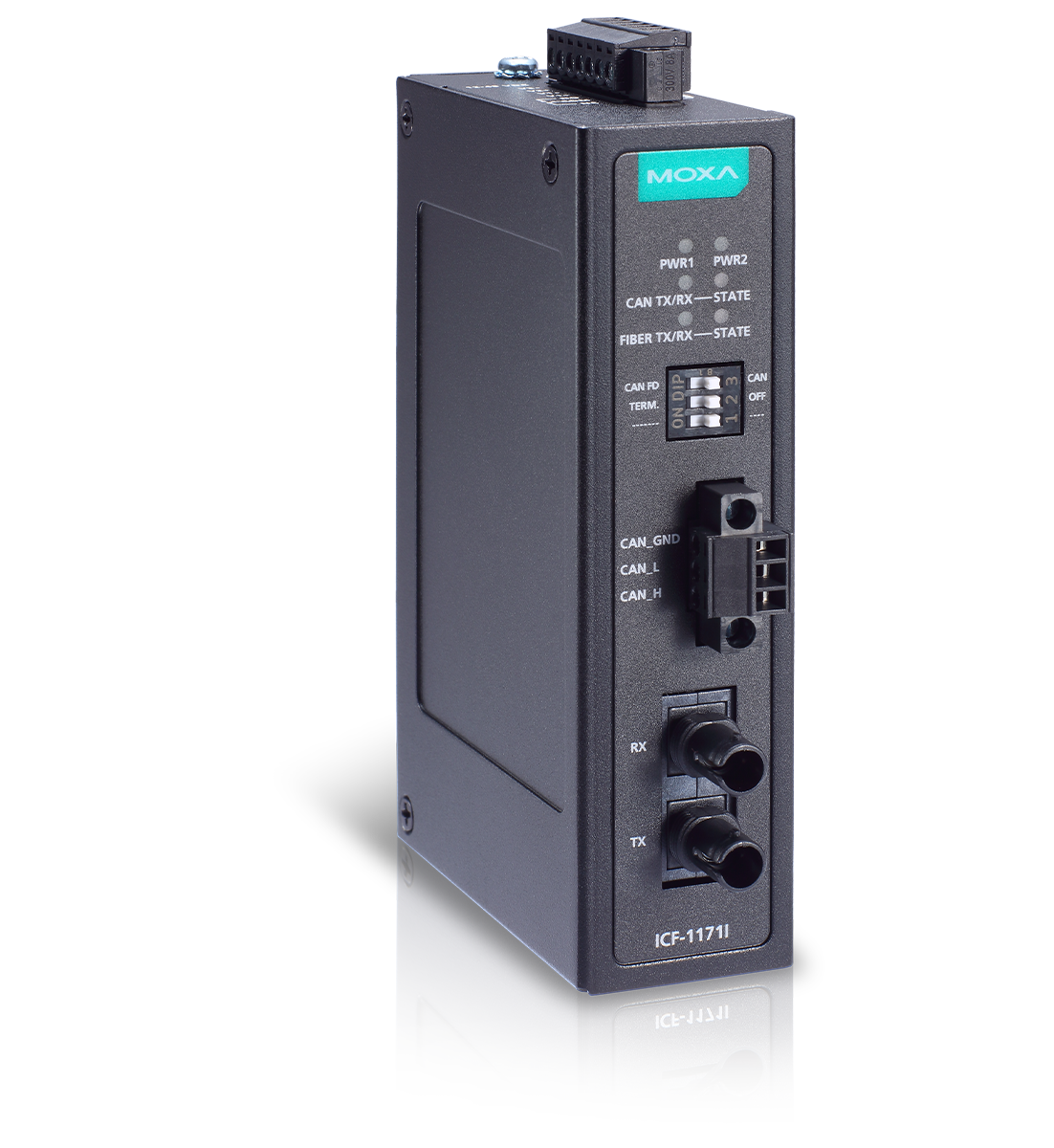

ICF-1171I Series
Industrial CAN-to-fiber converters
- Transmits data for up to 40 km over optical fiber
- Converts CAN signals to fiber and vice versa
- Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
- CAN 2.0 supports auto-baudrate
- CAN 2.0 arbitration rate up to 1 Mbps
- CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
- Dual power inputs for redundancy
- Wide-temperature model available for -40 to 75°C environments
- DIP switch for 120-ohm terminal resistance
- Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
- LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
