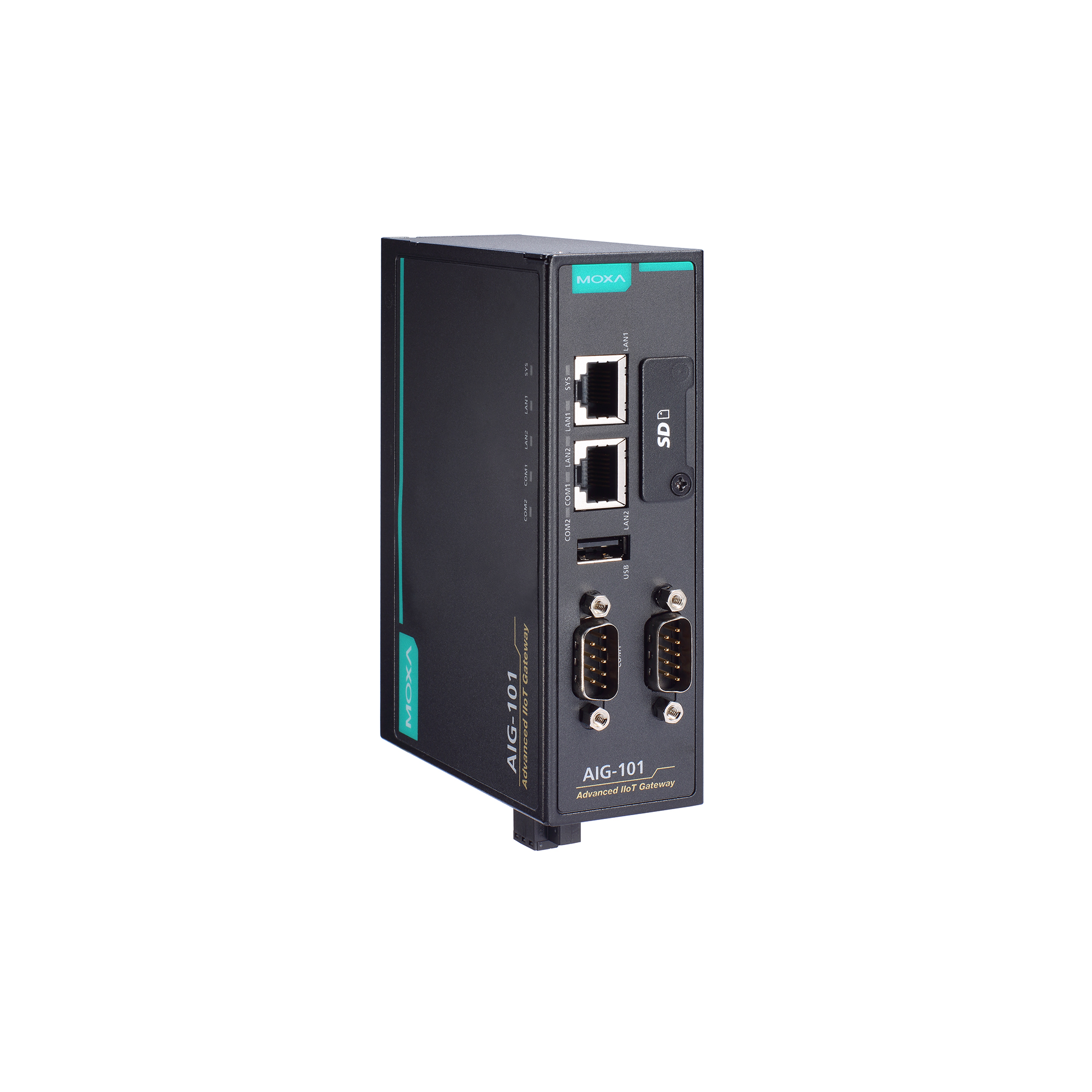

AIG-101シリーズ

2ポートModbus RTU/ASCII/TCP - MQTT/Azure/AWSクラウド対応ゲートウェイ

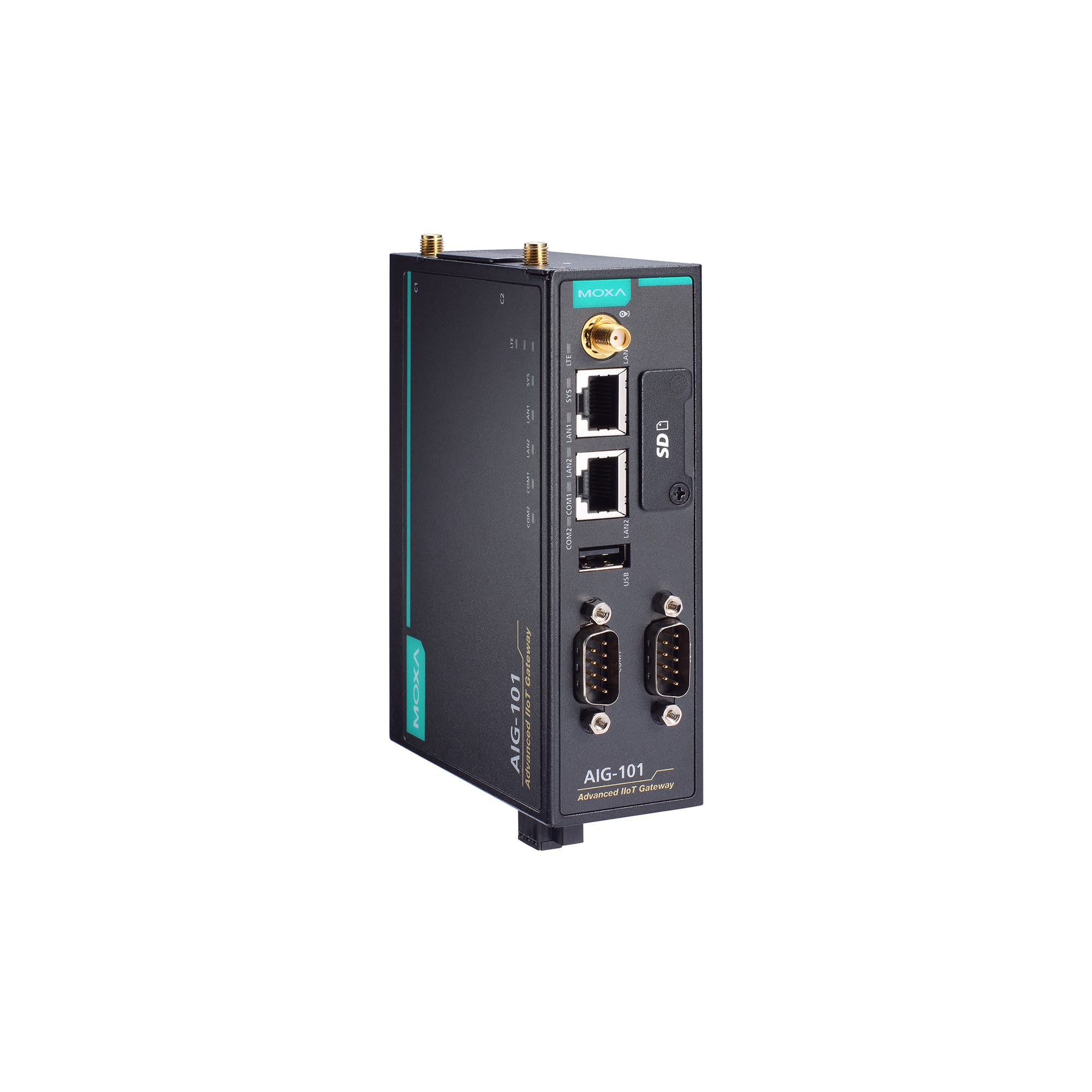

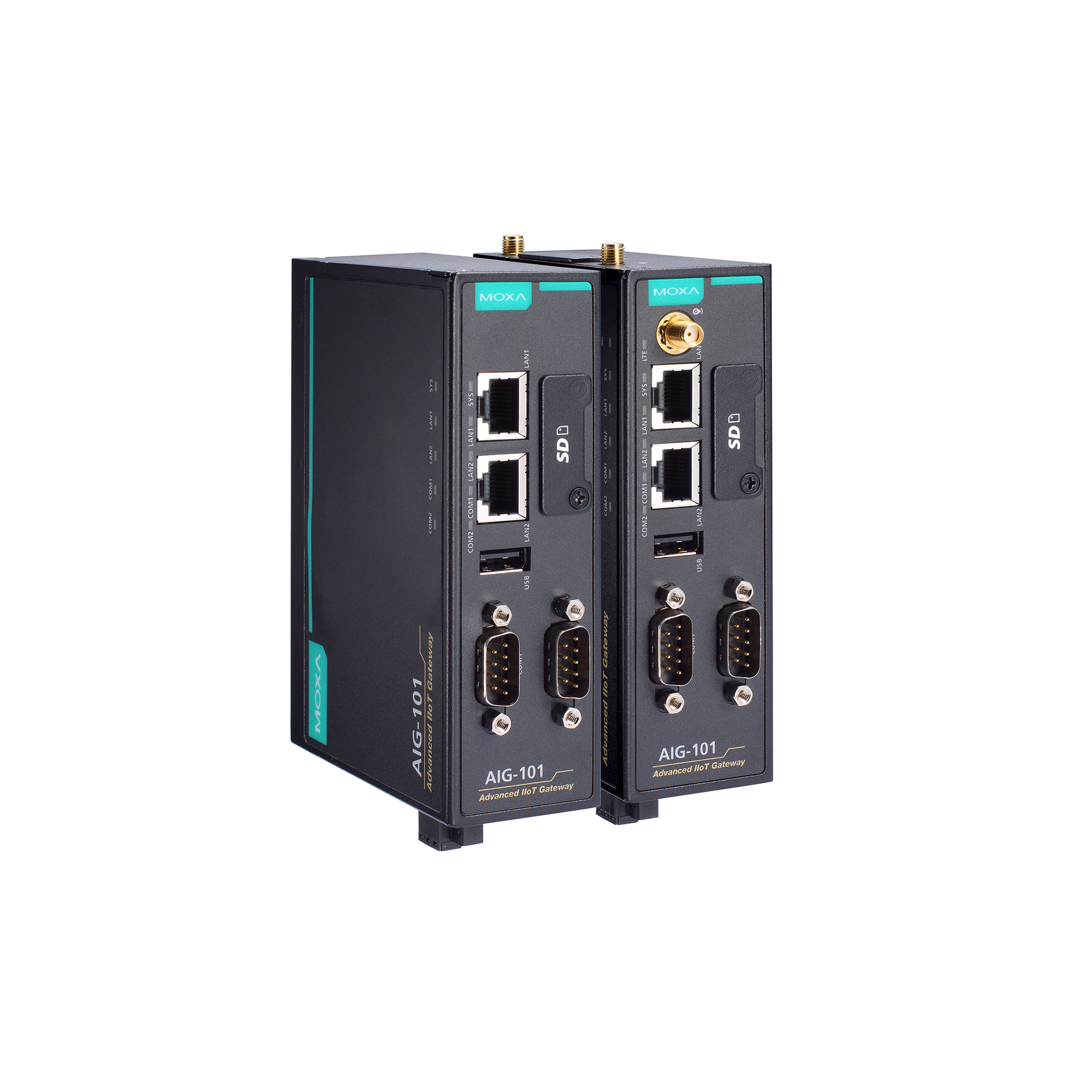

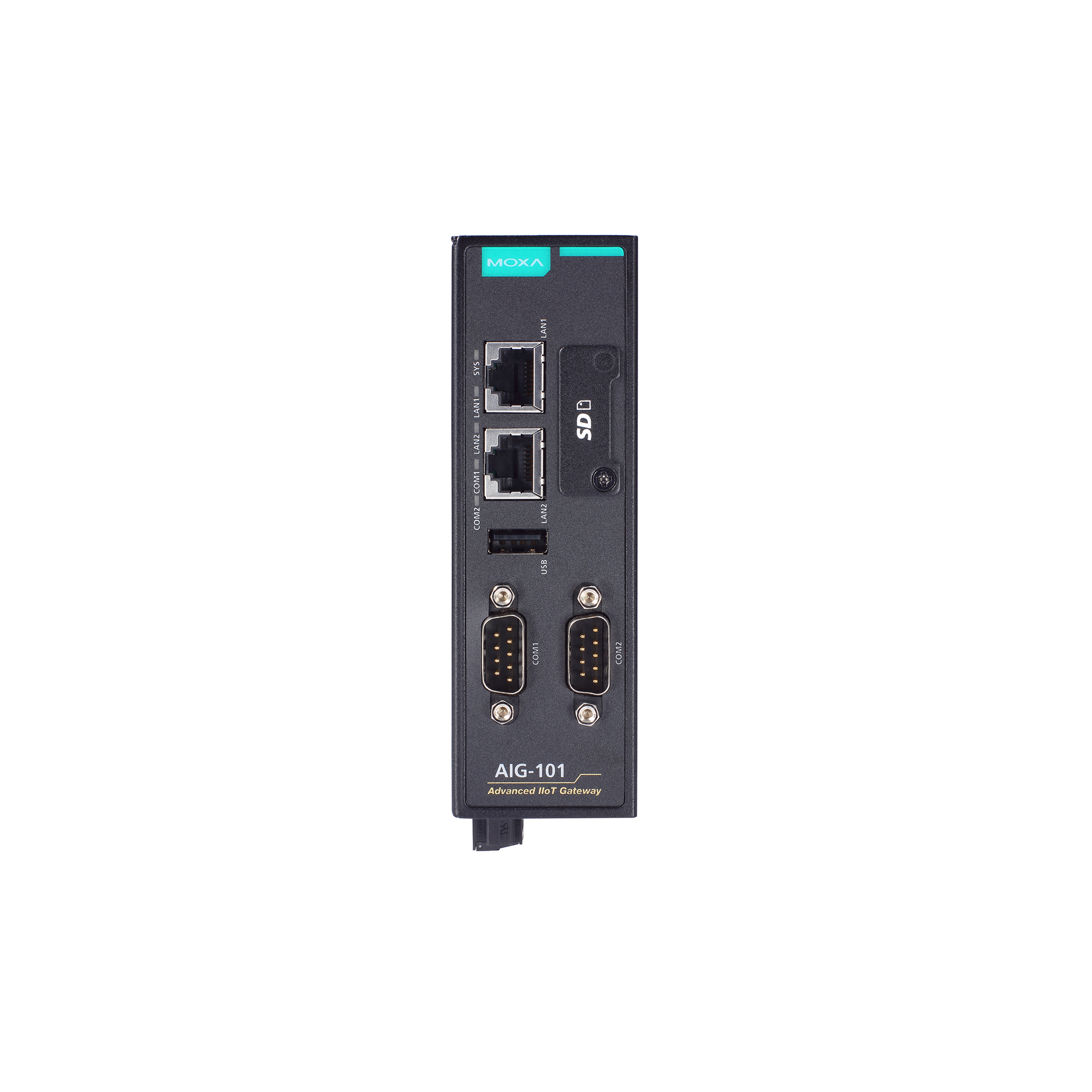

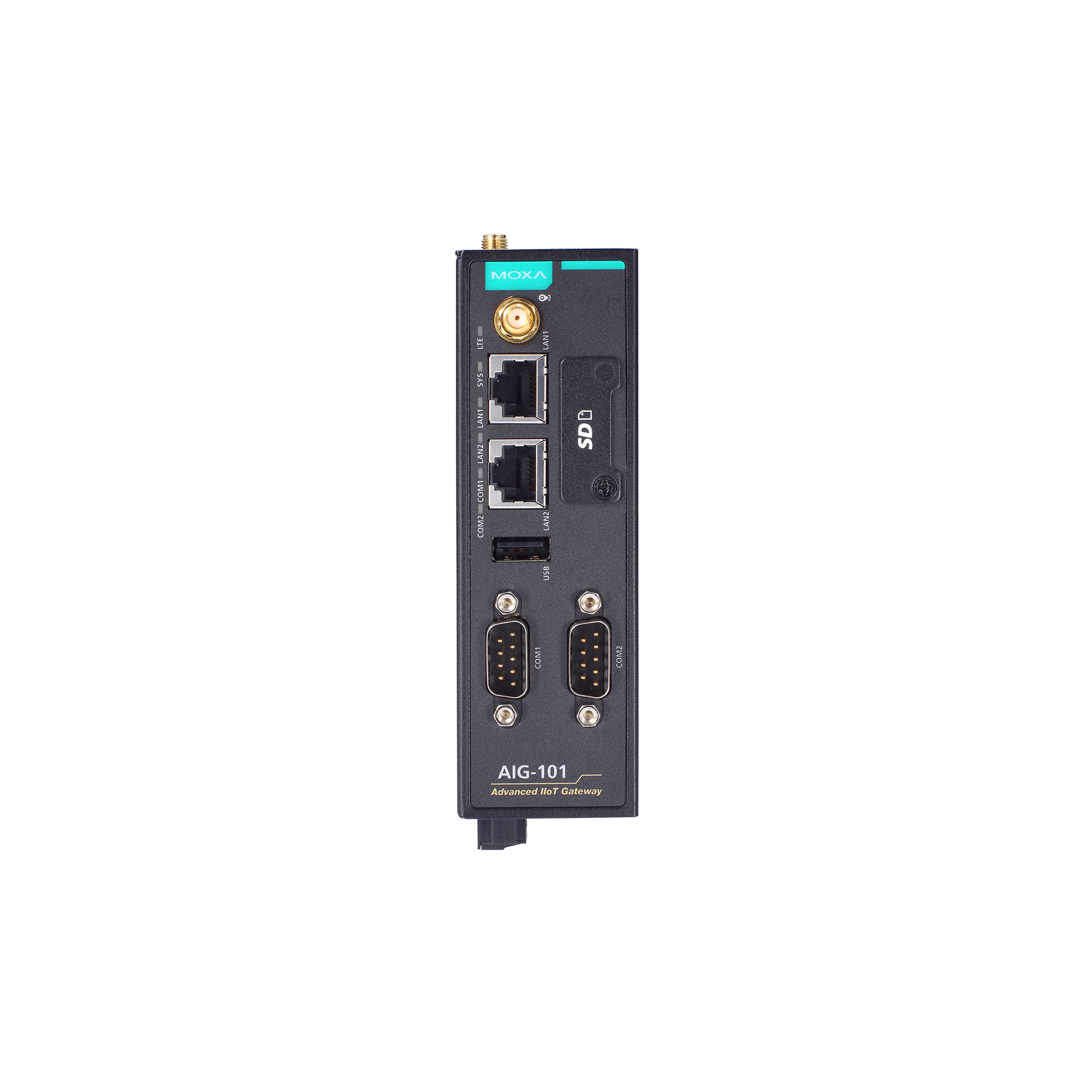

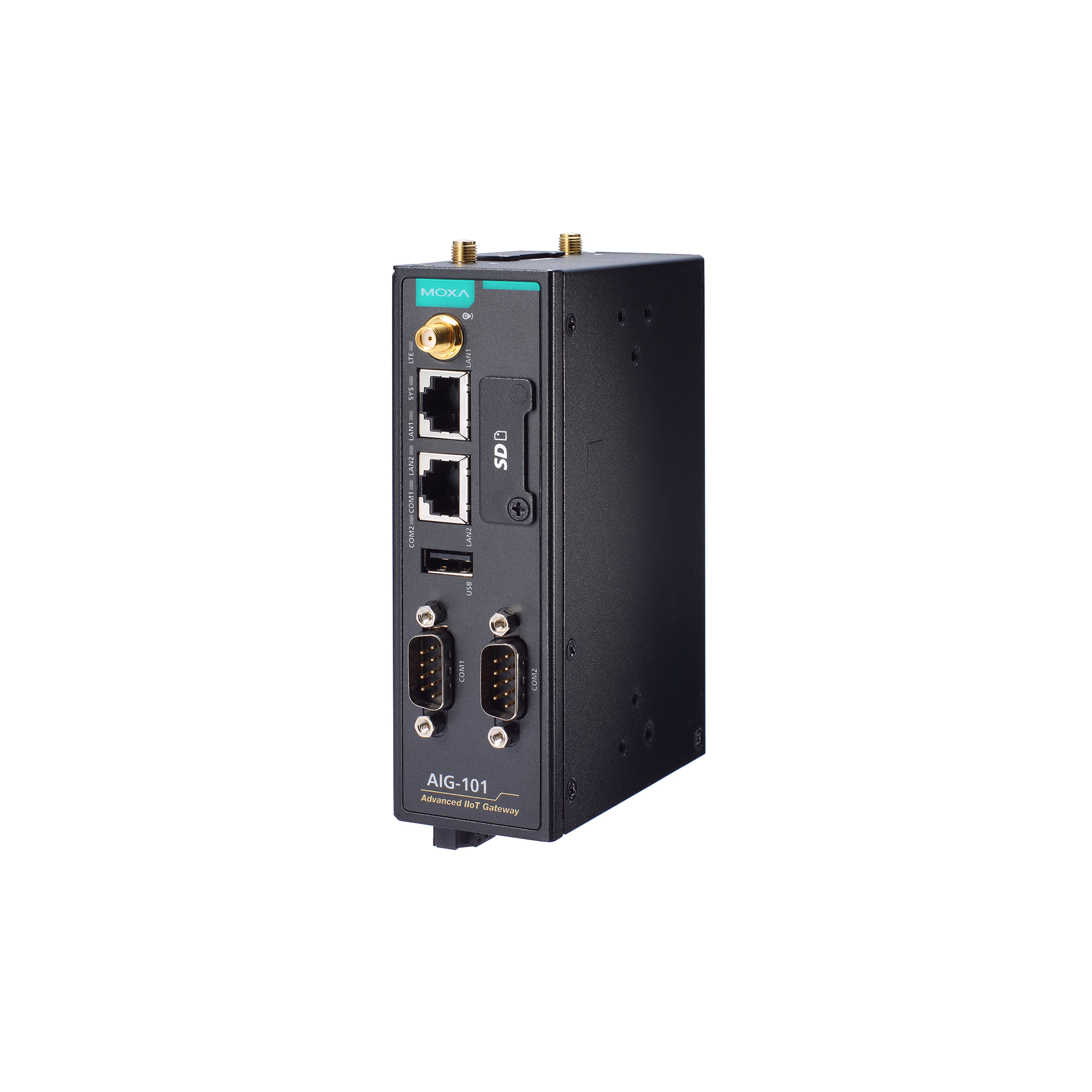

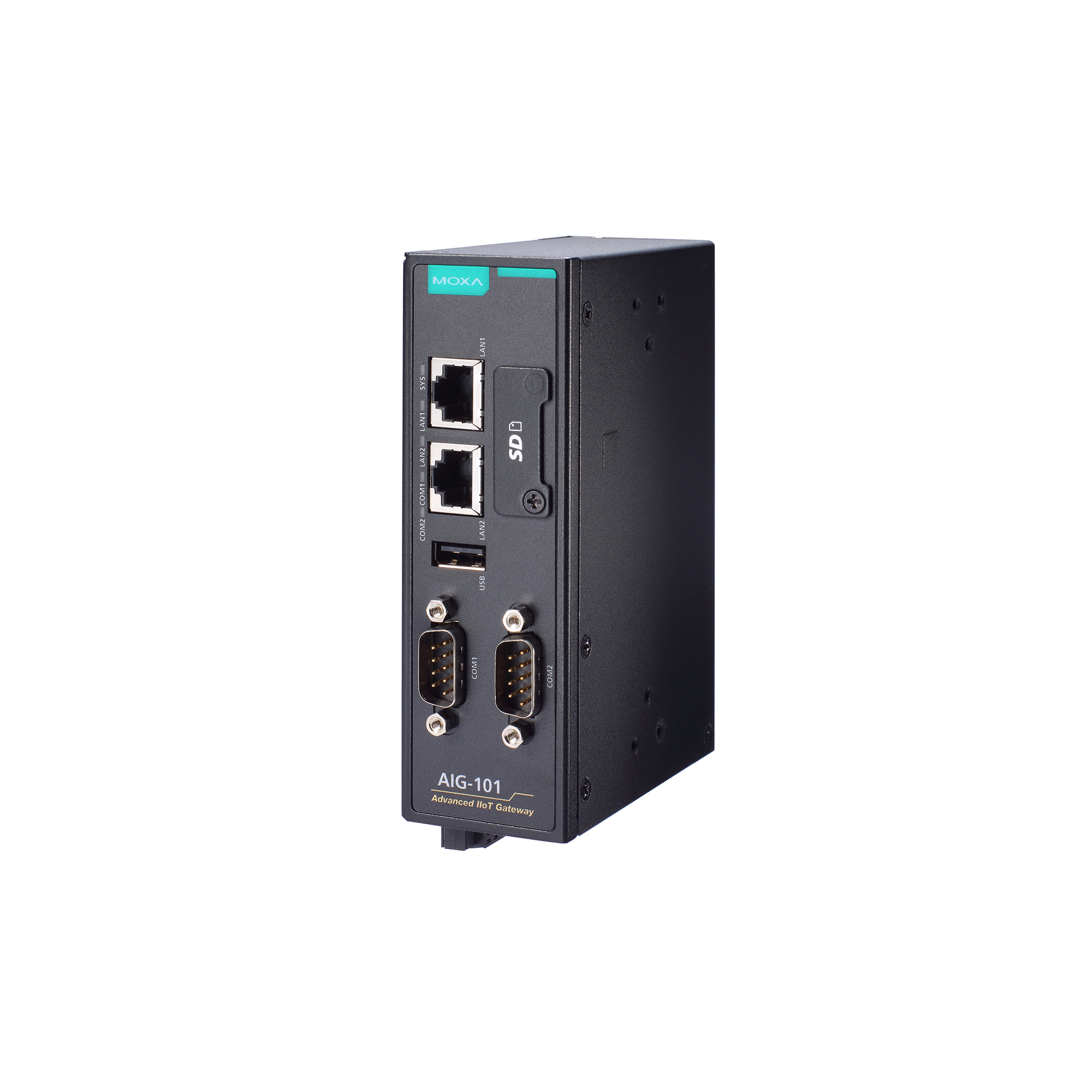

moxa-aig-101-series-image-(1).jpg | Moxa
moxa-aig-101-series-image-1-(1).jpg | Moxa
moxa-aig-101-series-image-2-(1).jpg | Moxa
moxa-aig-101-series-image-3-(1).jpg | Moxa
moxa-aig-101-series-image-4-(1).jpg | Moxa
moxa-aig-101-series-image-5-(1).jpg | Moxa
moxa-aig-101-series-image-6-(1).jpg | Moxa
NRND 新規設計での使用は推奨されません

推奨される代替品:AIG-302シリーズ

機能と特長

  • 汎用MQTTクライアントをサポート
  • Azure/AWSクラウド用の内蔵デバイスSDKによるMQTT接続をサポート
  • Modbus RTU/ASCII/TCPマスター/クライアントをサポート
  • Modbus TCPサーバーをサポート
  • トラブルシューティングを容易にする内蔵ネットワークトラフィック監視および診断ツール
  • ストアアンドフォワードおよびデータロガーによるデータバッファリングをサポート
  • Moxa ioLogik/UPortデバイスとのシームレスな統合により、I/Oおよびシリアルインターフェースを簡単に拡張可能
  • プログラミング不要、データ処理機能を内蔵
  • 動作温度範囲-40~70°C
  • LTE Cat.1 US、EUおよびAPACモデルを提供

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

AIG-101シリーズゲートウェイは、Modbus RTU/ASCII/TCPデバイスをAzure、AWS、MQTTなどのクラウドプラットフォームやアプリケーションに接続するエントリーレベルのIIoTゲートウェイです。AIG-101はModbusマスターとして、既存のModbusデバイスをクラウドプラットフォームと統合し、収集したデータをAzureやAWSクラウドへ容易に送信することが可能です。さらに、このゲートウェイはModbus TCPスレーブモードもサポートしており、クラウドプラットフォームとローカルのSCADAシステムへのデータの同時送信が可能です。



I/Oおよびシリアルインターフェースを簡単に拡張

現場サイトの数が増えると、生成される大量のデータを収集および処理するために、センサー、メーター、インバータなどのデバイスを接続するための追加のI/Oまたはシリアルインターフェースが必要になります。一般的なアプローチは、リモートI/Oおよびデバイスサーバーをインストールしてインターフェースを拡張することですが、必要な構成設定はユーザーにとって負担が大きすぎることがよくあります。インターフェース拡張のための極めてシンプルな構成プロセスを提供するために、AIG-101ゲートウェイは統合性にすぐれており、MoxaのioLogikおよびUPort製品とスムーズに連携でき、直感的なウィザードを使用して、わずか数クリックで設定できます。



コーディング不要、すぐに使用可能なデータ前処理機能を内蔵

エネルギー管理システムは主に、平均発電量やエネルギー効率などのエネルギーデータを収集します。このデータは、現場の状況を表示し、エネルギー動向を観察し、その使用を最適化するために使用されます。ほとんどのエッジシステムでは、エネルギー管理システムに必要なデータを処理するために追加のプログラミングが必要です。AIG-101はエッジデータを前処理し、必要な情報をエネルギー管理システムへ直接送信できます。直感的なユーザーインターフェースにより、データの収集・処理に必要なゲートウェイ設定も容易に行えます。



セキュアなリモートアクセスでメンテナンスコストを削減

AIG-101には、プロトコルステータスで問題を診断し、トラフィックパケットをキャプチャして分析する強力なトラブルシューティングツールが搭載されており、エンジニアはリモートで根本原因を特定し、システムを迅速に正常な状態へ復旧できます。これらのツールはAIG-101へのセキュアなリモートアクセスも提供し、保守エンジニアが直接アクセスすることを可能にします。これにより、時間と労力を大幅に節約し、エネルギー管理システムのダウンタイムを減らすことができます。



外観

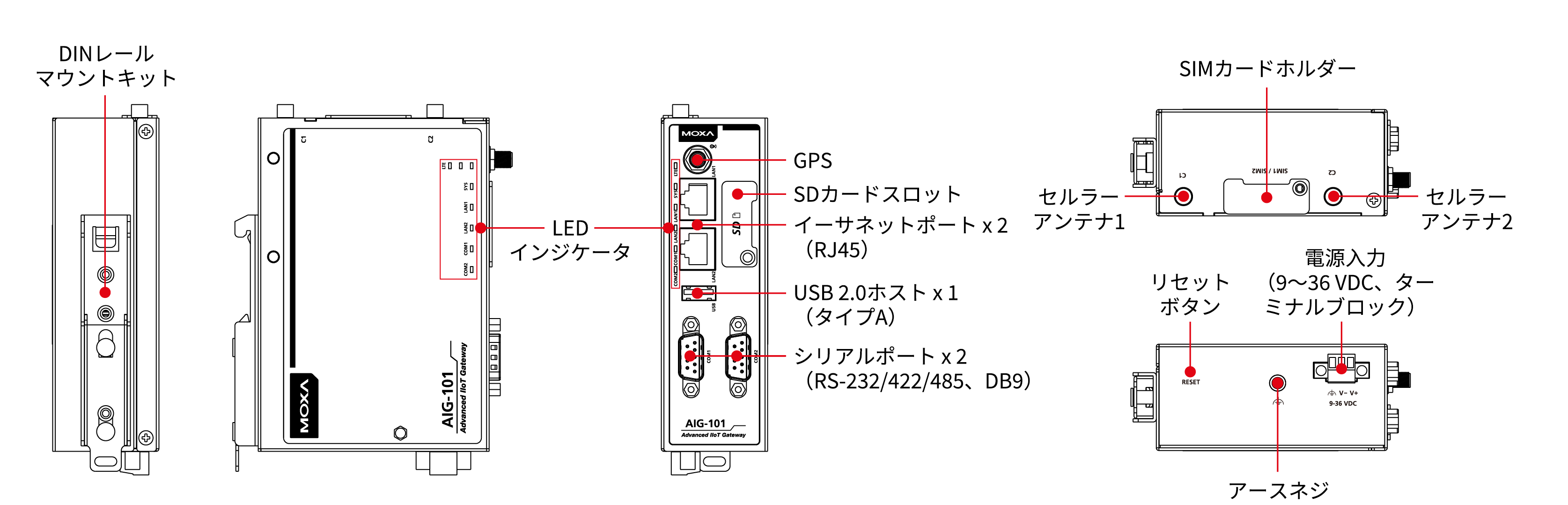

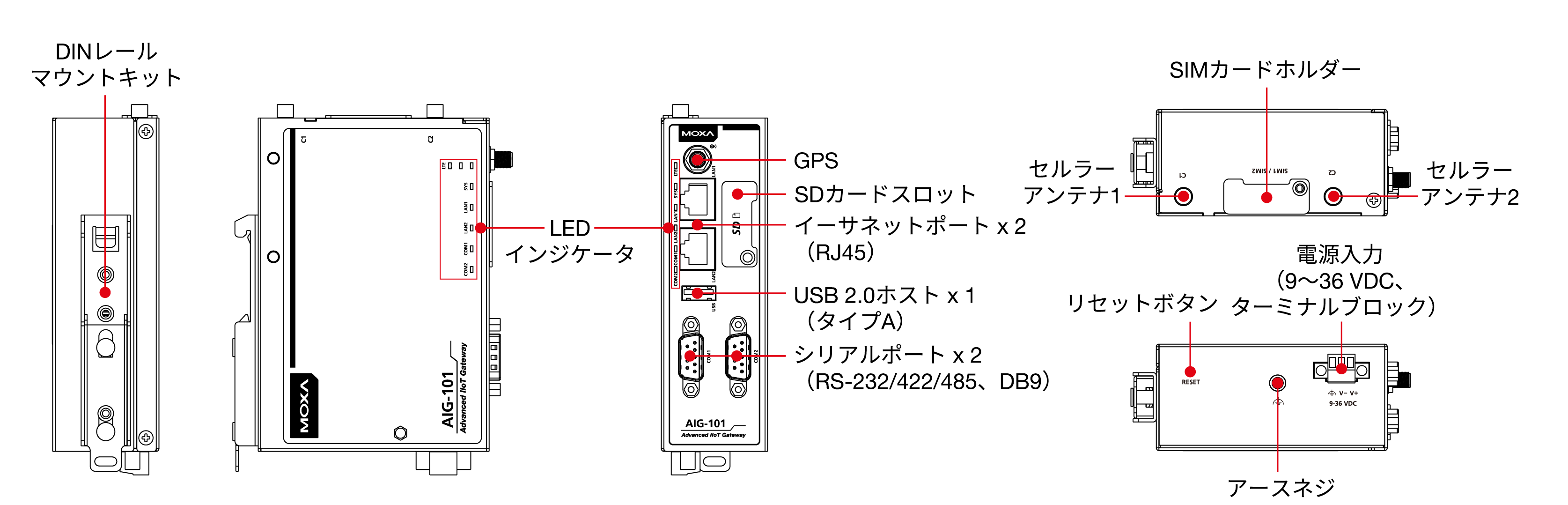

AIG-101-T-AP/EU/US

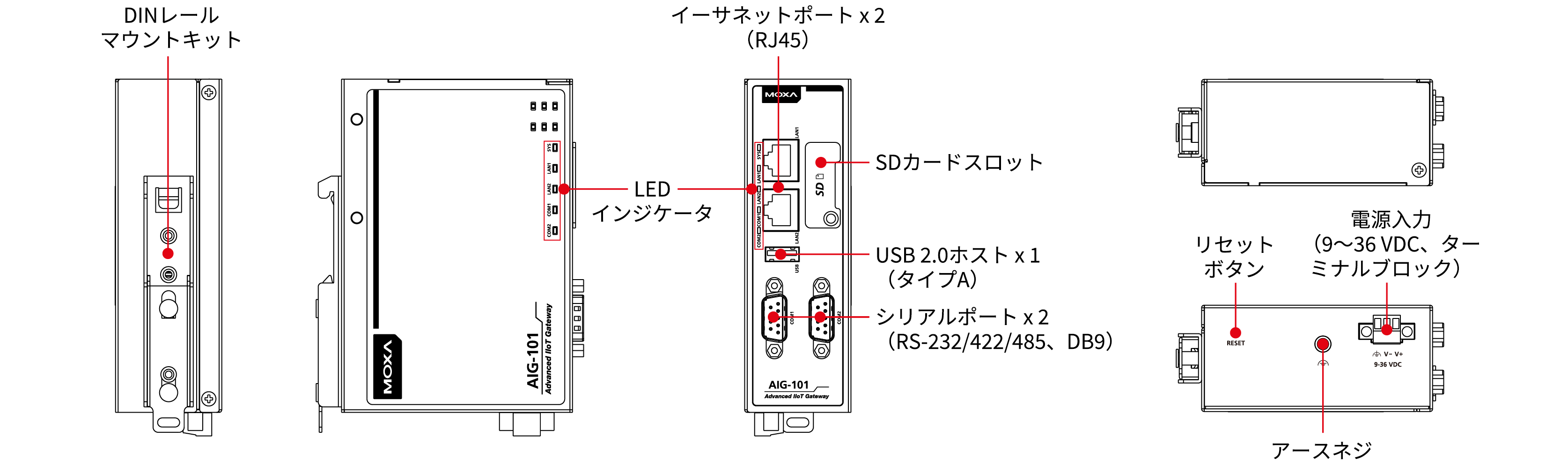

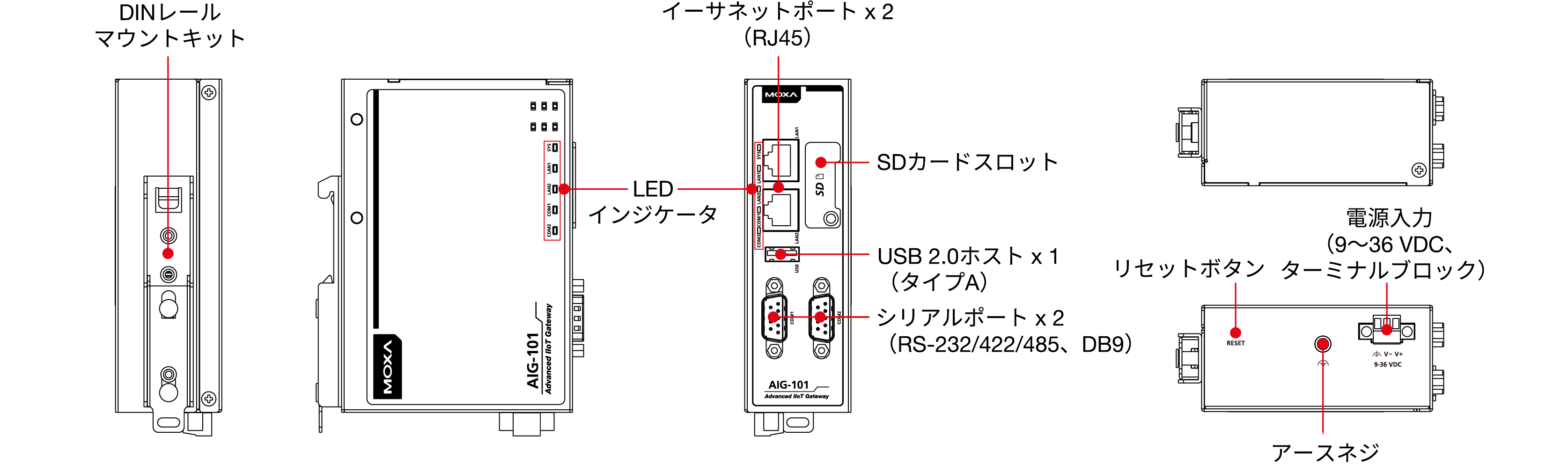

AIG-101-T



  • CPU

    Armv7 Cortex-A8 1 GHz

  • DRAM

    1 GB DDR3

  • Storage Slot

    microSD slots x 1 SD 2.0 interface (SDHC/SDXC)

  • Storage Pre-installed

    8 GB eMMC

  • No. of Tags Supported

    1500

  • Ethernet Ports

    Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
    MDI/MDI-X connection

  • Serial Channels

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 2.0

    USB 2.0 hosts x 1, type-A connectors

  • Cellular Antenna Connector

    SMA x 2

  • Number of SIMs

    2

  • SIM Format

    Nano

  • GPS Antenna Connector

    SMA x 1

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master) / Server (Slave)
    Generic MQTT
    Azure IoT Device
    AWS IoT Core
    FTP/SFTP

  • Configuration Options

    Web Console (HTTP/HTTPS)
    AIG QuickON

  • Time Management

    NTP Client
    GPS

  • No. of Ports

    2

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master

  • Cellular Standards

    LTE Cat. 1

  • Band Options (US)

    LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
    UMTS Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
    Carrier Approval: Verizon, AT&T

  • Band Options (EU)

    LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)
    UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 Mhz) / Band 8 (900 MHz)

  • Band Option (APAC)

    LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)
    UMTS Bands: Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

  • Versions Supported

    v3.1.1
    v3.1

  • QoS Levels

    0, 1, 2

  • Authentication Methods

    Username and password

  • Secure Transmission

    TLS 1.0
    TLS 1.1
    TLS 1.2

  • Native Capabilities

    Keep Alive
    Retain Message
    Clean Session
    Will and Testament

  • Moxa Functions

    Store and Forward
    Custom Payload
    Remote API Invocation

  • Connection Protocols Supported

    MQTT
    MQTT over WebSockets
    AMQP
    AMQP over WebSockets

  • Authentication Methods

    Symmetric Key
    X.509 Certificate

  • Azure Direct Methods

    Reboot
    Software Upgrade
    Remote API Invocation

  • Moxa Functions

    Store and Forward
    Custom Payload

  • QoS Levels

    0,1

  • Authentication Methods

    X.509 Certificate
    Private Key
    Trusted Root CA

  • Native Capabilities

    Keep Alive

  • Moxa Functions

    Store and Forward
    Custom Payload

  • Commands Invokable Via Jobs

    Reboot
    Software Upgrade
    Remote API Invocation

  • Mode

    Client (Master)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    256 per port

  • Max. No of Connected Devices

    62

  • Mode

    Server (Slave)
    Client (Master)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    4

  • Max. No. of Server Connections

    64

  • Max. No. of Commands

    1500

  • Input Voltage

    9 to 36 VDC

  • Power Consumption

    8 W (max.)

  • Power Connector

    Screw-fastened Euroblock terminal

  • Housing

    Metal

  • Dimensions

    128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)

  • Weight

    AIG-101-T: 492 g (1.08 lb)
    AIG-101-T-AP/EU/US: 512 g (1.13 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Cybersecurity

    EN 18031-1

  • Safety

    IEC 62368-1
    UL 62368-1
    EN 62368-1

  • Radio Frequency

    FCC
    PTCRB
    RCM

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64
    5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)

  • Cellular Standards

    EN 301 908-1 (WCDMA/LTE)
    EN 301 908-2/-13 (WCDMA/LTE)
    EN 301 489-1/-19 (GPS)
    EN 301 489-1/-52 (WCDMA/LTE)
    EN 303 413 (GPS)
    EN 62311

  • Carrier Approvals

    Verizon
    AT&T

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    566,458 hrs

  • Standards

    Telcordia Standard SR-332

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Firmware for AIG-101 Series
19.0 MB
ファームウェア
SHA-512
v1.3.2
  • Moxa Industrial Linux 1 (Debian 9)
2026年10月30日 2026年10月30日 リリースノート
AIG QuickON Utility
84.6 MB
ユーティリティ
SHA-512
v1.2.2
  • Windows 10
  • Windows 11
2026年10月2日 2026年10月2日 リリースノート
Firmware for AIG-101 Series
269.4 MB
ファームウェア
SHA-512
v1.3.0
  • Moxa Industrial Linux 1 (Debian 9)
2025年11月4日 2025年11月4日 リリースノート
Firmware for AIG-101 Series
262.3 MB
ファームウェア
SHA-512
v1.2
  • Moxa Industrial Linux 1 (Debian 9)
2024年11月14日 2024年11月14日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
Product Discontinuance
158.0 KB
通知 英語 v1.0 2026年11月2日 2026年11月2日
AIG QuickON User Manual
2.0 MB
マニュアル 英語 v1.0 2025年11月27日 2025年11月27日
Manual for AIG-101 Series
7.1 MB
マニュアル 英語 v2.3 2025年11月4日 2025年11月4日
AIG-101 シリーズデータシート
4.5 MB
データシート 日本語 v2.1 2025年9月24日 2025年9月24日
Declaration of Conformity (cybersecurity) for AIG-101 Series
205.0 KB
宣言書 英語 v1.0 2025年9月17日 2025年9月17日
Declaration of Conformity (EU/UK) for AIG-101 Series
307.8 KB
宣言書 英語 v1.0 2025年5月16日 2025年5月16日
FOSS Statement for AIG-101 Series
3.4 MB
宣言書 英語 v1.1 2024年11月12日 2024年11月12日
QIG for AIG-101 Series
2.1 MB
QIG (クイックインストールガイド) 英語 v2.0 2023年3月1日 2023年3月1日
