ターミナルサーバー

Moxaのターミナルサーバーは、ネットワークへの信頼できるターミナル接続を確立するために必要となる特別な機能とセキュリティ機能を備えており、ターミナル、モデム、データスイッチ、メインフレームコンピュータ、POSデバイスなどのさまざまなデバイスを接続して、ネットワークホストやネットワーク処理で利用可能にします。

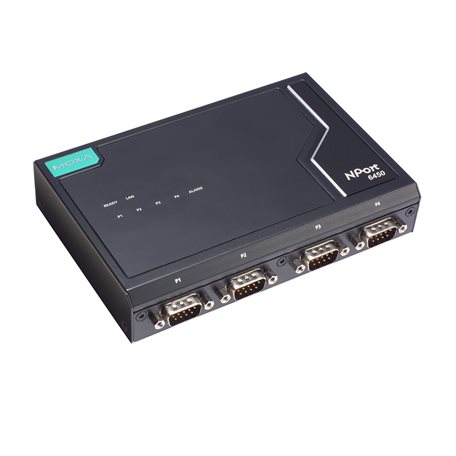

NPort 6450-G2-T
NPort 6400-G2シリーズ

2nd Gen 4-port RS-232/422/485 secure terminal server, -40 to 75°C operating temperature

Memory

  • SD Slot

    • microSD card
      Up to 2 TB (high speed, 25 Mbps)
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1 to 3
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      MCC Tool
      Serial Console

  • Management

    • ARP
      DHCP Client
      DNS
      HTTPS
      ICMP
      IPv4/IPv6
      SMTP
      SMTPS
      SNMPv1/v2c/v3
      SNTP
      TCP/IP
      UDP
      WINS

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, and 7
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2

  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, and 4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, and 11

  • Arm®-based Platform Support

    • Windows 11
      Linux kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11

  • Virtual Machine

    • VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
      VMware Fusion (Windows on macOS 14, 13, 12, and 11)
      Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

  • Time Management

    • SNTP Client

  • MIB

    • MIB-II
      RFC1213, RFC1317
      Private MIB

  • Unicast Routing

    • RIPV1/V2
      Static Route
Security Functions

  • Root of Trust

    • Secure Boot
      True Random Number Generator (TRNG)
      Security Screws

  • Authentication

    • Local database
      RADIUS
      TACACS+

  • Security Protocols

    • HTTPS (TLS 1.2/1.3)
      SNMPv3
      SSHv2

  • Encryption

    • HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC

      SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMAC

      SNMPv3: AES-128, SHA-256, SHA-384

      Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC

      Config Import/Export: AES-256, SHA-256, HMAC
Serial Interface

  • No. of Ports

    • 4

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232
      RS-422
      RS-485

  • Secure Operation Modes

    • Reverse SSH
      Secure Pair Connection
      Secure Real COM
      Secure TCP Client
      Secure TCP Server
      SSH
      Secure Redundant COM, Secure Reverse Real COM

  • Standard Operation Modes

    • Disabled
      Pair Connection
      SLIP
      PPP
      Real COM
      Reverse Terminal
      RFC2217
      TCP Client
      TCP Server
      Terminal
      UDP
      Redundant COM, Reverse Real COM

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • None
      RTS/CTS
      DTR/DSR
      RTS Toggle
      XON/XOFF

  • Parity

    • None, Even, Odd, Space, Mark

  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)

  • Terminator for RS-485

    • 120 ohms
      (software–configurable)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
      (software–configurable)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 373 mA (max.)

  • Input Voltage

    • 12 to 48 VDC
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT

  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (with ears)

    • 158 x 114.4 x 30 mm (6.22 x 4.5 x 1.18 in)

  • Weight

    • NPort 6450-G2: 538 g (1.186 lb)
      NPort 6450-2TX-G2: 546 g (1.204 lb)
      NPort 6450-G2-T: 522 g (1.151 lb)
      NPort 6450-2TX-G2-T: 530 g (1.168 lb)
      NPort 6450-2M/-2S-SC-G2-T: 535 g (1.179 lb)

  • Weight (including package)

    • NPort 6450-G2: 900 g (1.984 lb)
      NPort 6450-2TX-G2: 908 g (2.002 lb)
      NPort 6450-G2-T: 690 g (1.521 lb)
      NPort 6450-2TX-G2-T: 698 g (1.539 lb)
      NPort 6450-2M/-2S-SC-G2-T: 705 g (1.554 lb)

  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting
Environmental Limits

  • Operating Temperature

    • Standard models: -10 to 60°C (14 to 140°F)
      Standard models with power adapter (in the box): 0 to 40°C (32 to 104°F)
      Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Package Drop Test

    • ISTA 1A
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • NPort 6450-G2: 29,716 hrs
      NPort 6450-2TX-G2: 29,713 hrs
      NPort 6450-2M-SC-G2-T: 2,664,201 hrs
      NPort 6450-2S-SC-G2-T: 2,664,201 hrs

  • Standards

    • Telcordia Standard SR-332
      Telcordia SR-332 Issue 4
Warranty
