INJ-24 Series

Gigabit IEEE 802.3af/at PoE+ injectors

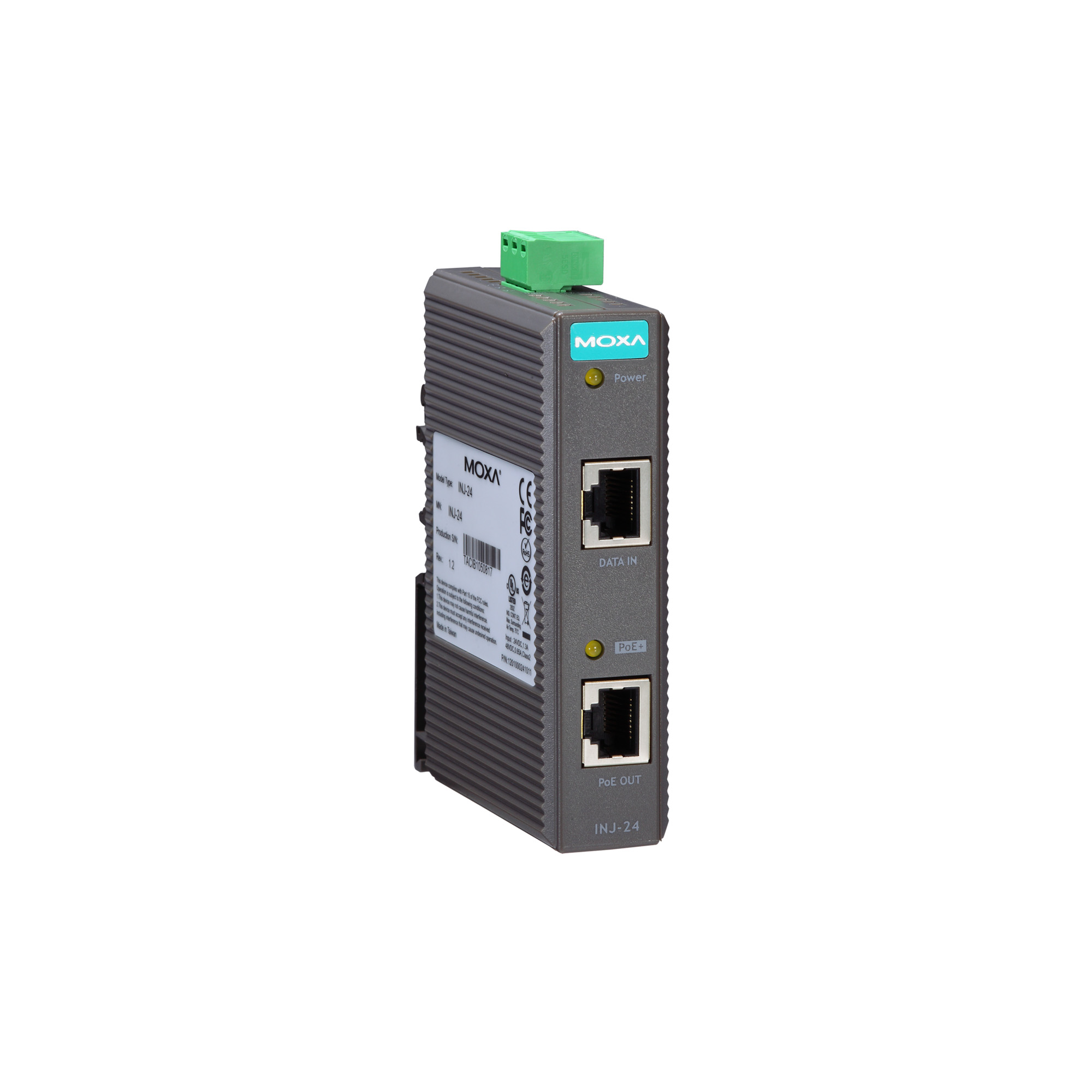

moxa-inj-24-series-image-1-(1).jpg | Moxa

Features and Benefits

  • PoE+ injector for 10/100/1000M networks; injects power and sends data to PDs (power devices)
  • IEEE 802.3af/at compliant; supports a full 30 watt output
  • 24/48 VDC wide range power input
  • -40 to 75°C operating temperature range (-T model)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The INJ-24 is a Gigabit IEEE 802.3at PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for use with power-hungry devices, the INJ-24 injector provides PoE of up to 30 watts. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24 ideally suited to operating in harsh industrial environments.

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    1
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • PoE Pinout

    V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3af/at for PoE/PoE+ output

  • Input Voltage

    24/48 VDC

  • Operating Voltage

    22 to 57 VDC

  • Input Current

    1.42 A @ 24 VDC

  • Power Consumption (Max.)

    Max. 4.08 W full loading without PDs’ consumption

  • Power Budget

    Max. 30 W for total PD consumption
    Max. 30 W for each PoE port

  • Connection

    1 removable 3-contact terminal block(s)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions

    24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)

  • Weight

    115 g (0.26 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    INJ-24: 0 to 60°C (32 to 140°F)
    INJ-24-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 508
    EN 62368-1

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    2,525,278 hrs

  • Standards

    Telcordia (Bellcore), GB
