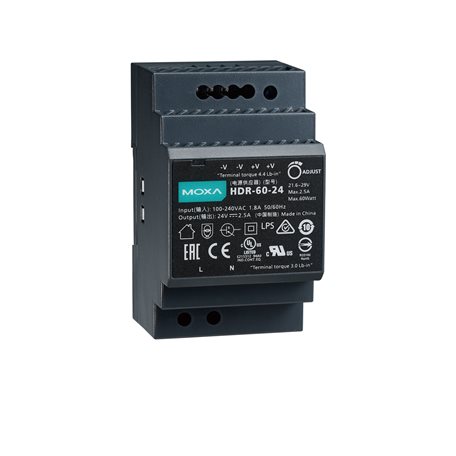

HDR-60-24
HDR Power Supply Series

60 W/2.5 A DIN-rail 24 VDC power supply, universal 85 to 264 VAC or 120 to 370 VDC input voltage, -30 to 70°C operating temperature

Output Power Parameters
  • Wattage

    • 60 W
  • Voltage

    • 24 VDC
  • Current Rating

    • 0 to 2.5 A
  • Ripple and Noise

    • 150 mVp-p
  • Voltage Adjustment Range

    • 21.6 to 29 VDC
  • Setup/Rise Time at Full Load

    • 500 ms, 50 ms at 230 VAC
      500 ms, 50 ms at 115 VAC
  • Typical Hold Up Time at Full Load

    • 30 ms at 230 VAC
      12 ms at 115 VAC
Input Power Parameters
  • Voltage Range

    • 85 to 264 VAC (47 to 63 Hz)
      120 to 370 VDC
  • Typical Efficiency

    • 90%
  • Typical Current

    • 0.8 A @ 230 VAC, 1.2 A @ 115 VAC
  • Inrush Current (cold start)

    • 60 A @ 230 VAC, 30 A @ 115 VAC
Overload Protection
  • Rated Output Power

    • 105 to 160%
  • Protection Type

    • Constant current limiting, recovers automatically after fault condition is removed
Overvoltage Protection
  • Over-Voltage Range

    • 30 to 36 V
  • Protection Type

    • Shut down operating voltage, repower on to recover
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)
  • Weight

    • 230 g (0.5 lb)
Environmental Limits
  • Operating Temperature

    • -30 to 70°C (-22 to 158°F)
  • Storage Temperature

    • -40 to 85°C (-40 to 167°F)
  • Max. Operating Temperature at Full Load

    • 45°C (113°F)
  • Ambient Relative Humidity

    • 20 to 90% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508, EN 62368-1, UL 62368-1, IEC 62368-1
  • EMC

    • EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 6000 MHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
MTBF
  • Time

    • 927,560 hrs
  • Standards

    • MIL-HDBK-217F
