NDR Power Supply Series

120/240 W slim form factor power supplies for DIN-rail mounted products

moxa-ndr-power-supply-series-image-(1).jpg | Moxa

Features and Benefits

  • DIN-rail mounted power supply
  • Slim form factor that is ideal for cabinet installation
  • Universal AC power input
  • High power conversion efficiency

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-eac-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.

  • Wattage

    NDR-120-24: 120 W
    NDR-120-48: 120 W
    NDR-240-48: 240 W

  • Voltage

    NDR-120-24: 24 VDC
    NDR-120-48: 48 VDC
    NDR-240-48: 48 VDC

  • Current Rating

    NDR-120-24: 0 to 5 A
    NDR-120-48: 0 to 2.5 A
    NDR-240-48: 0 to 5 A

  • Ripple and Noise

    NDR-120-24: 120 mVp-p
    NDR-120-48: 150 mVp-p
    NDR-240-48: 150 mVp-p

  • Voltage Adjustment Range

    NDR-120-24: 24 to 28 VDC
    NDR-120-48: 48 to 55 VDC
    NDR-240-48: 48 to 55 VDC

  • Setup/Rise Time at Full Load

    NDR-120-24: 2500 ms, 60 ms at 115 VAC
    NDR-120-24: 1200 ms, 60 ms at 230 VAC
    NDR-120-48: 2500 ms, 60 ms at 115 VAC
    NDR-120-48: 1200 ms, 60 ms at 230 VAC
    NDR-240-48: 3000 ms, 100 ms at 115 VAC
    NDR-240-48: 1500 ms, 100 ms at 230 VAC

  • Typical Hold Up Time at Full Load

    NDR-120-24: 10 ms at 115 VAC
    NDR-120-24: 16 ms at 230 VAC
    NDR-120-48: 10 ms at 115 VAC
    NDR-120-48: 16 ms at 230 VAC
    NDR-240-48: 22 ms at 115 VAC
    NDR-240-48: 28 ms at 230 VAC

  • Typical Efficiency

    NDR-120-24: 88%
    NDR-120-48: 89%
    NDR-240-48: 90%

  • Typical Current

    NDR-120-24: 1.3 A @ 230 VAC, 2.25 A @ 115 VAC
    NDR-120-48: 1.3 A @ 230 VAC, 2.25 A @ 115 VAC
    NDR-240-48: 1.3 A @ 230 VAC, 2.5 A @ 115 VAC

  • Voltage Range

    90 to 264 VAC (47 to 63 Hz)
    127 to 370 VDC

  • Inrush Current (cold start)

    35 A @ 230 VAC, 20 A @ 115 VAC

  • Rated Output Power

    105 to 160%

  • Protection Type

    Constant current limiting, recovers automatically after fault condition is removed

  • Overvoltage Range

    NDR-120-24: 29 to 33 V
    NDR-240-48: 56 to 65 V
    NDR-120-48: 56 to 65 V

  • Protection Type

    Shut down operating voltage, repower on to recover

  • Housing

    Metal

  • Dimensions

    NDR-120-24: 123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in)
    NDR-120-48: 123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in)
    NDR-240-48: 127.81 x 123.75 x 63 mm (5.03 x 4.87 x 2.48 in)

  • Weight

    NDR-120-24: 500 g (1.10 lb)
    NDR-120-48: 500 g (1.10 lb)
    NDR-240-48: 900 g (1.98 lb)

  • Operating Temperature

    NDR-120-24: -20 to 70°C (-4 to 158°F)
    NDR-120-48: -20 to 70°C (-4 to 158°F)
    NDR-240-48: -20 to 70°C (-4 to 158°F)

  • Storage Temperature

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    20 to 95% (non-condensing)

  • Max. Operating Temperature at Full Load

    NDR-120-48: 45°C (113°F)
    NDR-120-24: 45°C (113°F)
    NDR-240-48: 50°C (122°F)

  • Safety

    UL 508
    EN 62368-1
    IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-3-2 Class A
    EN 61000-3-3
    EN IEC 61204-3
    EN IEC 61000-6-2

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 4 kV
    IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms
    IEC 61000-4-8: 30 A/m
    IEC 61000-4-11

  • Standards

    MIL-HDBK-217F

  • Time

    NDR-120-24: 453,334 hrs
    NDR-120-48: 453,334 hrs
    NDR-240-48: 230,206 hrs

Support Documents

FILTER

All Datasheet Declaration QIG
Name Type Version Release Date
QIG for NDR Power Supply Series
648.3 KB 		QIG v1.2 Jun 12, 2024 Jun 12, 2024
Datasheet for NDR Power Supply Series
1.2 MB 		Datasheet v1.4 Jun 10, 2024 Jun 10, 2024
Declaration of Conformity for NDR-240-48
298.8 KB 		Declaration v1.0 Apr 23, 2024 Apr 23, 2024
Declaration of Conformity for NDR-120-24/48
299.3 KB 		Declaration v1.0 Apr 23, 2024 Apr 23, 2024

Available Models (3)

Show Images
Compare
moxa-ndr-120-48-image.jpg | MoxaNDR-120-48
Compare

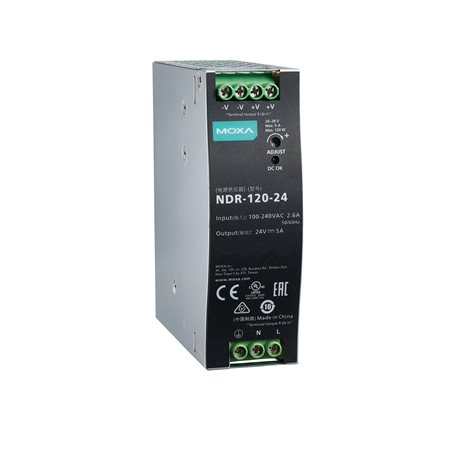

moxa-ndr-120-24-image.jpg | MoxaNDR-120-24
Compare

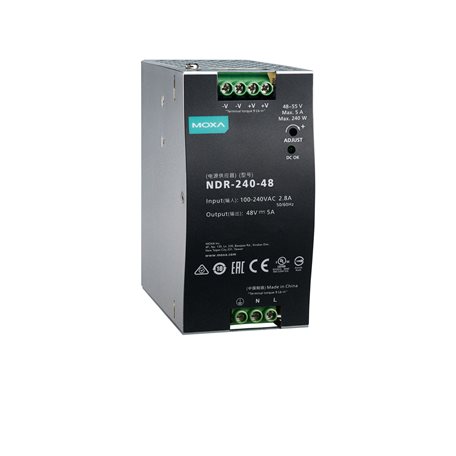

moxa-ndr-240-48-image.jpg | MoxaNDR-240-48
