MOXA

Surge Protectors

Moxa’s surge protectors feature certified serial protection that ensures serial data lines are not damaged by power surges or spikes.

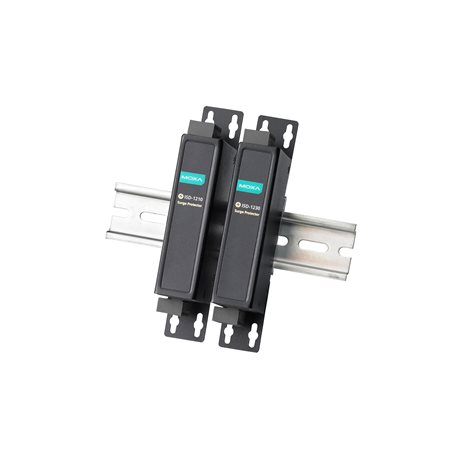

ISD-1210-T
ISD-1210-T/1230-T Series

4 data line advanced surge protector, RS-232, 20 kV surge protection, -40 to 85°C operating temperature

Serial Interface
  • Connector

    • Terminal block
  • Serial Standards

    • RS-232
  • Baudrate

    • 50 bps to 921.6 kbps
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 95 x 53 x 25 mm (3.74 x 2.01 x 0.98 in)
  • Weight

    • Packaged: 276 g (0.61 lb)
      Product only: 214 g (0.47 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMS

    • IEC 61643-21 C2 20 kV
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • EN 60950-1, IEC 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 62,642,538 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
