ANT-5G-ASM-02 Series

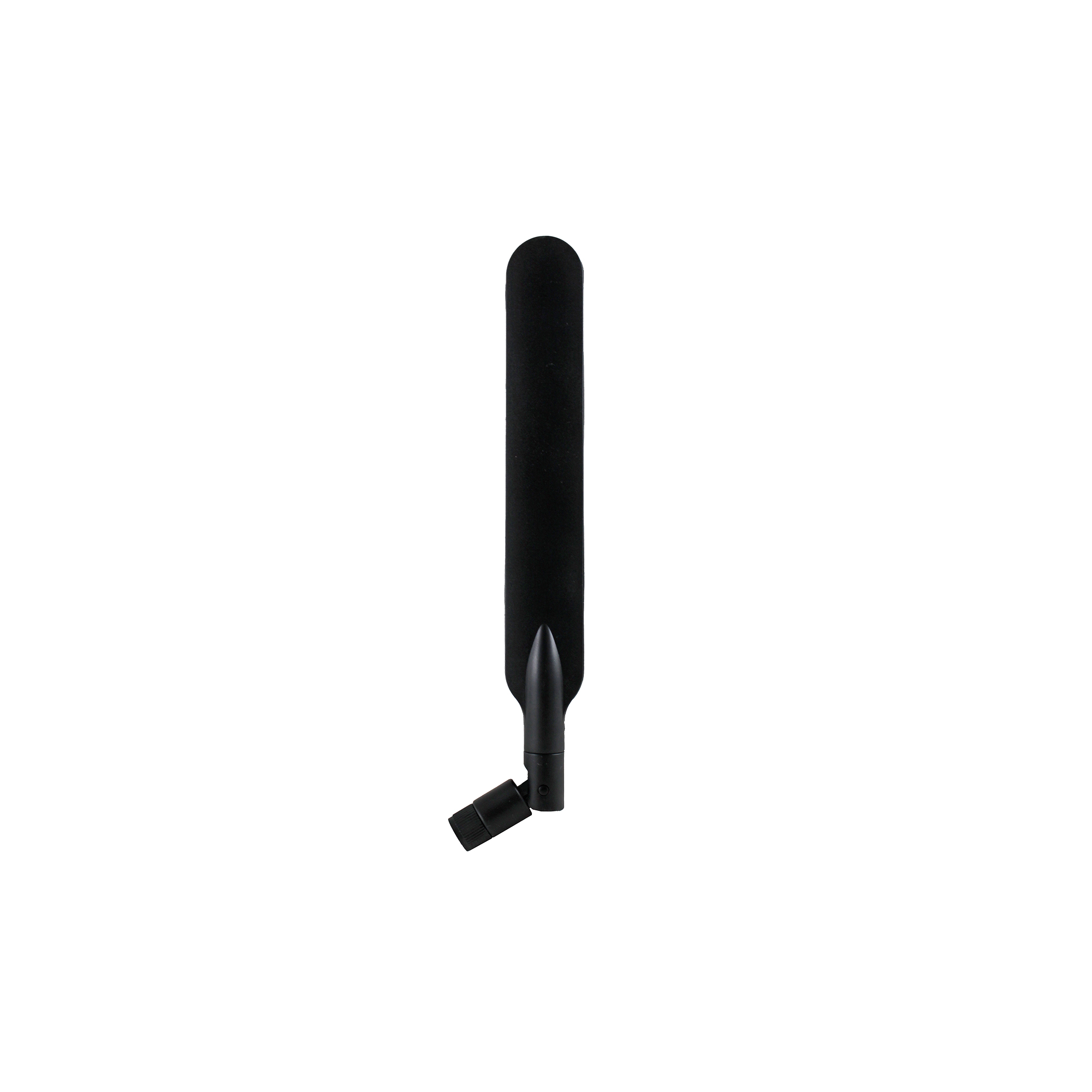

2 dBi LTE/5G NR dipole antennas with SMA (male) connector

moxa-ant-5g-asm-02-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports all global 5G bands
  • Lightweight
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-5G-ASM-02 Series is an omnidirectional lightweight compact antenna suitable for LTE, and 5G NR bands. The antenna provides a gain of 2 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    617 to 960 MHz
    1452 to 1575.412 MHz
    1710 to 2690 MHz
    3300 to 4200 MHz
    4400 to 5000 MHz
    5150 to 7150 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    1 dBi @ 617 to 960 MHz (5G NR n28, 71)
    2.5 dBi @ 1452 to 1575.412 MHz (5G NR n50, 51, 74, 75, 76 )
    2.5 dBi @ 1710 to 2690 MHz (5G NR n1, 2, 3, 7, 25, 34, 38, 39, 40, 41, 65, 66, 80, 84, 86)
    2.5 dBi @ 3300 to 4200 MHz (5G NR n77, 78)
    2.5 dBi @ 4400 to 5000 MHz (5G NR n79)
    2.5 dBi @ 5150 to 7150 MHz

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Vertical
    Linear

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    < 3 @ 617 to 960 MHz
    < 3 @ 1452 to 1575.412 MHz
    < 3 @ 1710 to 2690 MHz
    < 3 @ 3300 to 4200 MHz
    < 3 @ 4400 to 5000 MHz
    < 3 @ 5150 to 7150 MHz

  • Weight

    30 g (0.07 lb)

  • Length

    205 mm (8.07 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -20 to 65°C (-4 to 149°F)

  • Storage Temperature (package included)

    -30 to 70°C (-22 to 158°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-5G-ASM-02 Series
406.7 KB 		Datasheet v1.0 Jul 25, 2023 Jul 25, 2023

Available Models (1)

Show Images
Compare
ANT-5G-ASM-02
Frequency617 to 960 MHz
1710 to 2690 MHz
1452 to 1575.412 MHz
3300 to 4200 MHz
4400 to 5000 MHz
5150 to 7150 MHz
Antenna TypeOmnidirectional
Antenna Gain2 dBi
Connector TypeSMA (male)
Add to QuoteView Bag
