MAT-5G-PA-SM-3-06-3m Series

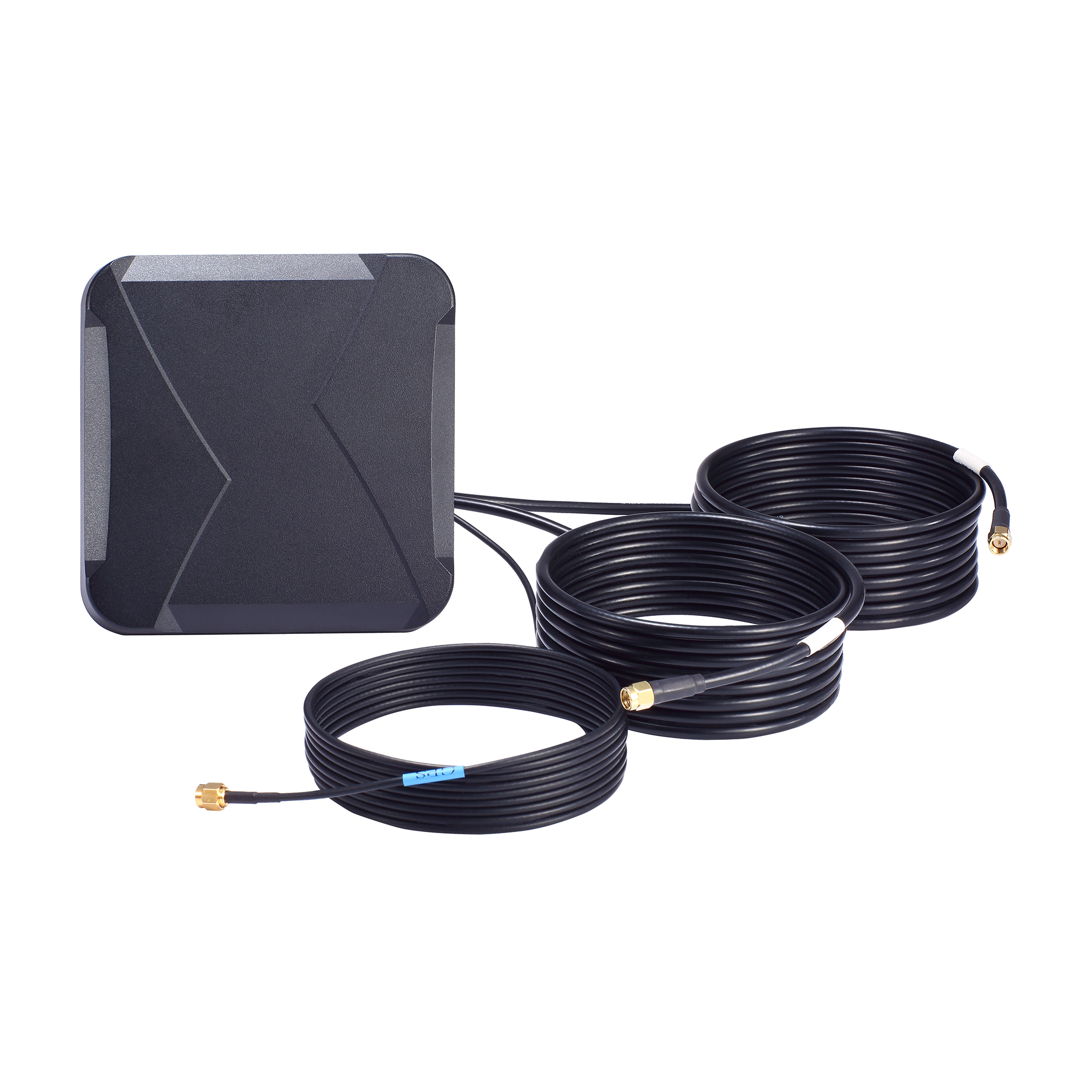

Wireless MIMO panel antennas with 3 SMA (male) connectors for cellular and GNSS applications

moxa-mat-5g-pa-sm-3-06-3m-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports all global LTE bands
  • 3-in-1 LTE+GNSS combination design
  • High-gain antenna to enhance performance
  • Flexible installation
  • 3-meter cable
  • SMA connector (male) supported

Contact Sales

Introduction

The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    Cellular: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
    GNSS: 1561.00, 1575.42, 1602.00 MHz

  • Antenna Type

    Panel

  • Typical Antenna Gain

    Cellular:
    2.64 dBi @ 617 to 698 MHz (5G NR n71)
    5.23 dBi @ 698 to 824 MHz (LTE 700)
    4.73 dBi @ 824 to 960 MHz (GSM 850/900)
    6.66 dBi @ 1427 to 1510 MHz (5G NR n74,75,76)
    6.14 dBi @ 1710 to 1880 MHz (DCS)
    5.92 dBi @ 1850 to 1990 MHz (PCS)
    5.92 dBi @ 1920 to 2170 MHz (UMTS1)
    5.54 dBi @ 2300 to 2690 MHz (LTE 2600)

    GNSS:
    1.21 dBi @ 1561.00 MHz (BDS)
    1.29 dBi @ 1575.42 MHz (GPS)
    1.44 dBi @ 1602.00 MHz (GLONASS)

    With low noise amplifier:
    30 dB

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear
    Vertical

  • Dimensions

    135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)

  • Radome Material

    Plastic

  • Radome Color

    Black

  • Installation

    Screw mount

  • Cable

    SNC200

  • Cable Length

    3 m

  • IP Rating

    IPx9K

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)
