MOXA

Low-noise Amplifiers

Moxa’s low-noise amplifiers (LNA) enhance the receiver performance and sensitivity of various communication and signal processing applications.

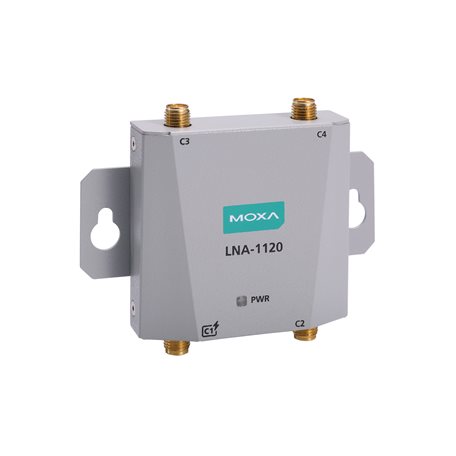

LNA-1120-T
LNA-1000 Series

Industrial 5G low-noise amplifier, n48, n78, n79, n1, n3, and n7 bands, IP30, -40°C to 70°C operating temperature

Cellular Interface

  • Cellular Antenna Connectors

    • 2 x SMA(J) signal input (including one power input)
      2 x SMA(J) signal output

  • Frequency Bands Supported

    • Cellular broadband LTE and NR frequencies
LED Indicators

  • System

    • Power
Power Parameters

  • Source of Input Power

    • Powered by 5G user equipment (UE) via RF cable
Physical Characteristics

  • Dimensions

    • 75.4 x 60.4 x 15.5 mm (2.97 x 2.38 x 0.61 in)

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Weight

    • 73 g (0.16 lb)

  • Installation

    • Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
MTBF

  • Time

    • 14,090,649 hrs

  • Standards

    • Telcordia SR332
Warranty
