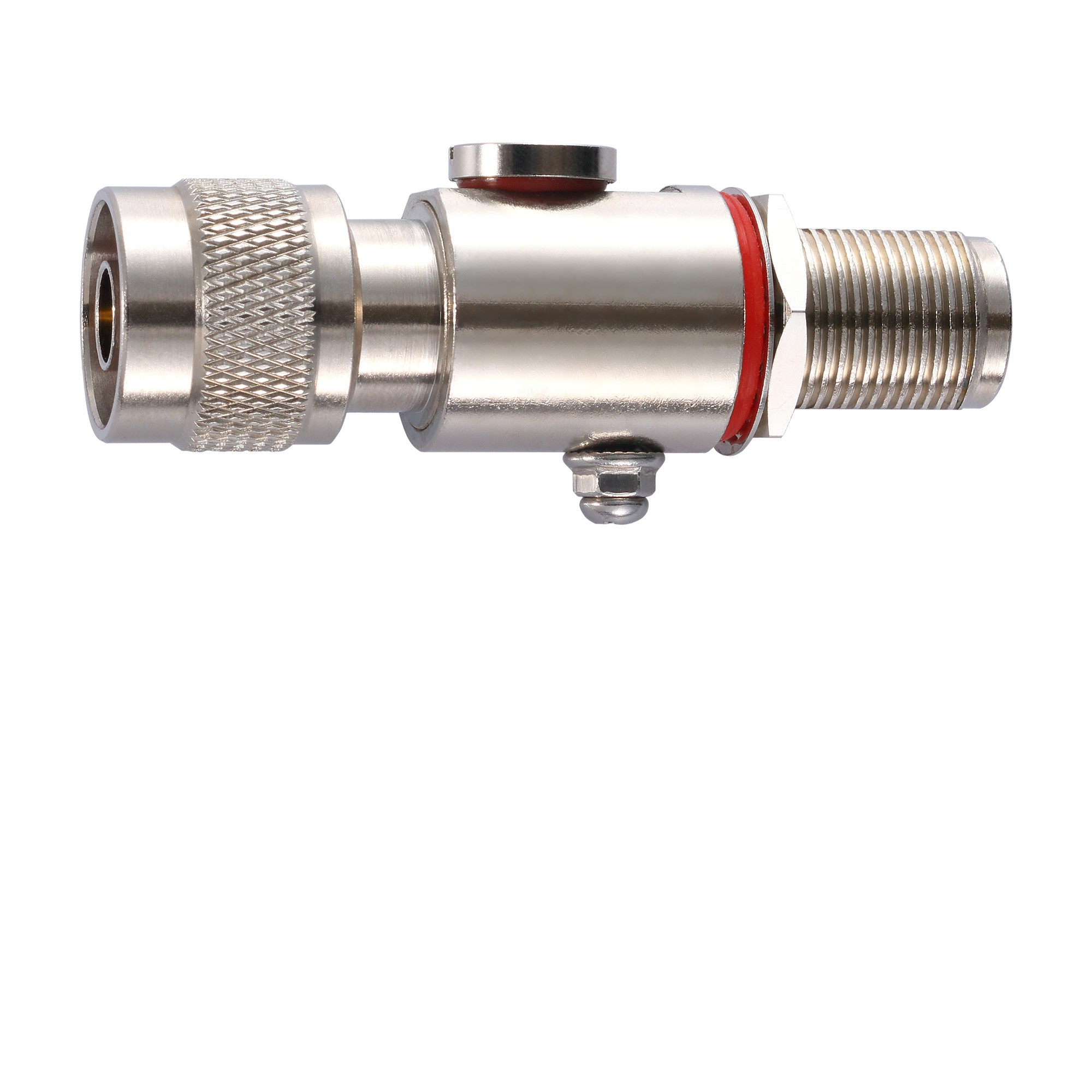

A-SA-NMNF-02 Series

0 to 6 GHz, N-type (male) to N-type (female) surge arrester

A-SA-NMNF-02_2000x2000-96dpi-(1).jpg | Moxa

Features and Benefits

  • N-type connector

Contact Sales

Introduction

The A-SA-NMNF-02 Series is a N-type (male) to N-type (female) surge arrester to help protect connected electrical devices from power surges.

  • Frequency

    0 to 6 GHz

  • V.S.W.R.

    1:1.5 @ 0-6 GHz

  • Insertion Loss

    0.5 dB (max.)

  • DC Breakdown Voltage

    230 V ± 20% @ 100 V/S

  • Impulse Breakdown Voltage

    < 700 V @ 1k V/μs

  • Surge Discharge Current

    10 kA @ 8/20 μs

  • Initial Insulation Resistance

    ≥ 1000 mΩ

  • Electrode Capacitance

    1.5 P

Support Documents

Name Type Version Release Date
Datasheet for A-SA-NMNF-02 Series
622.4 KB
Datasheet v1.0 Mar 09, 2021 Mar 09, 2021

Available Models (1)

Show Images
moxa-a-sa-nmnf-02-image.jpg | MoxaA-SA-NMNF-02
Frequency0 to 6 GHz
Connector TypeN-type (male) to N-type (female)
