ANT-WDB-ANM-0306 Series

3 dBi at 2.4 GHz or 6 dBi at 5 GHz, N-type (male), dual-band, omnidirectional antennas

moxa-ant-wdb-anm-0306-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Outdoor waterproof N-type connector
  • Lightweight
  • Compact form factor
  • Housing provides IP67 protection
  • -40 to 75°C operating temperature range

Contact Sales

Introduction

The ANT-WDB-ANM-0306 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 75°C make it suitable for outdoor use.

Field Patterns

Frequency: 2.4 GHz

Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 4.9 to 5.825 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    3.5/6 dBi

  • Connector

    N-type (male)

  • Impedance

    50 ohms

  • Polarization

    Linear

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    2:1 max.

  • Power Handling

    1 W max.

  • IP Rating

    IP67

  • Dimensions

    Diameter: 22 mm (0.87 in)
    Length: 215 mm (8.46 in)

  • Weight

    68.9 g (0.15 lb)

  • Radome Color

    White

  • Radome Material

    PC-9330

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for ANT-WDB-ANM-0306 Series
1.2 MB
Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (1)

Show Images

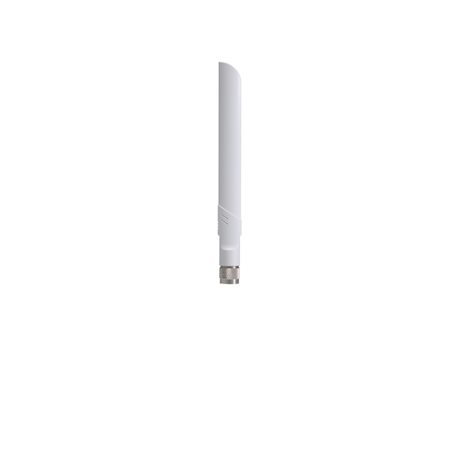

moxa-ant-wdb-anm-0306-image.jpg | MoxaANT-WDB-ANM-0306
