ANT-WDB-ONF-0709 Series

07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna

moxa-ant-wdb-onf-0709-series-image-(1).jpg | Moxa

Features and Benefits

  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 80°C operating temperature range

Contact Sales

Introduction

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

X-Y Plane

X-Z Plane

Y-Z Plane

  • Frequency

    2.4 to 2.4835 GHz or 5.15 to 5.85 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    7/9 dBi

  • Connector

    N-type (female)

  • Impedance

    50 ohms

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    1:2.5 max.

  • Power Handling

    10 W (max.)

  • Polarization

    Vertical

  • IP Rating

    IP65

  • Dimensions

    Diameter: 22 mm (0.87 in)
    Length: 610 mm (24.0 in)

  • Weight

    461 g (1.02 lb)

  • Radome Color

    White

  • Radome Material

    Fiberglass

  • Installation

    Pole mount

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-WDB-ONF-0709 Series
5.2 MB 		Datasheet v1.0 Jul 22, 2022 Jul 22, 2022

Available Models (1)

Show Images
Compare

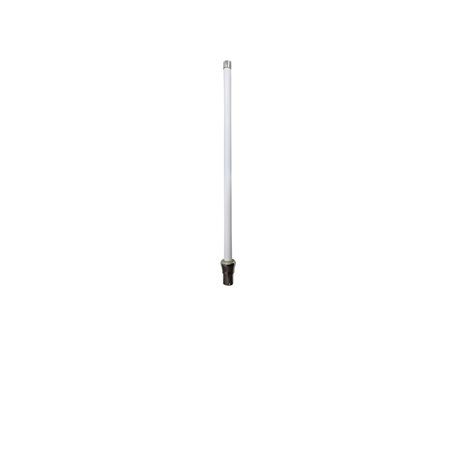

moxa-ant-wdb-onf-0709-image.jpg | MoxaANT-WDB-ONF-0709
