ANT-WDB-ONM-0707 Series

07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (male), dual-band omnidirectional antenna

moxa-ant-wdb-onm-0707-series-image-(1).jpg | Moxa

Features and Benefits

  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Housing provides IP65 protection
  • -40 to 85°C operating temperature range

Contact Sales

Introduction

The ANT-WDB-ONM-0707 is an omnidirectional dual-band high-gain antenna with a waterproof N-type male connector. The IP65-rated housing and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

X-Y Plane

X-Z Plane

Y-Z Plane

  • Frequency

    2.4 to 2.4835 GHz or 5.15 to 5.85 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    7/7 dBi

  • Impedance

    50 ohms

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    1:2.5 max.

  • Power Handling

    10 W (max.)

  • Polarization

    Vertical

  • Connector

    N-type (male)

  • IP Rating

    IP65

  • Dimensions

    Diameter: 20 mm (0.79 in)
    Length: 528 mm (20.79 in)

  • Weight

    152 g (0.34 lb)

  • Radome Color

    White

  • Radome Material

    Fiberglass

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-WDB-ONM-0707 Series
4.6 MB 		Datasheet v1.1 Jul 22, 2022 Jul 22, 2022

Available Models (1)

Show Images
Compare

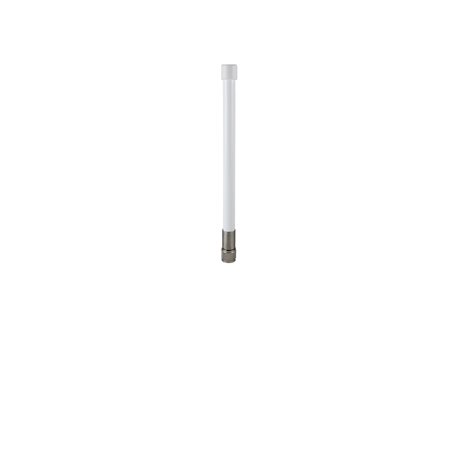

moxa-ant-wdb-onm-0707-image.jpg | MoxaANT-WDB-ONM-0707
