WLAN Antennas

Moxa offers a wide variety of WLAN antennas that are easy to install and simplify the process of establishing wireless networks.

ANT-WDB-PNF-1011

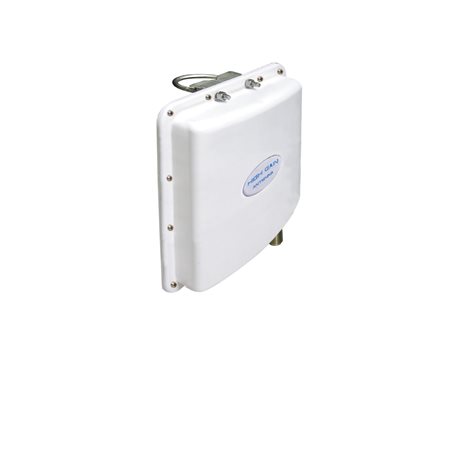

ANT-WDB-PNF-1011 Series

10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna

Antenna Characteristics
  • Frequency

    • 2.4 to 2.4835, 5.15 to 5.85 GHz
  • Antenna Type

    • Directional, Panel
  • Typical Antenna Gain

    • 10/11 dBi
  • Connector

    • N-type (female)
  • Impedance

    • 50 ohms
  • HPBW/Horizontal

    • 40°
  • HPBW/Vertical

    • 30°
  • V.S.W.R.

    • 1:3.0 max.
  • Power Handling

    • 10 W (max.)
  • Polarization

    • Vertical
Physical Characteristics
  • IP Rating

    • IP65
  • Dimensions

    • 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
  • Weight

    • 767 g (1.69 lb)
  • Radome Color

    • White
  • Radome Material

    • PC and ABS
  • Installation

    • Pole mount
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Warranty
