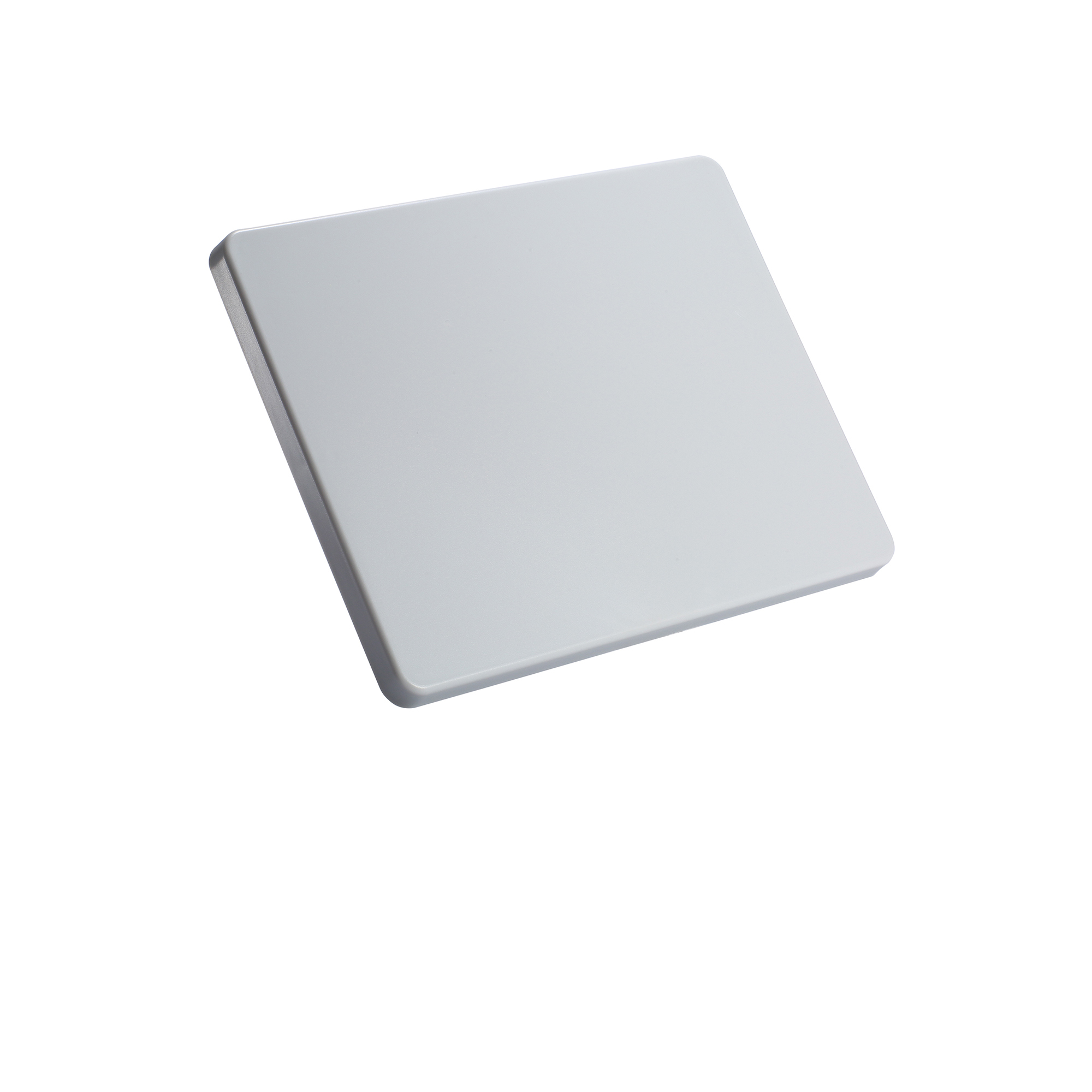

The ANT-WSB-PNF-18 is a lightweight compact dual-band high-gain directional panel antenna with waterproof N-type connector. The antenna provides a gain of 18 dB at 2.4 GHz. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
Frequency: 2.4 GHz
Save
2.4 to 2.5 GHz
Directional, Panel
18 dBi
N-type (female)
50 ohms
Linear
30°
20°
1:1.5 max.
15 W (max.)
IP65
270 x 205 x 15 mm (10.63 x 8.07 x 0.59 in)
310 g (0.68 lb)
Light gray
PC and ABS
Pole mount
-40 to 80°C (-40 to 176°F)
5 to 95% (30°C, non-condensing)
1 year
See www.moxa.com/warranty
