ANT-WSB5-PNF-16 Series

16 dBi at 5 GHz, N-type (female), single-band directional antenna

moxa-ant-wsb5-pnf-16-series-image-(1).jpg | Moxa

Features and Benefits

  • High gain antenna
  • N-type (female) connector supported

Contact Sales

Introduction

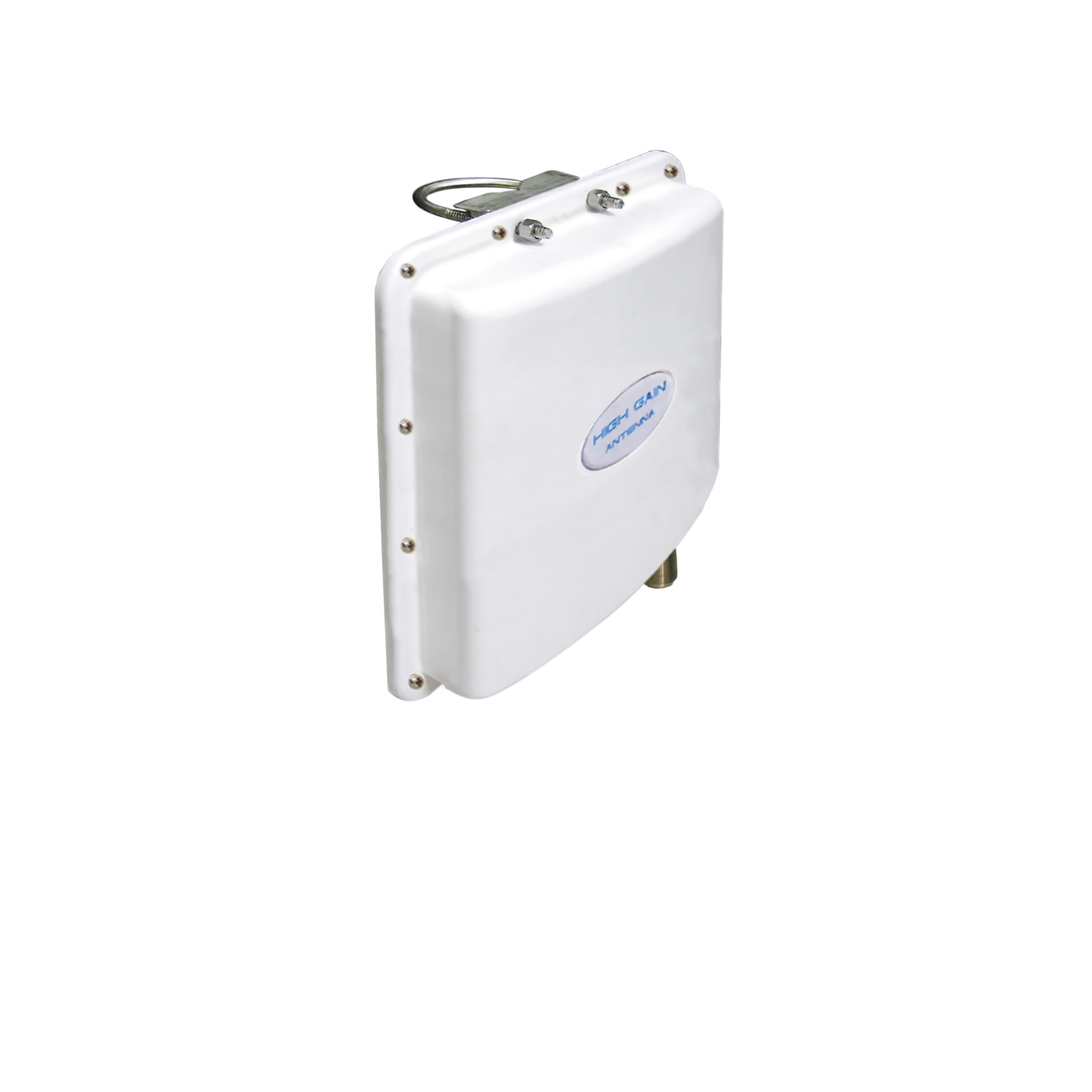

The ANT-WSB5-PNF-16 is asingle-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 16 dBi at 5 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

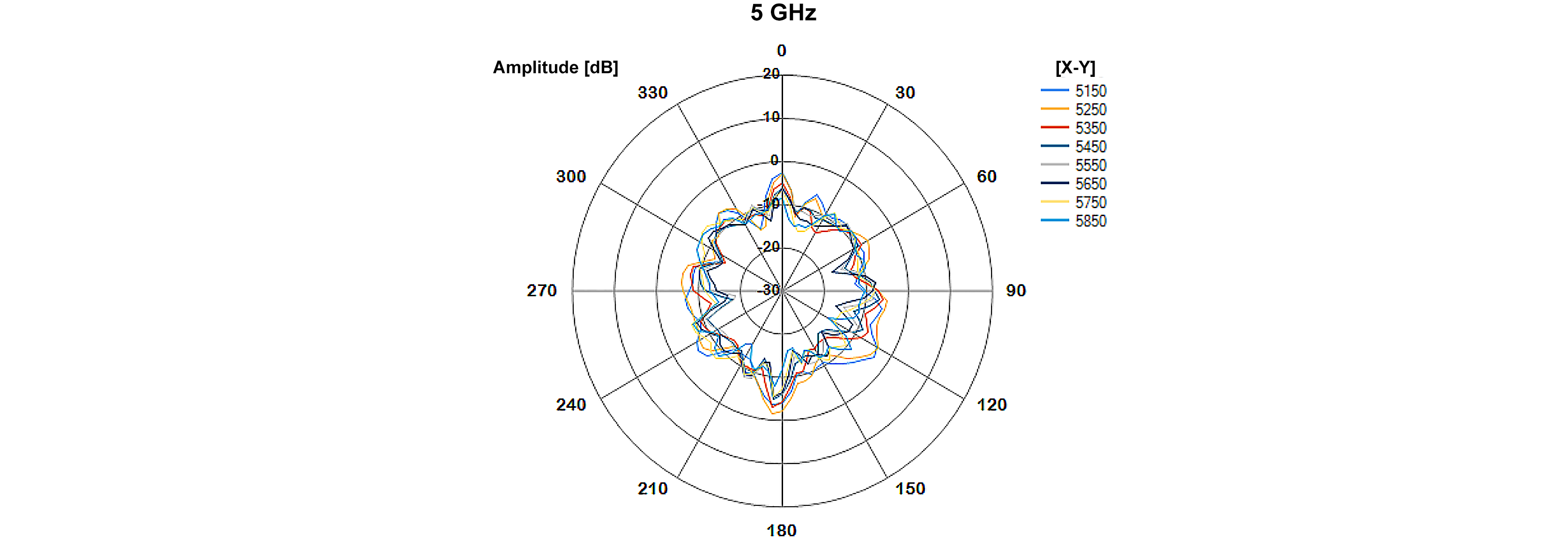

X-Y Plane

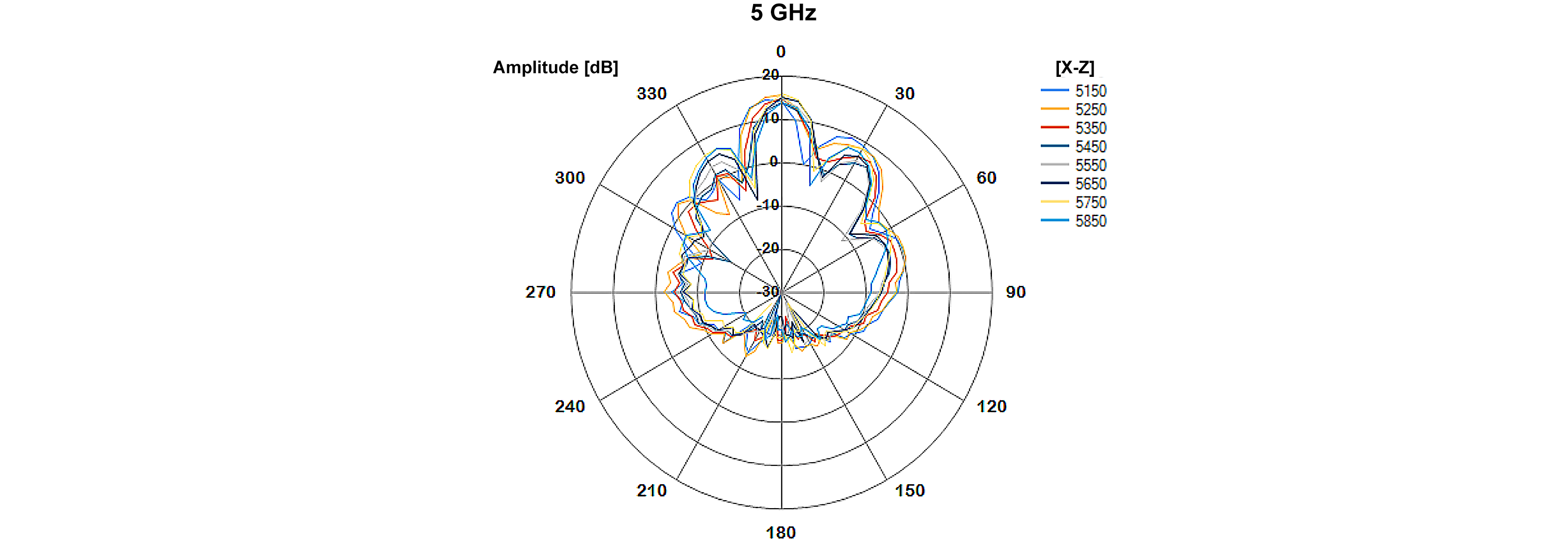

X-Z Plane

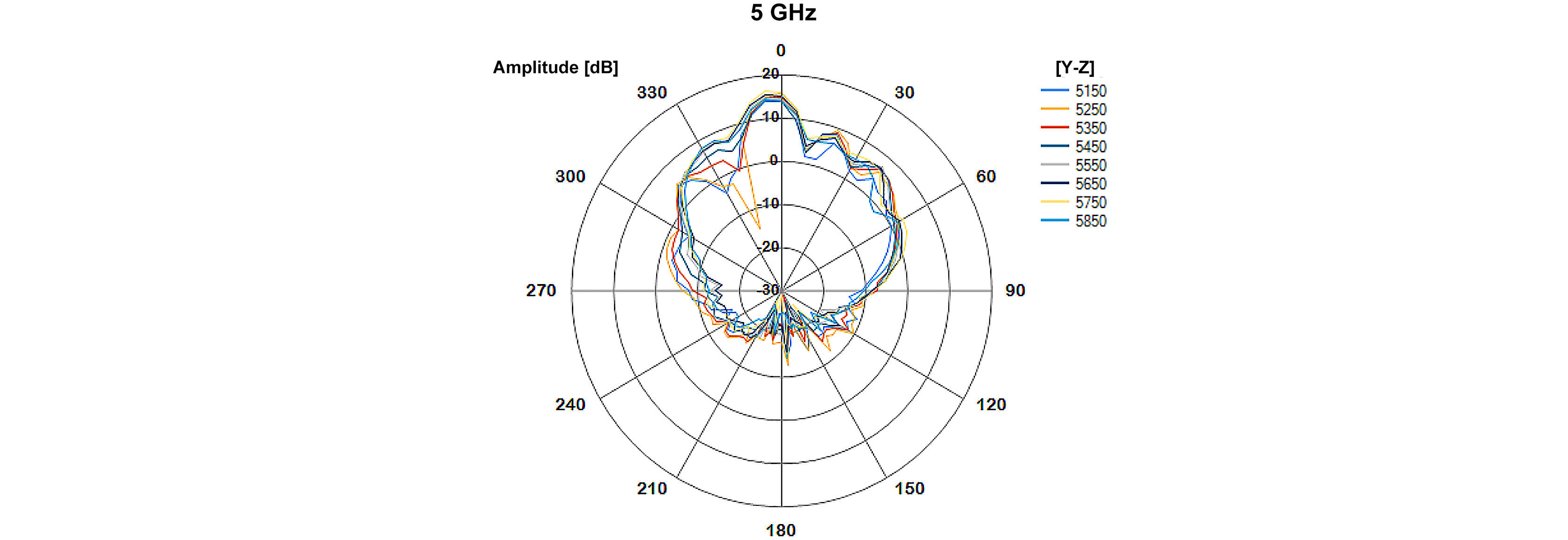

Y-Z Plane

  • Frequency

    5.15 to 5.85 GHz

  • Antenna Type

    Directional, Panel

  • Typical Antenna Gain

    16 dBi

  • Connector

    N-type (female)

  • Impedance

    50 ohms

  • HPBW/Horizontal

    30°

  • HPBW/Vertical

    23°

  • V.S.W.R.

    1:2.0 max.

  • Power Handling

    10 W (max.)

  • Polarization

    Vertical

  • IP Rating

    IP65

  • Dimensions

    260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)

  • Weight

    807 g (1.78 lb)

  • Radome Material

    PC and ABS

  • Installation

    Pole mount

  • Radome Color

    White

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Support Documents

Name Type Version Release Date
Datasheet for ANT-WSB5-PNF-16 Series
1.7 MB
Datasheet v1.0 Jul 22, 2022 Jul 22, 2022
