WLAN Antennas

Moxa offers a wide variety of WLAN antennas that are easy to install and simplify the process of establishing wireless networks.

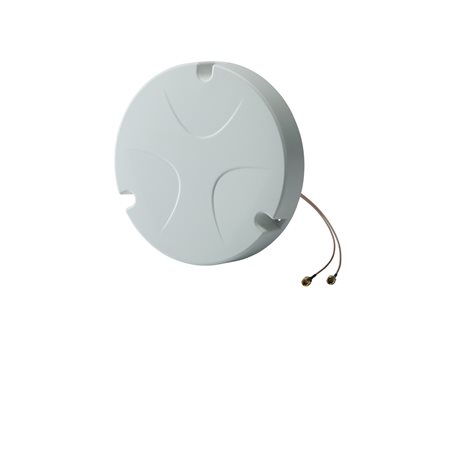

MAT-WDB-CA-RM-2-0205
MAT-WDB-CA-RM-2-0205 Series

2.4/5 GHz, ceiling antenna, 2/5 dBi, MIMO 2x2, RP-SMA-type (male)

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5, 4.9 to 5.9 GHz
  • Antenna Type

    • MIMO 2x2, Omni-directional
  • Typical Antenna Gain

    • 2/5 dBi
  • Connector

    • RP-SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
  • HPBW/Horizontal

    • 360°
  • V.S.W.R.

    • 2:1 max.
  • Power Handling

    • 10 W (max.)
Physical Characteristics
  • Weight

    • 115 g (0.25 lb)
  • Height

    • 37 mm (1.46 in)
  • Diameter

    • 210.9 mm (8.3 in)
  • Radome Color

    • White
  • Radome Material

    • ABS
  • Installation

    • Ceiling mount
  • Cable

    • RG-178
  • Cable Length

    • 250 mm (9.84 in)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
