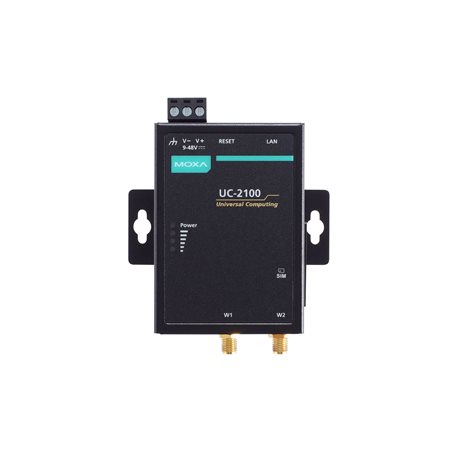

UC-2104-LX
UC-2100 Series

Mini RISC-based embedded computer with 600 MHz processor, 1 LAN port, 1 Mini PCIe slot for wireless capability

Computer

  • CPU

    • Armv7 Cortex-A8 600 MHz

  • DRAM

    • 256 MB DDR3

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 9, Kernel 4.4)
      See www.moxa.com/MIL

  • Storage Pre-installed

    • 8 GB eMMC
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1

  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

  • Expansion Slots

    • mPCIe slot x 1

  • Cellular Antenna Connector

    • SMA x 2

  • Number of SIMs

    • 1

  • SIM Format

    • Standard

  • Buttons

    • Reset button, DIP switch for serial port configuration
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Baudrate

    • 50 bps to 921.6 kbps

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • ESD Protection

    • 4 kV, for all signals
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
LED Indicators

  • System

    • Power x 1

  • LAN

    • 2 per port (10/100 Mbps)

  • Wireless Signal Strength

    • Cellular/Wi-Fi x 3
Physical Characteristics

  • Housing

    • Metal

  • Installation

    • Wall mounting, DIN-rail mounting (with optional kit)

  • Weight

    • 220 g (0.49 lb)

  • Dimensions (with ears)

    • 80 x 80 x 30.8 mm (3.15 x 3.15 x 1.21 in)

  • Dimensions (without ears)

    • 57 x 80 x 30.8 mm (2.24 x 3.15 x 1.21 in)
Environmental Limits

  • Operating Temperature

    • -10 to 70°C (14 to 158°F)

  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Power Parameters

  • Input Voltage

    • 9 to 48 VDC

  • Input Current

    • 0.45 A @ 9 VDC, 0.084 A @ 48 VDC

  • Power Consumption

    • 4 W
MTBF

  • Time

    • 1,577,995 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Reliability

  • Alert Tools

    • External RTC (real-time clock)

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Standards and Certifications

  • Safety

    • IEC 60950-1, UL 60950-1

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF

  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
