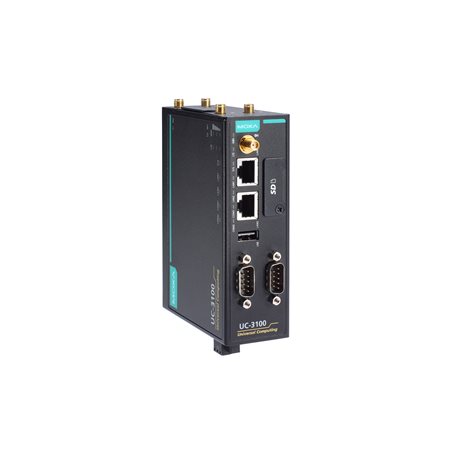

UC-3121-T-US-LX
UC-3100 Series

Arm-based computer for the EU region with built-in LTE Cat. 1 and Wi-Fi a/b/g/n modules, 1 GHz processor, 1 GB RAM, 8 GB eMMC, 2 Ethernet ports, 1 serial port, 1 CAN port, 1 USB port, 1 SD slot, -40 to 70°C operating temperature

Computer
  • DRAM

    • 1 GB DDR3
  • Supported OS

    • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
      See www.moxa.com/MIL
  • Storage Pre-installed

    • 8 GB eMMC
  • Storage Slot

    • SD slots x 1
Computer Interface
  • TPM

    • TPM v2.0
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 1, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Cellular Antenna Connector

    • SMA x 2
  • SIM Format

    • Nano
  • Number of SIMs

    • 2
  • GPS Antenna Connector

    • SMA x 1
  • Wi-Fi Antenna Connector

    • RP-SMA x 2
  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Cellular Interface
  • Band Options

    • US models:
      LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
      UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
      Carrier Approval: Verizon, AT&T
WLAN Interface
  • WLAN Standards

    • 802.11a/b/g/n
      Bluetooth 4.2 compliance
  • Frequency Band

    • 2.4 GHz/5 GHz
Serial Interface
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Baudrate

    • 50 bps to 921.60 kbps
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
CAN Interface
  • Baudrate

    • 10 to 1000 kbps
  • Connector

    • DB9 male
  • Isolation

    • 2 kV (built-in)
  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
LED Indicators
  • System

    • Power x 1
  • CAN

    • 1 per port (Tx, Rx)
  • Serial

    • 1 per port (Tx, Rx)
  • LAN

    • 1 per port (10/100 Mbps)
  • Wireless Signal Strength

    • 3 x cellular and 3 x Wi-Fi
Power Parameters
  • Power Consumption

    • UC-3101: 6 W (max.)
      UC-3111/UC-3121: 8 W (max.)
  • Input Current

    • 500 mA @ 12 VDC
  • Input Voltage

    • 9 to 36 VDC
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Dimensions (without ears)

    • 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) for UC-3101
      128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in) for UC-3111/UC-3121
  • Weight

    • Product only: 550 g (1.22 lb)
Environmental Limits
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Vibration

    • 5 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Carrier Approvals

    • AT&T
      Verizon
  • Cellular Standards

    • EN 301511
      EN 301908-1
      EN 62311(MPE SAR)
      EN 301489-1/-52
      EN 301489-1/17
  • Radio Frequency

    • FCC
      PTCRB
      RCM
  • Safety

    • IEC 60950-1
      UL 60950-1
      IEC 62368-1
      UL 62368-1
  • WLAN Standards

    • EN 301489-1-17
      EN 300328
      EN 301893
  • Green Product

    • RoHS, CRoHS, WEEE
  • Hazardous Locations

    • Class I Division 2
      ATEX
MTBF
  • Time

    • 474,796 hrs
  • Standards

    • Telcordia (Bellcore) Standard
