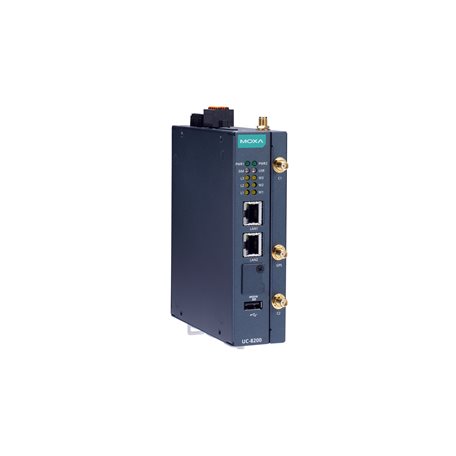

UC-8220-T-LX-US-S
UC-8200 Series

Arm Cortex-A7 dual-core 1 GHz IIoT gateway with built-in TPM module, US region LTE Cat. 4 module preinstalled, 1 Mini PCIe expansion slot for a Wi-Fi module, 1 CAN port, 4 DIs, 4 DOs, -40 to 70°C operating temperature

Computer

  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz

  • DRAM

    • 2 GB DDR3L

  • Storage Pre-installed

    • 8 GB eMMC

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 9, Kernel 4.4)
      Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
      Moxa Industrial Linux 3 MIL3 OS is selectable via Moxa Computer Configuration System (CCS) for CTO models. For the model names, see the Ordering Information section of the datasheet PDF file. (Debian 11, kernel 5.10), 2031 EOL
      See www.moxa.com/MIL

  • Expansion Slots

    • MicroSD (SD 3.0) socket x 1
Computer Interface

  • TPM

    • TPM v2.0

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)

  • CAN Ports

    • CAN 2.0 A/B x 1 (DB9 male)

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Wi-Fi Antenna Connector

    • RP-SMA x 2

  • Cellular Antenna Connector

    • SMA x 2

  • GPS Antenna Connector

    • SMA x 1

  • Expansion Slots

    • mPCIe slots x 1

  • SIM Format

    • Nano

  • Number of SIMs

    • 2

  • Buttons

    • Programmable button
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Security Functions

  • Hardware-based Security

    • TPM 2.0
      Hardware Root of Trust Secure Boot

  • Intrusion Detection

    • Host-based Intrusion Detection

  • Security Tools

    • Security Diagnostic Tool
      Security Event Auditing
      Secure Update

  • Disk Protection

    • LUKS Disk Encryption

  • Recovery

    • One-step recovery to the last known secure state
      Dual-system design with automatic failback

  • Reliability

    • Network Keep Alive
      Network Failover and Failback
Serial Interface

  • Console Port

    • 1 x 4-pin header to DB9 console port

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
CAN Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Baudrate

    • 10 to 1000 kbps

  • Industrial Protocols

    • CAN 2.0A
      CAN 2.0B

  • Isolation

    • 2 kV (built-in)

  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Dry Contact

    • Off: open
      On: short to GND

  • Isolation

    • 3K VDC

  • Sensor Type

    • Wet contact (NPN)
      Dry contact

  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 24 VDC nominal, open collector to 30 VDC
Cellular Interface

  • Cellular Standards

    • LTE Cat. 4

  • Band Options

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 13
      (700 MHz) / LTE Band 17 (700 MHz)
      UMTS/HSPA 850 MHz / 1900 MHz
      Carrier Approval: Verizon, AT&T
GPS Interface

  • Receiver Types

    • GPS/GLONASS/Galileo
      State-of-the-art GNSS solution

  • Accuracy

    • Position: 2.0 m @CEP50

  • Acquisition

    • Hot starts: 1.1 sec
      Cold starts: 29.94 sec

  • Sensitivity

    • Cold starts: -145 dBm
      Tracking: -160 dBm

  • Time Pulse

    • 0.25 Hz to 10 MHz
LED Indicators

  • System

    • Power x 2
      Programmable x 1
      SIM card indicator x 1

  • Wireless Signal Strength

    • Cellular/Wi-Fi x 6
Power Parameters

  • No. of Power Inputs

    • Redundant dual inputs

  • Input Voltage

    • 12 to 48 VDC

  • Power Consumption

    • 10 W

  • Input Current

    • 0.8 A @ 12 VDC
Reliability

  • Alert Tools

    • External RTC (real-time clock)

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics

  • Dimensions

    • 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)

  • Housing

    • SECC
      Metal

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • IP Rating

    • IP30

  • Weight

    • 750 g (1.65 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications

  • Safety

    • UL 62368-1
      EN 62368-1

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV

  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2

  • Hazardous Locations

    • Class I Division 2
      ATEX

  • Carrier Approvals

    • Verizon
      AT&T

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 528,574 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
