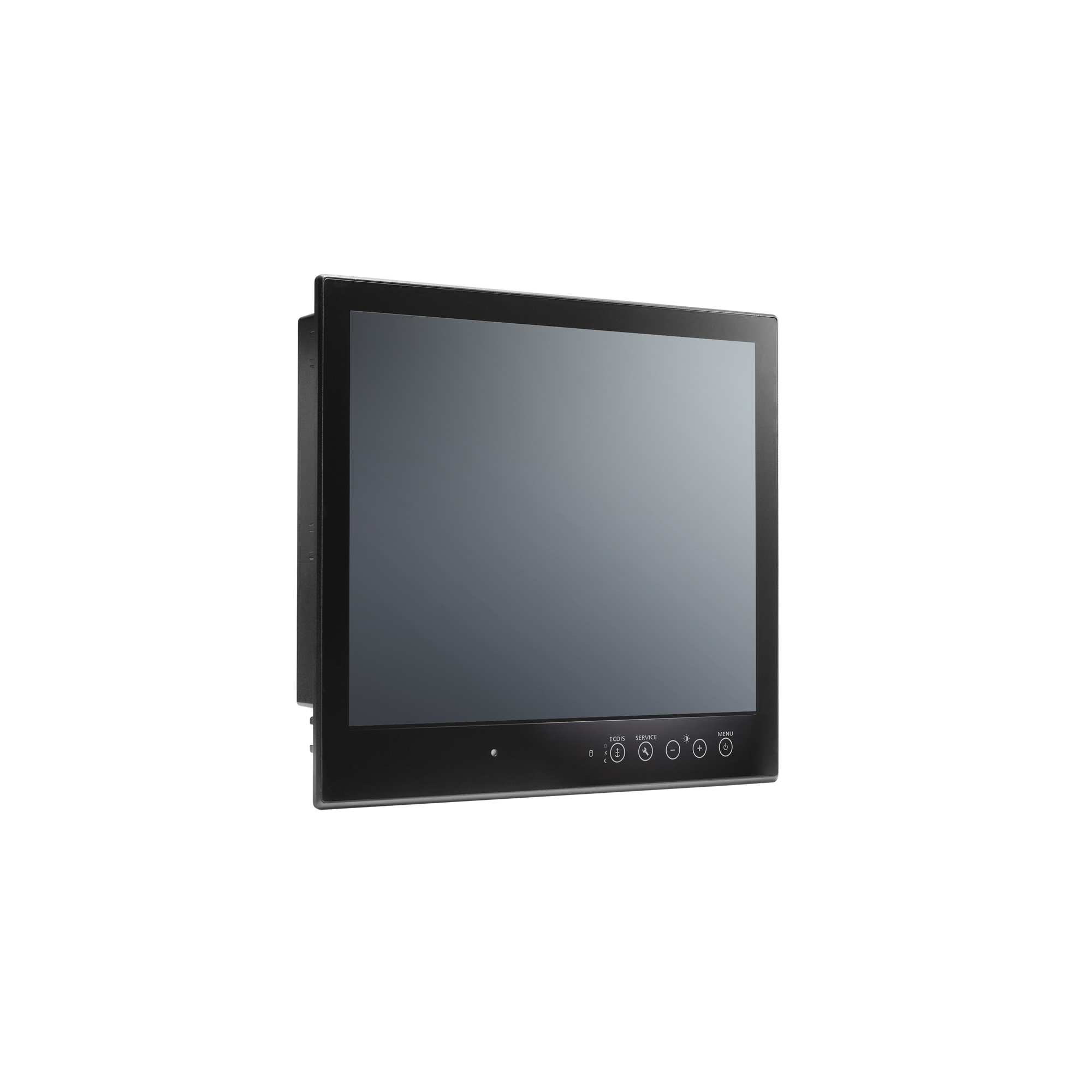

The MD-219 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall time-to-market.
The innovative and user-friendly SavvyTouch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).
The MD-219 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated model available by request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.
ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
19-inch viewable image
1280 x 1024
20 ms (gray to gray)
MD-219X/219Z: 300 cd/m2MD-219Z-HB: 1000 cd/m2
RS-232 ports x 1 (DB9 male) RS-232/422/485 ports x 1, software selectable (terminal block)
DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female)
MD-219Z/MD-219Z-HB: Capacitive Touch (PCAP)MD-219X: None
MD-219Z/219Z-HB: 4 points
50 bps to 115.2 kbps
5, 6, 7, 8
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
None, Even, Odd, Space, Mark
1, 1.5, 2
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Tx+, Tx-, Rx+, Rx-, GND
Data+, Data-, GND
100 to 240 VAC 24 VDC (18 to 30 V)
40 W (max.)
MD-219X: IP54, front MD-219X: IP22, rear MD-219Z: IP54, front MD-219Z: IP22, rear MD-219Z-HB: IP66, front MD-219Z-HB: IP22, rear
429 x 387 x 75 mm (16.89 x 15.24 x 2.95 in)
7,800 g (17.20 lb)
Desktop Panel mounting VESA mounting
-15 to 55°C (5 to 131°F)
-20 to 60°C (-4 to 140°F)
5 to 95% (non-condensing)
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1k V
ABS CCS IEC 60945 DNV
LCD: 1 year System: 3 years
Rugged HMIs that offer out-of-the-box compatibility to work with your SCADA/PLCs
