DA-682A-UART Series Expansion Modules

Expansion modules with RS-232/422/485 and RS-232/485 serial ports.

moxa-da-682a-uart-series-expansion-modules-image-1-(1).jpg | Moxa
moxa-da-682a-uart-series-expansion-modules-image-2-(1).jpg | Moxa
moxa-da-682a-uart-series-expansion-modules-image-3-(1).jpg | Moxa

Features and Benefits

  • 8-port RS-232/422/485 serial module with DB9 connector
  • 8-port RS-422/485 isolated serial module with terminal block connector
  • 8-port RS-232/422/485 isolated serial module with DB9 or terminal block connector
  • 8-port RS-232/422/485 isolated serial module with DB9 or terminal block connector, EMC Level 4

Contact Sales

Introduction

The DA-682A-UART Series expansion modules include an 8-port RS-232/422/485 module with either DB9 or terminal block connectors, and an 8-port RS-422/485 module with terminal block connectors. Some modules are even designed with 2 kV digital isolation, making them fully suitable for the great demands of industrial applications that use serial communication.

Appearance

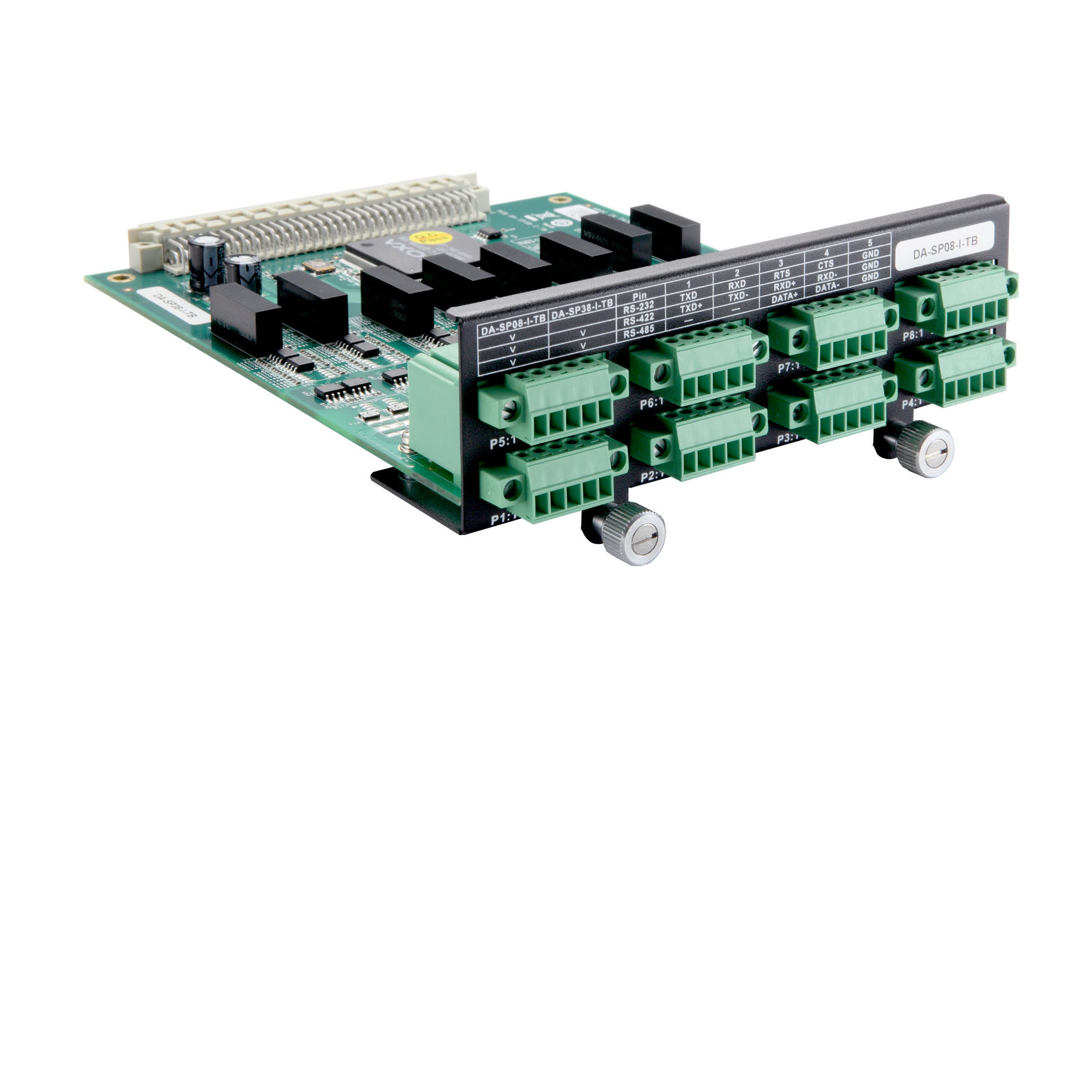

DA-SP08-I-TB, DA-SP08-I-EMC4-TB

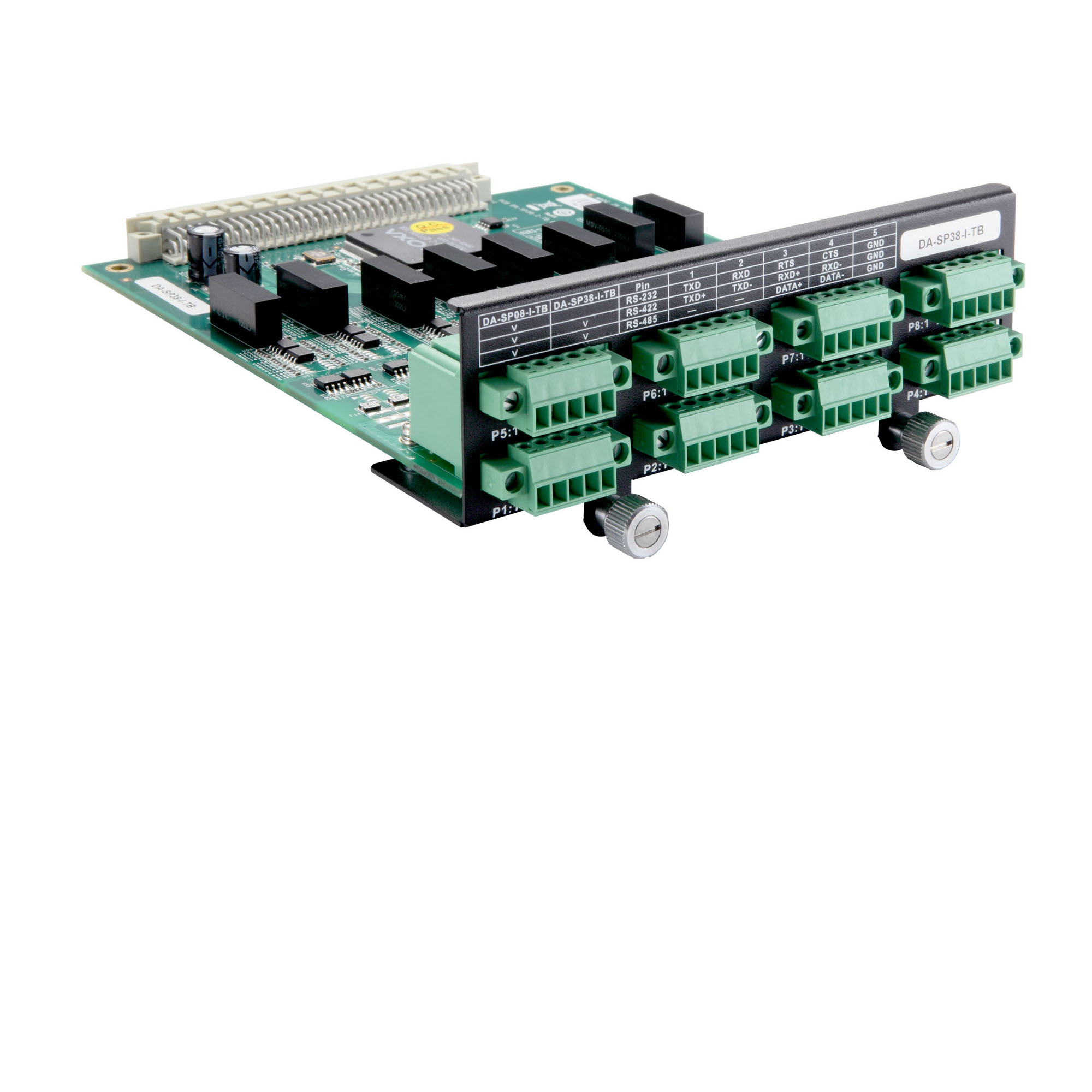

DA-SP38-I-TB

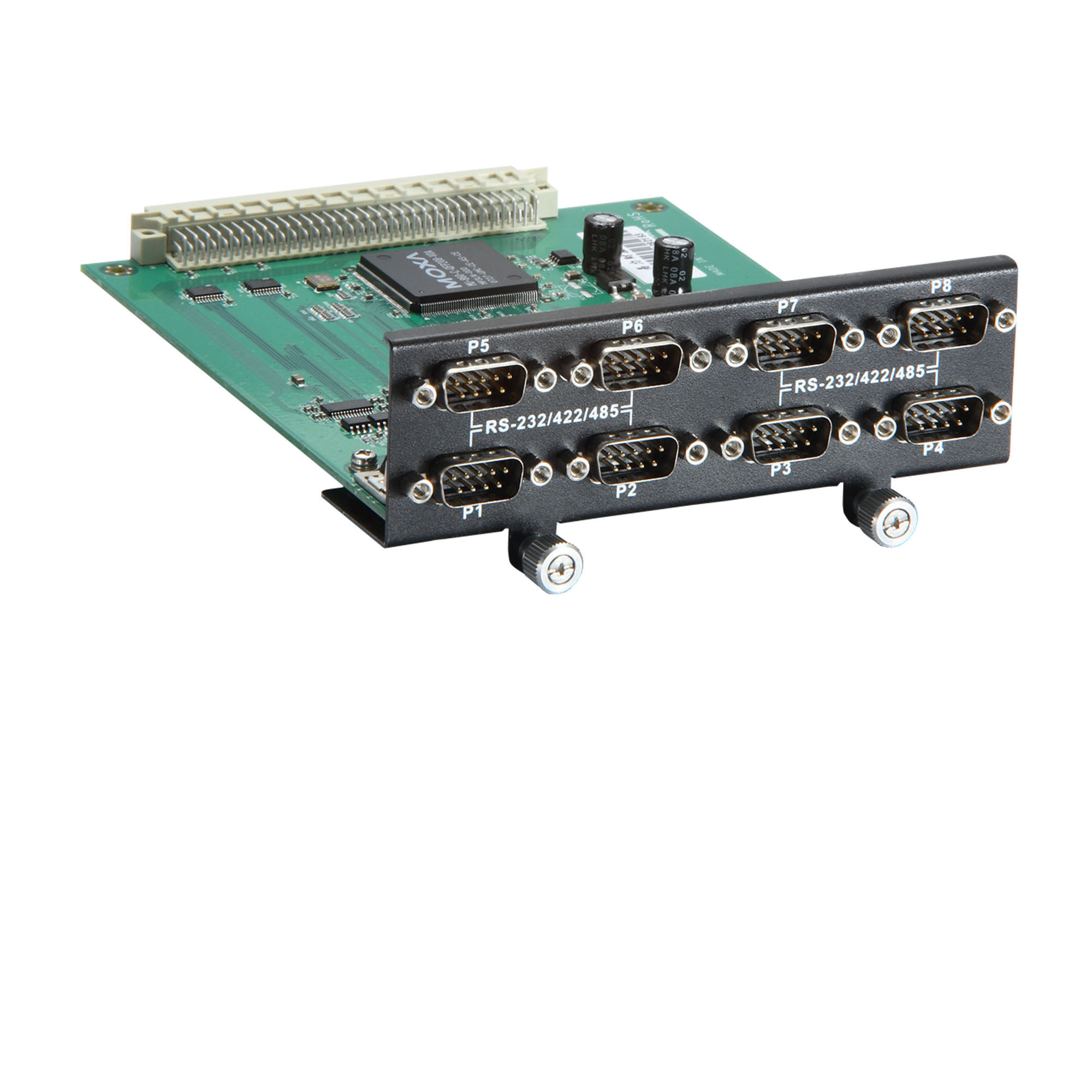

DA-SP08-DB, DA-SP08-I-DB, DA-SP08-I-EMC4-DB

  • Serial Ports

    DA-SP08-I-EMC4-TB: 8-port isolated RS-232/422/485, DB9 connector, EMC Level 4
    DA-SP08-I-EMC4-DB: 8-port isolated RS-232/422/485, terminal block connector, EMC Level 4
    DA-SP08-I-TB: 8-port isolated RS-232/422/485, terminal block connector
    DA-SP08-I-DB: 8-port isolated RS-232/422/485, DB9 connector
    DA-SP38-I-TB: 8-port isolated RS-422/485, terminal block connector
    DA-SP08-DB: 8-port RS-232/422/485, DB9 connector

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • ESD

    15 kV

  • Flow Control

    ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF

  • Isolation

    2 kV

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Surge

    DA-SP08-I-EMC4-TB/DA-SP08-I-EMC4-DB: 4 kV

  • RS-232

    DB9: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    Terminal block: TxD, RxD, RTS, CTS, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Dimensions (without ears)

    130 x 150 mm (42 x 5.12 in)

  • Weight

    DA-SP08-DB: 266 g (0.59 lb)
    DA-SP08-I-DB: 290 g (0.64 lb)
    DA-SP08-I-TB: 290 g (0.64 lb)
    DA-SP08-I-EMC4-DB: 323 g (0.71 lb)
    DA-SP08-I-EMC4-TB: 262 g (0.58 lb)
    DA-SP38-I-TB: 240 g (0.53 lb)

  • Operating Temperature

    -25 to 60°C (-13 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,753,143 hrs

  • Standards

    Telcordia (Bellcore), GB
