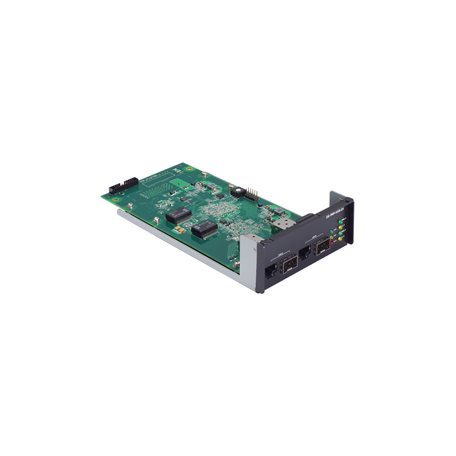

DE-PRP-HSR-EF
DA-720-Ethernet Series Expansion Modules

2-port 100/1000 Mbps PCIe PRP/HSR LAN Module

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
  • 1000BaseSFP Slots

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Physical Characteristics
  • Dimensions

    • 213.31 x 95 mm (8.398 x 3.74 in)
  • Weight

    • 365 g (0.80 lb)
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,895,911 hrs
  • Standards

    • Telcordia (Bellcore), GB
