DA-820-Ethernet Series Expansion Modules

Expansion modules with 2-port Giga SFP LAN, 2-port 100 Mbps SPF LAN, and 2-Port PRP/HSR Giga LAN

moxa-da-820-ethernet-series-expansion-modules-image-1-(1).jpg | Moxa

Features and Benefits

  • 2-port Giga LAN PRP/HSR module
  • 2-port 100 Mbps SFP fiber module (SFP module excluded)
  • 2-port 1000 Mbps fiber card, SFP slot x 2 (SFP module excluded)

Contact Sales

Introduction

The DA-820-Ethernet expansion modules, with choice of Fiber LAN ports and PRP/HSR communication redundancy ports, provide superior flexibility for industrial applications. The 2/4-port Fiber LAN modules are suitable for industrial communication applications with Ethernet-based devices. The DA-PHR-PTP expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With dual Gigabit Ethernet port design, the DA-PRP-HSR module provides high performance for redundant network systems. In addition, the DA-PRP-HSR features built-in native PRP/HSR management middleware with MMS server that allows SCADA systems to collect IEC62439-3 registers from multiple devices for easy network diagnosis, troubleshooting, device management, and monitoring. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks.

Appearance

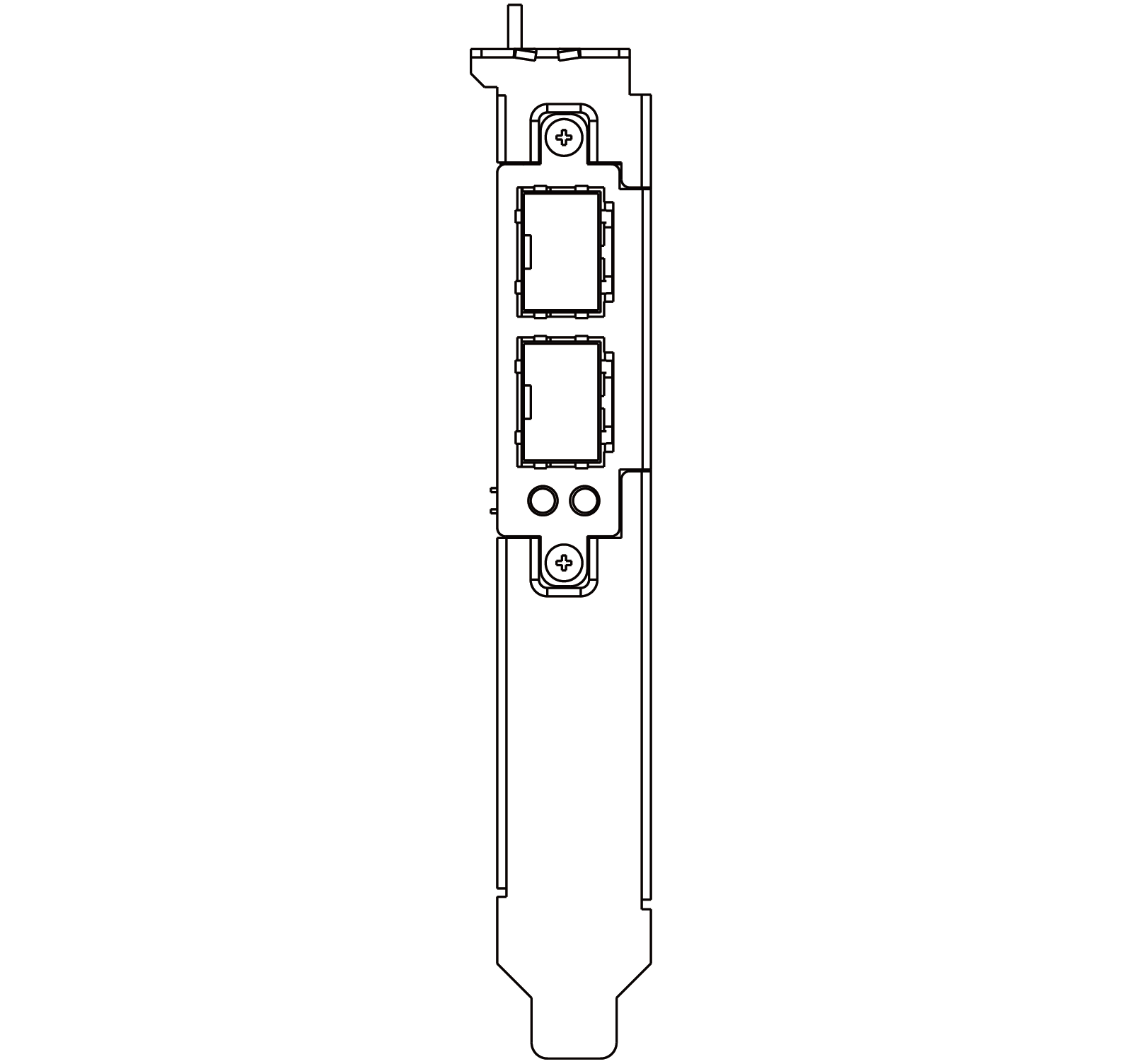

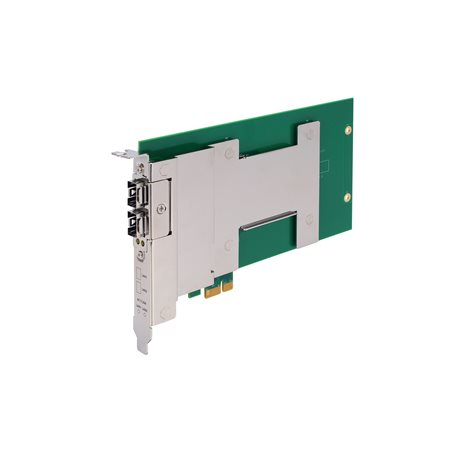

DA-PRP-HSR

DE-FX02-SFP-T

DE-GX02-SFP-T

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    DA-PRP-HSR: 2

  • 100 Mbps fiber (SFP connector)

    DE-GX02-SFP-T: 2

  • 1000 Mbps fiber (SFP connector)

    DE-FX02-SFP-T: 2

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Dimensions (without ears)

    DA-PRP-HSR: 167 x 111 mm (6.6 x 4.38 in)
    DE-FX02-SFP-T, DE-GX02-SFP-T: 183 x 106.65 mm (7.2 x 4.19 in)

  • Weight

    DE-FX02-SFP-T: 218 g (0.48 lb)
    DE-GX02-SFP-T: 220 g (0.49 lb)
    DA-PRP-HSR: 212 g (0.47 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    DE-FX02-SFP-T: 1,403,659 hrs
    DE-GX02-SFP-T: 1,403,659 hrs
    DA-PRP-HSR: 1,707,210 hrs

  • Standards

    Telcordia (Bellcore), GB
