DA-PWR-200 Power Module Series

Power modules for the DA-920E Series

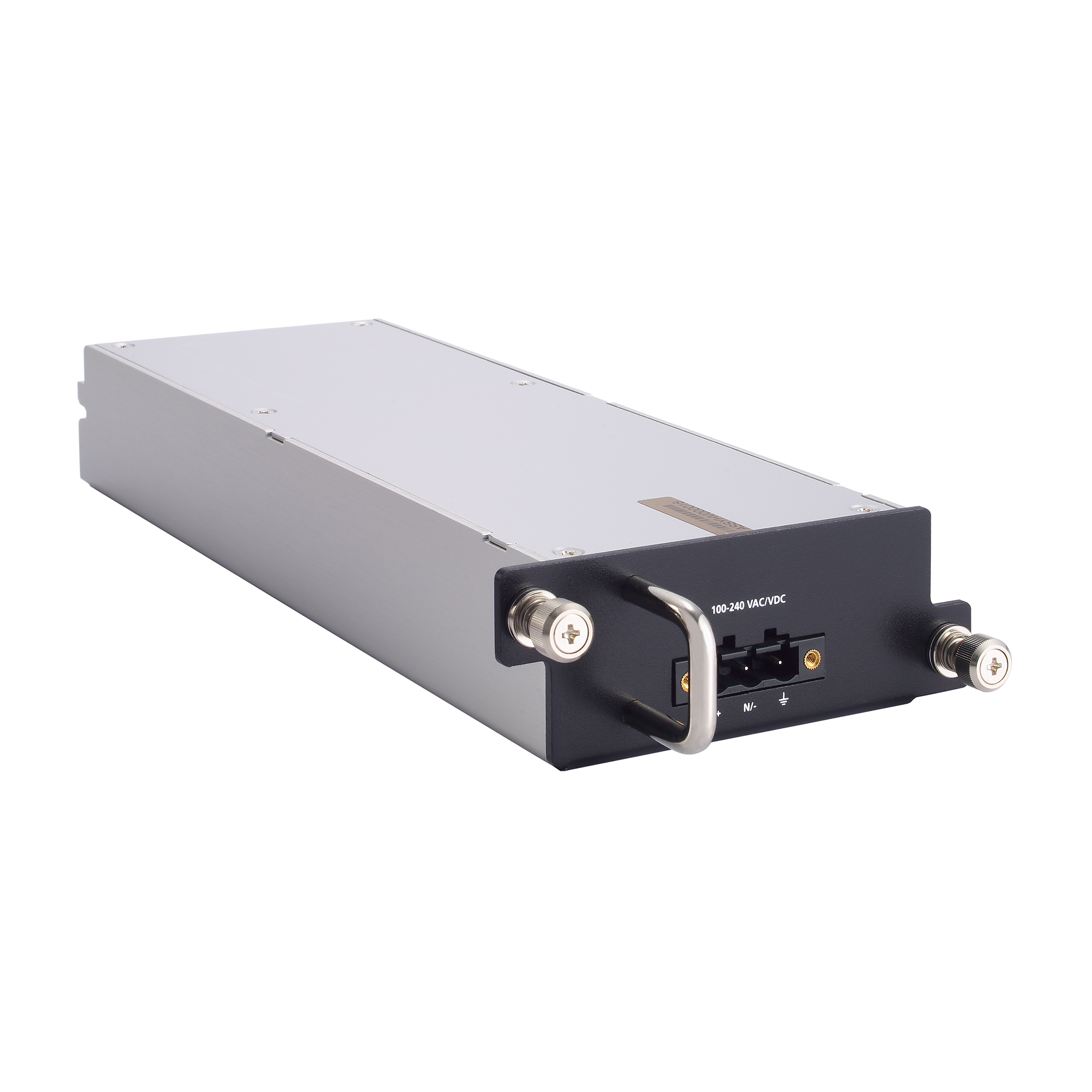

moxa-da-pwr-200-power-module-series-image-1-(1).jpg | Moxa

Features and Benefits

Isolated power supply
Hot-swappable
-40 to 85°C wide operating temperature

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The DA-PWR-200 power module Series comprises of isolated, hot-swappable power modules specifically engineered for the Moxa DA-920E Series industrial computers. These versatile power modules enable compatible systems to utilize a wide input power range of 100 to 240 VAC/ VDC and 24 to 110 VDC. In additon, they are designed to operate in a wide operating temperature range of -40 to 85°C, ensuring consistent and reliable performance.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

Input Voltage

DA-PWR-200-HV: 100 to 240 VAC/VDC
DA-PWR-200-WV: 24 to 110 VDC
Operating Voltage

DA-PWR-200-HV: 90 to 264 VAC/VDC
DA-PWR-200-WV: 21.6 to 121 VDC
Overload Current Protection

Supported
Overload Voltage Protection

Supported
Overload Temperature Protection

Supported

Weight

DA-PWR-200-HV: 820g (1.8 lbs)
DA-PWR-200-WV: 820g (1.8 lbs)

Operating Temperature

-40 to 85°C (-40 to 185°F)

Time

DA-PWR-200-HV: 3,886,750 hrs
DA-PWR-200-WV: 3,227,791 hrs
Standards

Telcordia SR-332 Standard Issue 4

Warranty Period

3 years
Details

See www.moxa.com/warranty

Download datasheet

Support Documents

Name	Type	Version	Release Date
Datasheet for DA-PWR-200 Power Module Series 1.2 MB	Datasheet	v1.0	Jul 08, 2026 Jul 08, 2026
Declaration of Conformity (EU/UK) for DA-PWR-200-HV 375.6 KB	Declaration	v1.0	Jun 01, 2026 Jun 01, 2026
Declaration of Conformity (EU/UK) for DA-PWR-200-WV 307.9 KB	Declaration	v1.0	Jun 01, 2026 Jun 01, 2026

Available Models (2)

Show Images

	Compare DA-PWR-200-HV	Compare DA-PWR-200-WV
Input Voltage	100 to 240 VAC, 50 to 60 Hz 100 to 240 VDC	24 to 110 VDC
Operating Voltage	90 to 264 VAC, 50 to 60 Hz 90 to 264 VDC	21.6 to 121 VDC
Supported Series	DA-920E Series	DA-920E Series
