V2201-E2-T
V2201 Series

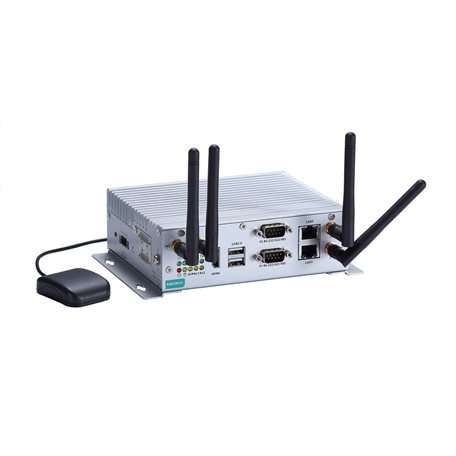

x86 embedded computer with Intel Atom® E3826, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, -40 to 85°C operating temperature

Computer
  • CPU

    • Intel Atom® Processor E3826 (1M Cache, 1.46 GHz)
  • System Memory Pre-installed

    • 4 GB DDR3L
  • System Memory Slot

    • SODIMM DDR3/DDR3L slot x 1
  • Supported OS

    • Linux Debian 8 (Linux kernel v4.1)
      Windows Embedded Standard 7 (WS7E) 32-bit
      Windows Embedded Standard 7 (WS7E) 64-bit
  • Storage Slot

    • mSATA slots x 1
      SD 3.0 (SDHC/SDXC) socket x 1
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors
  • USB 3.0

    • USB 3.0 hosts x 1, type-A connectors
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • Expansion Slots

    • mPCIe slot x 2
  • Video Output

    • HDMI x 1, HDMI connector (type A)
  • Wi-Fi Antenna Connector

    • RP-SMA x 2
  • Cellular Antenna Connector

    • SMA x 2
  • Number of SIMs

    • 1
  • SIM Format

    • Mini
  • GPS Antenna Connector

    • SMA x 1
Digital Inputs
  • Isolation

    • 3K VDC
  • Connector

    • Screw-fastened Euroblock terminal
  • Dry Contact

    • On: short to GND
      Off: open
  • I/O Mode

    • DI
  • Sensor Type

    • Dry contact
      Wet contact (NPN or PNP)
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 24 to 30 VDC
LED Indicators
  • System

    • SD slots x 1
      Power x 1
      Storage x 1
      Programmable x 1
  • Wireless Signal Strength

    • Cellular/Wi-Fi x 2
  • LAN

    • 1 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Isolation

    • N/A
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Input Voltage

    • 9 to 36 VDC
  • Power Connector

    • Terminal block (for DC models)
  • Power Consumption (Max.)

    • 2000 mA @ 9 VDC
  • Power Consumption

    • 18 W (max.)
Physical Characteristics
  • Housing

    • Aluminum
  • IP Rating

    • IP30
  • Dimensions (with ears)

    • 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
  • Dimensions (without ears)

    • 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
  • Weight

    • 940 g (2.09 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Safety

    • EN 60950-1, UL 508, UL 60950-1
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-64
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 408,275 hrs
  • Standards

    • Telcordia (Bellcore), GB
