V2403 Series

Intel® 3rd Gen Core™ processor industrial computers

moxa-v2403-series-image-1-(1).jpg | Moxa
moxa-v2403-series-image-2-(1).jpg | Moxa

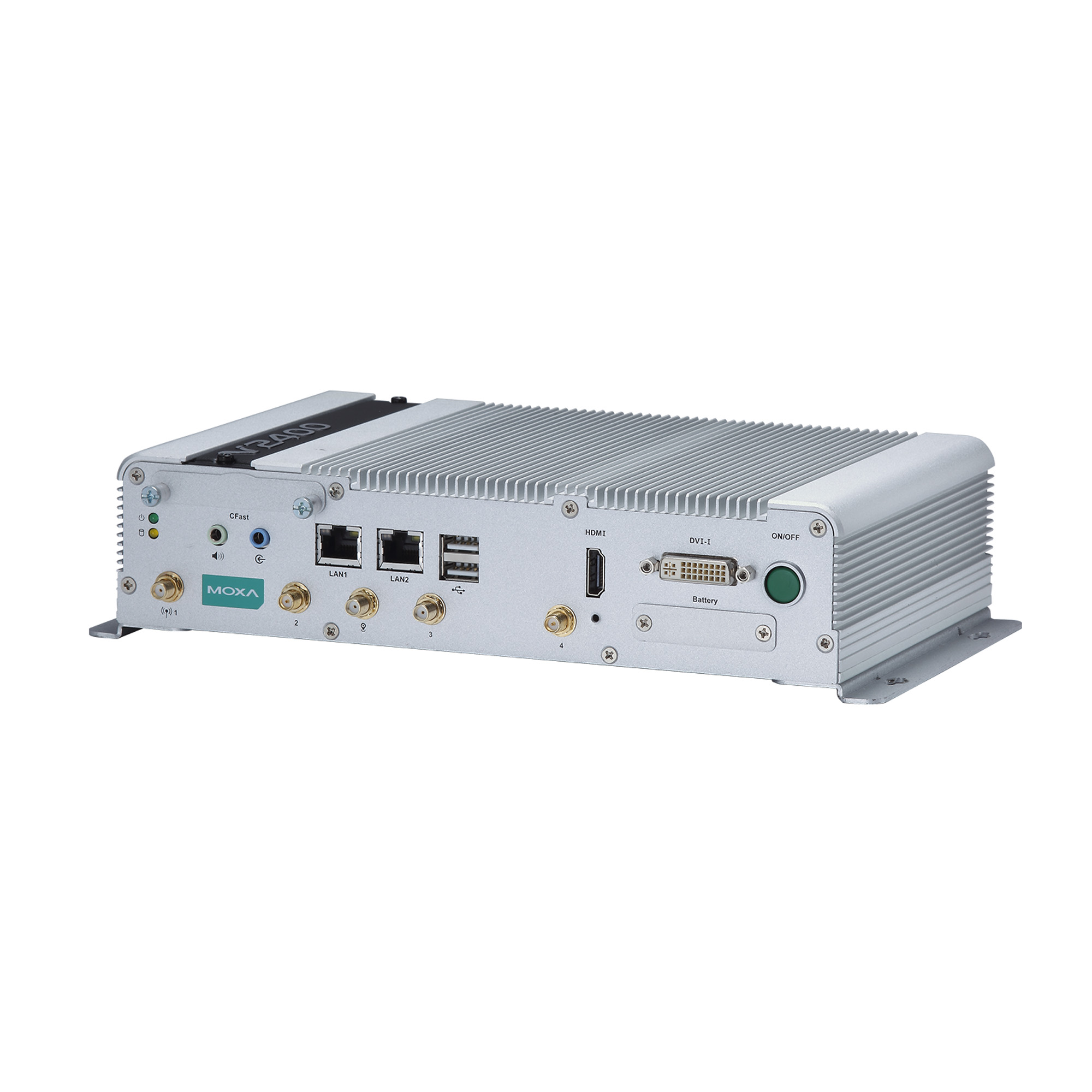

moxa-v2403-series-image-3-(1).jpg | Moxa
moxa-v2403-series-image-4-(1).jpg | Moxa

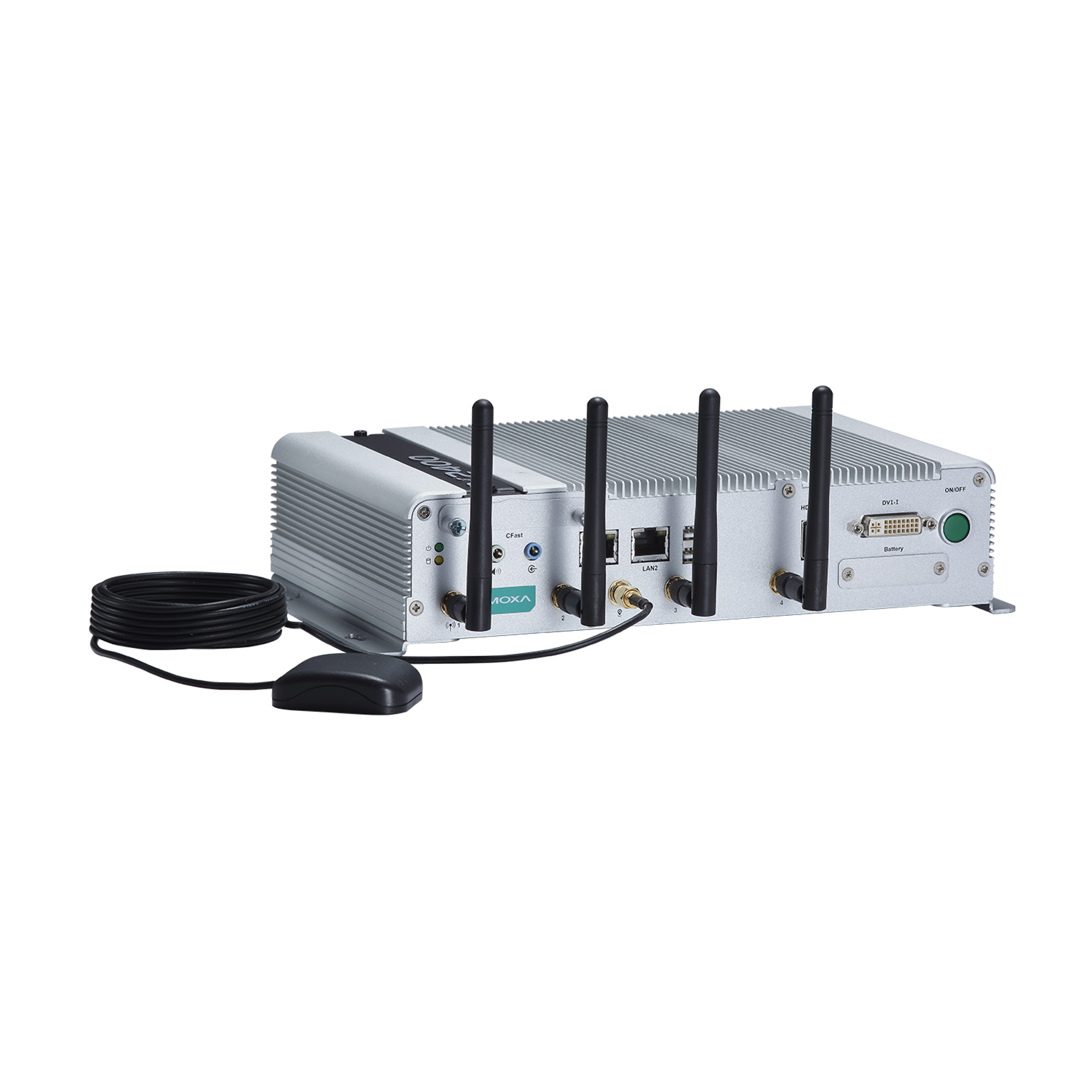

moxa-v2403-series-image-5-(1).jpg | Moxa

Features and Benefits

  • Intel® Core™ i Series processor with three performance options
  • -40 to 70°C (system and LTE) operating temperature
  • Dual CFast sockets for storing OS and OS backup
  • Triple mini-PCIe sockets for storage and wireless modules that support mSATA, Wi-Fi, 3G, LTE, GPS, and Bluetooth
  • Variety of interfaces: 4 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, USB, HDMI, wireless
  • EN 61000-6-2 and EN 61000-6-4 certification Passed with AC/DC adapter. and meets the EMC standard for heavy industry
  • Up to 5 Grms anti-vibration and 100 g/11 ms anti-shock protection
  • Ready-to-run Debian 8, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • Moxa Proactive Monitoring utility for system hardware health monitoring
  • Moxa Smart Recovery utility to recover system from boot failure (W7E only)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The V2403 Series fanless x86 embedded computer is based on the Intel® 3rd gen Core-i™ Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 70°C (with a special purpose Moxa wireless module installed). The V2403 Series supports “Moxa Proactive Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.

Applications

  • Remote Terminal Unit (RTU)

  • Data acquisition

  • M2M communication (smart gateway)

  • Digital signage

  • Factory automation

  • In-vehicle monitor/data logger (transportation)

  • Programmable router

  • Energy usage optimization

  • Predictive maintenance

  • Asset management

Appearance

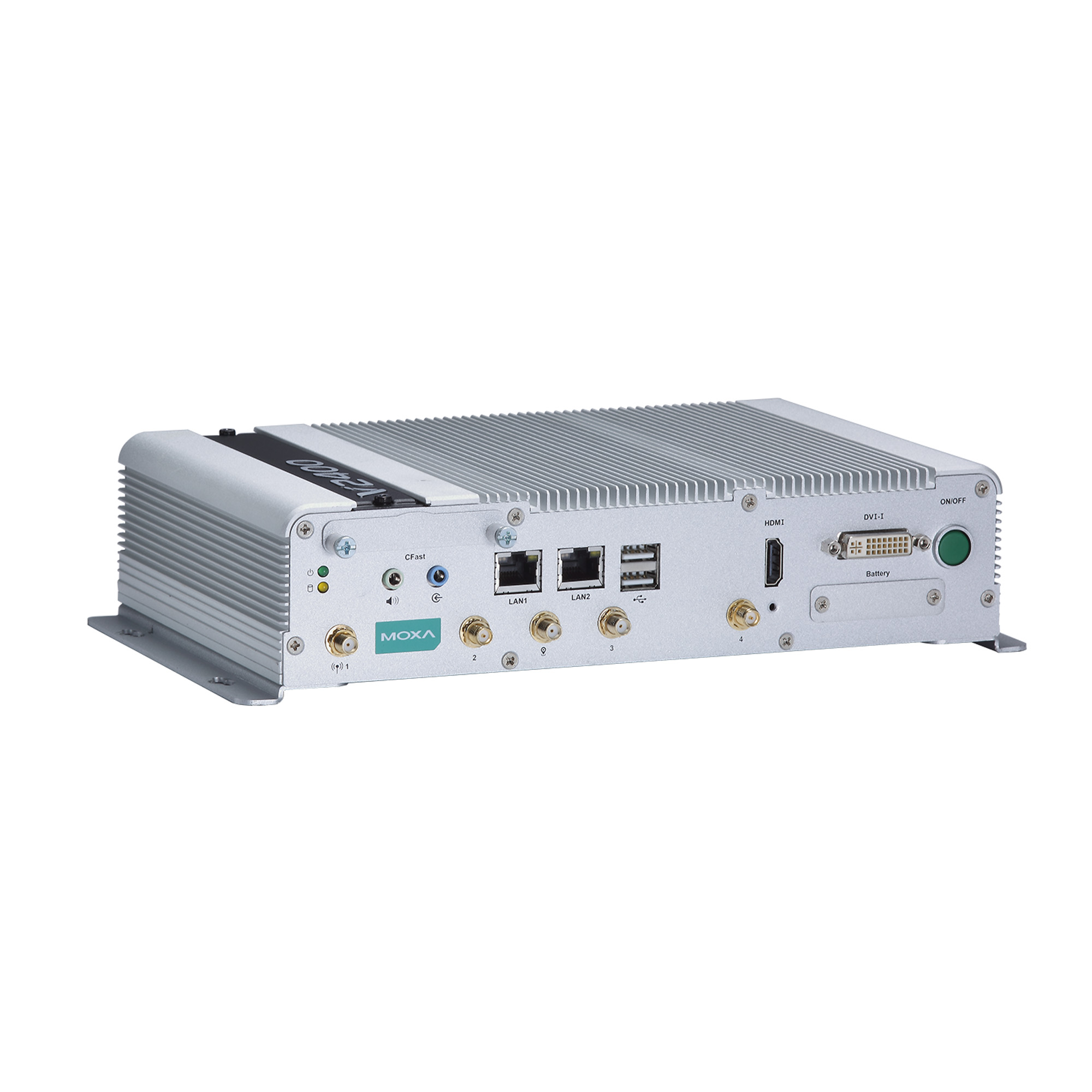

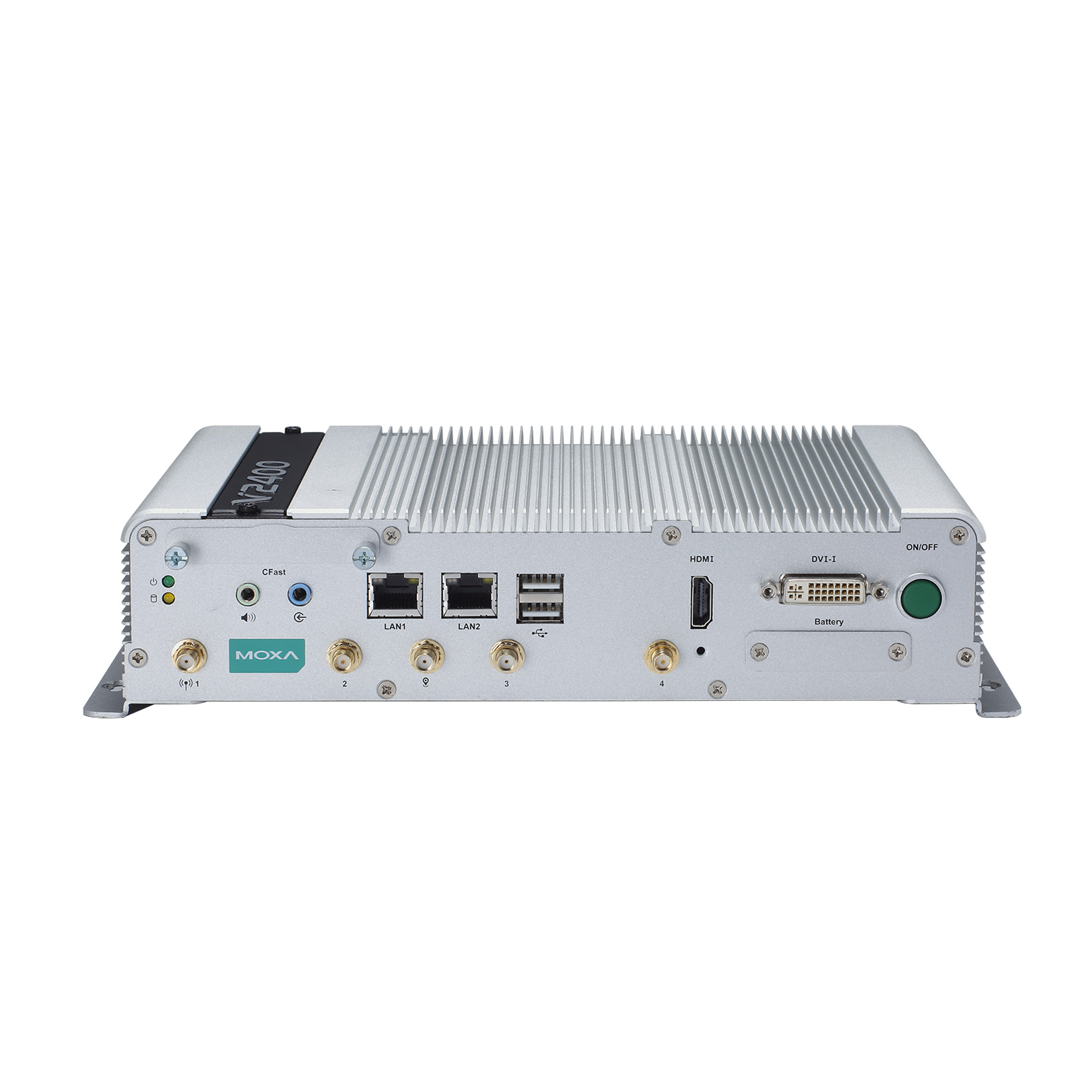

Front View

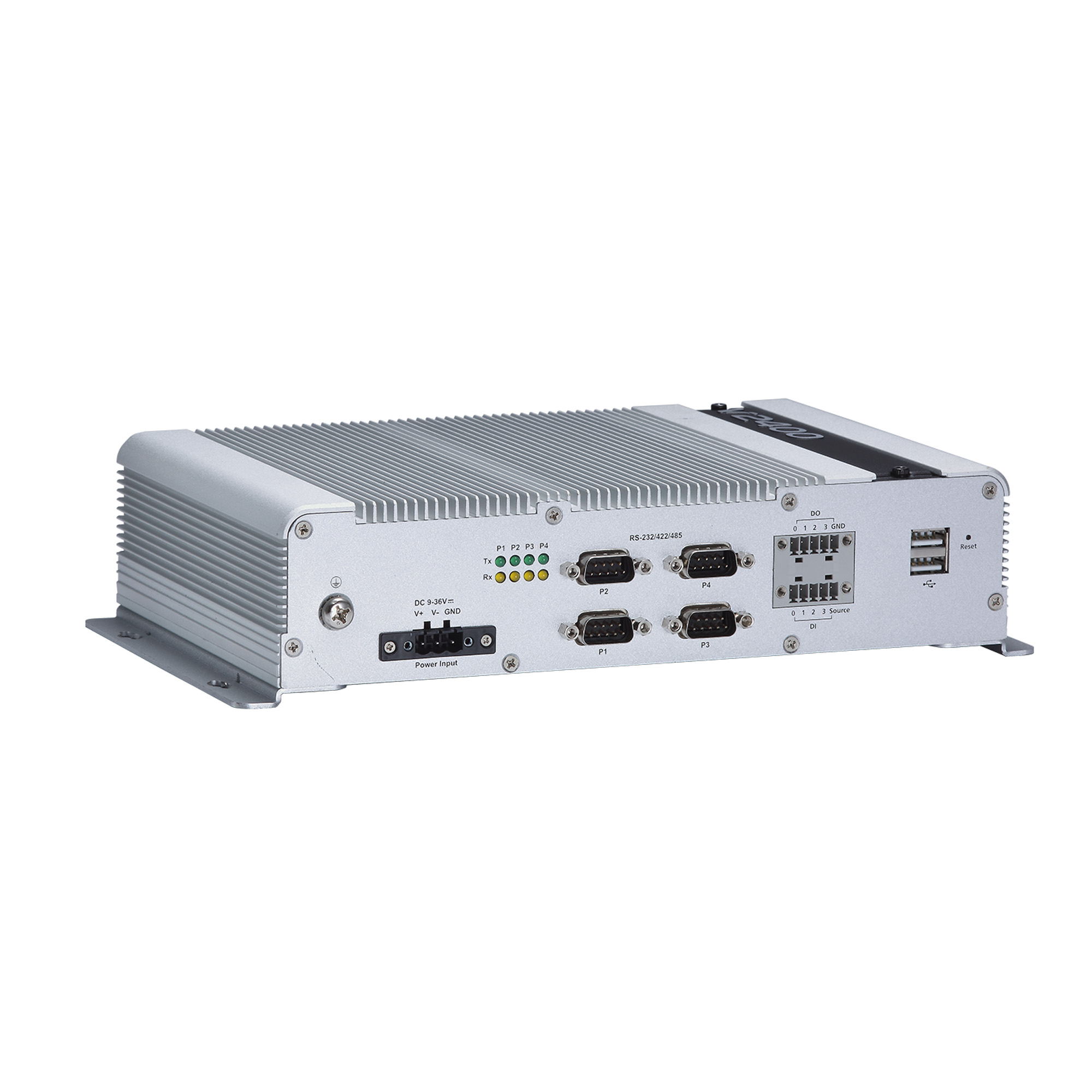

Rear View

  • CPU

    V2403-C2 Series: Intel® Celeron® Processor 1047UE (2 M cache, 1.40 GHz)
    V2403-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz)

  • System Chipset

    Mobile Intel® HM65 Express Chipset

  • Graphics Controller

    Intel® HD Graphics

  • System Memory Pre-installed

    Default 4 GB DDR3

  • System Memory Slot

    SODIMM DDR3/DDR3L slot x 1

  • Supported OS

    Linux Debian 8 (Linux kernel v4.1)
    Windows Embedded Standard 7 (WS7E) 32-bit
    Windows Embedded Standard 7 (WS7E) 64-bit

  • Storage Slot

    2.5-inch HDD/SSD slots x 1
    CFast slot x 2
    mSATA slots x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 4, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 4, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, 3.5 mm phone jack

  • Digital Input

    DIs x 4

  • Digital Output

    DOs x 4

  • Expansion Slots

    mPCIe slot x 2

  • Video Output

    DVI-I x 1, 29-pin DVI-I connectors (female)
    HDMI x 1, HDMI connector (type A)

  • Wi-Fi Antenna Connector

    RP-SMA x 2

  • Cellular Antenna Connector

    SMA x 2

  • Number of SIMs

    2

  • SIM Format

    Mini

  • GPS Antenna Connector

    SMA x 1

  • Isolation

    3k VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    24 to 40 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 921.6 kbps

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    9 to 36 VDC

  • Power Connector

    Terminal block (for DC models)

  • Power Consumption (Max.)

    3.51 A @ 9 VDC
    1.39 A @ 24 VDC
    0.93 A @ 36 VDC

  • Power Consumption

    34 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (with ears)

    275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)

  • Dimensions (without ears)

    250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)

  • Weight

    2,168 g (4.82 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting (standard)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 1 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 60950-1, UL 508, UL 60950-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    329,398 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Firmware Library Utility
Name Type Checksum Version Operating System Release Date
Driver for V2403 Series (Peripheral for Windows 7)
522.2 MB 		Driver
SHA-512
v1.0
  • Windows 7
 Jan 06, 2016 Jan 06, 2016
Driver for V2403 Series (Expansion Module for Windows 7)
426.2 MB 		Driver
SHA-512
v1.0
  • Windows 7
 Jan 06, 2016 Jan 06, 2016
Utility for V2403 Series (Windows 7 Embedded)
183.6 MB 		Utility
SHA-512
v1.0
  • Windows Embedded Standard 7
 Jan 06, 2016 Jan 06, 2016 Release notes
Driver for V2403 Series (Linux)
2.3 MB 		Driver
SHA-512
v1.0
  • Debian 8.x
 Nov 08, 2015 Nov 08, 2015 Release notes
Firmware for V2403 Series (Linux)
643.6 MB 		Firmware
SHA-512
v1.0
  • Debian 8.x
 Nov 08, 2015 Nov 08, 2015
Library for V2403 Series (Linux)
45.7 KB 		Library
SHA-512
v1.0
  • Debian 8.x
 Nov 08, 2015 Nov 08, 2015
Utility for V2403 Series (Linux)
170.8 KB 		Utility
SHA-512
v1.0
  • Debian 8.x
 Nov 08, 2015 Nov 08, 2015

Support Documents

FILTER

All Compatibility Guide Datasheet Manual QIG
Name Type Version Release Date
QIG for V2403 Series
964.0 KB 		QIG v2.1 May 04, 2021 May 04, 2021
Datasheet for V2403 Series
1.4 MB 		Datasheet v2.2 Jan 22, 2020 Jan 22, 2020
Manual for V2403 Series (Hardware)
8.3 MB 		Manual v2.0 Mar 21, 2017 Mar 21, 2017
Manual for V2403 Series (Linux)
5.9 MB 		Manual v1.1 Mar 09, 2017 Mar 09, 2017
Compatibility Guide for V2403 Series (Wide Temperature)
264.7 KB 		Compatibility Guide v2.1 Dec 15, 2016 Dec 15, 2016
Compatibility Guide for V2403 Series (Standard Temperature)
263.5 KB 		Compatibility Guide v2.1 Dec 15, 2016 Dec 15, 2016
Manual for V2403 Series (Windows)
7.1 MB 		Manual v1.0 Jan 04, 2016 Jan 04, 2016

Related Content

FILTER

All Technology Guide White Paper

Available Models (9)

Show Images
Compare
moxa-v2403-c2-t-w7e1-image.jpg | MoxaV2403-C2-T-W7E1
Compare
moxa-v2403-c2-t-w7e-image.jpg | MoxaV2403-C2-T-W7E
Compare
moxa-v2403-c2-t-lx-image.jpg | MoxaV2403-C2-T-LX
Compare
moxa-v2403-c2-t-image.jpg | MoxaV2403-C2-T
CPUCeleron 1047UECeleron 1047UECeleron 1047UECeleron 1047UE
Memory (Default)8 GB4 GB4 GB4 GB
OS CFast (CTO)32 GB8 GB8 GB1 (Optional)
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
SSD/HDD Tray (CTO)64 GB MLC1 (Optional)1 (Optional)1 (Optional)
USIM Slot––––
Antenna Connectors––––
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-v2403-c3-t-image.jpg | MoxaV2403-C3-T
Compare
moxa-v2403-c7-t-image.jpg | MoxaV2403-C7-T
Compare
moxa-v2403-c2-w-t-image.jpg | MoxaV2403-C2-W-T
Compare
moxa-v2403-c3-w-t-image.jpg | MoxaV2403-C3-W-T
CPUi3-3217UEi7-3517UECeleron 1047UEi3-3217UE
Memory (Default)4 GB4 GB4 GB4 GB
OS CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
SSD/HDD Tray (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
USIM Slot–2–2
Antenna Connectors–5–5
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-v2403-c7-w-t-image.jpg | MoxaV2403-C7-W-T
CPUi7-3517UE
Memory (Default)4 GB
OS CFast (CTO)1 (Optional)
Backup CFast (CTO)1 (Optional)
SSD/HDD Tray (CTO)1 (Optional)
USIM Slot2
Antenna Connectors5
Operating Temp.-40 to 70°C
Add to QuoteView Bag
