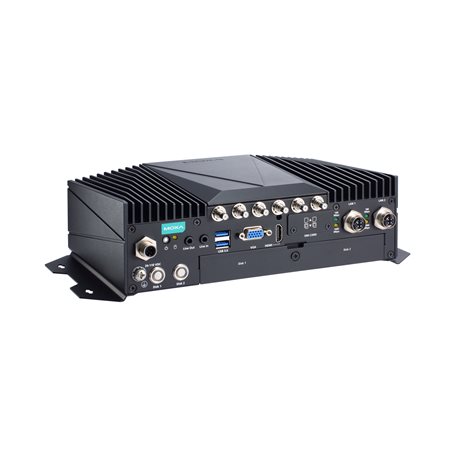

V2406C-KL7-T
V2406C Series

x86 embedded computer with Intel Core i7-7600U, 4 GB of DDR4 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -40 to 70°C operating temperature

Computer
  • CPU

    • Intel® Core™ i7-7600U Processor (4M Cache, up to 2.80 GHz)
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2
      mSATA slots x 1, internal mini-PCIe socket
  • Supported OS

    • Linux Debian 9
      Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • DRAM

    • 32 GB max
  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
  • Digital Output

    • DOs x 2
  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (DB9 male)
  • Digital Input

    • DIs x 6
  • USB 3.0

    • USB 3.0 hosts x 4, type-A connectors
  • Audio Input/Output

    • Line in x 1, Line out x 1, 3.5 mm phone jack
  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Mode

    • DI
  • Isolation

    • 3k VDC
  • Sensor Type

    • Wet contact (NPN or PNP)
      Dry contact
  • Dry Contact

    • Logic 0: Short to GND
      Logic "1": Open
  • Wet Contact (DI to COM)

    • Logic 0: 0 to 3 VDC
      Logic 1: 10 to 30 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
      10-pin terminal block
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 0 to 30 VDC
  • Isolation

    • 3k VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Input Voltage

    • 24 to 110 VDC
  • Power Connector

    • M12 A-coded male connector
  • Power Consumption (Max.)

    • 70 W (max.)
Physical Characteristics
  • Housing

    • Aluminum
  • IP Rating

    • IP20
  • Dimensions (without ears)

    • 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
  • Weight

    • 2,700 g (5.95 lb)
  • Installation

    • Wall mounting (standard)
  • Protection

    • PCB conformal coating
      V2406C PCB conformal coating: Available on request
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway Fire Protection

    • EN 45545-2
  • EMC

    • EN 55032/35
  • Safety

    • EN 62368-1, IEC 62368-1, UL 62368-1
  • Railway

    • EN 50121-4, EN 50121-3-2, EN 50155:2017
  • Shock

    • IEC 60068-2-27, IEC 61373
  • Vibration

    • IEC 60068-2-64, IEC 61373
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 394,260 hrs
  • Standards

    • Telcordia (Bellcore), GB
