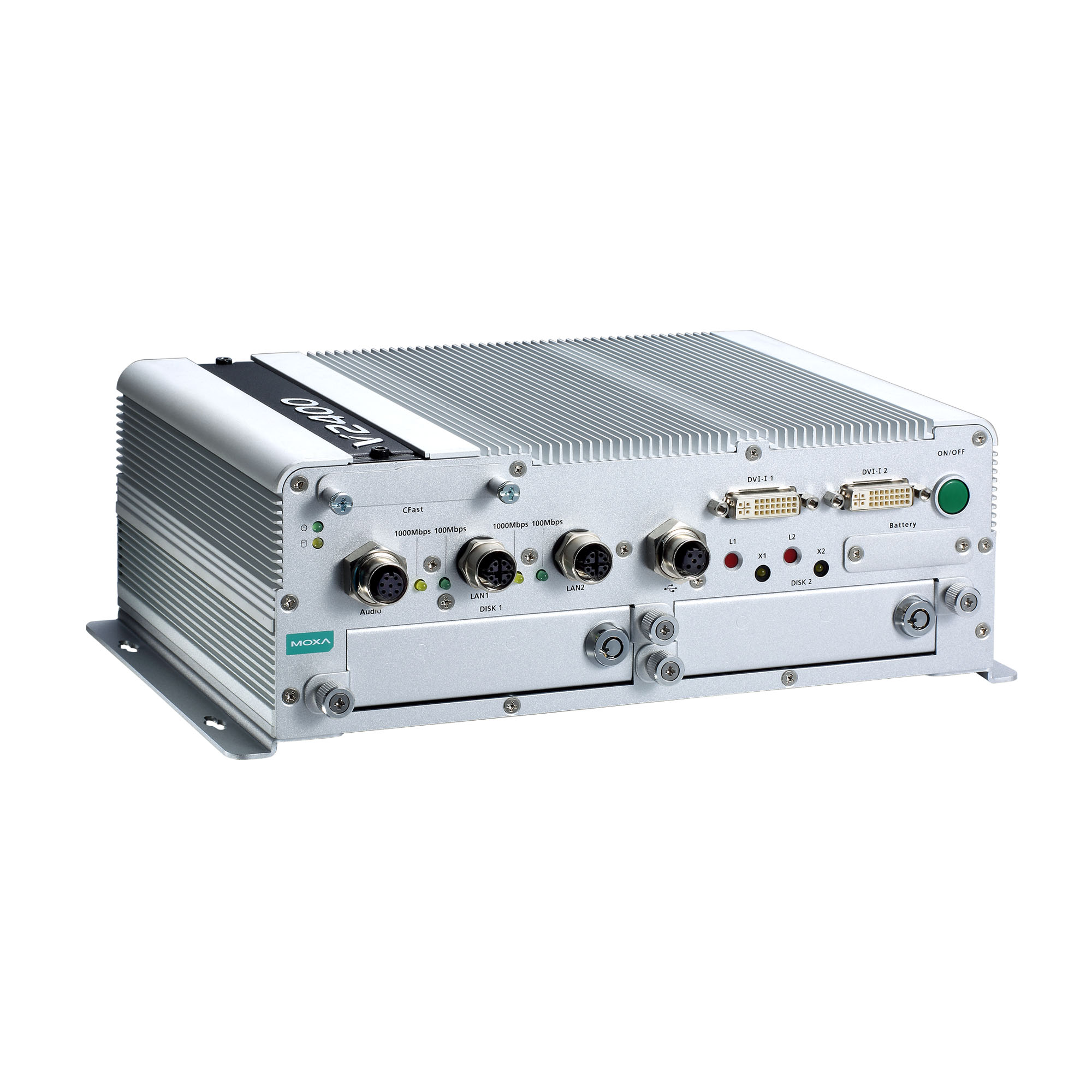

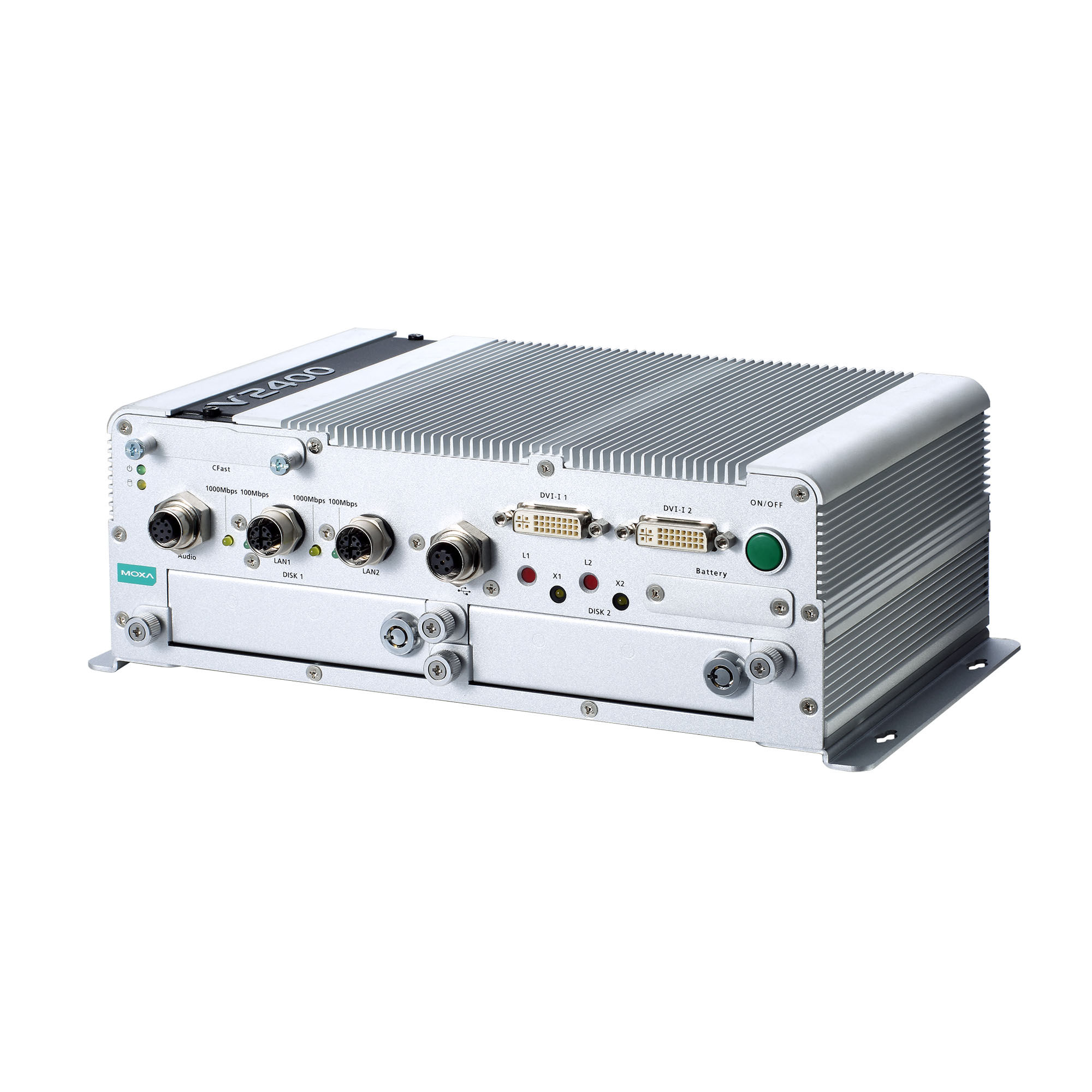

V2416A Series

Compact, fanless, vibration-proof computers for rolling stock applications

moxa-v2416a-series-image-1-(1).jpg | Moxa
moxa-v2416a-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Intel Celeron/Core i7 processor
  • Two hot-swappable 2.5-inch HDD or SSD storage expansion trays
  • Dual independent DVI-I displays
  • 2 Gigabit Ethernet ports with M12 X-coded connectors
  • 2 CFast sockets for OS backup
  • M12 A-coded power connector
  • Compliant with EN 50121-4
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • IEC 61373 certified for shock and vibration resistance
  • Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • -40 to 70°C wide-temperature models available
  • Supports SNMP-based system configuration, control, and monitoring (Windows only)

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The V2416A Series embedded computers are based on the Intel 3rd Gen processor and feature 4 RS-232/422/485 serial ports, dual LAN ports, and 3 USB 2.0 hosts. In addition, the V2416A computers provide dual DVI-I outputs and comply with the mandatory test items of the EN 50155 standard, making them suitable for a variety of industrial applications.

The CFast socket, SATA connectors, and USB sockets provide the V2416A computers with the reliability needed for industrial applications that require data buffering and storage expansion. Most importantly, the V2416A computers come with 2 hot-swappable storage trays for inserting additional storage media, such as hard disk or solid-state drives, and support hot swapping for convenient, fast, and easy storage replacement. Each storage tray has its own LED to indicate whether or not a storage module is plugged in. The V2416A Series computers come preinstalled with a choice of Linux Debian 7 or Windows Embedded Standard 7 to provide programmers with a familiar environment in which to develop sophisticated, bug-free application software at a low cost.

Appearance

Front View

Rear View

  • CPU

    V2416A-C2 Series: Intel® Celeron® Processor 1047UE (2 M cache, 1.40 GHz)
    V2416A-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz)

  • System Chipset

    Mobile Intel® HM65 Express Chipset

  • Graphics Controller

    Intel® HD Graphics 4000 (integrated)

  • System Memory Pre-installed

    4 GB DDR3

  • System Memory Slot

    SODIMM DDR3/DDR3L slot x 1

  • Supported OS

    Linux Debian 7
    Windows Embedded Standard 7 (WS7E) 32-bit
    Windows Embedded Standard 7 (WS7E) 64-bit

  • Storage Slot

    CFast slot x 2

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Serial Ports

    RS-232/422/485 ports x 4, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 1, M12 D-coded connector
    USB 2.0 hosts x 2, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, M12 D-coded

  • Digital Input

    DIs x 6

  • Digital Output

    DOs x 2

  • Video Input

    DVI-I x 2, 29-pin DVI-D connectors (female)

  • Isolation

    3k VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    24 to 40 VDC

  • System

    Power x 1
    Storage x 1
    Hot-swappable 2

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 921.6 kbps

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Isolation

    N/A

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    12 to 48 VDC

  • Power Connector

    M12 A-coded male connector

  • Power Consumption (Max.)

    3.3 A @ 12 VDC
    0.82 A @ 48 VDC

  • Power Consumption

    40 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (with ears)

    250 x 86 x 154 mm (9.84 x 3.38 x 6.06 in)

  • Dimensions (without ears)

    275 x 92 x 154 mm (10.83 x 3.62 x 6.06 in)

  • Weight

    4,000 g (8.98 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting (standard)

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4, IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1, IEC 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    332,173 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for V2416A Series (Linux)
4.5 MB
Driver v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015
Driver for V2416A Series (Expansion Module for Linux)
26.2 MB
Driver v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015
Firmware for V2416A Series (Linux)
436.9 MB
Firmware v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015
Library for V2416A Series (Example for Linux)
48.2 KB
Library v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015
Library for V2416A Series (Expansion Example for Linux)
21.9 KB
Library v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015 Release notes
Utility for V2416A Series (Linux)
1.7 MB
Utility v1.0
  • Debian 7.x
2015-11-11 Nov 11, 2015
Driver for V2416A Series (Expansion Module for Windows 7)
46.0 MB
Driver v1.0
  • Windows 7
2015-04-24 Apr 24, 2015
Driver for V2416A Series (Peripheral for Windows 7)
699.3 MB
Driver v1.0
  • Windows 7
2015-04-24 Apr 24, 2015
Library for V2416A Series (Example for Windows 7)
8.1 MB
Library v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Library for V2416A Series (Expansion Example for Windows 7)
16.7 MB
Library v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Utility for V2416A Series (mxdiagnostic)
689.9 KB
Utility v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Utility for V2416A Series (mxHotswap)
583.3 KB
Utility v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Utility for V2416A Series (mxSerialInterface)
322.6 KB
Utility v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Utility for V2416A Series (mxSynMap)
21.9 MB
Utility v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes
Utility for V2416A Series (mxterm)
215.6 KB
Utility v1.0
  • Windows Embedded Standard 7
2015-04-24 Apr 24, 2015 Release notes

Support Documents

Name Type Version Release Date
QIG for V2416A Series
490.3 KB
QIG v2.2 2019-06-25 Jun 25, 2019
Datasheet for V2416A Series
1.3 MB
Datasheet v2.1 2019-06-12 Jun 12, 2019
Datasheet for V2416A Series
1.3 MB
Datasheet v2.0 2019-04-16 Apr 16, 2019
Manual for V2416A Series (Hardware)
10.6 MB
Manual v3.0 2017-03-21 Mar 21, 2017
Compatibility Guide for V2416A Series (Wide Temperature)
264.7 KB
Compatibility Guide v2.1 2016-12-15 Dec 15, 2016
Compatibility Guide for V2416A Series (Standard Temperature)
263.5 KB
Compatibility Guide v2.1 2016-12-15 Dec 15, 2016
Manual for V2416A Series (Linux)
4.8 MB
Manual v1.0 2015-06-12 Jun 12, 2015
QIG for V2416A Series
1.0 MB
QIG v2.1 2015-05-14 May 14, 2015
Manual for V2416A Series (Windows 7 Embedded)
11.4 MB
Manual v1.0 2015-05-14 May 14, 2015

Available Models (9)

Show Images
moxa-v2416a-c2-image.jpg | MoxaV2416A-C2moxa-v2416a-c2-t-image.jpg | MoxaV2416A-C2-Tmoxa-v2416a-c2-ct-t-image.jpg | MoxaV2416A-C2-CT-Tmoxa-v2416a-c7-image.jpg | MoxaV2416A-C7
CPUCeleron 1047UECeleron 1047UECeleron 1047UEi7-3517UE
Memory (Default)4 GB or optional4 GB or optional4 GB or optional4 GB or optional
OS CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Hot-Swappable SSD/HDD Tray (CTO)2 (Optional)2 (Optional)2 (Optional)2 (Optional)
Operating Temp.-25 to 55°C-40 to 70°C-40 to 70°C-25 to 55°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-v2416a-c7-t-image.jpg | MoxaV2416A-C7-Tmoxa-v2416a-c7-ct-t-image.jpg | MoxaV2416A-C7-CT-Tmoxa-v2416a-c2-w7e-image.jpg | MoxaV2416A-C2-W7Emoxa-v2416a-c2-t-w7e-image.jpg | MoxaV2416A-C2-T-W7E
CPUi7-3517UEi7-3517UECeleron 1047UECeleron 1047UE
Memory (Default)4 GB or optional4 GB or optional4 GB4 GB
OS CFast (CTO)1 (Optional)1 (Optional)8 GB8 GB
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Hot-Swappable SSD/HDD Tray (CTO)2 (Optional)2 (Optional)2 (Optional)2 (Optional)
Operating Temp.-40 to 70°C-40 to 70°C-25 to 55°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-v2416a-c7-t-w7e-image.jpg | MoxaV2416A-C7-T-W7E
CPUCore i7-3517UE
Memory (Default)4 GB
OS CFast (CTO)8 GB
Backup CFast (CTO)1 (Optional)
Hot-Swappable SSD/HDD Tray (CTO)2 (Optional)
Operating Temp.-40 to 70°C
Conformal Coating
Add to QuoteView Bag
