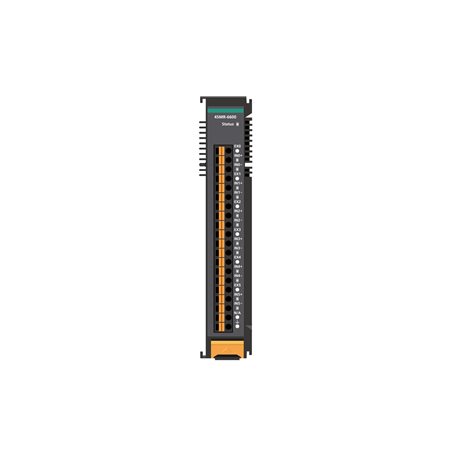

45MR-6600
ioThinx 4500 Series (45MR) Modules

Module for the ioThinx 4500 Series, 6 RTDs, -20 to 60°C operating temperature

Input/Output Interface
  • RTD Channels

    • 6
  • Isolation

    • 3k VDC or 2k Vrms
RTDs
  • Connector

    • Spring-type Euroblock terminal
  • Sensor Type

    • PT50, PT100, PT200, PT500 (-200 to 850°C)
      PT1000 (-200 to 350°C)
      JPT100, JPT200, JPT500 (-200 to 640°C)
      JPT1000 (-200 to 350°C)
      NI100, NI200, NI500 (-60 to 250°C)
      NI1000 (-60 to 150°C)
      NI120 (-80 to 260°C)
  • Resistance Type

    • 310, 620, 1250, and 2200 ohms
  • Input Connection

    • 2- or 3-wire
  • Sampling Rate

    • All channels: 12 samples/sec
      Per channel: 2 samples/sec
  • Resolution

    • 0.1°C or 0.1 ohms
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 and 75°C
  • Input Impedance

    • 625 kilo-ohms (min.)
Power Consumption
  • System Power

    • 131.7 mA @ 3.3 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
  • Weight

    • 78.7 g (0.174 lb)
  • Installation

    • DIN-rail mounting
  • Wiring

    • I/O cable, 18 to 24 AWG
  • Strip Length

    • I/O cable, 9 to 10 mm
Environmental Limits
  • Operating Temperature

    • -20 to 60°C (-4 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Altitude

    • Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 2,291755 hrs
