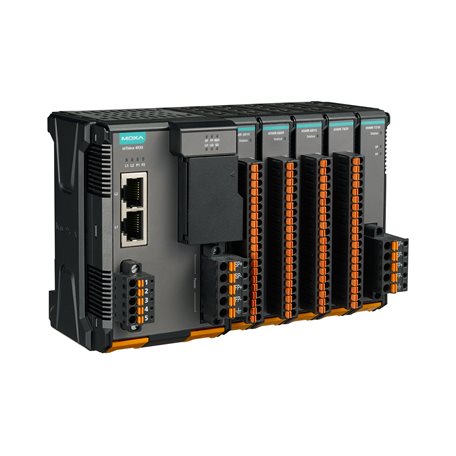

ioThinx 4533-LX-T
ioThinx 4530 Series

Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linux, -40 to 75°C operating temperature

Computer
  • CPU

    • NXP i.MX7D 1 GHz
  • OS

    • Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
  • Clock

    • Real-time clock with capacitor backup
  • DRAM

    • 512 MB DDR3
  • MRAM

    • 128 kB
  • Storage Pre-installed

    • 8 GB eMMC (6 GB reserved for the user)
  • Storage Slot

    • microSD Slots x 1 (up to 32 GB)
  • Expansion Slots

    • Up to 64
Control Logic
  • Language

    • C/C++, Python
Computer Interface
  • Buttons

    • Reset button
Input/Output Interface
  • Rotary Switch

    • 0 to 9
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • Auto negotiation speed
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
  • No. of Ports

    • 1 x RS-232/422 or 2 x RS-485-2w
  • Connector

    • Spring-type Euroblock terminal
  • Serial Standards

    • RS-232/422/485 (software selectable)
  • Baudrate

    • 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
  • Flow Control

    • RTS/CTS
  • Parity

    • None, Even, Odd
  • Stop Bits

    • 1, 2
  • Data Bits

    • 7, 8
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
System Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 1940 mA @ 12 VDC
  • Over-Current Protection

    • 3 A @ 25°C
  • Over-Voltage Protection

    • 55 VDC
  • Output Current

    • 1 A (max.)
Field Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12/24 VDC
  • Over-Current Protection

    • 5 A @ 25°C
  • Over-Voltage Protection

    • 33 VDC
  • Output Current

    • 2 A (max.)
Physical Characteristics
  • Wiring

    • Serial cable, 16 to 28 AWG
      Power cable, 12 to 26 AWG
  • Strip Length

    • Serial cable, 9 to 10 mm
      Power cable, 12 to 13 mm
  • Housing

    • Plastic
  • Dimensions

    • 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
  • Weight

    • 207.7 g (0.457 lb)
  • Installation

    • DIN-rail mounting
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Standards

    • Telcordia SR332
  • Time

    • 856,064 hrs
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • Up to 4000 m
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
