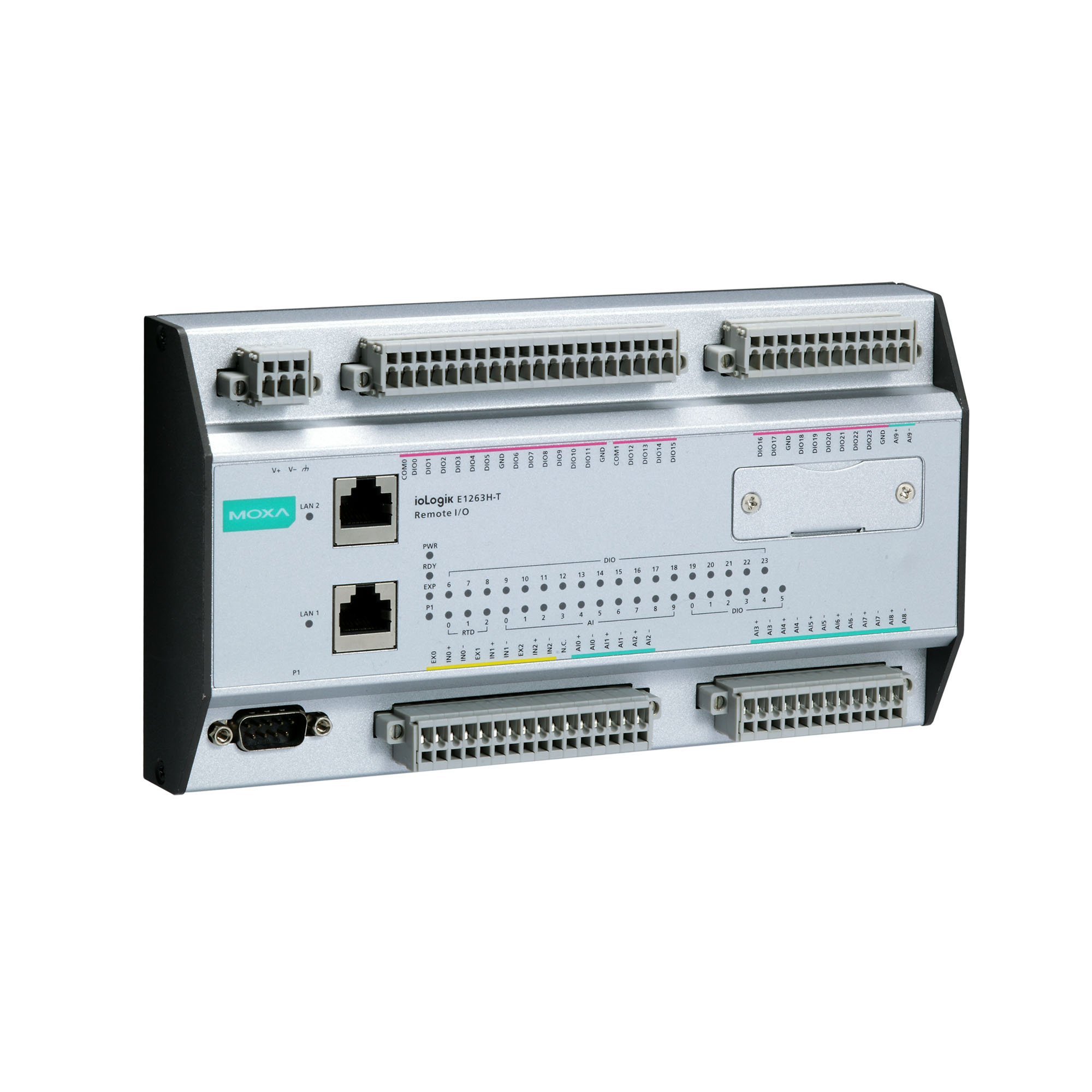

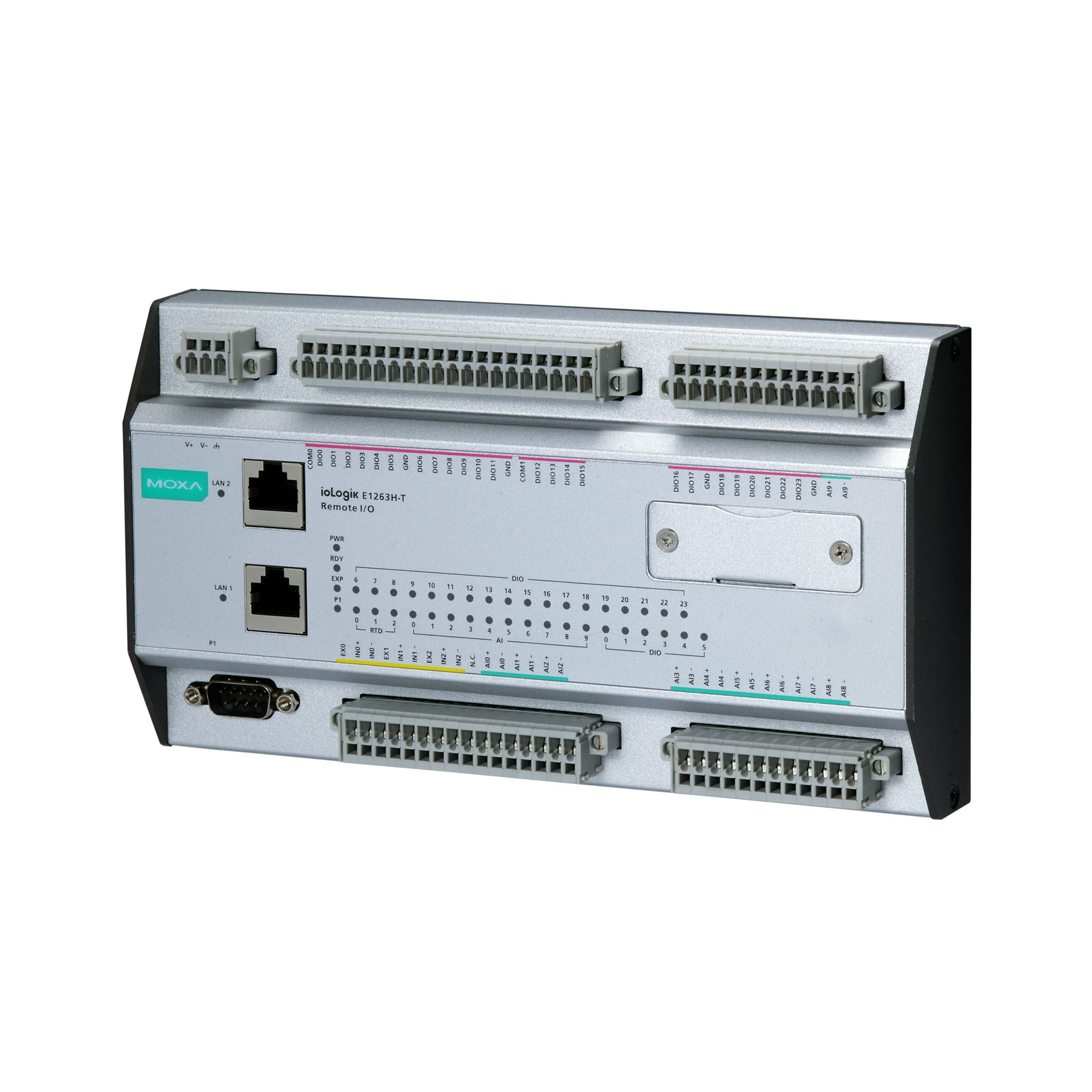

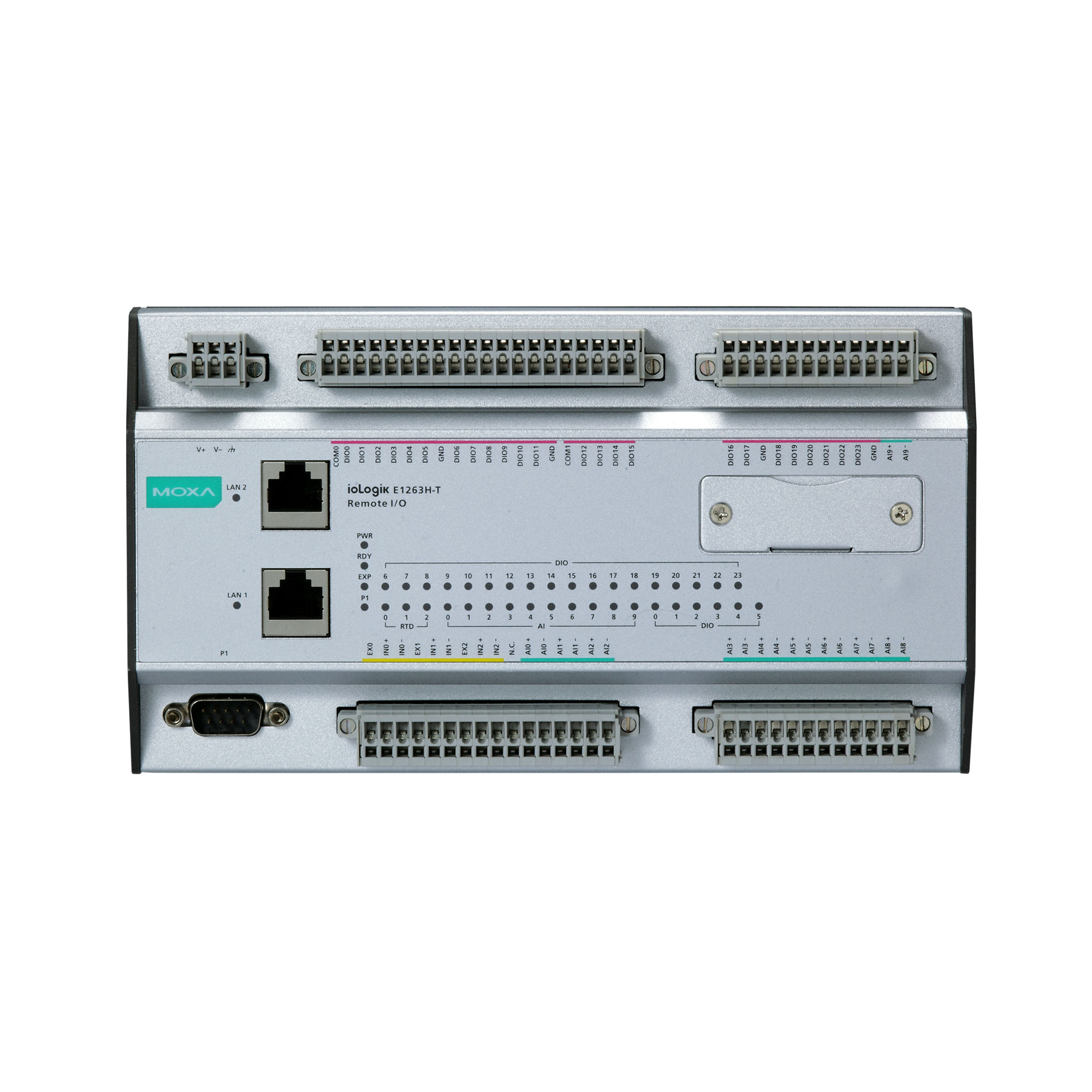

ioLogik E1200H Series

Ethernet remote I/O for offshore wind power applications

moxa-iologik-e1200h-series-image-1-(1).jpg | Moxa
moxa-iologik-e1200h-series-image-2-(1).jpg | Moxa
moxa-iologik-e1200h-series-image-3-(1).jpg | Moxa

Features and Benefits

  • User-definable Modbus TCP Slave addressing
  • 2-port Ethernet switch for daisy-chain topologies
  • Active communication with MX-AOPC UA Server
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • IEC 60945 approval for harsh offshore environments
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Installation of remote Ethernet I/O in offshore environments is a real challenge. It is critical to find devices properly designed for protected, safe use in these environments. Moxa’s IEC 60945-certified ioLogik E1200H Series is ideal for these kinds of demanding industrial applications. Packaged in a compact metal housing, this rugged hardware supports operating temperatures ranging from -40 to 75°C, meeting the stringent demands of IEC 60945 needed for harsh offshore applications.

Daisy-Chained Ethernet I/O Connection

This industrial Ethernet remote I/O comes with two switched Ethernet ports to allow for the free flow of information downstream to another local Ethernet device, or upstream to a control server via expandable daisy-chained Ethernet I/O arrays. Applications such as factory automation, security and surveillance systems, and tunneled connections can make use of daisy-chained Ethernet for building multidrop I/O networks over standard Ethernet cables. Many industrial automation users are familiar with multidrop as the configuration most typically used in fieldbus solutions.

The daisy-chain capabilities supported by ioLogik Ethernet remote I/O units not only increase the expandability and installation possibilities for your remote I/O applications, but also lower overall costs by reducing the need for separate Ethernet switches. Daisy-chaining devices in this way will also reduce overall labor and cabling expenses.

Push Technology for Events

When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.

User-Definable Modbus TCP Addressing for Painless Upgrading of Existing Systems

For Modbus devices that are controlled and detected by fixed addresses, users need to spend a vast amount of time researching and verifying initial configurations. Users need to locate each device's networking details, such as I/O channels or vendor-defined addresses, to enable the initial or start address of a SCADA system or PLC. Devices that implement user-definable Modbus TCP addressing offer greater flexibility, and setup is easy. Instead of worrying about individual devices, users simply configure the function and address map to fit their needs.

Application: Offshore Remote Monitoring

Offshore facilities need rugged remote Ethernet I/O devices that have the ability to withstand extreme weather conditions and wide temperature changes, and that can be used in hazardous environments. Moxa’s I/O with its robust design will meet your most stringent demands, ensuring your remote data acquisition applications are reliable, consistent, and safe.

  • Analog Input Channels

    ioLogik E1261H-T: 5
    ioLogik E1263H-T: 10

  • Configurable DIO Channels (by software)

    ioLogik E1261H-T: 12
    ioLogik E1263H-T: 24

  • Isolation

    3k VDC or 2k Vrms

  • RTD Channels

    3

  • Buttons

    Reset button

  • Connector

    Spring-type Euroblock terminal

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI or event counter

  • Points per COM

    12 channels

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Wet Contact (DI to GND)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Spring-type Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Over-Current Protection

    0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Pulse Output Frequency

    500 Hz

  • Connector

    Spring-type Euroblock terminal

  • Built-in Resistor for Current Input

    120 ohms

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Input Impedance

    10 mega-ohms (min.)

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Sampling Rate

    ioLogik E1261H-T:
    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

    ioLogik E1263H-T:
    All channels: 12 samples/sec
    Per channel: 0.9 samples/sec

  • Accuracy

    ±0.5% FSR @ 25°C
    ±1% FSR @ -40 and 75°C

  • Resolution

    16 bits

  • Connector

    Spring-type Euroblock terminal

  • Input Connection

    2- or 3-wire

  • Input Impedance

    625 kilo-ohms (min.)

  • Sampling Rate

    ioLogik E1261H-T:
    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

    ioLogik E1263H-T:
    All channels: 12 samples/sec
    Per channel: 0.9 samples/sec

  • Accuracy

    ±0.5% FSR @ 25°C
    ±1.0% FSR @ -40 and 75°C

  • Sensor Type

    PT100 (-200 to 850°C)

  • Resolution

    0.5°C

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP)
    Windows Utility (ioSearch)

  • Industrial Protocols

    Modbus TCP Server (Slave)
    Moxa AOPC (Active Tag)
    MXIO Library

  • Management

    BOOTP
    DHCP Client
    HTTP
    IPv4
    TCP/IP
    UDP

  • LED Indicators

    PWR, RDY, EXP, P1, LAN 1, LAN2, AI channels, DIO channels, RTD channels

  • Baudrate

    300 bps to 115.2 kbps

  • Data Bits

    8

  • Flow Control

    None

  • Serial Standards

    RS-232/422/485

  • Stop Bits

    1

  • Parity

    None

  • No. of Ports

    RS-232/422/485 ports x 1, software selectable (DB9 male)

  • Connector

    DB9 male

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU Server (slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    Client

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    ioLogik E1261H-T: 235 mA @ 24 VDC
    ioLogik E1263H-T: 343 mA @ 24 VDC

  • Housing

    Aluminum

  • Dimensions

    ioLogik E1261H-T: 140 x 113 x 36.3 mm (5.51 x 4.45 x 1.43 in)
    ioLogik E1263H-T: 204 x 113 x 36.3 mm (8.03 x 4.45 x 1.43 in)

  • Weight

    ioLogik E1261H-T: 825 g (1.82 lb)
    ioLogik E1263H-T: 945 g (2.08 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1, IEC 60945
    IEC 60068-2-2, IEC 60945

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    ioLogik E1261H-T: 296,094 hrs
    ioLogik E1263H-T: 180,390 hrs

  • Standards

    Telcordia SR332
