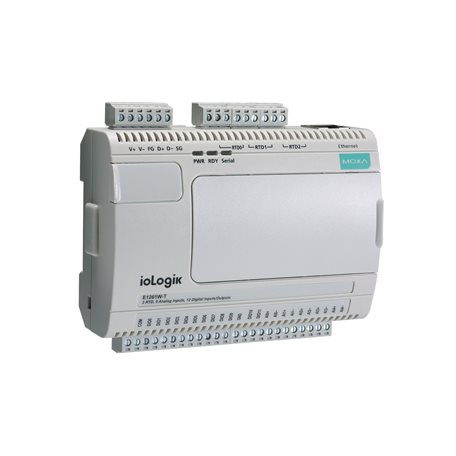

ioLogik E1200W Series

Ethernet remote I/O for wind power applications

moxa-iologik-e1200w-series-image-1-(1).jpg | Moxa

Features and Benefits

  • User-definable Modbus TCP Slave addressing
  • Active communications with MX-AOPC UA Server
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s ioLogik E1200W Series is designed for Ethernet-based remote condition monitoring systems. With 3 RTD, 5 AI, and 12 DIO channels, it features an I/O combination that is ideal for monitoring wind turbines and environmental conditions. Unlike other remote I/O products, which are passive and must poll for data, the ioLogik E1200W Series supports active communication with Moxa’s patented Active OPC Server to seamlessly connect with SCADA systems in real time. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

Push Technology for Events

When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.

User-Definable Modbus TCP Addressing for Painless Upgrading of Existing Systems

For Modbus devices that are controlled and detected by fixed addresses, users need to spend a vast amount of time researching and verifying initial configurations. Users need to locate each device's networking details, such as I/O channels or vendor-defined addresses, to enable the initial or start address of a SCADA system or PLC. Devices that implement user-definable Modbus TCP addressing offer greater flexibility, and setup is easy. Instead of worrying about individual devices, users simply configure the function and address map to fit their needs.

  • Analog Input Channels

    5

  • Configurable DIO Channels (by software)

    12

  • Isolation

    3k VDC or 2k Vrms

  • RTD Channels

    3

  • Buttons

    Reset button

  • Connector

    Screw-fastened Euroblock terminal

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI or event counter

  • Points per COM

    12 channels

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Wet Contact (DI to GND)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Over-Current Protection

    0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Pulse Output Frequency

    500 Hz

  • Accuracy

    ±0.1% FSR @ 25°C
    ±1.0% FSR @ -40 and 75°C

  • Built-in Resistor for Current Input

    120 ohms

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Input Impedance

    10 mega-ohms (min.)

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Resolution

    16 bits

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 2.4 samples/sec

  • Accuracy

    ±0.1% FSR @ 25°C
    ±1.0% FSR @ -40 and 75°C

  • Connector

    Screw-fastened Euroblock terminal

  • Input Connection

    2- or 3-wire

  • Input Impedance

    625 kilo-ohms (min.)

  • Sensor Type

    PT50, PT100, PT200, PT500 (-200 to 850°C)

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 4 samples/sec

  • Resolution

    16 bits

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP)
    Windows Utility (ioSearch)

  • Industrial Protocols

    Modbus TCP Server (Slave)
    Moxa AOPC (Active Tag)
    MXIO Library

  • Management

    BOOTP
    DHCP Client
    HTTP
    IPv4
    TCP/IP
    UDP

  • LED Indicators

    PWR, RDY, Serial

  • Baudrate

    1200 bps to 115.2 kbps

  • Connector

    Terminal block

  • No. of Ports

    1

  • Data Bits

    8

  • Flow Control

    None

  • Serial Standards

    RS-485

  • Stop Bits

    1

  • Parity

    None

  • ESD

    15 kV

  • RS-485-2w

    Data+, Data-, GND

  • Industrial Protocols

    Modbus RTU Server (slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    Client

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 36 VDC

  • Power Consumption

    143 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    115 x 79 x 40.4 mm (4.53 x 3.11 x 1.59 in)

  • Weight

    250 g (0.55 lb)

  • Installation

    DIN-rail mounting
    Wall mounting

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    367,508 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Firmware for ioLogik E1200W Series
338.1 KB
Firmware v1.0
2018-02-11 Feb 11, 2018 Release notes
ioSearch Configuration Utility
2.1 MB
Utility v2.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2018-01-15 Jan 15, 2018 Release notes
MX-AOPC UA Logger
44.2 MB
Utility v1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2017-06-14 Jun 14, 2017 Release notes
MX-AOPC UA Server
36.3 MB
Utility v1.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2017-06-14 Jun 14, 2017 Release notes
Software Package for ioLogik E1200W Series
14.4 MB
Software Package v1.0
2017-01-10 Jan 10, 2017 Release notes
MXIO Library for Linux Kernel 3.x
2.1 MB
Library v2.12
  • Linux 3.x
2016-12-27 Dec 27, 2016 Release notes
MXIO Library for Linux Kernel 4.x
2.1 MB
Library v2.12
  • Linux 4.x
2016-12-27 Dec 27, 2016 Release notes
MXIO .NET Library for Windows
2.7 MB
Library v1.10
  • Windows 10
  • Windows 7
  • Windows 8.1
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2016-12-27 Dec 27, 2016 Release notes
MXIO Library for Windows
2.5 MB
Library v2.12
  • Windows 10
  • Windows 7
  • Windows 8.1
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2016-12-25 Dec 25, 2016 Release notes
Firmware for ioLogik E1200W Series (E1261W-T)
1.0 MB
Firmware v1.1
2014-05-12 May 12, 2014 Release notes
MXIO Library for Linux Kernel 2.6.x
1.8 MB
Library v2.11
  • Linux 2.6.x
2014-02-13 Feb 13, 2014 Release notes

Support Documents

Name Type Version Release Date
Datasheet for ioLogik E1200W Series
1.0 MB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for ioLogik E1200W Series
5.0 MB
Manual v2.2 2017-03-20 Mar 20, 2017
3D CAD for ioLogik E1261W
1.2 MB
3D CAD 2013-11-06 Nov 06, 2013
2D CAD for ioLogik E1261W TOP
565.4 KB
2D CAD 2013-11-06 Nov 06, 2013
