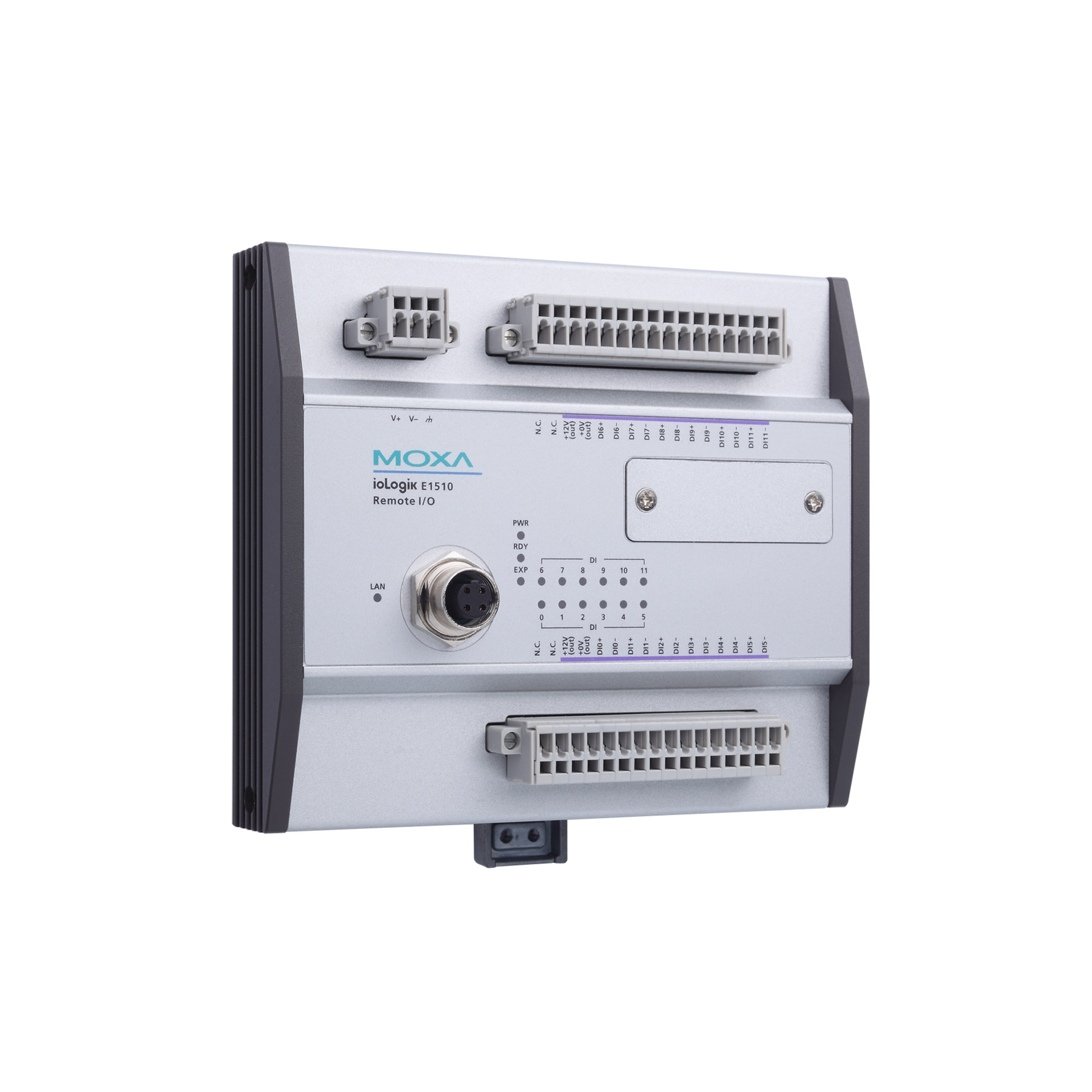

ioLogik E1500 Series

Ethernet remote I/O for railway applications

moxa-iologik-e1500-series-image-1-(1).jpg | Moxa

Features and Benefits

  • User-definable Modbus TCP Slave addressing
  • Active communication with MX-AOPC UA Server
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
  • Wide operating temperature range: -40 to 85°C (-40 to 185°F)

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ioLogik E1500 Series Ethernet Remote I/O devices have a ruggedized aluminum housing, and are compliant with EN 50121-3-2, EN 50121-4, and essential sections of EN 50155 standard, which are essential for electronic equipment used in rolling stock applications. This rugged platform also features a wide operating temperature range of -40 to 85°C to deliver consistent performance even in harsh environments.

Ruggedly Designed for Monitoring Rolling Stock

The ioLogik E1500 Series Ethernet remote I/O devices have a durable aluminum housing and are compliant with EN 50121-4 and a portion of EN 50155 specifications required for electronic equipment used in railway applications. The ioLogik E1500 design strictly conforms to EN standards, including not only EMC requirements but also with regards to shock, vibration, extended temperature range, humidity, and power supply variations.

Channel-to-Channel Isolation

With this topology, I/O channels on the ioLogik E1500 are individually isolated from one another to ensure that data communication is highly stable. For example, a lightning strike that affects one channel will not affect devices connected to other channels on the same ioLogik E1500.

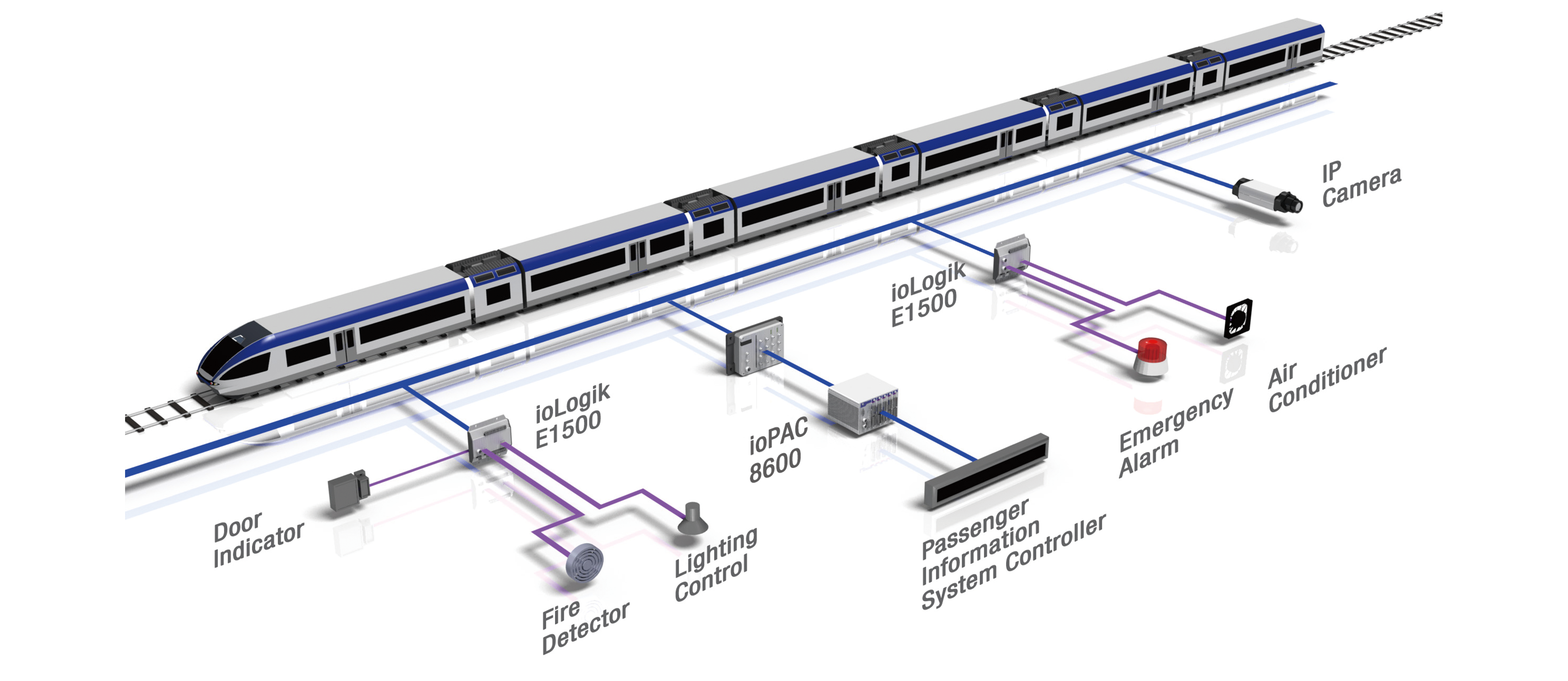

Application: Enhanced Efficiency for Remote Monitoring on Rolling Stock

The railway I/O module is an EN 50155/50121 remote Ethernet I/O device for use on rolling stock. It features an anti-vibration design, channel isolation, and operates reliably in temperatures ranging from -40 to 85°C, making it the ideal solution for data acquisition on rolling stock. Capable of both monitoring system status and triggering I/O events, this railway I/O is a great choice for simultaneously enhancing system reliability and maintaining efficiency in rolling stock environments.

  • Digital Input Channels

    ioLogik E1510-M12-T/M12-CT-T: 12
    ioLogik E1512-M12-T/M12-CT-T: 4

  • Configurable DIO Channels (by software)

    ioLogik E1512-M12-T/M12-CT-T: 4

  • Isolation

    3k VDC or 2k Vrms

  • Buttons

    Reset button

  • Connector

    Spring-type Euroblock terminal

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI or event counter

  • Points per COM

    ioLogik E1512-M12-T/M12-CT-T: 2 channels

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • Wet Contact (DI to GND)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    ioLogik E1512-M12-T/M12-CT-T: Spring-type Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Over-Current Protection

    0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Pulse Output Frequency

    500 Hz

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP)
    Windows Utility (ioSearch)

  • Industrial Protocols

    Modbus TCP Server (Slave)
    Moxa AOPC (Active Tag)
    MXIO Library

  • Management

    BOOTP
    DHCP Client
    HTTP
    IPv4
    TCP/IP
    UDP

  • LED Indicators

    ioLogik E1510-M12-T/M12-CT-T:
    PWR, RDY, EXP, LAN, DI Channels
    ioLogik E1512-M12-T/M12-CT-T:
    PWR, RDY, EXP, LAN, DI Channels, DO Channels

  • Mode

    Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    150 mA @ 24 VDC

  • Housing

    Aluminum

  • Dimensions

    144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)

  • Weight

    825 g (1.82 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 16 to 26 AWG

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4
    EN 50155

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    ioLogik E1510-M12-T/M12-CT-T: 507,064 hrs
    ioLogik E1512-M12-T/M12-CT-T: 554,122 hrs

  • Standards

    Telcordia SR332
