ioPAC 8020 Series (RM/KM) Modules

Rugged modules for the ioPAC 8020 Series

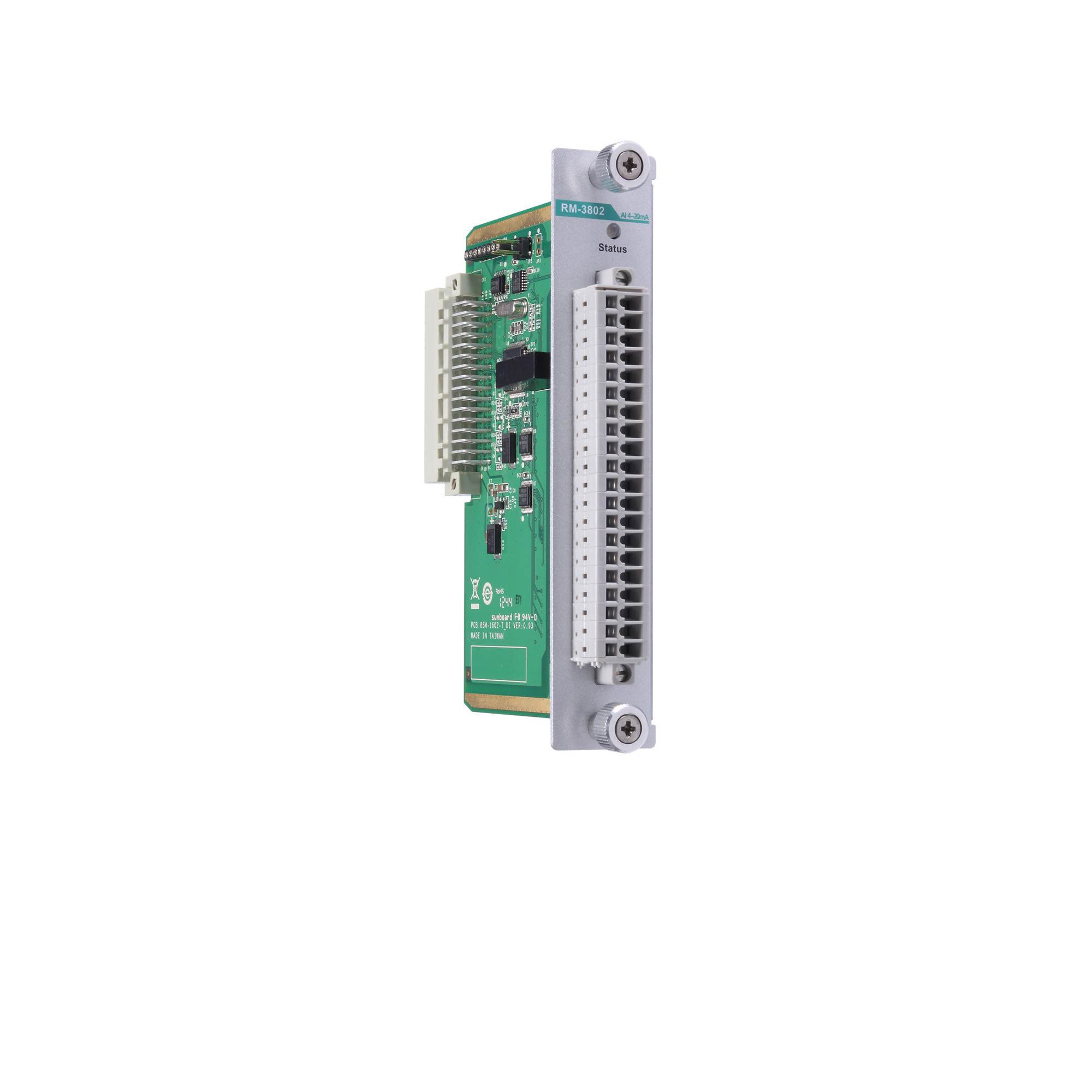

moxa-iopac-8020-series-rm-km-modules-image-1-(1).jpg | Moxa

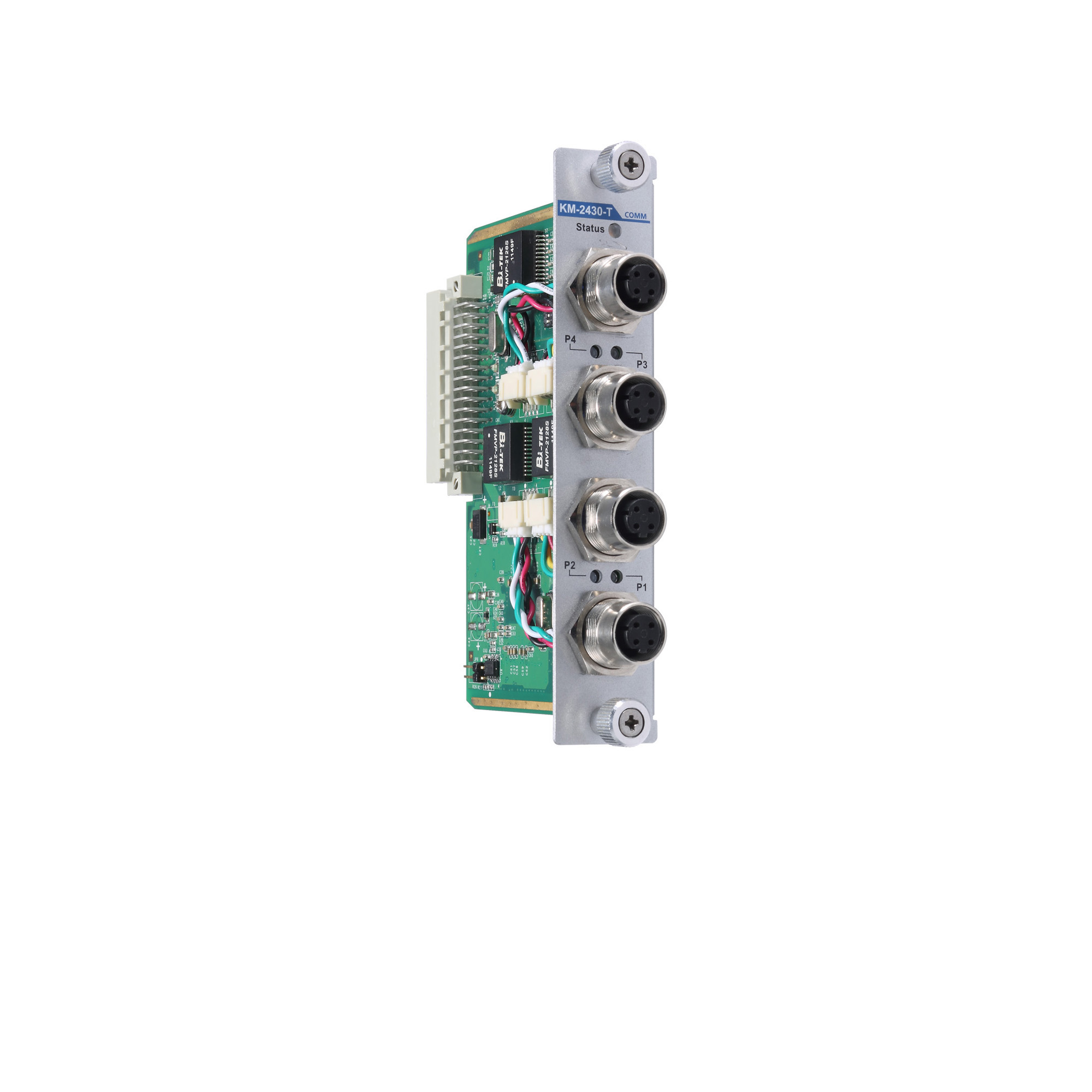

moxa-iopac-8020-series-rm-km-modules-image-2-(1).jpg | Moxa

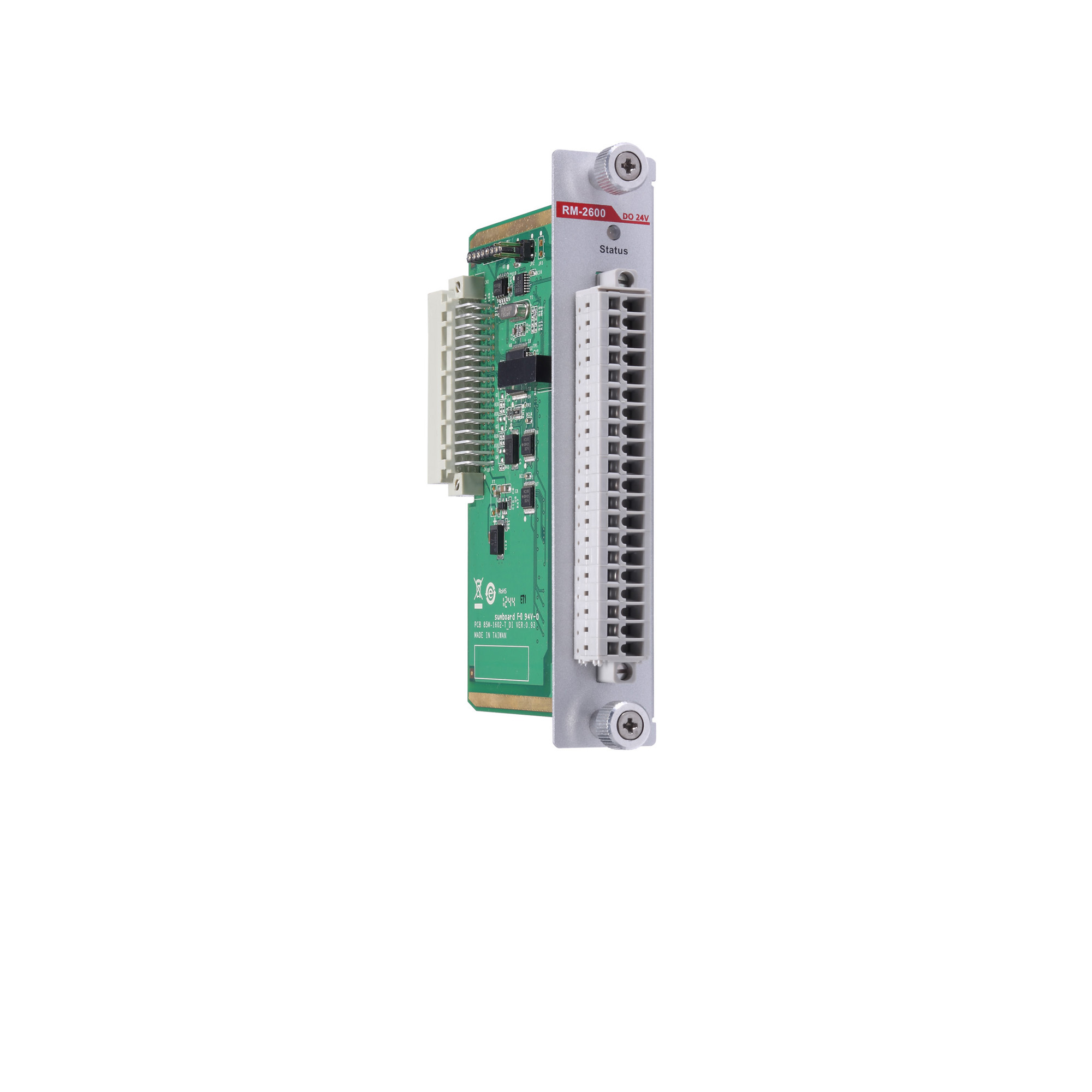

moxa-iopac-8020-series-rm-km-modules-image-3-(1).jpg | Moxa

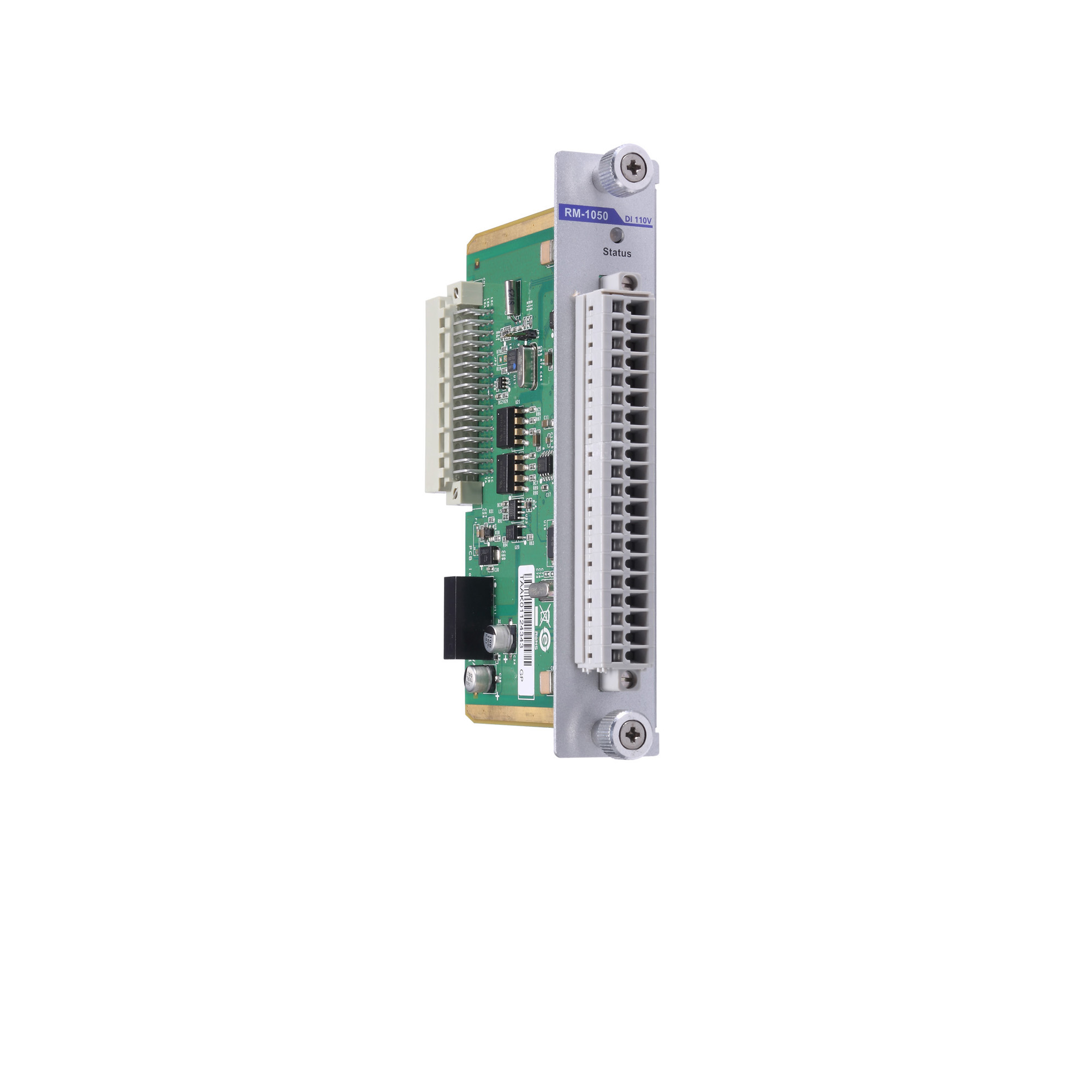

moxa-iopac-8020-series-rm-km-modules-image-4-(1).jpg | Moxa

Features and Benefits

  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
  • Rugged and compact design for harsh environments
  • Expand the I/O and communication capabilities of your ioPAC 8020 Series device
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)
  • Up to 4 3-in-1 RS-232/422/485 serial ports
  • Supports unmanaged switch functionality

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s ioPAC 8020 Series (RM/KM) Modules can be installed in ioPAC 8020 Series systems. Modules are available with DI/Os, AIs, serial interfaces, and unmanaged switches, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. All RM/KM modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and a portion of the EN 50155 specifications. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

  • Analog Input Channels

    RM-3802-T/3810-T: 8

  • Digital Input Channels

    RM-1050-T: 10
    RM-1602-T: 16

  • Digital Output Channels

    RM-2600-T: 16

  • Isolation

    RM Series: 3k VDC or 2K Vrms

  • Ethernet Ports

    KM-2430-T: 4

  • Channel-to-Channel Isolation

    RM-1050-T: 110 VDC

  • Points per COM

    RM-1050-T: 10 channels
    RM-1602-T: 8 channels

  • Wet Contact (DI to COM)

    RM-1602-T: On: 10 to 30 VDC
    RM-1602-T: Off: 0 to 3 VDC

  • Wet Contact (DI+ to DI-)

    RM-1050-T: On: 50 to 175 VDC
    RM-1050-T: Off: 0 to 15 VDC

  • Voltage

    RM-1050-T: 110 VDC
    RM-1602-T: 24 VDC

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    DI

  • Sensor Type

    Wet Contact (NPN or PNP)

  • Connector

    Spring-type Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • I/O Mode

    DO

  • Voltage

    24 VDC

  • Over-Current Protection

    2.6 mA @ 25°C

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Input Impedance

    RM-3802-T: 120 ohms
    RM-3810-T: 10 mega-ohms

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    Differential

  • Input Range

    RM-3802-T: 4 to 20 mA
    RM-3810-T: 0 to 10 VDC

  • Resolution

    16 bits

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    4

  • Processing Type

    Store and Forward

  • Dimensions

    25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)

  • Weight

    Under 80 g

  • Wiring

    I/O cable, 14 to 28 AWG

  • Power Consumption

    KM-2430-T: 20 mA @ 24 VDC
    RM-1050-T: 7 mA @ 24 VDC
    RM-1602-T: 7 mA @ 24 VDC
    RM-2600-T: 10 mA @ 24 VDC
    RM-3802-T: 78 mA @ 24 VDC
    RM-3810-T: 78 mA @ 24 VDC

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4, EN 50155

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    KM-2430-T: 3,873,592 hrs
    RM-1050-T: 3,993,435 hrs
    RM-1602-T: 4,132,863 hrs
    RM-2600-T: 4,440,241 hrs
    RM-3802-T: 1,222,361 hrs
    RM-3810-T: 1,225,957 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
MX-AOPC UA Logger
44.2 MB
Utility v1.1
2017-06-14 Jun 14, 2017 Release notes
MX-AOPC UA Server
36.3 MB
Utility v1.6
2017-06-14 Jun 14, 2017 Release notes
Software Package for ioPAC 8020-C Series (toolchain)
134.9 MB
Software Package v1.2
2013-08-12 Aug 12, 2013 Release notes
RTUAdmin Configuration Utility
3.6 MB
Utility v1.0
2011-08-18 Aug 18, 2011 Release notes

Support Documents

Name Type Version Release Date
Datasheet for ioPAC 8020 Series (RM/KM) Modules
328.5 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for ioPAC 8020 Series (RM/KM) Modules
3.8 MB
Manual v3.0 2017-02-20 Feb 20, 2017
Manual for ioPAC 8020-C Series
4.0 MB
Manual v6.0 2017-02-20 Feb 20, 2017
3D CAD for RM-1050-T
257.0 KB
3D CAD 2014-07-17 Jul 17, 2014
3D CAD for RM-1602-T
257.0 KB
3D CAD 2014-07-17 Jul 17, 2014
3D CAD for RM-2600-T
257.0 KB
3D CAD 2014-07-17 Jul 17, 2014
3D CAD for RM-3802-T
257.0 KB
3D CAD 2014-07-17 Jul 17, 2014
3D CAD for RM-3810-T
257.0 KB
3D CAD 2014-07-17 Jul 17, 2014
2D CAD for RM-1050-T
170.3 KB
2D CAD 2014-07-17 Jul 17, 2014
2D CAD for RM-2600-T
177.6 KB
2D CAD 2014-07-17 Jul 17, 2014
2D CAD for RM-3802-T
179.8 KB
2D CAD 2014-07-17 Jul 17, 2014
2D CAD for RM-3810-T
152.0 KB
2D CAD 2014-07-17 Jul 17, 2014
Manual for ioPAC 8020 Series (Developer's Guide)
841.6 KB
Manual v2.0 2012-09-03 Sep 03, 2012

Available Models (6)

Show Images
moxa-rm-1050-t-image.jpg | MoxaRM-1050-Tmoxa-rm-1602-t-image.jpg | MoxaRM-1602-Tmoxa-rm-2600-t-image.jpg | MoxaRM-2600-Tmoxa-rm-3802-t-image.jpg | MoxaRM-3802-T
Input/Output Interface10 x DI16 x DI16 x DO8 x AI
Type110 VDC, ch-to-ch isolation24 VDC24 VDC4-20 mA
Ethernet Standard
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-rm-3810-t-image.jpg | MoxaRM-3810-Tmoxa-km-2430-t-image.jpg | MoxaKM-2430-T
Input/Output Interface8 x AI4 x M12 LAN port
Type0-10V
Ethernet StandardIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag
