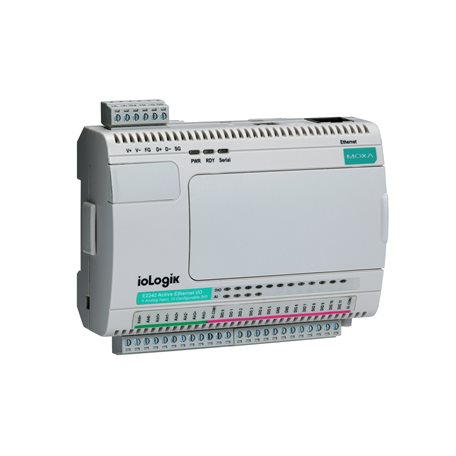

ioLogik E2260-T
ioLogik E2200 Series

Universal controller, 6 RTD, 4 DOs, Click&Go, -40 to 75°C operating temperature

Control Logic
  • Language

    • Click&Go
Input/Output Interface
  • Digital Output Channels

    • 4
  • RTD Channels

    • 6
  • Buttons

    • Reset button
  • Isolation

    • 3k VDC or 2k Vrms
  • Rotary Switch

    • 0 to 9
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Mode

    • DO or pulse output
  • I/O Type

    • Sink
  • Over-Current Protection

    • 0.65 A per channel @ 25°C
  • Over-Temperature Shutdown

    • 175°C (min.)
  • Over-Voltage Protection

    • 45 VDC (typical)
  • Pulse Output Frequency

    • 1 kHz
RTDs
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -10 to 60°C
      ±0.5% FSR @ -40 to 75°C
  • Connector

    • Screw-fastened Euroblock terminal
  • Input Connection

    • 2- or 3-wire
  • Input Impedance

    • 625 kilo-ohms (min.)
  • Sensor Type

    • JPT100, JPT200, JPT500 (-200 to 640°C)
      JPT1000 (-200 to 350°C)
      NI100, NI200, NI500 (-60 to 250°C)
      NI1000 (-60 to 150°C)
      NI120 (-80 to 260°C)
      PT1000 (-200 to 350°C)
      PT50, PT100, PT200, PT500 (-200 to 850°C)
      Resistance of 310, 620, 1250, and 2200 ohms
  • Resolution

    • 0.1°C or 0.1 ohms
  • Sampling Rate

    • All channels: 12 samples/sec
LED Interface
  • LED Indicators

    • PWR, RDY, Serial, I/O Status
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP)
      Windows Utility (ioAdmin)
  • Industrial Protocols

    • CGI commands
      Modbus TCP Server (Slave)
      Moxa AOPC (Active Tag)
      MXIO Library
      SNMPv1 Trap
      SNMPv1/v2c/v3
  • Management

    • BOOTP
      IPv4
      SMTP
      DHCP Client
      HTTP
      TCP/IP
  • MIB

    • Device Settings MIB
  • Time Management

    • SNTP
Modbus TCP
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16
  • Mode

    • Server
Serial Interface
  • Connector

    • Terminal block
  • Serial Standards

    • RS-485
  • No. of Ports

    • 1
  • Baudrate

    • 1,200 bps to 115.2 kbps
  • Parity

    • None
  • Data Bits

    • 8
  • Stop Bits

    • 1
  • Flow Control

    • None
Serial Signals
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU Server (Client)
Power Parameters
  • Power Connector

    • Screw-fastened Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 36 VDC
  • Power Consumption

    • 95 mA @ 24 VDC
Physical Characteristics
  • Dimensions

    • 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
  • Weight

    • 250 g (0.55 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 16 to 26 AWG
  • Housing

    • Plastic
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • Freefall

    • IEC 60068-2-32
  • EMC

    • EN 61000-6-2/-6-4
  • Safety

    • UL 508
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 327,282 hrs
  • Standards

    • Telcordia SR332
Warranty
