VPort P16-1MP-M12-IR Series

EN 50155, HD image, infrared IP cameras

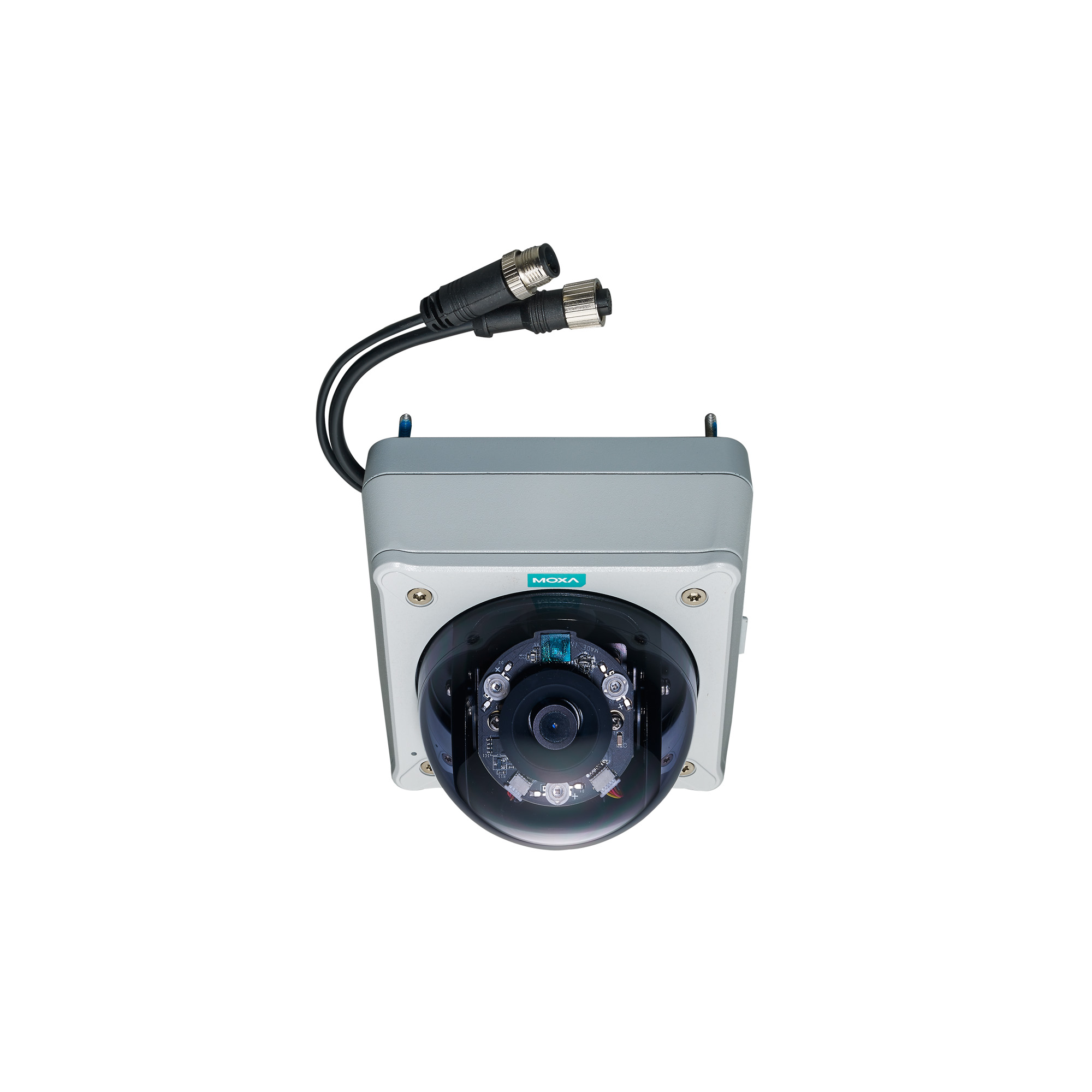

moxa-vport-p16-1mp-m12-ir-series-image-1-(1).jpg | Moxa

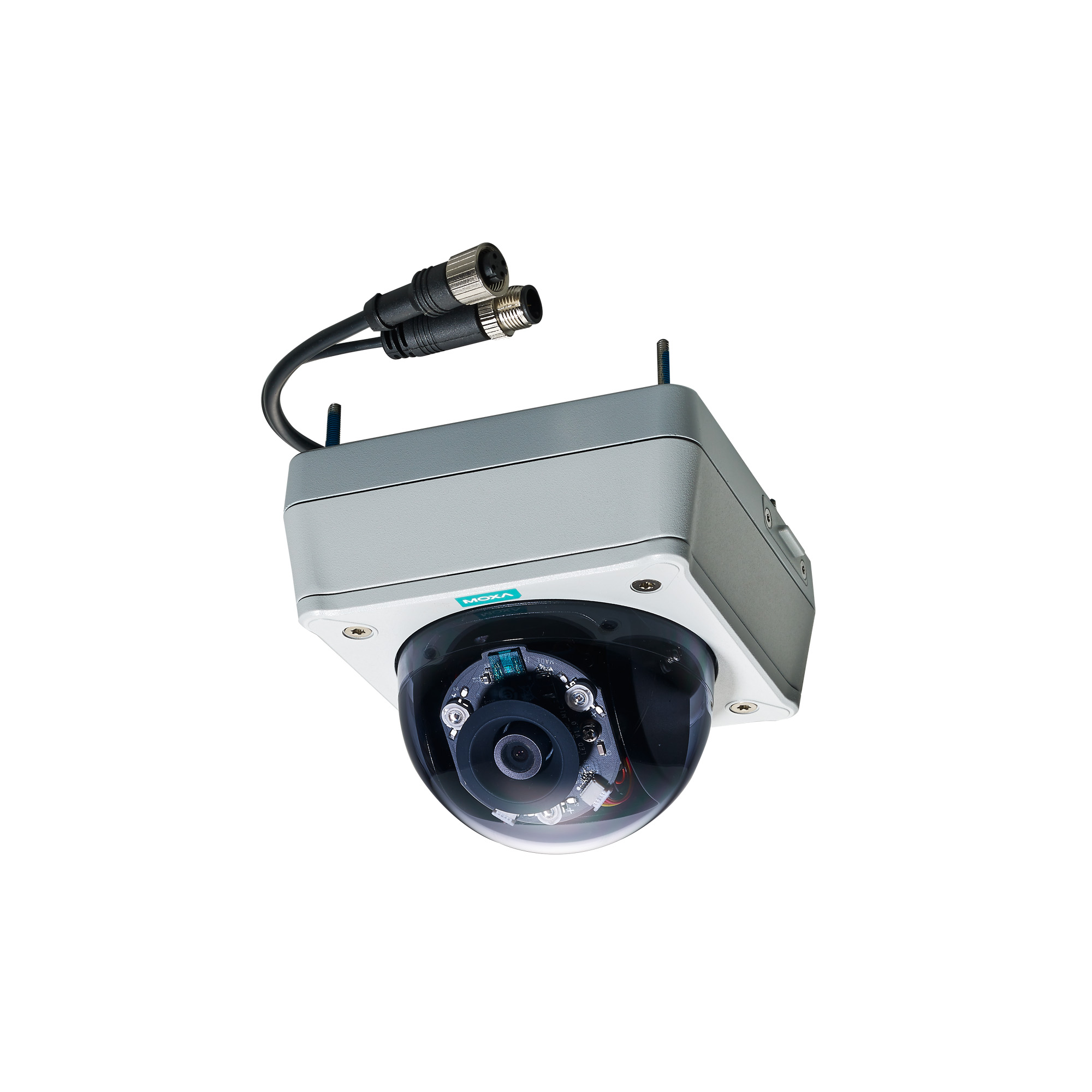

moxa-vport-p16-1mp-m12-ir-series-image-2-(1).jpg | Moxa

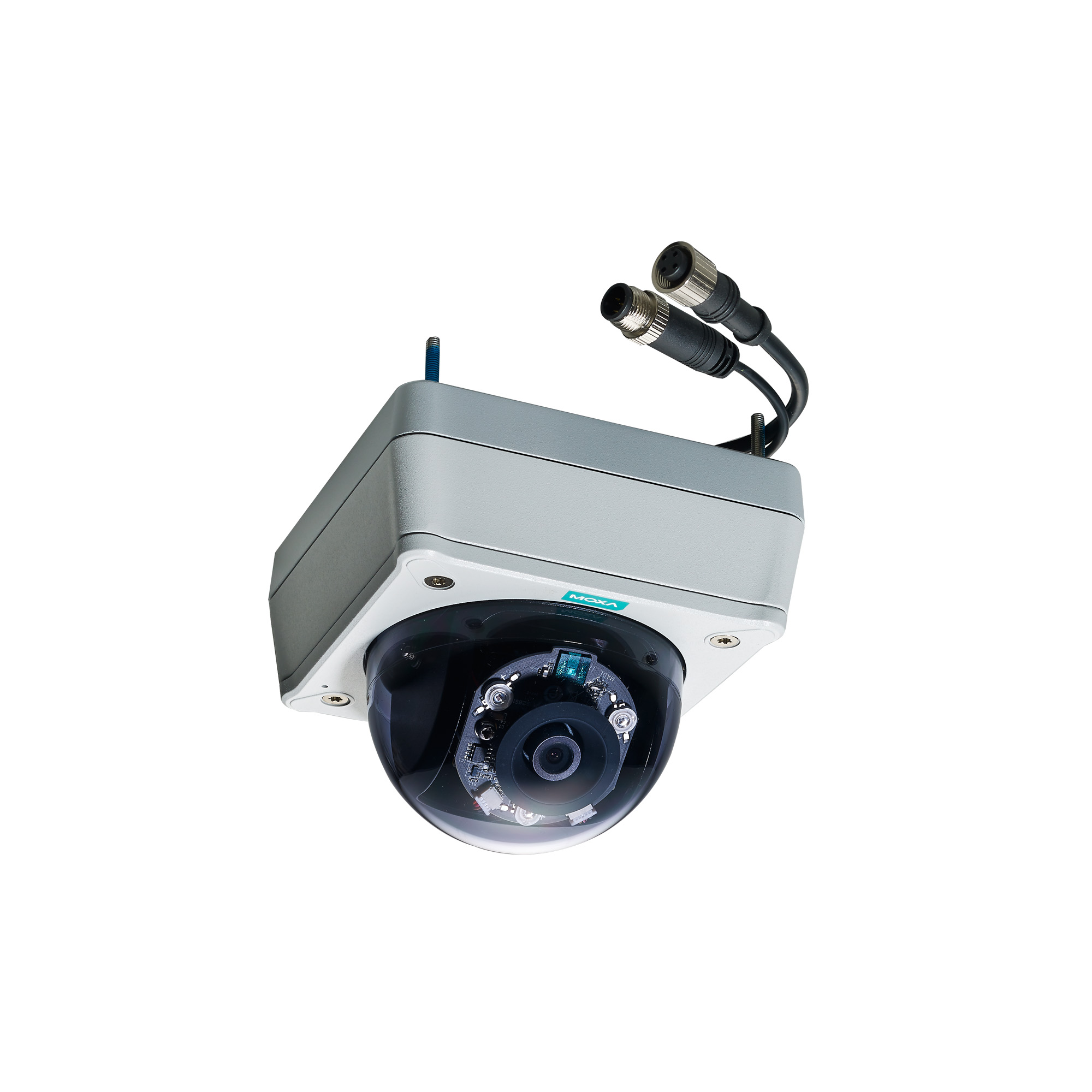

moxa-vport-p16-1mp-m12-ir-series-image-3-(1).jpg | Moxa

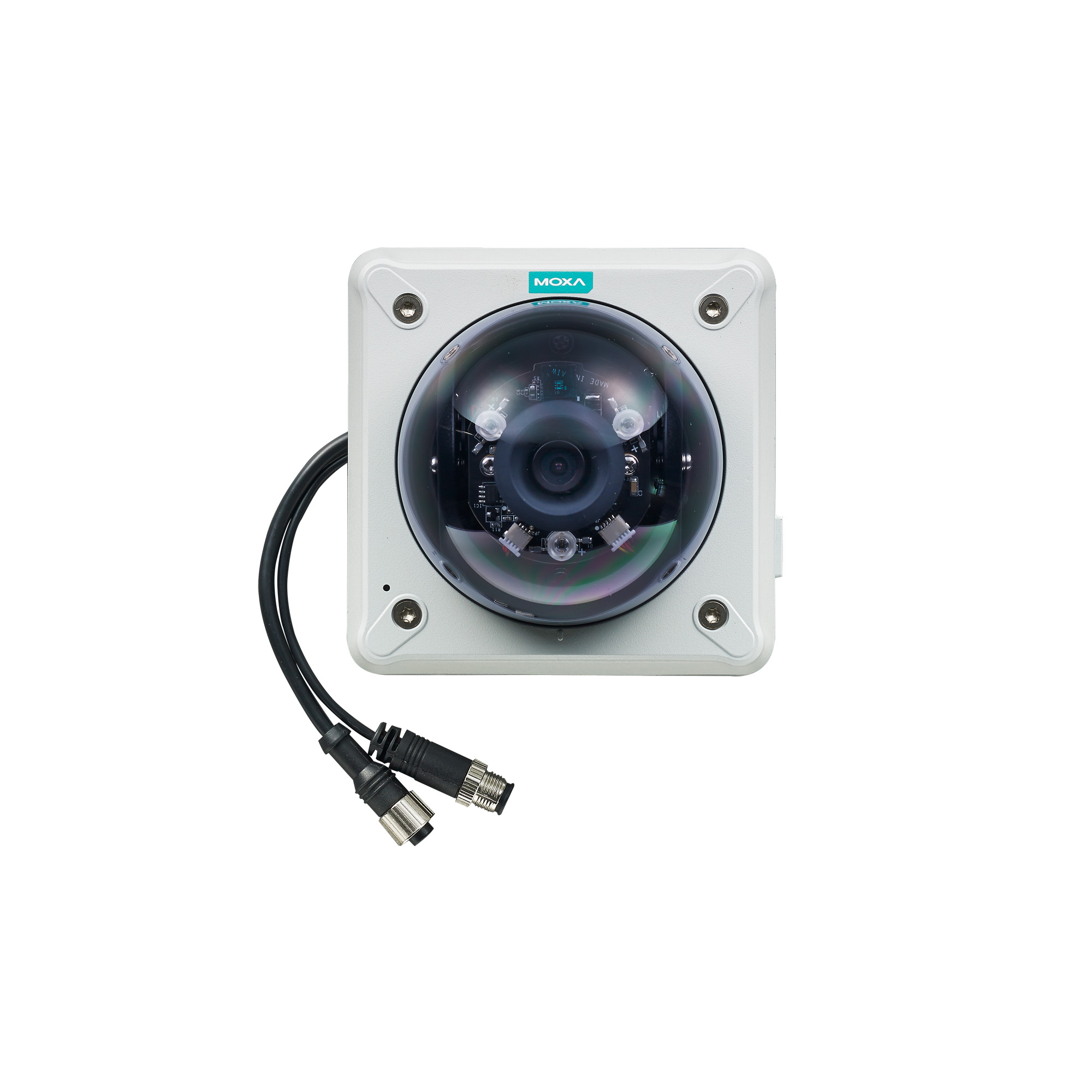

moxa-vport-p16-1mp-m12-ir-series-image-4-(1).jpg | Moxa

Features and Benefits

  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • 1 built-in microphone for audio input, and 1 digital input for external sensor
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The rugged VPort P16-1MP-M12-IR cameras produce HD (720P, 1280 x 720) video images and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155. This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Connector

    5-pin A-coded male M12 connector with 20 cm cable

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Standards

    IEEE 802.3af for PoE

  • Protocols

    TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

  • Password

    User-level password protection

  • Filter

    IP address

  • Encryption

    HTTPS

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.19 A @ 48 VDC

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    VPort P16-1MP-M12-IR-CAM36 Series: f=3.6mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
    VPort P16-1MP-M12-IR-CAM80 Series: f=8.0mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    Note: 0 lux if IR illuminator is on

  • Camera Angle

    Pan 350°, Tilt 65° (controlled manually)

  • Day & Night

    Auto/Color/BW; ICR control

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • ICR Control

    Auto (light sensor control) or DI control

  • IR Illumination

    IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    110 dB

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    High/Medium/Low

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

    NTSC PAL
    Size Max. FPS Size Max. FPS
    QCIF 176 x 112 30 176 x 144 25
    QVGA 320 x 240 30 320 x 240 25
    CIF 352 x 240 30 352 x 288 25
    VGA 640 x 480 30 640 x 480 25
    4CIF 704 x 480 30 704 x 576 25
    Full D1 720 x 480 30 720 x 576 25
    SVGA 800 x 600 30 800 x 600 25
    HD 1280 x 720 30 1280 x 720 25
    WXGA 1280 x 800 30 1280 x 800 25

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Audio Format

    Mono, PCM (G.711)

  • Audio Inputs

    1 x built-in microphone

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    12 MB video buffer for JPEG snapshot images

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    IP66 rain and dust protection
    Metal housing, PC dome cover
    IK10 vandal resistant protection

  • Dimensions

    125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)

  • Weight

    870 g (1.92 lb)

  • Installation

    Panel mounting

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Salt Spray Test

    ASTM-B117

  • Vandal Resistance

    EN 62262, IK10

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    1,052,184 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    5 years
    Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.

  • Details

    See www.moxa.com/warranty

Software, Firmware, and Drivers

FILTER

All Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Firmware for VPort P16-1MP-M12-IR Series
18.9 MB 		Firmware
SHA-512
v1.4
Mar 07, 2018 Mar 07, 2018 Release notes
SoftNVR-IA IP Surveillance Software Trial Version
48.1 MB 		Software Package
SHA-512
v3.5
  • Windows 7
  • Windows XP
 Nov 08, 2017 Nov 08, 2017 Release notes
Software Package for VPort P16-1MP-M12-IR Series (MIB file)
43.4 KB 		Software Package
SHA-512
v1.3
Mar 15, 2017 Mar 15, 2017 Release notes
Moxa VPort and EtherDevice Configurator Utility
1.6 MB 		Utility
SHA-512
v5.3
  • Windows
 Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Manual QIG
Name Type Version Release Date
QIG for VPort P16-1MP-M12-IR Series
1.9 MB 		QIG v3,1 Aug 13, 2021 Aug 13, 2021
Datasheet for VPort P16-1MP-M12-IR Series
669.8 KB 		Datasheet v1.0 Nov 12, 2018 Nov 12, 2018
Manual for VPort P16-1MP-M12-IR Series
6.9 MB 		Manual v3.4 Feb 09, 2018 Feb 09, 2018
2D CAD for VPort P16-1MP-M12-IR
584.3 KB 		2D CAD Jan 30, 2015 Jan 30, 2015
Moxa SoftNVR-IA IP Surveillance Software User's Manual
3.6 MB 		Manual v1.0 Apr 22, 2010 Apr 22, 2010

Available Models (8)

Show Images
Compare
moxa-vport-p16-1mp-m12-ir-cam36-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM36
Compare
moxa-vport-p16-1mp-m12-ir-cam36-ct-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM36-CT
Compare
moxa-vport-p16-1mp-m12-ir-cam36-ct-t-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM36-CT-T
Compare
moxa-vport-p16-1mp-m12-ir-cam36-t-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM36-T
Lens3.6 mm3.6 mm3.6 mm3.6 mm
Operating Temp.-25 to 55°C-25 to 55°C-40 to 70°C-40 to 70°C
Conformal Coating–✓✓–
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-vport-p16-1mp-m12-ir-cam80-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM80
Compare
moxa-vport-p16-1mp-m12-ir-cam80-t-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM80-T
Compare
moxa-vport-p16-1mp-m12-ir-cam80-ct-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM80-CT
Compare
moxa-vport-p16-1mp-m12-ir-cam80-ct-t-image.jpg | MoxaVPort P16-1MP-M12-IR-CAM80-CT-T
Lens8.0 mm8.0 mm8.0 mm8.0 mm
Operating Temp.-25 to 55°C-40 to 70°C-25 to 55°C-40 to 70°C
Conformal Coating––✓✓
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
