VPort 464 Series

Superior video performance, 4-channel industrial video encoders

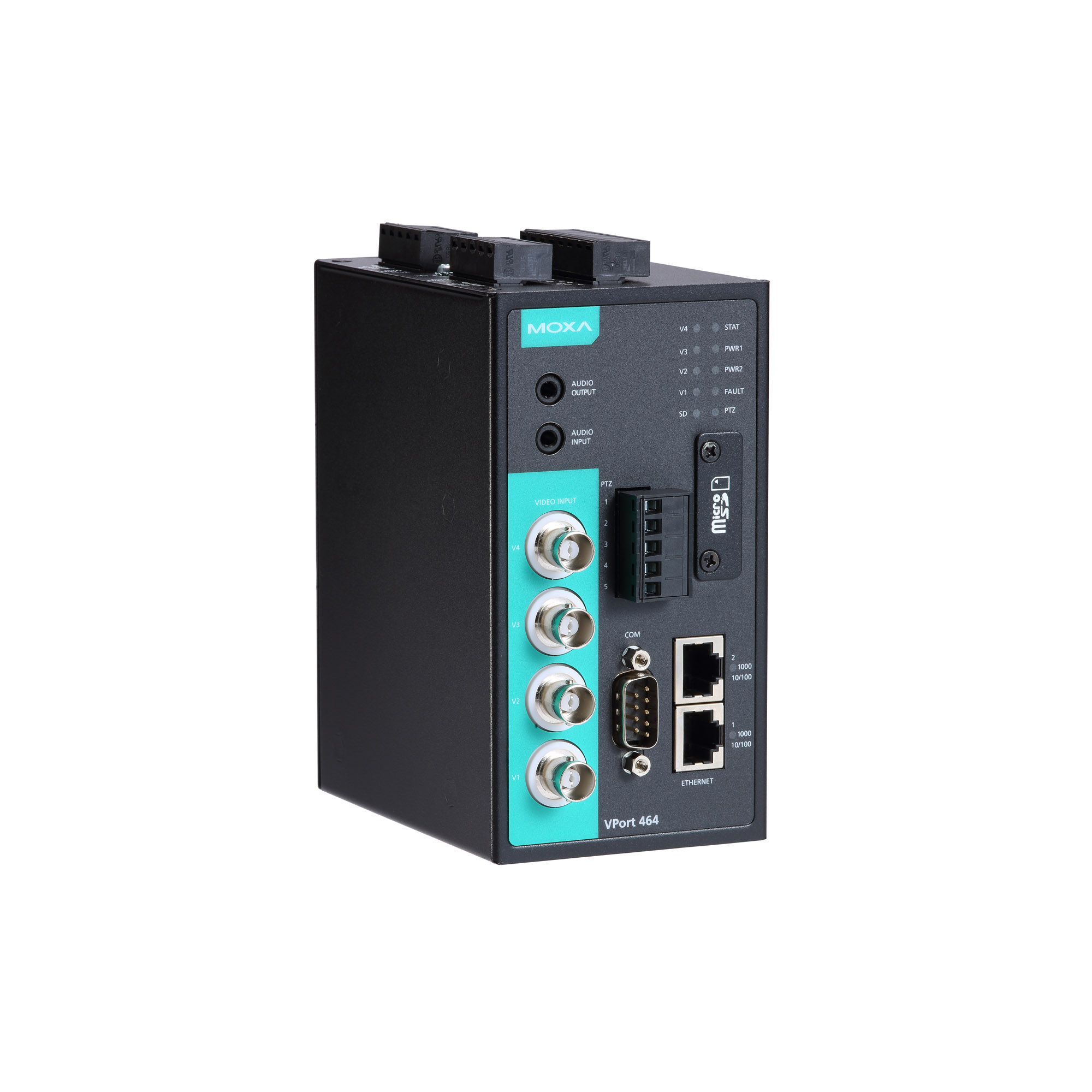

moxa-vport-464-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
  • Video latency under 200 ms
  • 2 Ethernet ports for cascading or Ethernet port redundancy
  • DynaStream™ for optimized network efficiency
  • ONVIF support for standardization and interoperability
  • Local storage capability with microSD card slot
  • Industrial design with -40 to 75°C operating temperature

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.

The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.

  • microSD Slot

    SDXC

  • Digital Input Channels

    4

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Relay Channels

    2

  • Contact Current Rating

    Resistive load: 1 A @ 24 VDC

  • Connector

    Terminal block

  • 10/100BaseT(X) Ports (RJ45 connector)

    2

  • Protocols

    TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP

  • Password

    User-level password protection

  • Filter

    IP address

  • Authentication

    802.1X

  • Encryption

    HTTPS

  • LED Indicators

    STAT: Indicates if system is booted up properly or not
    Power 1: Power 1 on/off
    Power 2: Power 2 on/off
    FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
    Video: Video input signal
    PTZ: Indicates if PTZ or COM port data has been transmitted
    SD: Indicates if SD card was mounted successfully
    Network: 10 Mbps or 100 Mbps

  • PTZ Port

    1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps

  • COM Port

    1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps

  • Console Port

    1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

  • No. of Power Inputs

    2

  • Input Voltage

    Redundant dual inputs

  • Operating Voltage

    12 to 32 VDC, 18 to 30 VAC

  • Input Current

    0.5 A @ 24 VDC
    0.83 A @ 24 VAC

  • Power Connector

    2-pin terminal block

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Input

    4, BNC connector (1.0 Vpp, 75 ohm)

  • Video Output

    via Ethernet

  • Video Streams

    2 independent H.264 or MJPEG video streams
    1 quad (4-channel images) stream

  • NTSC/PAL

    Auto-sensing or manual

  • Video Resolution and FPS (frames per second)

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients
    Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

  • Audio Inputs

    1 Line-in or MIC-in with 3.5 mm phone jack

  • Audio Outputs

    1 Line-out, with 3.5 mm phone jack

  • Audio Format

    Mono, PCM (G.711)

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    ONVIF Profile S

  • PTZ Camera Control

    Via PTZ port or COM port

  • PTZ Control Functions

    Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)

  • PTZ Function Updates

    Driver upload supported

  • Protocols

    Pelco D, Pelco P, Custom Camera

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    50 MB video buffer for JPEG snapshot images

  • Video Recording

    Event recordings stored on the SD card

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    Metal

  • Dimensions

    80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

  • Weight

    1130 g (2.49 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    569,152 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Firmware for VPort 464 Series
39.8 MB
Firmware v1.0
2017-12-13 Dec 13, 2017 Release notes
Software Package for VPort 464 Series (MIB file)
28.1 KB
Software Package v1.0.0
2017-12-12 Dec 12, 2017 Release notes
SoftNVR-IA IP Surveillance Software Trial Version
48.1 MB
Software Package v3.5
  • Windows 7
  • Windows XP
2017-11-08 Nov 08, 2017 Release notes
Moxa VPort and EtherDevice Configurator Utility
1.6 MB
Utility v5.3
  • Windows
2012-04-09 Apr 09, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for VPort 464 Series
724.0 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
QIG for VPort 464 Series
1.7 MB
QIG v1.0 2018-02-14 Feb 14, 2018
Manual for VPort 464 Series (Modbus address table)
242.3 KB
Manual v1.0 2018-02-14 Feb 14, 2018
Manual for VPort 464 Series
4.8 MB
Manual v1.0 2018-02-14 Feb 14, 2018
3D CAD for Vport 464-ASM
756.0 KB
3D CAD 2018-02-01 Feb 01, 2018
2D CAD for VPort 464
1.3 MB
2D CAD 2018-02-01 Feb 01, 2018
Moxa SoftNVR-IA IP Surveillance Software User's Manual
3.6 MB
Manual v1.0 2010-04-22 Apr 22, 2010

Available Models (2)

Show Images
moxa-vport-464-image.jpg | MoxaVPort 464moxa-vport-464-t-image.jpg | MoxaVPort 464-T
Video Interface4-channel analog video input4-channel analog video input
Audio Interface1 x line-in, 1 x line-out1 x line-in, 1 x line-out
Local StoragemicroSD slot, SDXC interfacemicroSD slot, SDXC interface
Power InputRedundant power inputs with 2 x 12/24 VDC, 24 VAC power suppliesRedundant power inputs with 2 x 12/24 VDC, 24 VAC power supplies
Operating Temp.-25 to 60°C-40 to 75°C
MountingDIN-rail mount or Panel mount (with optional kit)DIN-rail mount or Panel mount (with optional kit)
