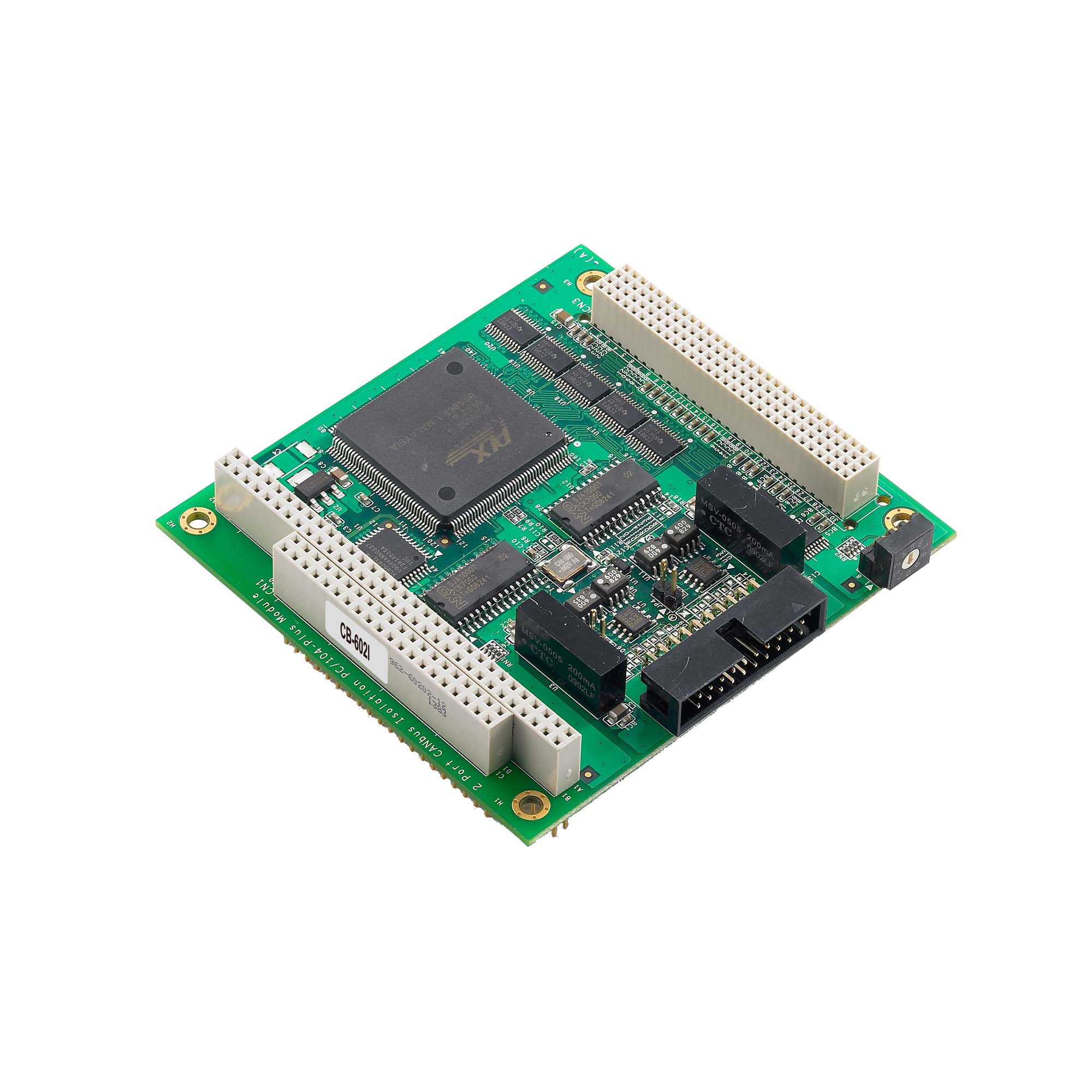

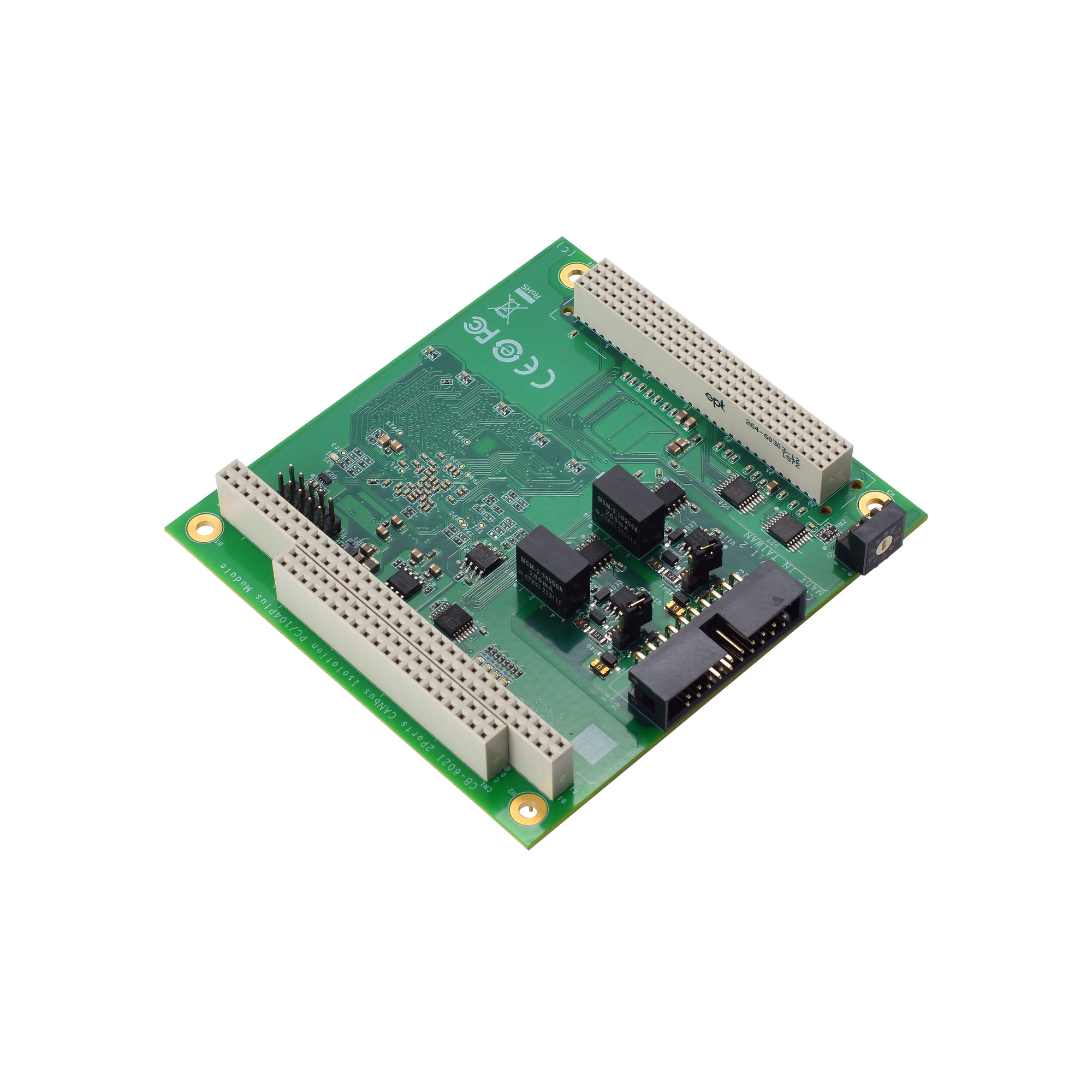

CB-602I Series

2-port CAN interface PC/104-Plus modules with 2 kV isolation

moxa-cb-602i-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows drivers provided

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

  • Isolation

    2 kV

  • Max. No. of Boards per PC

    8

  • Baudrate

    10/20/50/125/250/500/800/1000 kbps, user-defined

  • Connector

    20-pin box header

  • No. of Ports

    2

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    248,563 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Windows driver for CANbus Serial Boards (Windows 10, WHQL certified)
2.4 MB
Driver
SHA-512
v3.0
  • Windows 10
  • Windows Server 2016
  • Windows Server 2019
Nov 22, 2023 Nov 22, 2023 Release notes
Windows driver for CANbus Serial Boards (Windows 11, WHQL certified)
2.3 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Nov 22, 2023 Nov 22, 2023 Release notes
Driver for CB-602I Series (Linux)
36.3 KB
Driver
SHA-512
v1.0
  • Linux 2.6.x
  • Linux 3.x
Nov 04, 2012 Nov 04, 2012 Release notes
Driver for CB-602I Series (Windows)
1.2 MB
Driver
SHA-512
v1.0
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Dec 06, 2009 Dec 06, 2009 Release notes

Support Documents

Name Type Version Release Date
Datasheet for CB-602I Series
475.4 KB
Datasheet v1.1 Sep 24, 2021 Sep 24, 2021
QIG for CAN Interface Boards
173.3 KB
QIG v3.2 May 19, 2021 May 19, 2021
Manual for CB-602I Series
1.8 MB
Manual v2.0 Sep 11, 2009 Sep 11, 2009

Available Models (2)

Show Images
moxa-cb-602i-w-o-cable-image.jpg | MoxaCB-602I w/o Cablemoxa-cb-602i-t-w-o-cable-image.jpg | MoxaCB-602I-T w/o Cable
Serial BusPC/104-PlusPC/104-Plus
CAN SpecificationCAN 2.0 A/BCAN 2.0 A/B
No. of Serial Ports22
Serial Isolation Protection2 kV2 kV
Operating Temp.0 to 55°C-40 to 85°C
