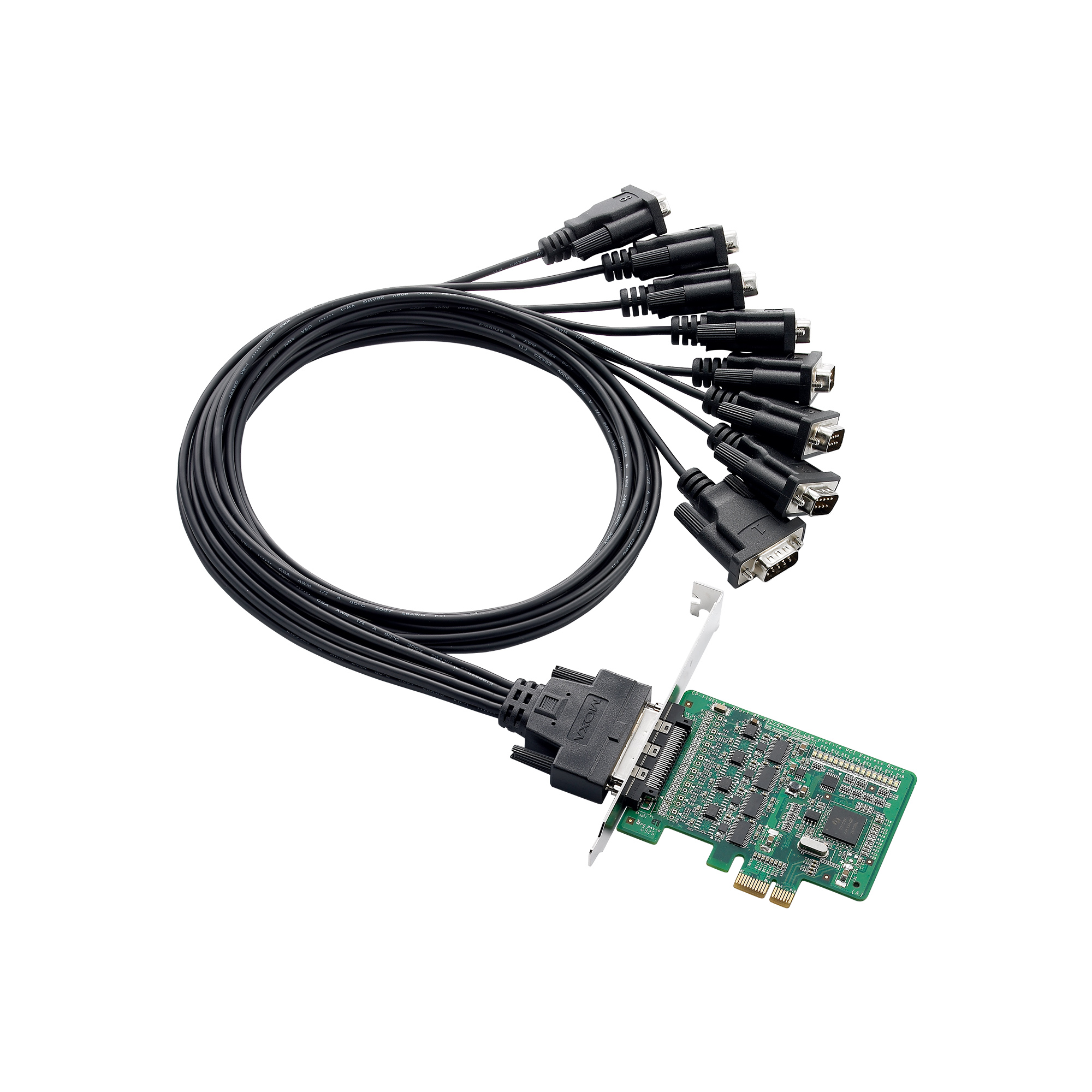

CP-118EL-A

8-port RS-232/422/485 PCI Express serial board

moxa-cp-118el-a-image-1-(1).jpg | Moxa

Features and Benefits

  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Variety of connection cables and boxes available for RS-232/422/485
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-118EL-A is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight serial ports can be configured independently for RS-232, RS-422, or RS-485 (either 2-wire or 4-wire), and the ports supports a fast 921.6 kbps baudrate. The CP-118EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

Smaller Form Factor

The CP-118EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-118EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

  • Comm. Controller

    16C550C compatible

  • Bus

    PCI Express 1.0

  • Connector

    VHDCI 68

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    8

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

  • Input Current

    1,285 mA @ 3.3 VDC

  • Dimensions

    68.9 x 88 mm (2.71 x 3.46 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,359,482 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Driver for Linux kernel 4.x.x
161.9 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Linux kernel 5.x.x
160.1 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Windows (Windows 7 2008 R2 or later)
1.9 MB
Driver
SHA-512
v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
May 18, 2020 May 18, 2020 Release notes
Driver for Linux kernel 2.x.x
161.3 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 3.x.x
161.1 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for CP-118EL-A (Windows XP, 2008 or earlier)
759.9 KB
Driver
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Oct 17, 2017 Oct 17, 2017 Release notes
Driver for CP-118EL-A (DOS)
634.2 KB
Driver
SHA-512
v1.12
  • DOS
Mar 31, 2014 Mar 31, 2014 Release notes
Driver for CP-118EL-A (SCO 5)
649.5 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 5
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-118EL-A (SCO 6)
322.0 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 6
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-118EL-A (UnixWare)
330.0 KB
Driver
SHA-512
v1.13
  • SCO UnixWare 7
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-118EL-A (Sun Solaris)
118.0 KB
Driver
SHA-512
v1.1
  • Solaris 10
Mar 30, 2014 Mar 30, 2014 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for CP-118EL-A (Windows ME or prior)
341.1 KB
Driver
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
Jul 12, 2010 Jul 12, 2010 Release notes
Driver for CP-118EL-A (WinCE 5)
370.8 KB
Driver
SHA-512
v1.1
  • Windows CE 5.0
Jul 12, 2010 Jul 12, 2010 Release notes
Driver for CP-118EL-A (UnixWare 2.1)
270.0 KB
Driver
SHA-512
v1.7
  • SCO UnixWare 2.x
Jul 12, 2010 Jul 12, 2010 Release notes
Viewcom
434.6 KB
Utility
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-118EL-A (QNX6)
120.8 KB
Driver
SHA-512
v1.1
  • QNX 6.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for CP-118EL-A (WinXP Embedded)
289.1 KB
Driver
SHA-512
v1.16
  • Windows XP Embedded
Feb 08, 2010 Feb 08, 2010 Release notes

Support Documents

Name Type Version Release Date
Datasheet for CP-118EL-A
966.8 KB
Datasheet v1.5 Sep 16, 2021 Sep 16, 2021
QIG for PCI Express Multiport Serial Board Series
193.0 KB
QIG v2.2 May 19, 2021 May 19, 2021
Manual for CP-118EL-A
12.1 MB
Manual v11.3 Dec 31, 2019 Dec 31, 2019
2D CAD for CP-118EL-A TOP
835.0 KB
2D CAD May 14, 2012 May 14, 2012

Available Models (1)

Show Images

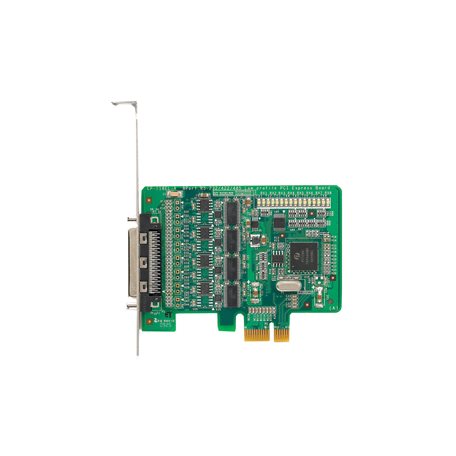

moxa-cp-118el-a-image.jpg | MoxaCP-118EL-A w/o Cable
