CP-132N Series

2-port RS-422/485 Mini PCI Express boards

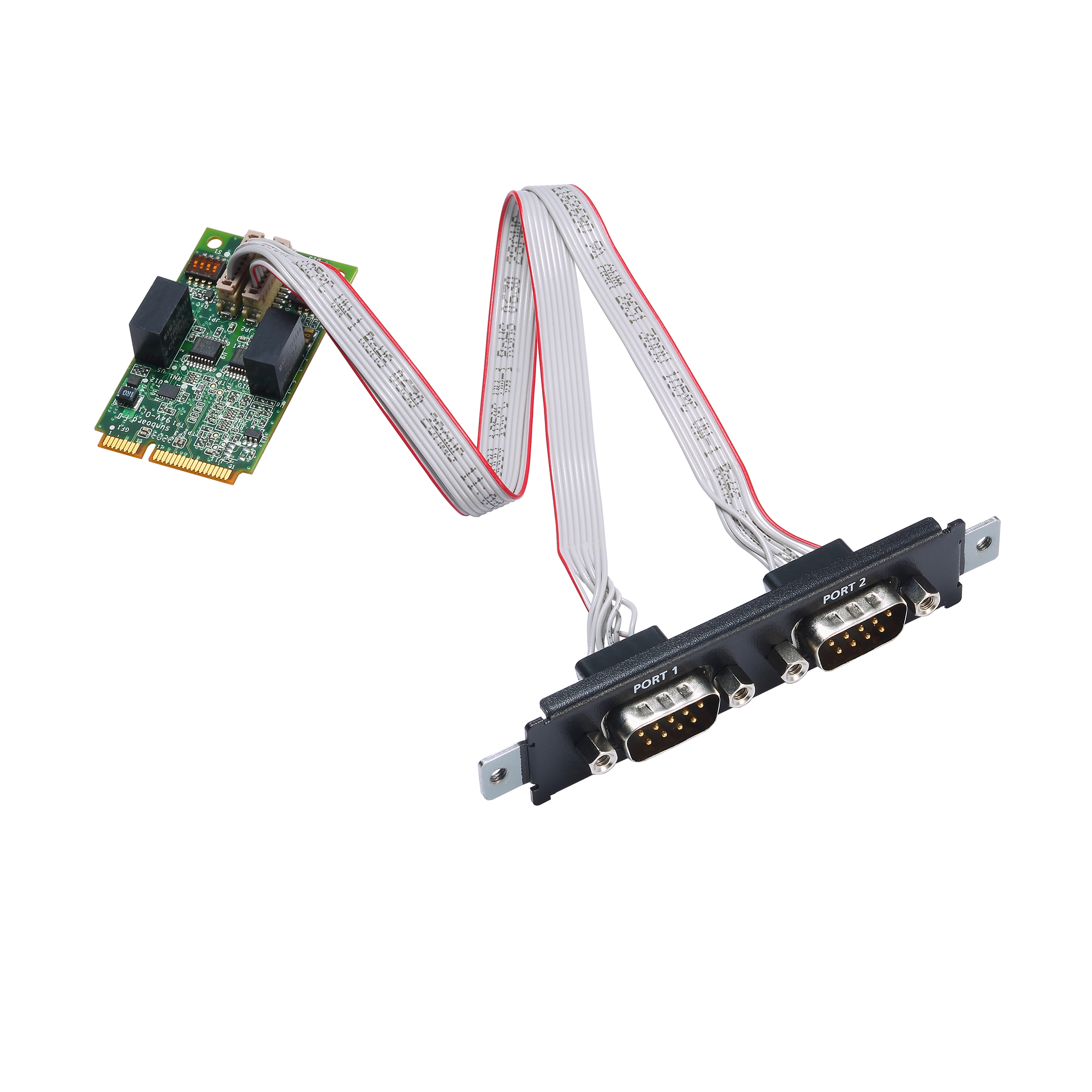

moxa-cp-132n-series-image-(1).jpg | Moxa

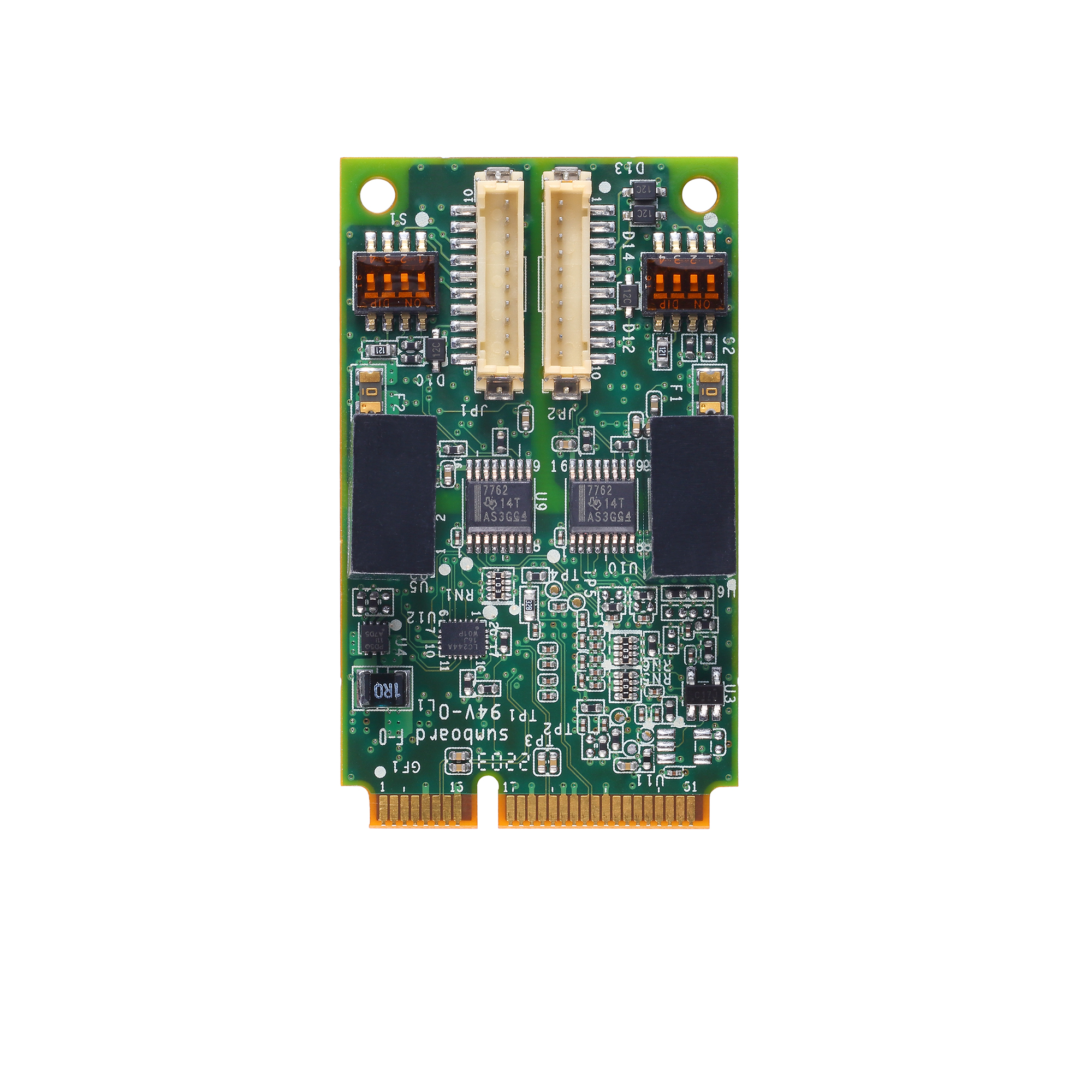

moxa-cp-132n-series-image-1-(1).jpg | Moxa

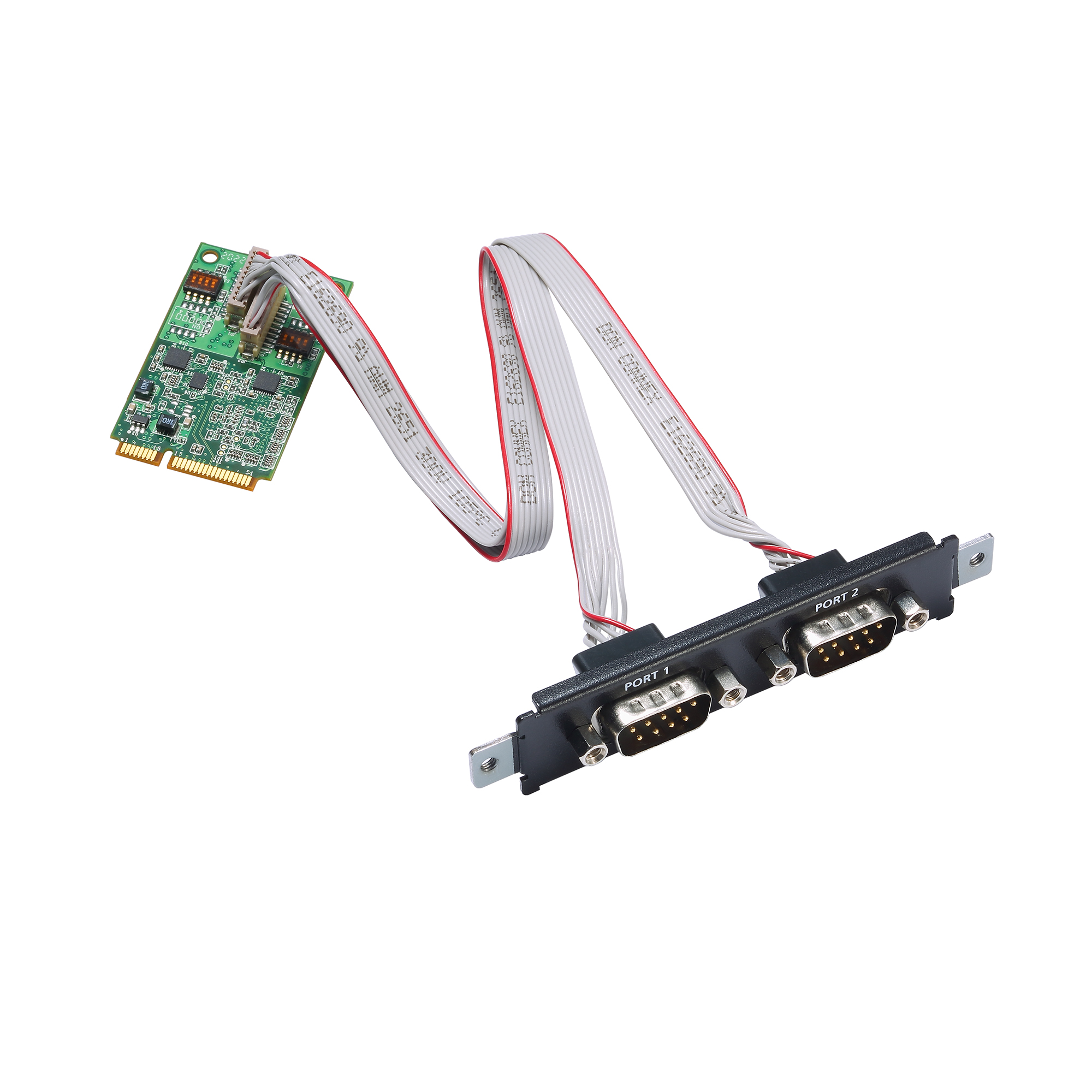

moxa-cp-132n-series-image-2-(1).jpg | Moxa

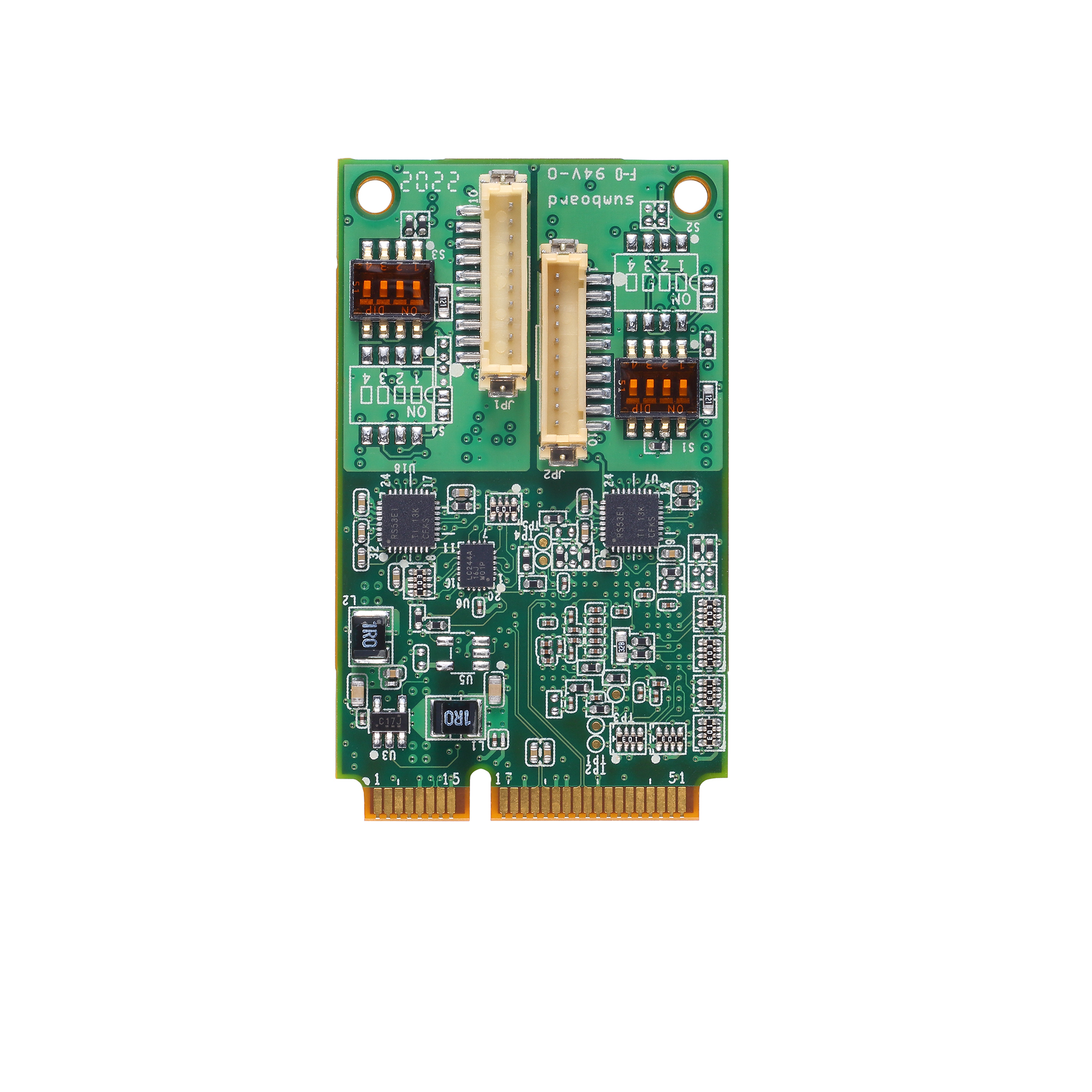

moxa-cp-132n-series-image-3-(1).jpg | Moxa

Features and Benefits

  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-132N is a Mini PCI Express multiport serial board designed for various applications and users such as system integrators and industrial automation system and industrial PC manufacturers.

The CP-132N is compatible with most popular operating systems and supports data rates up to 921.6 kbps. It also provides 1 kV line-to-line surge protection and 2.5 kV isolation (for the I model), ensuring compatibility with a wide range of industrial environments. Furthermore, the CP-132N is embedded with a DIP switch for easy adjusting of the terminal and pull-high/low resistors for various environments and applications.

RS-485 Multidrop for up to 31 Devices Within 1.2 km

The CP-132N Series boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132N-I-T model, which comes with 2.5 kV electrical isolation protection to prevent equipment damage.

A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market

Moxa’s new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes Isolated and non-Isolated RS-232/422/485 communication cards for various applications.

The serial boards feature high performance 16C950 compatible UARTs and are available in 4-port and 2-port versions compatible with all popular operating systems. They support data rates of up to 921.6 kbps and have 128-byte transmit and receive FIFOs. The serial boards can operate in the -40 to 85˚C temperature range. Door brackets are included in the package for all models, enabling the installation of the serial boards in a Moxa IPC expansion slot.

  • Comm. Controller

    16C550C compatible

  • Bus

    Mini PCI Express

  • Connector

    DB9 male

  • FIFO

    128 bytes

  • No. of Ports

    2

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Flow Control

    None
    XON/XOFF

  • Serial Standards

    RS-422
    RS-485

  • Isolation

    I models: 2.5 kV

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    Windows 11, 10, 8.1, 8, 7, 2008, Vista, 2003, XP
    Windows Server 2022, 2019 (64-bit), 2016, 2012 R2, 2012, 2008 R2
    Windows Embedded CE 6.0 and 5.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 5.x
    Linux kernel 4.x

  • Input Current

    CP-132N-T: 487 mA @ 3.3 VDC
    CP-132N-I-T: 533 mA @ 3.3 VDC

  • Dimensions

    30 x 50.95 mm (1.18 x 2 in)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    CP-132N-T: 4,128,967 hrs
    CP-132N-I-T: 3,583,931 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
Driver
SHA-512
v6.0
  • Linux Kernel 6.x
Jul 31, 2023 Jul 31, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Jan 17, 2023 Jan 17, 2023 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
Sep 06, 2022 Sep 06, 2022 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 11 and Windows Server 2022)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
Driver for Linux kernel 5.x.x
152.9 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Linux kernel 4.x.x
154.1 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes

Support Documents

Name Type Version Release Date
Datasheet for CP-132N Series
1.0 MB
Datasheet v1.1 Jul 02, 2024 Jul 02, 2024
Mini PCI Express Multiport Serial Board Series Quick Installation Guide
4.3 MB
QIG v1.1 Jan 30, 2023 Jan 30, 2023
Mini PCI Express Multiport Serial Board Series User Manual
10.9 MB
Manual v1.0 Jan 17, 2023 Jan 17, 2023

Available Models (2)

Show Images

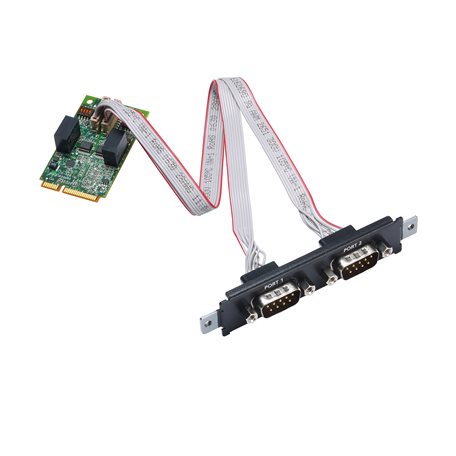

moxa-cp-132n-i-t-image.jpg | MoxaCP-132N-I-Tmoxa-cp-132n-t-image.jpg | MoxaCP-132N-T
Serial StandardsRS-422/485RS-422/485
No. of Serial Ports22
Serial Isolation Protection2.5 kV
