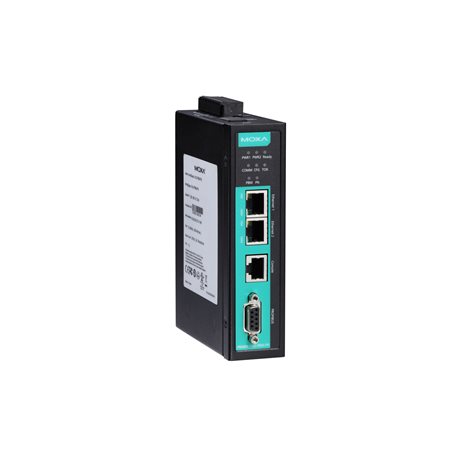

MGate 5102-PBM-PN-T
MGate 5102-PBM-PN Series

1-port PROFIBUS-to-PROFINET gateway, 12-48 VDC, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (auto MDI/MDI-X connection)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console
  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client
  • Industrial Protocols

    • PROFINET IO Device
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Serial Software Features
  • Configuration Options

    • Serial Console
  • Industrial Protocols

    • PROFIBUS DP-V1 Master
PROFIBUS Interface
  • Industrial Protocols

    • PROFIBUS DP
  • No. of Ports

    • 1
  • Connector

    • DB9 female
  • Baudrate

    • 9600 bps to 12 Mbps
  • Isolation

    • 2 kV (built-in)
  • Signals

    • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
PROFIBUS
  • Mode

    • DP-V1 Master
  • Input Data Size

    • 1024 bytes
  • Output Data Size

    • 1024 bytes
PROFINET
  • Mode

    • IO Device
  • Max. No. of IO Controller Connections

    • 1 (for read/write)
  • Input Data Size

    • 1024 bytes
  • Output Data Size

    • 1024 bytes
Memory
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 430 mA @ 12 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
  • Weight

    • 500 g (1.10 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 60950-1, UL 508
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF
  • Time

    • 980,417 hrs
  • Standards

    • Telcordia SR332
