NPort IA5000A-I/O Series

1/2-port RS-232/422/485 device server with 6 or 12 digital I/Os

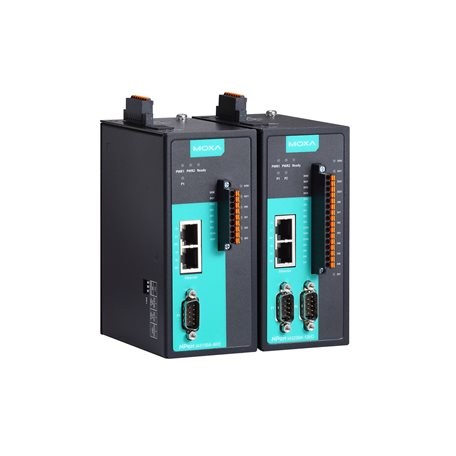

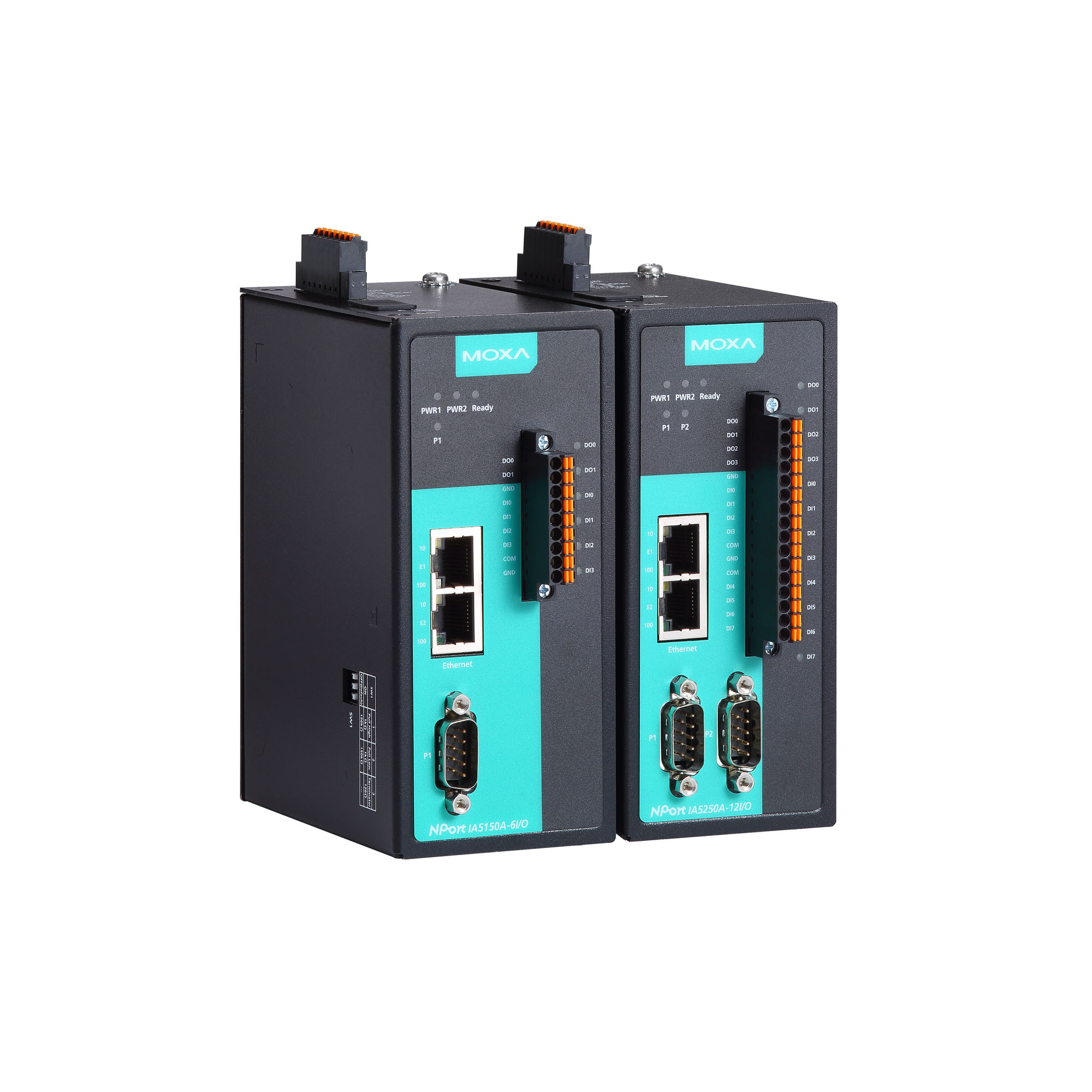

moxa-nport-ia5000a-i-o-series-image-1-(1).jpg | Moxa

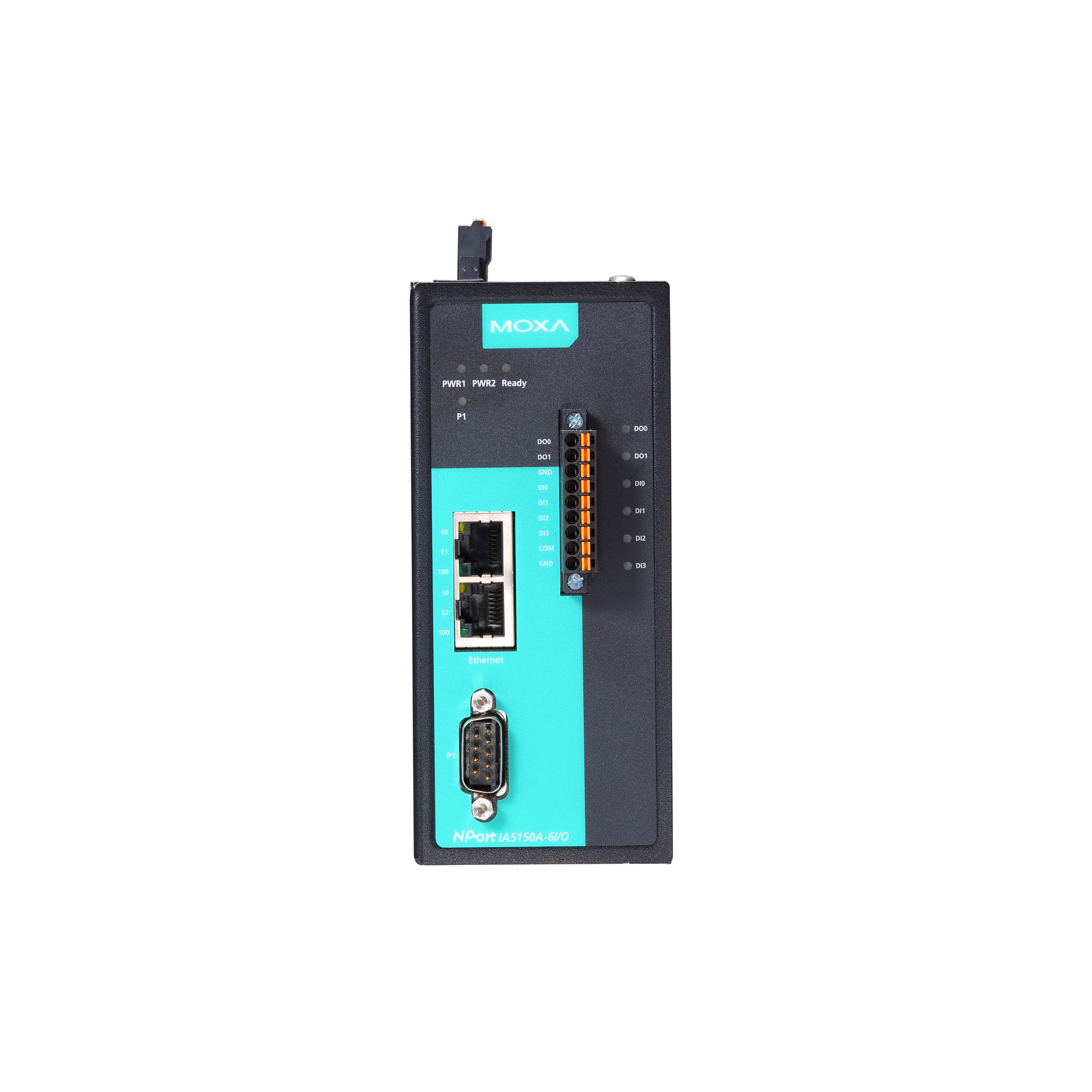

moxa-nport-ia5000a-i-o-series-image-2-(1).jpg | Moxa

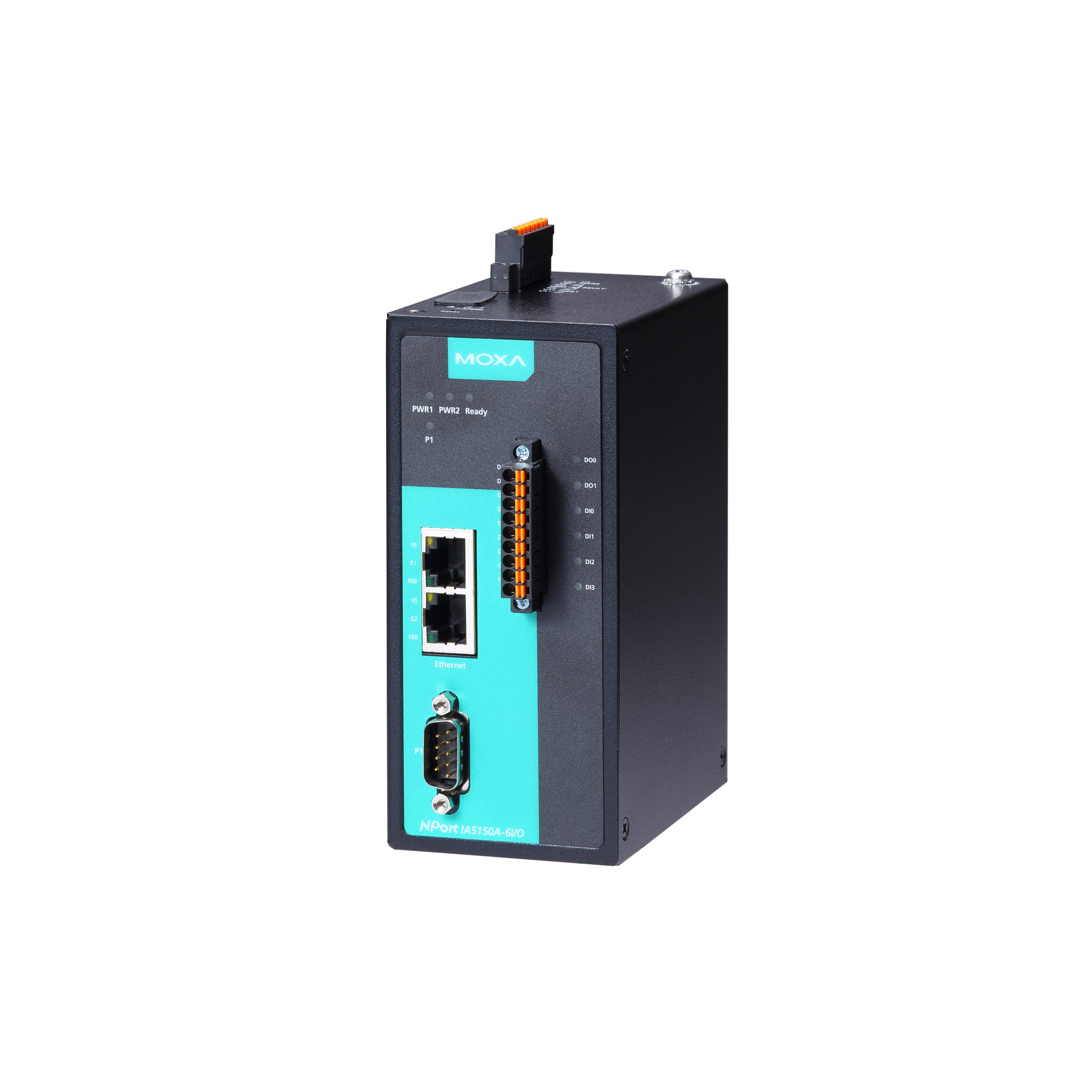

moxa-nport-ia5000a-i-o-series-image-3-(1).jpg | Moxa

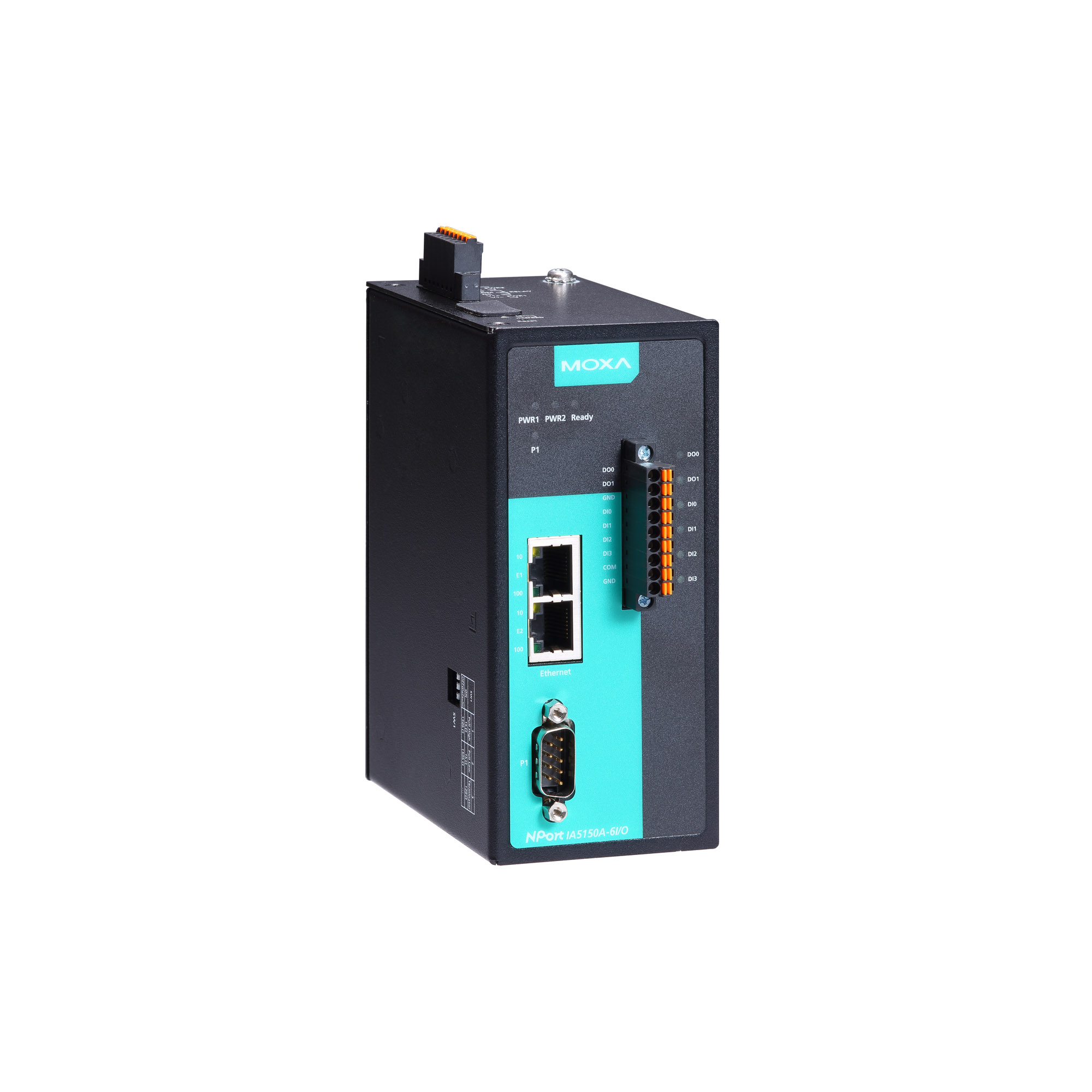

moxa-nport-ia5000a-i-o-series-image-4-(1).jpg | Moxa

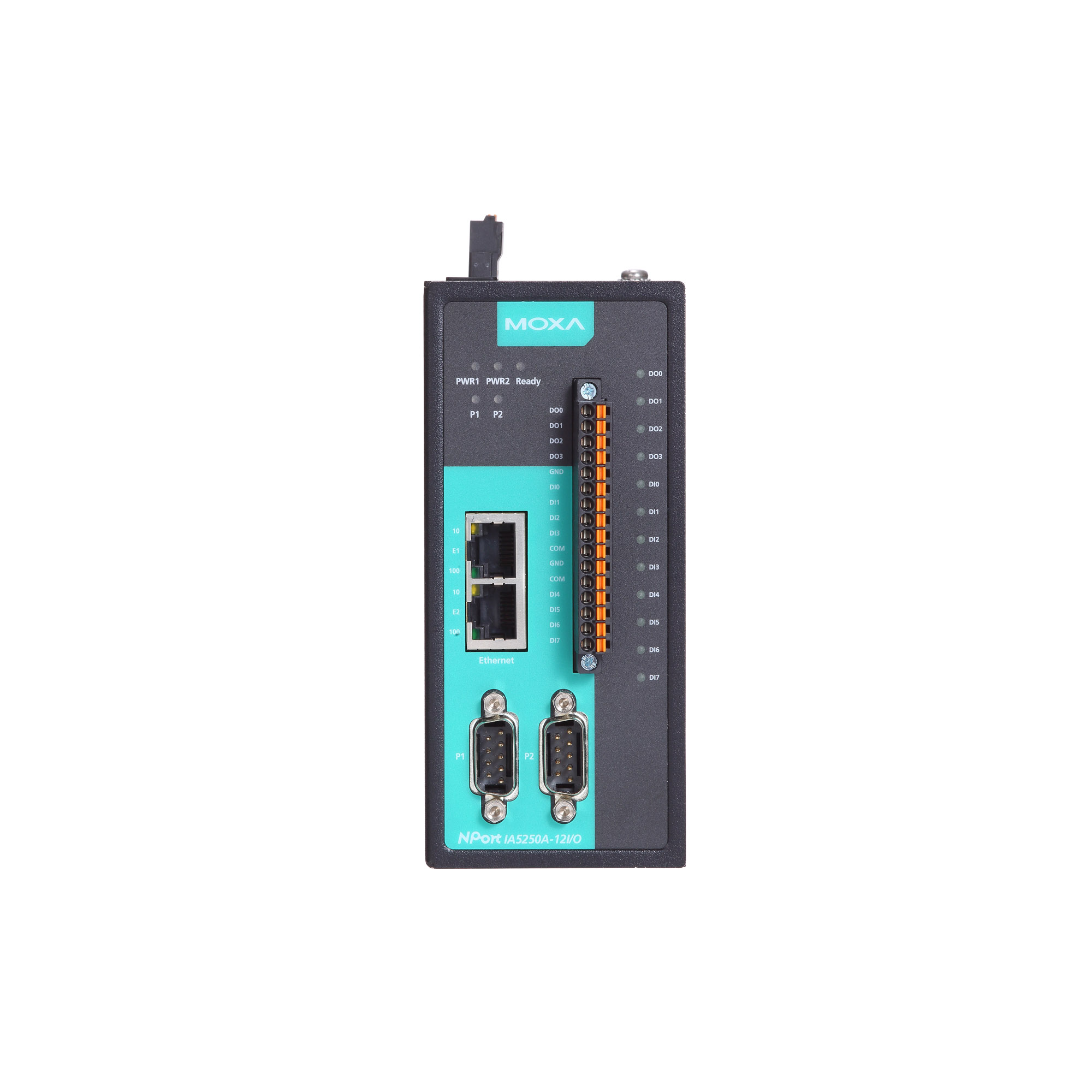

moxa-nport-ia5000a-i-o-series-image-5-(1).jpg | Moxa

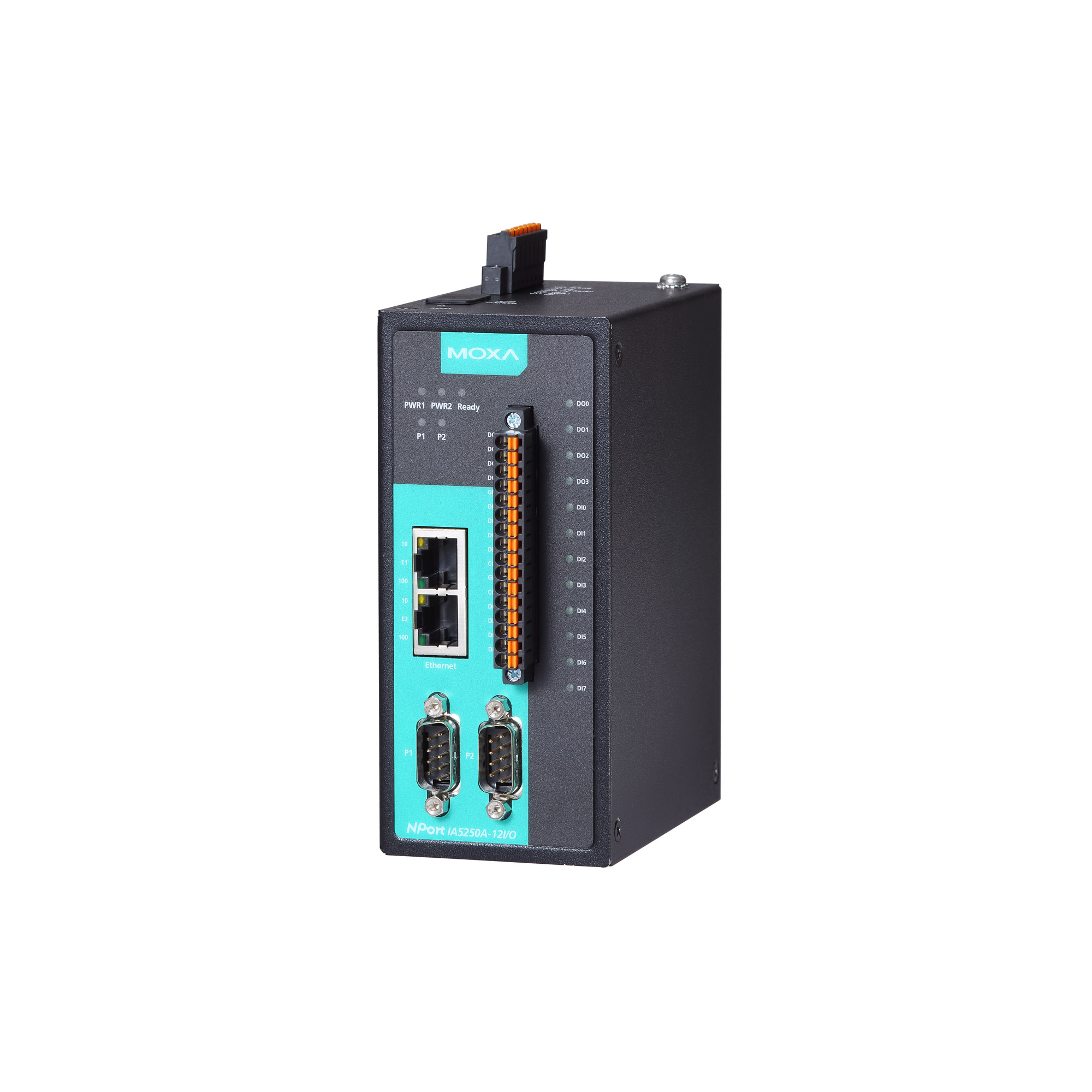

moxa-nport-ia5000a-i-o-series-image-6-(1).jpg | Moxa

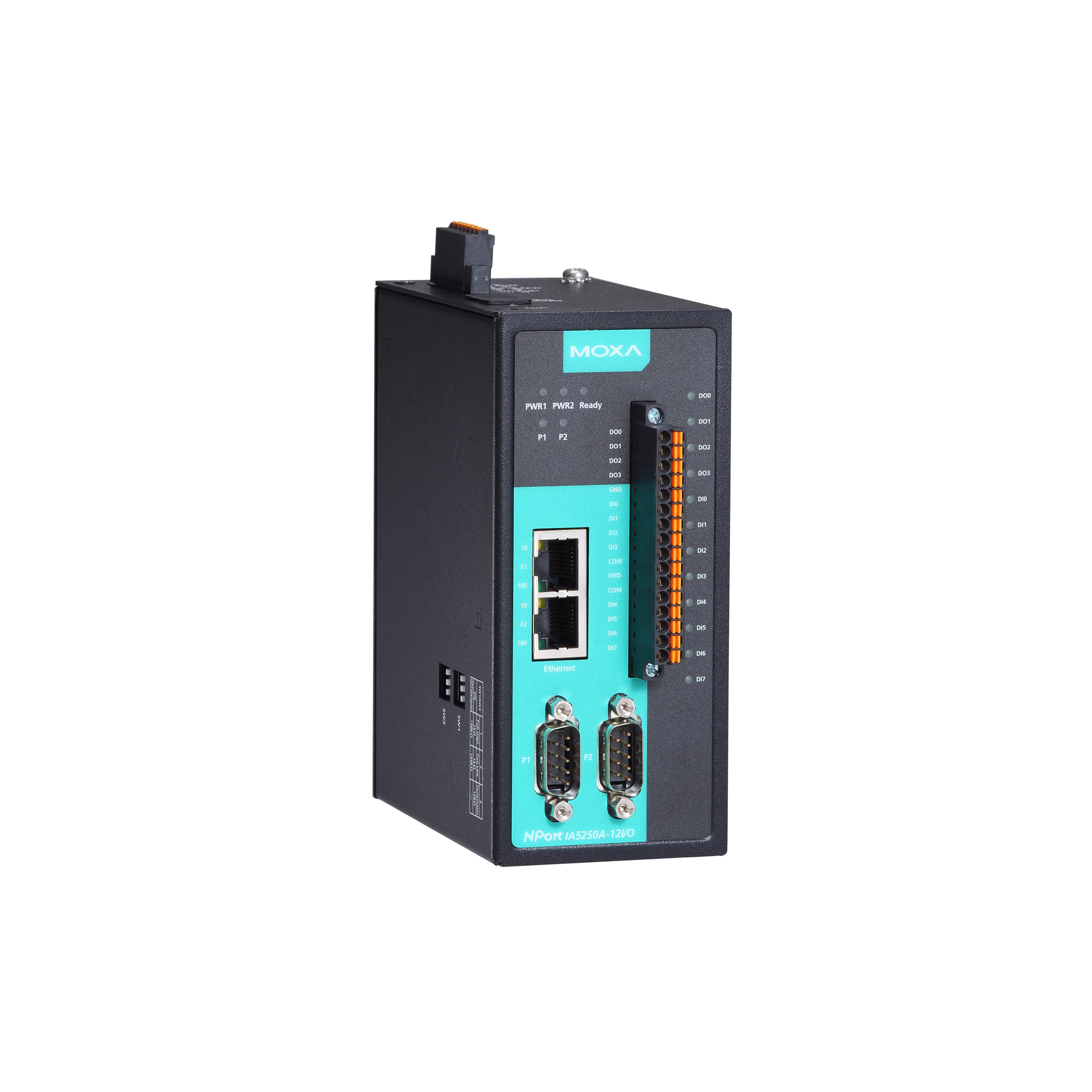

moxa-nport-ia5000a-i-o-series-image-7-(1).jpg | Moxa

Features and Benefits

  • 6 or 12 digital I/Os to collect local data for status monitoring
  • Connects serial/I/O data to the cloud through generic MQTT
  • Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
  • Supports MQTT connection with TLS and certificate in JSON and Raw data format
  • microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
  • Supports repackaging the serial data size (up to 4K) to save the packet numbers that need to be sent to the cloud platform
  • Redundant dual DC power inputs and relay output
  • Cascading Ethernet ports for easy wiring
  • Warnings and alerts by relay output and email
  • 4 kV serial surge protection

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort IA5000A-I/O serial device servers, which have built-in digital I/Os, provide maximum flexibility when you need to integrate serial equipment in the field with an Ethernet network or cloud platform. The cloud-ready device server can communicate with IIoT applications, using generic MQTT or third-party cloud services, such as Azure and Alibaba Cloud. The combination of digital I/Os makes the device servers well-suited for a variety of industrial data acquisition applications. The DI/Os on the device can be controlled over TCP/IP using the Modbus TCP protocol and can be configured and secured from a web browser. The device can also be installed as a COM Port (patented Real COM) on a Windows/Linux PC to make it compatible with legacy applications.

All models are ruggedly constructed, DIN-rail mountable, and designed with redundant power inputs to ensure uninterrupted operation for industrial applications.

Cascading Ethernet Ports Make Wiring Easy

The NPort IA5000A-I/O device servers come with two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

Supports MTConnect Protocol for Monitoring Digital Inputs

MTConnect is designed specifically for shop-floor applications that aim to convert shop-floor data into a standard format that can be understood by any MTConnect-compliant software applications. Once the data has been defined by an MTConnect-compliant interface (name, type, description, etc.), it eliminates the need to redefine the data within each application. For those legacy machine tools that do not support MTConnect, the common practice is to get machine-related data through sensor connections and I/Os. Moxa NPort IA5000A-I/O supports MTConnect-enabled capability for all digital inputs on the device and provides a configurable interface for users to define what data and appropriate MTConnect tags need to be tied to the digital inputs.

Secure Remote Management and Configuration with SSH/HTTPS

Unauthorized access is one of the biggest headaches for system managers. In addition to IP filtering and password protection, the NPort IA5000A-I/O also supports SSH and HTTPS to provide protection from hackers. To transmit control messages securely, open the web console using a web browser that supports HTTPS (Internet Explorer, for example). You may also open the serial or Telnet console, such as PuTTY, using a terminal emulator that supports SSH.

Select Any Baudrate Between 50 bps and 921.6 kbps

Most device servers only support a fixed number of serial baudrates. However, some applications require special baudrates, such as 250 kbps or 500 kbps. With the NPort IA5000A-I/O, you can use any baudrate between 50 and 921.6 kbps. If your device’s baudrate is not a standard baudrate, select “other” from the drop-down list and then enter the baudrate.

  • Digital Input Channels

    -6I/O models: 4
    -12I/O models: 8

  • Digital Output Channels

    -6I/O models: 2
    -12I/O models: 4

  • Isolation

    3k VDC or 2k Vrms

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Dry Contact

    On: short to GND
    Off: open

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • I/O Mode

    DI or event counter

  • Counter Frequency

    20 Hz

  • Digital Filtering Time Interval

    Software configurable

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Over-Current Protection

    2.6 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    45 VDC

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    MQTT, MTConnect

  • Configuration Options

    Web Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial Console

  • Management

    DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • MIB

    MIB-II

  • Connector

    DB9 male

  • No. of Ports

    NPort IA5150A models: 1
    NPort IA5250A models: 2

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Surge

    4 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Mode

    Alibaba IoT Platform Device, Azure IoT Hub Device, Publisher/ Subscriber of MQTT

  • Version Supported

    v3.1.1

  • QoS Level

    QoS 0, 1, 2

  • Secure Transmission

    TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key

  • MQTT General Features

    Retain Message, Clean Session, Keep Alive, Last Will Message

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Connection

    Removable terminal block

  • Input Current

    300 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions

    59.6 x 101.4 x 134 mm (2.35 x 4 x 5.28 in)

  • Weight

    Packaged:
    NPort IA5150A-6I/O: 910 g (2.01 lb)
    NPort IA5150A-12I/O: 920 g (2.03 lb)
    NPort IA5250A-6I/O: 920 g (2.03 lb)
    NPort IA5250A-12I/O: 930 g (2.05 lb)

    Product only:
    NPort IA5150A-6I/O: 740 g (1.63 lb)
    NPort IA5150A-12I/O: 750 g (1.65 lb)
    NPort IA5250A-6I/O: 750 g (1.65 lb)
    NPort IA5250A-12I/O: 760 g (1.68 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: Ethernet: 2 kV, Serial: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 60950-1, UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort IA5150A-6I/O: 456,558 hrs
    NPort IA5150A-12I/O: 337,987 hrs
    NPort IA5250A-6I/O: 433,352 hrs
    NPort IA5250A-12I/O: 325,408 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
