NPort 5400 Series

4-port RS-232/422/485 serial device servers

moxa-nport-5400-series-image-1-(1).jpg | Moxa
moxa-nport-5400-series-image-2-(1).jpg | Moxa
moxa-nport-5400-series-image-3-(1).jpg | Moxa
moxa-nport-5400-series-image-4-(1).jpg | Moxa
moxa-nport-5400-series-image-5-(1).jpg | Moxa
moxa-nport-5400-series-image-6-(1).jpg | Moxa
moxa-nport-5400-series-image-7-(1).jpg | Moxa

Features and Benefits

  • User-friendly LCD panel for easy installation
  • Adjustable termination and pull high/low resistors
  • Socket modes: TCP server, TCP client, UDP
  • Configure by Telnet, web browser, or Windows utility
  • SNMP MIB-II for network management
  • 2 kV isolation protection for NPort 5430I/5450I/5450I-T
  • -40 to 75°C operating temperature range (-T model)

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

Network Readiness for up to 4 Serial Devices

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.

Independent Operation Mode for Each Serial Port

NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.

User-Friendly LCD Panel for Easy Installation

An LCD panel is built into the NPort® 5400’s top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)

Dual DC Power Inputs

NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.

Adjustable Termination and Pull High/Low Resistors

The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Telnet Console, Windows Utility, Web Console (HTTP/HTTPS)

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • Time Management

    SNTP

  • Connector

    NPort 5410/5450/5450-T/5450I/5450I-T: DB9 male
    NPort 5430/5430I: Terminal block

  • No. of Ports

    4

  • Serial Standards

    NPort 5410: RS-232
    NPort 5430 Series: RS-422, RS-485
    NPort 5450 Series: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Isolation

    2 kV isolation for NPort 5430I/5450I/5450I-T

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Terminator for RS-485

    120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5410/5450/5450-T: 350 mA @ 12 VDC
    NPort 5430: 320 mA @ 12 VDC
    NPort 5430I: 530 mA @ 12 VDC
    NPort 5450I/5450I-T: 554 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    2

  • Power Connector

    1 removable 3-contact terminal block(s)
    Power input jack

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)

  • Dimensions (without ears)

    158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)

  • Weight

    740 g (1.63 lb)

  • Interactive Interface

    LCD panel display (standard temp. models only)
    Push buttons for configuration (standard temp. models only)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Maritime

    DNV-GL (standard temp. models only)

  • Medical

    EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only)

  • Safety

    UL 60950-1

  • Time

    NPort 5410: 310,331 hrs
    NPort 5430/5430I: 265,650 hrs
    NPort 5450/5450I: 206,903 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Firmware for NPort 5400 Series (Rev. 3.x)
817.4 KB
Firmware v3.13
2019-03-28 Mar 28, 2019 Release notes
NPort Administration Suite
4.0 MB
Driver v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019-03-28 Mar 28, 2019 Release notes
NPort Administration Suite
4.0 MB
Driver v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2019-03-28 Mar 28, 2019 Release notes
MXview Trial Version
331.7 MB
Software Package v3.0
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
2019-03-21 Mar 21, 2019 Release notes
NPort Administration Suite for Windows 7, Server 2008 R2 or later
4.1 MB
Driver v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2019-02-11 Feb 11, 2019 Release notes
NPort Administration Suite for Windows Vista, Server 2008 or prior
4.1 MB
Driver v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019-02-11 Feb 11, 2019 Release notes
Windows Driver Manager
2.7 MB
Driver v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
2019-01-22 Jan 22, 2019 Release notes
Windows Driver Manager
2.6 MB
Driver v2.0
  • Windows 2000
  • Windows 2000
  • Windows 95
  • Windows 95
  • Windows 98
  • Windows 98
  • Windows 98 SE
  • Windows 98 SE
  • Windows ME
  • Windows ME
  • Windows NT
  • Windows NT
  • Windows Server 2003
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008
  • Windows Vista
  • Windows Vista
  • Windows XP
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Device Server Android API
18.1 MB
Driver v1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Real TTY drivers for Linux 2.4.x, 2.6.x
92.8 KB
Driver v1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Real TTY drivers for Linux 3.x.x, 4.x.x
88.6 KB
Driver v1.19
  • Linux 3.x
  • Linux 4.x
2017-11-15 Nov 15, 2017 Release notes
Device Search Utility
1.1 MB
Utility v2.2
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Vista
  • Windows XP
2017-09-04 Sep 04, 2017 Release notes
NPort Administration Suite
4.0 MB
Driver v1.22
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Vista
  • Windows XP
2016-10-27 Oct 27, 2016 Release notes
MXview plugin for NPort 5000 Series
264.3 KB
Software Package v2.2.1
2012-12-25 Dec 25, 2012 Release notes
Driver for NPort 5400 Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-14 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012-05-13 May 13, 2012 Release notes
Driver for NPort 5400 Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-04 Apr 04, 2012 Release notes
Driver for NPort 5400 Series (UNIX)
73.0 KB
Driver v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2012-03-19 Mar 19, 2012 Release notes
Firmware for NPort 5400 Series (Rev. 1.x/2.x)
484.3 KB
Firmware v2.9
2011-09-12 Sep 12, 2011 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort 5400 Series
2.4 MB
Datasheet v1.1 2019-07-11 Jul 11, 2019
Manual for NPort 5400 Series
16.2 MB
Manual v5.0 2019-04-01 Apr 01, 2019
QIG for NPort 5400 Series
906.2 KB
QIG v7.0 2016-04-15 Apr 15, 2016
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 2014-11-17 Nov 17, 2014
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 2013-06-29 Jun 29, 2013
Tech Note: Using DNP3 with the NPort Series
1.0 MB
Tech Note v1.0 2012-03-29 Mar 29, 2012
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 2009-05-21 May 21, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 2009-05-21 May 21, 2009
3D CAD for NPort 5430
713.0 KB
3D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5450I
655.2 KB
3D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5410
219.2 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5430
236.6 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5430I
236.6 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5450
233.5 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5450I
233.5 KB
2D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5400 ASM
475.6 KB
3D CAD 1995-08-03 Aug 03, 1995

Available Models (7)

Show Images

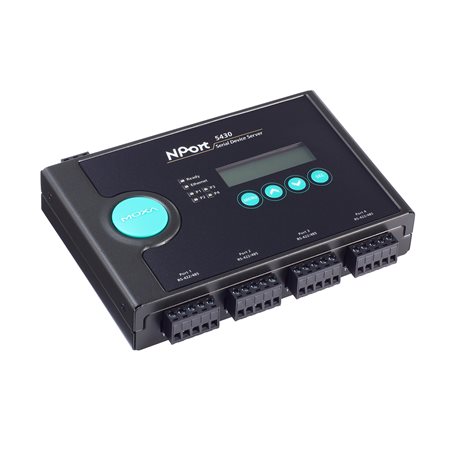

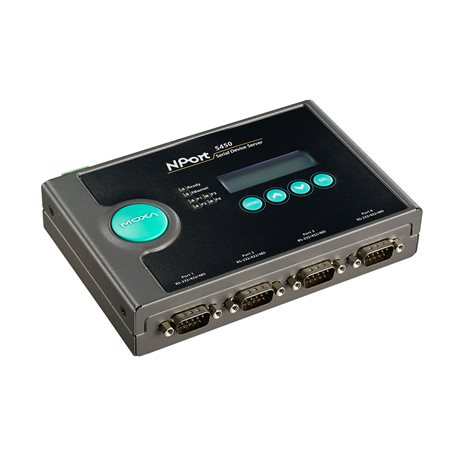

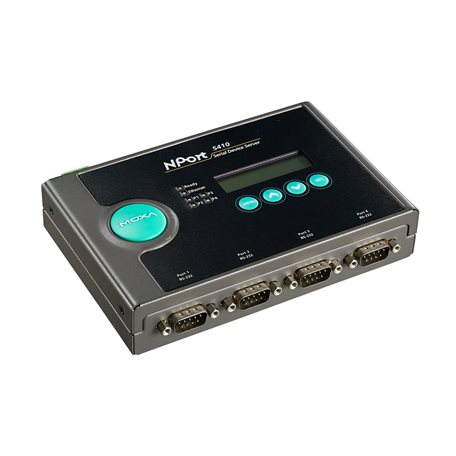

moxa-nport-5410-image.jpg | MoxaNPort 5410moxa-nport-5430-image.jpg | MoxaNPort 5430moxa-nport-5430i-image.jpg | MoxaNPort 5430Imoxa-nport-5450-image.jpg | MoxaNPort 5450
Serial InterfaceRS-232RS-422/485RS-422/485RS-232/422/485
Serial Interface ConnectorDB9 maleTerminal blockTerminal blockDB9 male
Serial Interface Isolation2 kV
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Input Voltage12 to 48 VDC12 to 48 VDC12 to 48 VDC12 to 48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

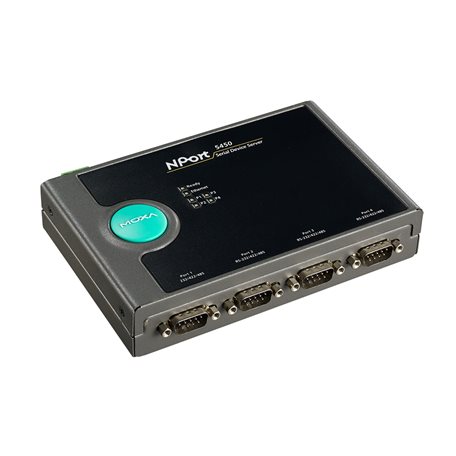

moxa-nport-5450-t-image.jpg | MoxaNPort 5450-Tmoxa-nport-5450i-image.jpg | MoxaNPort 5450Imoxa-nport-5450i-t-image.jpg | MoxaNPort 5450I-T
Serial InterfaceRS-232/422/485RS-232/422/485RS-232/422/485
Serial Interface ConnectorDB9 maleDB9 maleDB9 male
Serial Interface Isolation2 kV2 kV
Operating Temp.-40 to 75°C0 to 55°C-40 to 75°C
Input Voltage12 to 48 VDC12 to 48 VDC12 to 48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

NPort 5400 Series

NPort 5410

moxa-nport-5410-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5430

moxa-nport-5430-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5430I

moxa-nport-5430i-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5450

moxa-nport-5450-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5450-T

moxa-nport-5450-t-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5450I

moxa-nport-5450i-image.jpg | Moxa

Buy online from our distributors

NPort 5400 Series

NPort 5450I-T

moxa-nport-5450i-t-image.jpg | Moxa

Buy online from our distributors
